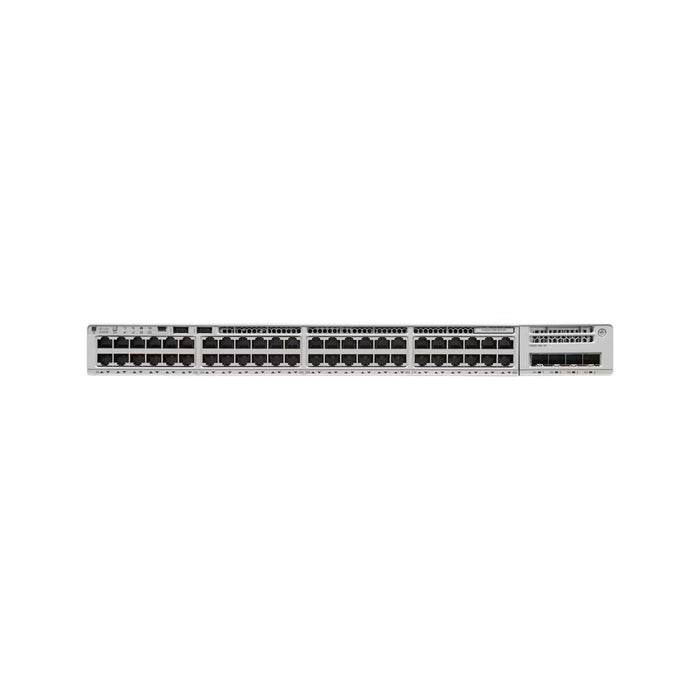

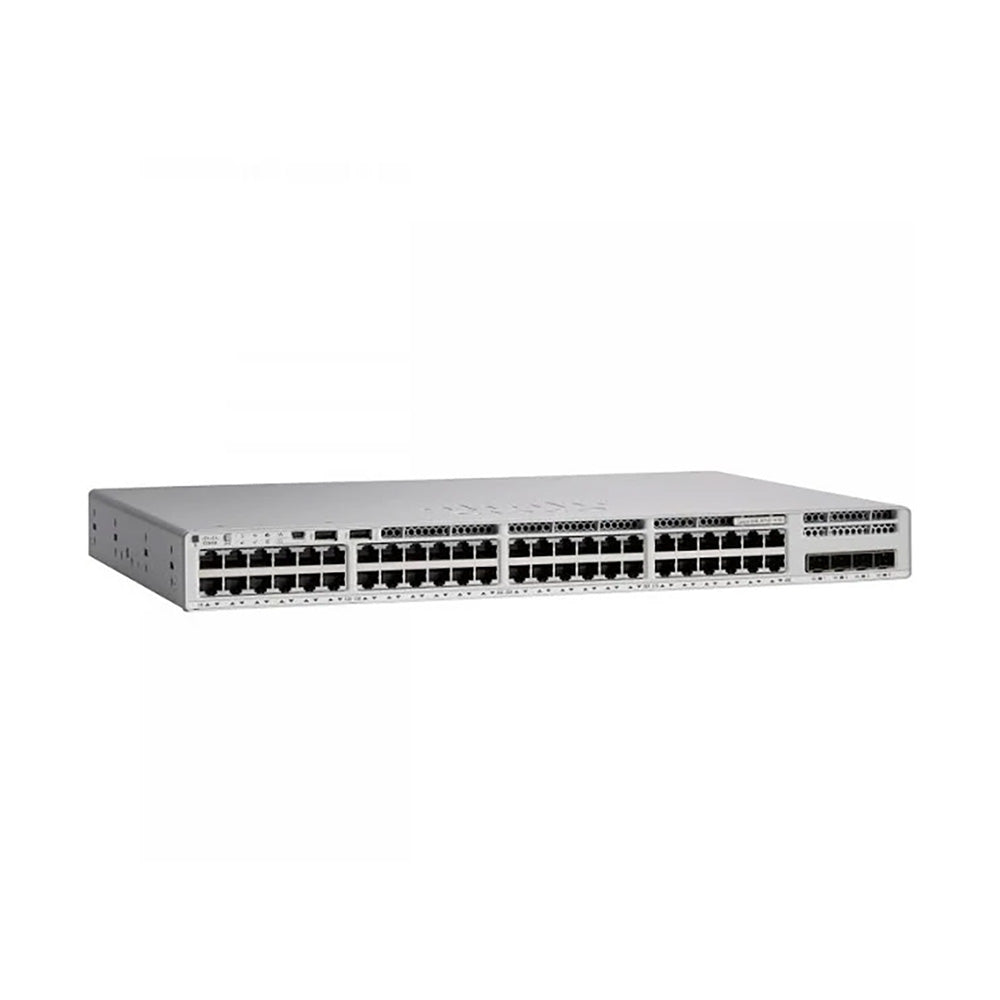

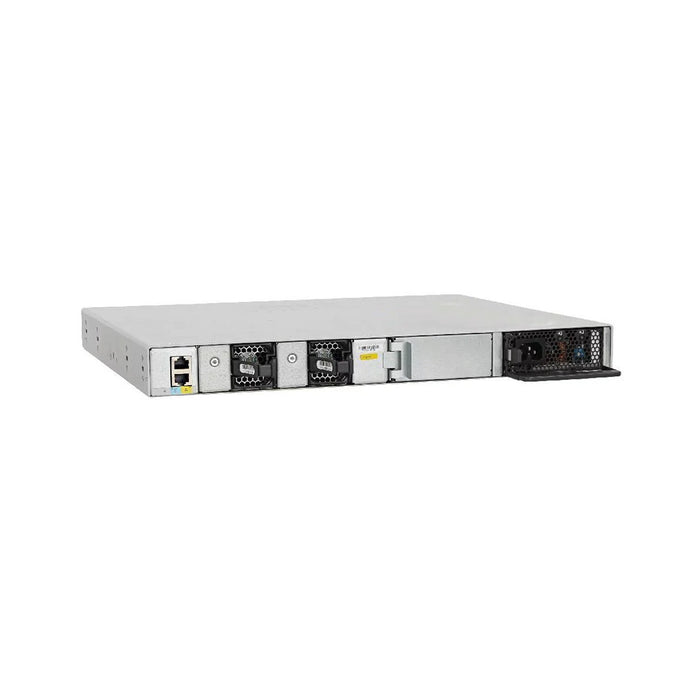

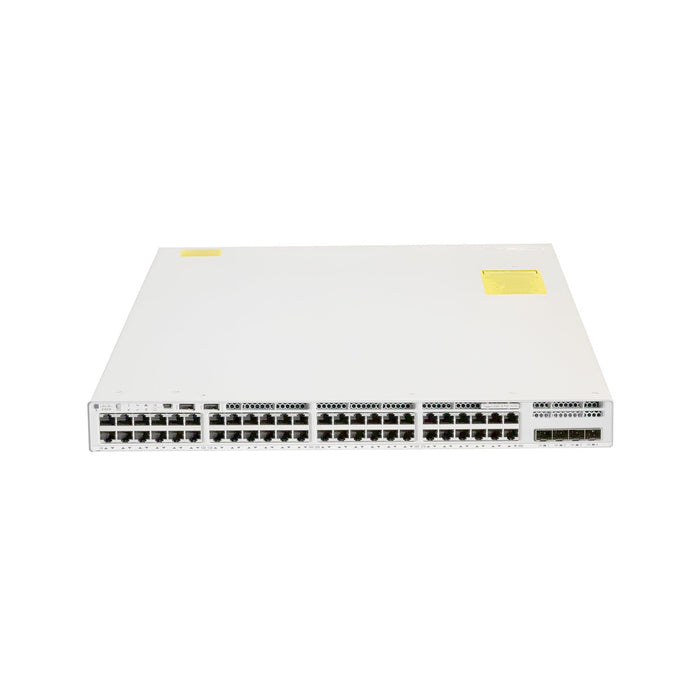

Cisco Catalyst C9200L-48P-4X-A | 48-Port Full PoE+ | 4×10G SFP+ Uplinks | Network Advantage License | StackWise-80
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Cisco Catalyst C9200L-48P-4X-A | 48-Port Full PoE+ | 4×10G SFP+ Uplinks | Network Advantage License | StackWise-80
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Why Choose C9200L-48P-4X-A?
-
Network Advantage License: Unlocks full Layer 3 routing (EIGRP, IS-IS, HSRP) and advanced segmentation (VRF, VXLAN, LISP, SGT), ideal for multi-service isolation, complex multi-site routing, and SD-Access deployments.
-
10G Uplink Bottleneck-Free: Four fixed 10G SFP+ uplinks provide high-speed uplink from access to aggregation, handling Wi-Fi 6/6E traffic effortlessly.
-
Reliable PoE Power: Base PWR-C5-1KWAC power supply delivers 740W PoE, optional second PSU boosts to 1440W for full-port redundancy.
-
Enhanced Security: Hardware AES-128 MACsec, Secure Boot, and Trust Anchor protect switch-to-switch traffic and ensure supply chain trustworthiness.
-
Energy Efficient: ENERGY STAR® certified, supports IEEE 802.3az (EEE), dynamically adjusting power per port for lower OPEX.
Overview
The Cisco Catalyst C9200L-48P-4X-A is the performance core of the Catalyst 9200L fixed-configuration series, designed for enterprises requiring advanced segmentation and automation. Its Network Advantage perpetual license unlocks full Layer 3 routing (EIGRP, IS-IS, HSRP) and advanced segmentation features (VRF, VXLAN, LISP, SGT), making it more than just an access switch - it serves as an SD-Access-capable edge device.
The switch is powered by UADP 2.0 Mini ASIC, providing 176 Gbps non-blocking switching capacity. Using StackWise-80, up to 8 switches can be managed as a single logical unit with a stacked forwarding rate of 190 Mpps. With a base 740W PoE+ budget, it reliably powers high-density Wi-Fi 6 APs, IP cameras, and IoT devices.
Highlights
-
48× PoE+ ports for Wi-Fi 6 APs, IP phones, and IoT devices
-
4×10G SFP+ fixed uplinks for high-bandwidth aggregation
-
StackWise-80: 8-unit stack, 80 Gbps stack bandwidth, 190 Mpps forwarding, sub-second failover
-
PoE+ budget: 740W (single PSU) / 1440W (dual PSU)
-
Security: AES-128 MACsec, Secure Boot, Trust Anchor, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs
-
Advanced monitoring: NBAR2, Flexible NetFlow
-
Layer 3 routing: EIGRP, IS-IS, HSRP, OSPF, RIP
-
SD-Access support: 1 Virtual Network (VN)
-
Management: CLI/Web UI, SNMP, RMON, NETCONF/RESTCONF, PnP, DNA Center, Meraki Dashboard
-
Hardware: 2 GB DRAM / 4 GB Flash, UADP 2.0 Mini ASIC, 1U rack design
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | StackWise-80 kit (2 adapters + 1 stack cable) |
| STACK-T4-50CM/1M/3M | Stack Cable | Type 3 stack cable (0.5/1/3 m) |
| PWR-C5-1KWAC / PWR-C5-1KWAC= | Power Supply | Optional redundant 1 kW AC PSU |
| CAB-TA-NA / CAB-TA-EU | Power Cord | Region-specific AC power cord |
| NS-SFP-10G-SR/LR/ER/ZR | SFP+ Module | 10G uplink optics |
Comparison with Similar Models
| Feature | C9200 Modular | C9200L Fixed (48P) | C9200CX Fixed |
|---|---|---|---|
| Stack Bandwidth | 160 Gbps | 80 Gbps | N/A |
| MAC Table | 32,000 | 16,000 | 32,000 |
| IPv4 Routes | 4,000 | 3,000 | 4,000 |
| IPv6 Routes | 2,000 | 1,500 | 2,000 |
| ACL Entries | 1,600 | 1,500 | 1,600 |
| Packet Buffer | 6-12 MB | 6 MB | 6 MB |
| Flexible NetFlow | 16k-32k | 16k | 16k |
| DRAM | 4 GB | 2 GB | 4 GB |
| Flash | 4-8 GB | 4 GB | 8 GB |
| Virtual Networks | Up to 32 | 1 VN | Up to 8 |
Specifications
| Parameter | Specification | Practical Use / Scenario |
|---|---|---|
| Model | C9200L-48P-4X-A | 48-port full PoE+ fixed switch, Network Advantage |
| Downlink Ports | 48× 10/100/1000 RJ-45 PoE+ | APs, IP phones, cameras, IoT devices |
| Uplink Ports | 4×10G SFP+ | Wi-Fi 6/6E aggregation, high-speed backbone |
| Forwarding Rate | 130.95 Mpps (Standalone) / 190 Mpps (Stacked) | Line-rate handling for high-density enterprise traffic |
| Switching Capacity | 176 Gbps (Standalone) / 256 Gbps (Stacked) | Non-blocking performance, no bottlenecks |
| PoE Budget | 740W (single PSU) / 1440W (dual PSU) | Supports 48 standard PoE devices or 24 Wi-Fi 6 APs |
| Stack Bandwidth | 80 Gbps (StackWise-80) | 8 devices as one logical unit, sub-second failover |
| Advanced Segmentation | VRF, VXLAN, LISP, SGT | Multi-service isolation and enhanced security |
| DRAM / Flash | 2 GB / 4 GB | Supports IOS XE features and stability |
| MAC Address Table | 16,000 entries | Adequate for medium to large office networks |
| Virtual Networks | 1 VN (SD-Access) | Fixed 9200L series limitation |
| MTBF | 346,270 hours | High reliability reduces maintenance risk |
| Weight | 10.58 lbs (4.80 kg) | Lightweight 1U design for rack deployment |
Use Cases & Deployment Suggestions
-
Enterprise Branch Offices: Full PoE+ for Wi-Fi 6 APs, IP phones, cameras, and IoT devices
-
Campus Access Networks: Layer 2/3 access with VLAN segmentation, SD-Access automation
-
Wi-Fi 6/6E Backhaul: 4×10G SFP+ uplinks to eliminate congestion
-
Edge Aggregation / Small Data Centers: Server and AP access, supports L3 routing
-
Smart Buildings / IoT: Video surveillance, sensors, smart lighting, building automation PoE+
