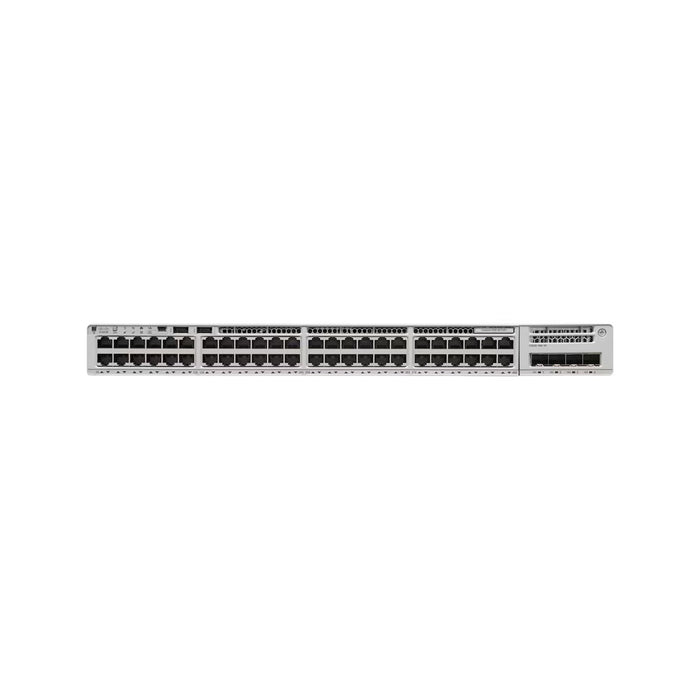

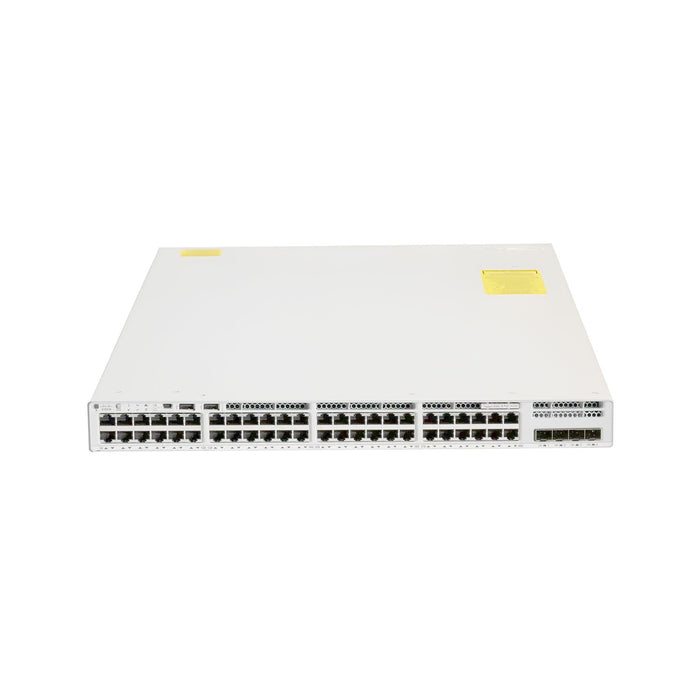

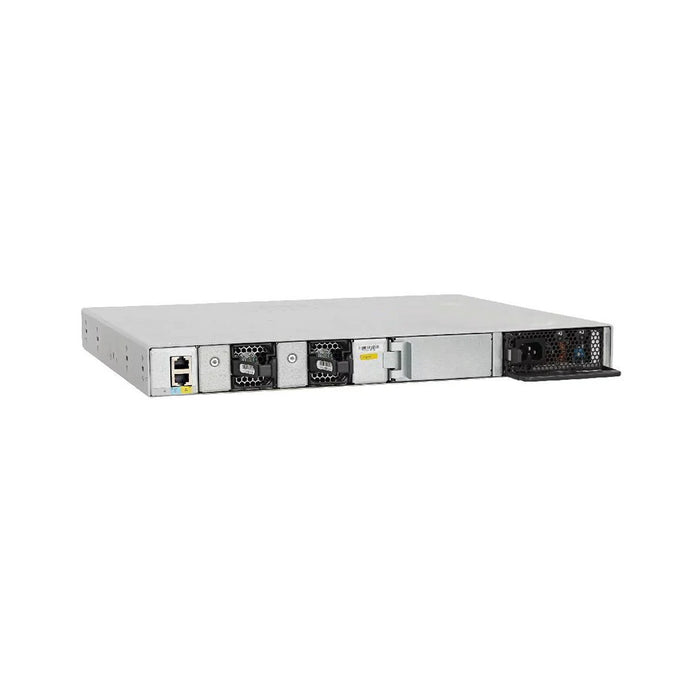

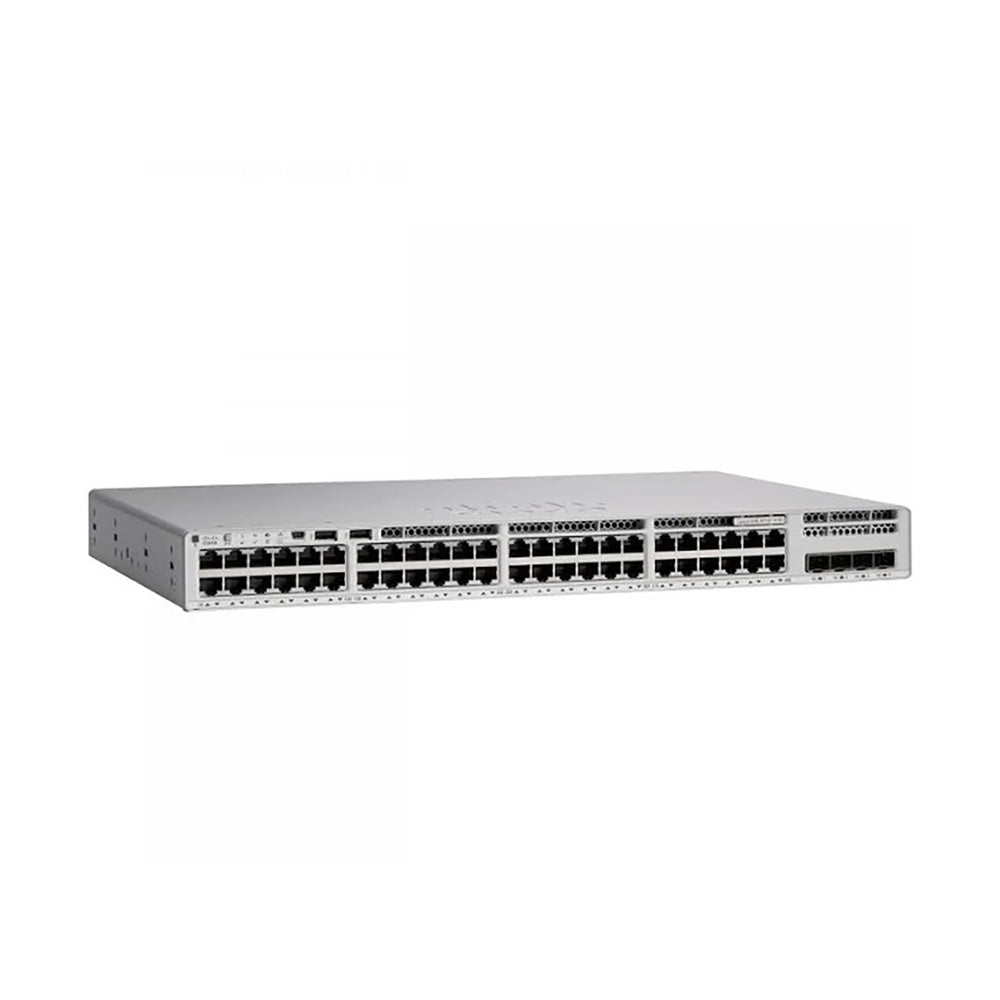

Cisco Catalyst C9200L-48P-4G-E | 48-Port PoE+ Access Switch | 4 x 1G SFP Uplinks | Network Essentials
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Cisco Catalyst C9200L-48P-4G-E | 48-Port PoE+ Access Switch | 4 x 1G SFP Uplinks
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The Cisco Catalyst C9200L-48P-4G-E is a high-demand PoE+ access switch designed for SMBs, branch offices, retail chains, and campus edge deployments that require reliable power delivery and simplified Layer 3 networking.
It provides 48 PoE+ ports (up to 30W per port) with a default 740W PoE budget (PWR-C5-1KWAC), expandable to 1440W, making it ideal for powering Wi-Fi access points, IP cameras, VoIP phones, and IoT devices.
With 104 Gbps switching capacity and 77.38 Mpps forwarding, it ensures stable performance for wireless backhaul, surveillance traffic, and daily business applications.
Running Cisco IOS XE with Network Essentials, it supports Layer 3 routed access including OSPF (up to 1000 routes), EIGRP Stub, RIP, static routing, and PIM Stub multicast, delivering the right balance of simplicity and scalability for standard branch networks.
Highlights
-
48 PoE+ ports (30W per port) for APs, cameras, and phones
-
740W PoE (default), up to 1440W with dual PSU
-

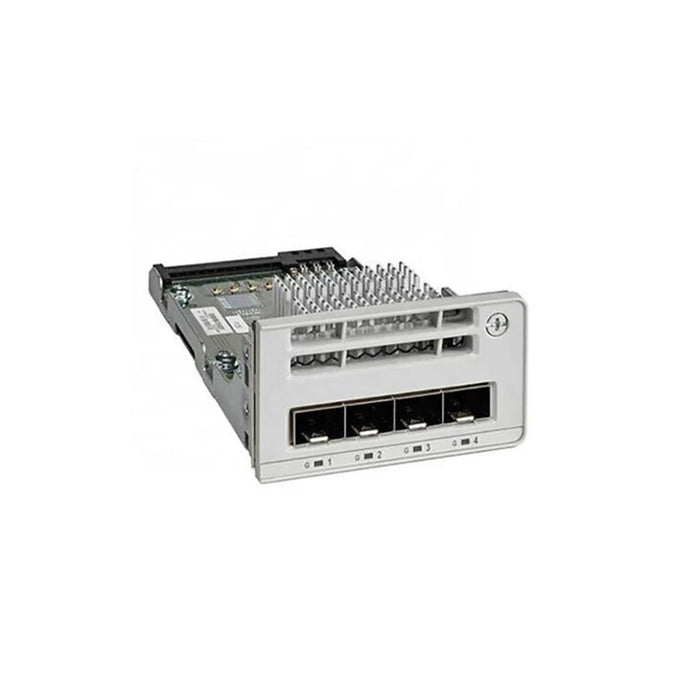

4 1G SFP uplinks for branch and WAN connectivity
-
104 Gbps switching capacity, 77.38 Mpps forwarding rate
-
StackWise-80 (80 Gbps) for scalable deployments
-
OSPF (1000 routes), EIGRP Stub, PIM Stub multicast
-
AES-128 MACsec + Trust Anchor security
-
Energy-efficient (IEEE 802.3az, ENERGY STAR®)
-
Optimized for SMB, retail, Wi-Fi, surveillance, and branch networks
Recommended Accessories
| Model | Description | Use Case |
|---|---|---|
| PWR-C5-1KWAC | 1000W AC PSU (default) | Standard PoE deployment for SMB and branch networks |
| PWR-C5-1KWAC (Secondary) | Redundant PSU | Increase PoE budget to 1440W for high-density APs and cameras |
| C9200L-STACK-KIT | Stack kit | Enable StackWise-80 for scalable multi-switch deployments |
| STACK-T4-1M | Stacking cable | Physical stacking connection between switches |
| GLC-SX-MMD | 1G SFP | Short-distance fiber uplink (campus / wiring closet) |
| GLC-LH-SMD | 1G SFP | Long-distance uplink (building-to-building / aggregation) |
Comparison with Similar Models
| Model | Uplinks | PoE | Performance | License | Best For |
|---|---|---|---|---|---|
| C9200L-48P-4G-E | 4 x 1G | 740W | 104 Gbps / 77.38 Mpps | Essentials | SMB, retail, branch deployments |
| C9200L-48P-4G-A | 4 x 1G | 740W | Same hardware | Advantage | Advanced routing & SD-Access |
| C9200L-48T-4G-E | 4 x 1G | None | Same | Essentials | Data-only environments (no PoE) |
Specifications
| Parameter | Specification | Value |
|---|---|---|
| Ports | 48 x 10/100/1000 PoE+ | Access layer for APs, phones, cameras |
| Uplinks | 4 x 1G SFP | Aggregation / WAN connectivity |
| PoE Budget | 740W / 1440W max | Power for wireless and IoT devices |
| Switching Capacity | 104 Gbps | Non-blocking architecture |
| Forwarding Rate | 77.38 Mpps | Wire-speed packet processing |
| Stacking | 80 Gbps | StackWise-80 scalability |
| Virtual Networks | 1 | SD-Access entry-level |
| MAC Table | 16,000 | Medium-scale network support |
| IPv4 Routes | 11,000 | Branch routing capacity |
| IPv6 Routes | 1,500 | Future-ready networking |
| DRAM / Flash | 2 GB / 4 GB | Cisco IOS XE performance |
| Jumbo Frame | 9198 bytes | Optimized for large data transfer |
| Power Supply | PWR-C5-1KWAC | Default 1000W PSU |
| Weight | 10.58 lb (4.80 kg) | Standard rack deployment |
| MTBF | 347,760 hours | Enterprise reliability |
Why Choose C9200L-48P-4G-E Switch?
The C9200L-48P-4G-E is one of the most widely deployed PoE access switches in SMB and branch networks, combining high PoE capacity, stable performance, and simplified Layer 3 features.
Unlike higher-tier models, it focuses on practical routing (OSPF + EIGRP Stub) without unnecessary complexity, making it ideal for standardized deployments across multiple sites.
Key Value:
-
Perfect "standard SKU" for channel partners - easy to stock and resell
-
Fast deployment for local projects - retail, offices, education
-
High PoE density for Wi-Fi and surveillance rollouts
-
Backed by Cisco Enhanced Limited Lifetime Warranty (E-LLW)
A proven "fast-moving inventory model" for resellers and integrators.
Use Cases & Deployment Scenarios
-
SMB Networks - scalable and cost-efficient PoE access
-
Retail Chains / Stores - POS, cameras, guest Wi-Fi
-
Branch Offices (Multi-site) - standardized deployment model
-
Wi-Fi Deployments (Wi-Fi 5 / Wi-Fi 6) - AP power + uplink
-
IP Surveillance Systems - stable PoE + video traffic
-
Hospitality / Hotels - IP phones + IoT devices
-
Education Networks - classrooms + wireless access
-
Local Resellers & Integrators - ideal for stocking & rapid delivery
