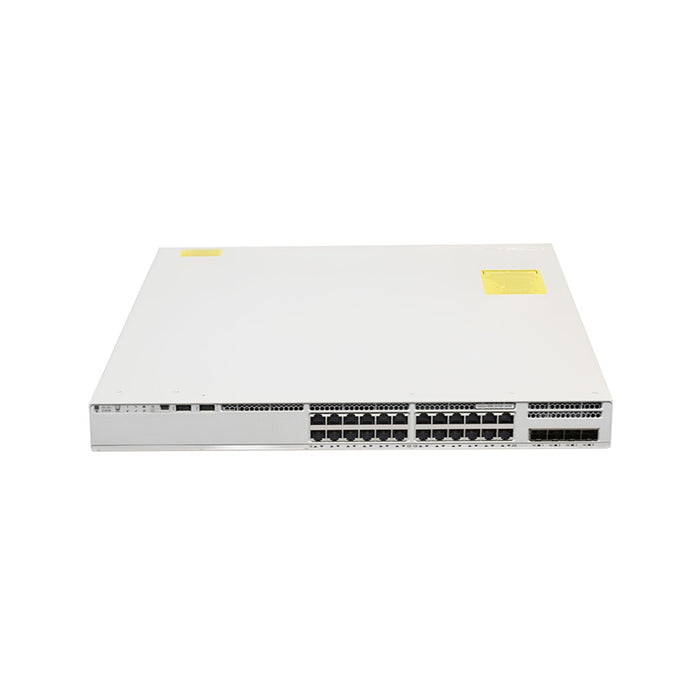

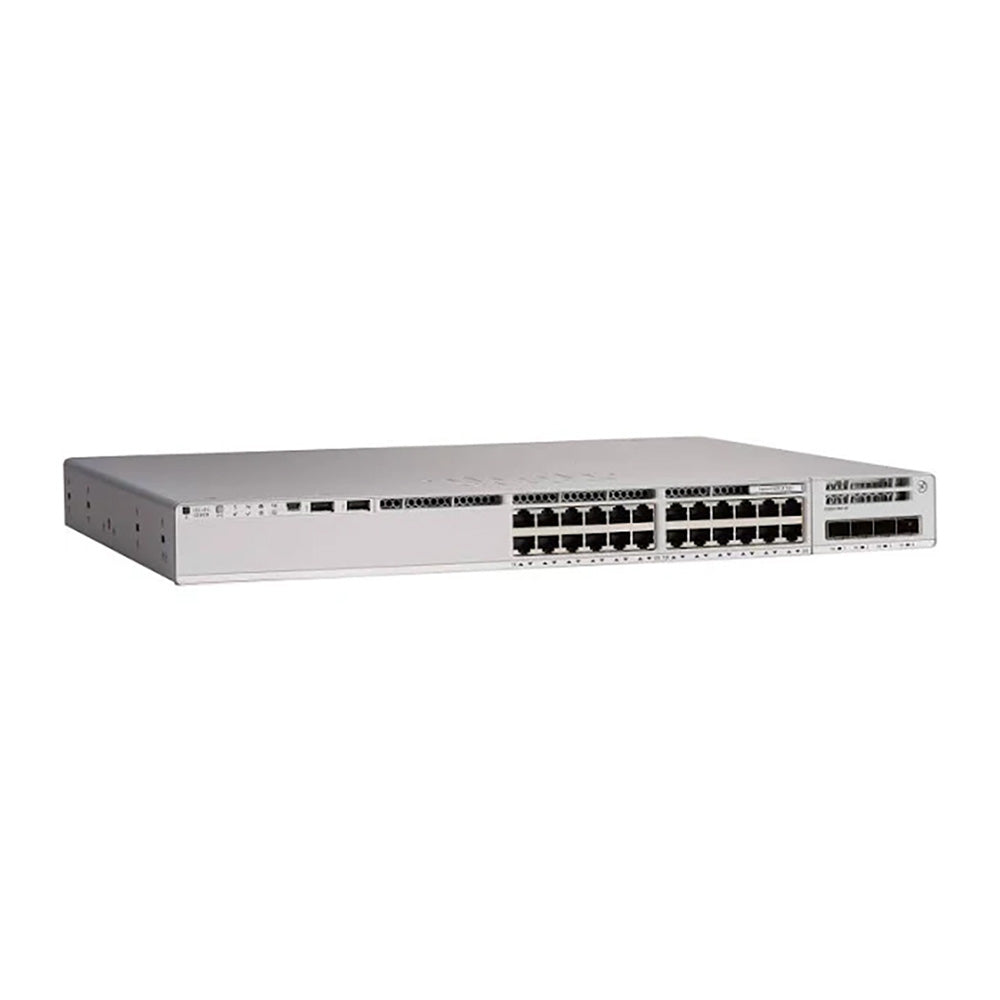

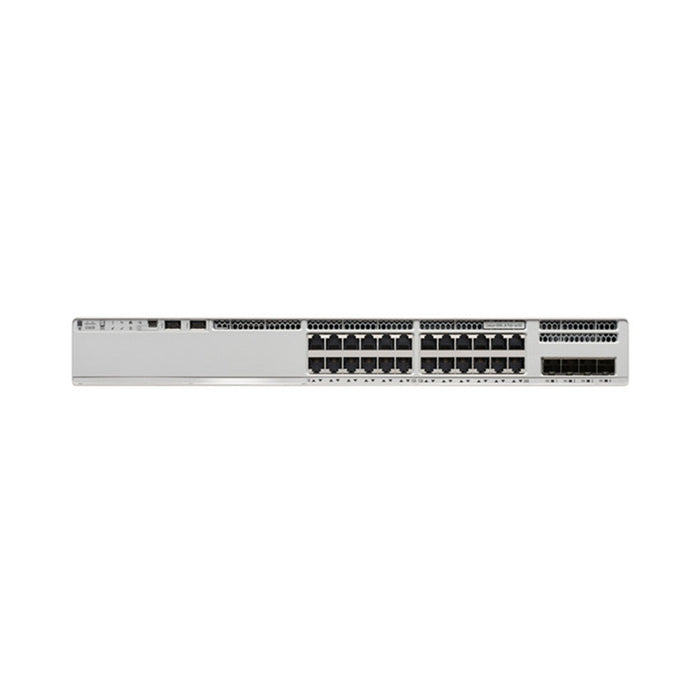

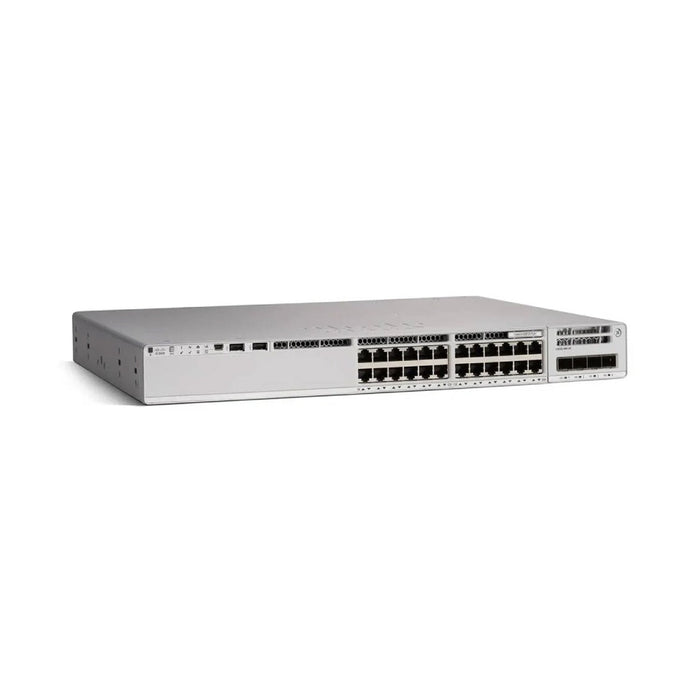

Cisco Catalyst C9200L-24T-4X-A | 24-Port 1G Data Switch with 4×10G SFP+
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Cisco Catalyst C9200L-24T-4X-A | 24-Port 1G Data Switch with 4×10G SFP+
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Why Choose C9200L-24T-4X-A Switch?
"The C9200L-24T-4X-A is best positioned as a pure data access switch for enterprise edge and branch deployments.
Its value lies in combining 10G uplink performance with the Network Advantage license, enabling advanced routing, segmentation, and deep traffic visibility.
Unlike PoE models, this switch is optimized for wired endpoints, servers, and aggregation layers, rather than powering devices. This makes it especially suitable for data-heavy environments and data center edge scenarios where power delivery is handled separately."
Overview
The Cisco Catalyst C9200L-24T-4X-A is a data-only enterprise access switch designed for environments that require high-throughput wired connectivity without PoE power delivery.
It provides:
-
24×1G Ethernet ports (data-only)
-
4×10G SFP+ fixed uplinks
-
Full Layer 3 capabilities with Network Advantage
This makes it ideal for:
-
High-speed workstation connectivity
-
Server access at the network edge
-
Aggregation for access switches
-
Data center edge deployments
Highlights
1. 10G Uplinks for High-Speed Backbone
4× fixed 10G SFP+ uplinks eliminate aggregation bottlenecks
👉 Designed for east-west traffic and high-throughput environments
2. Full Layer 3 + Segmentation (Advantage Core)
Supports BGP, OSPF (full), EIGRP, IS-IS, VRF, VXLAN, LISP, SGT
👉 Enables secure segmentation and scalable routing architectures
3. Deep Visibility with Advanced Telemetry
Includes:
-
Full Flexible NetFlow (FNF)
-
Advanced telemetry streaming
👉 Critical for traffic analysis, security auditing, and performance monitoring
4. StackWise-80 High Availability
Stack up to 8 units with 80 Gbps bandwidth
👉 Simplifies operations and improves resiliency
5. Enterprise-Grade Security
MACsec, Secure Boot, Trust Anchor, 802.1X
👉 Ensures secure access and encrypted traffic
Recommended Accessories
| Accessory | Category | Description | Notes / Optimization |
|---|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | StackWise-80 kit for Catalyst 9200L models | Includes two adapters + one stacking cable; enables up to 8 switches in a stack |
| STACK-T4-50CM / 1M / 3M | Stacking Cable | Type 3 stacking cables | Flexible lengths for custom stack deployment |
| PWR-C5-125WAC/2= | Power Supply | 125 W AC platinum-efficient spare PSU | Supports dual PSU redundancy for uninterrupted operation |
| NS-SFP-10G-SR / NS-SFP-10G-LR | 10G SFP+ Optical Module | Compatible with 4 fixed 10G SFP+ uplinks | Enables plug-and-play high-performance backbone; reduces TCO |
Comparison with Similar Models
| Model | Key Difference | Best For |
|---|---|---|
| C9200L-24T-4X-A | Data-only + full L3 | Wired access / servers |
| C9200L-24T-4X-E | Limited L3 | Basic networks |
| C9200L-24P-4X-A | PoE+ support | AP / IP phone / camera |
| C9200-24T-A | Modular uplinks | Higher scalability |
👉 Need PoE+ for APs or IP phones?
Consider the C9200L-24P-4X-A model instead.
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-24T-4X-A |
| Downlinks | 24× 10/100/1000 RJ-45 (data-only) |
| Uplinks | 4× 10G SFP+ (fixed) |
| Switching Capacity | 128 Gbps / 208 Gbps (stacked) |
| Forwarding Rate | 95.23 Mpps / 155 Mpps (stacked) |
| VLAN IDs | 4,096 |
| SD-Access VN | 1 |
| IPv4 Routes | 11,000 |
| Stacking | StackWise-80 |

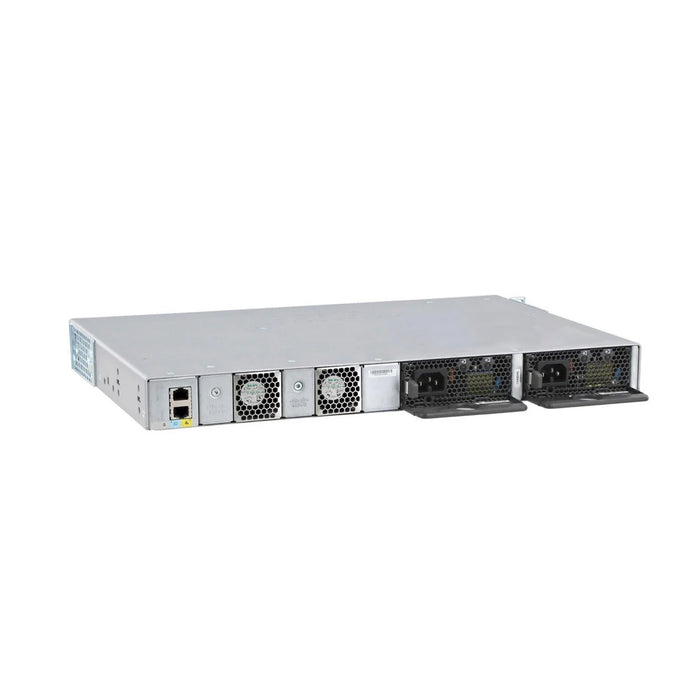

| PSU | Dual PSU supported |
| Fans | Fixed redundant (Non-FRU) |
Use Cases / Deployment Scenarios
-
Enterprise Wired Access
High-performance connectivity for desktops and workstations -
Data Center Edge
Aggregation for servers and storage networks -
Branch Office Core Access
Layer 3 routing + segmentation at the edge -
Aggregation Layer for Access Switches
10G uplinks for traffic consolidation -
IoT Data Aggregation (Non-PoE)
For environments where devices have independent power
Best Fit Scenario:
Connecting high-speed servers and wired workstations where localized power (PoE) is not required
