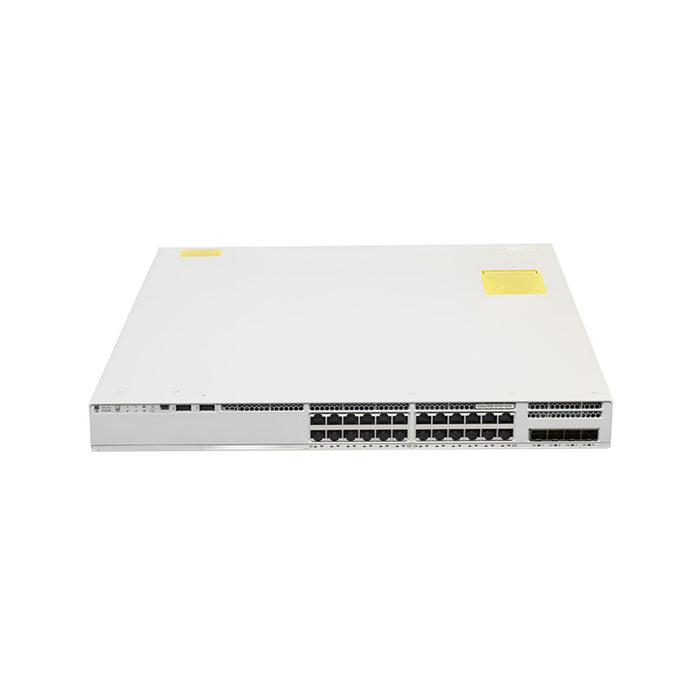

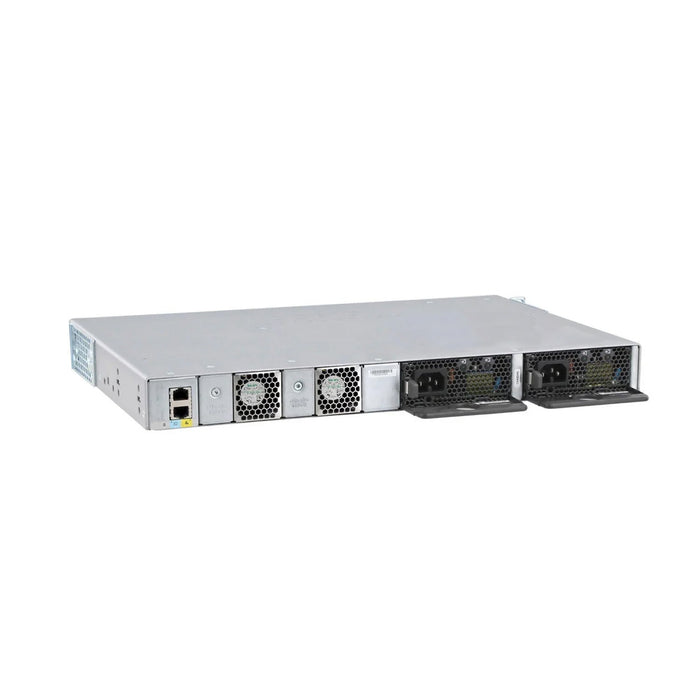

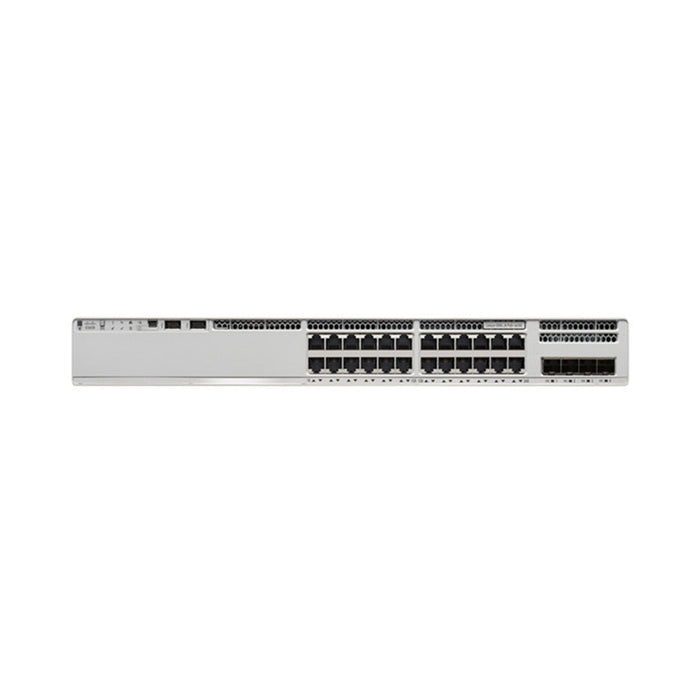

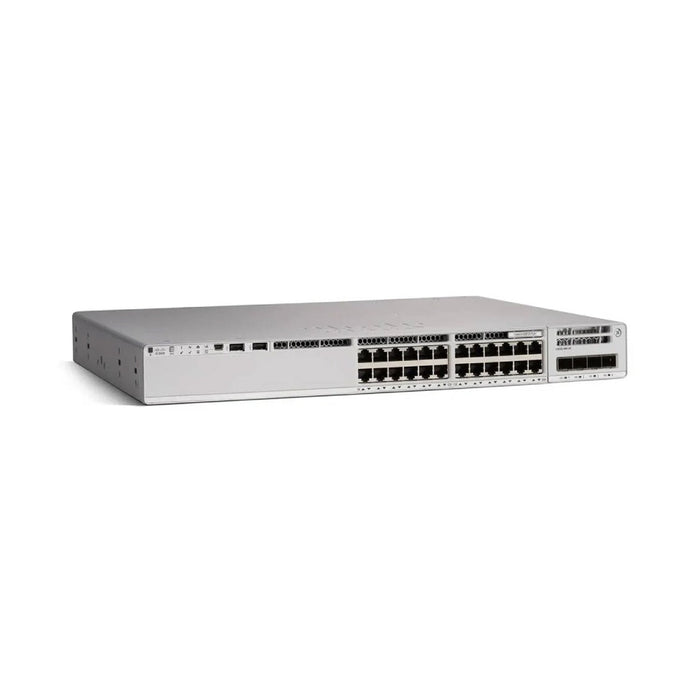

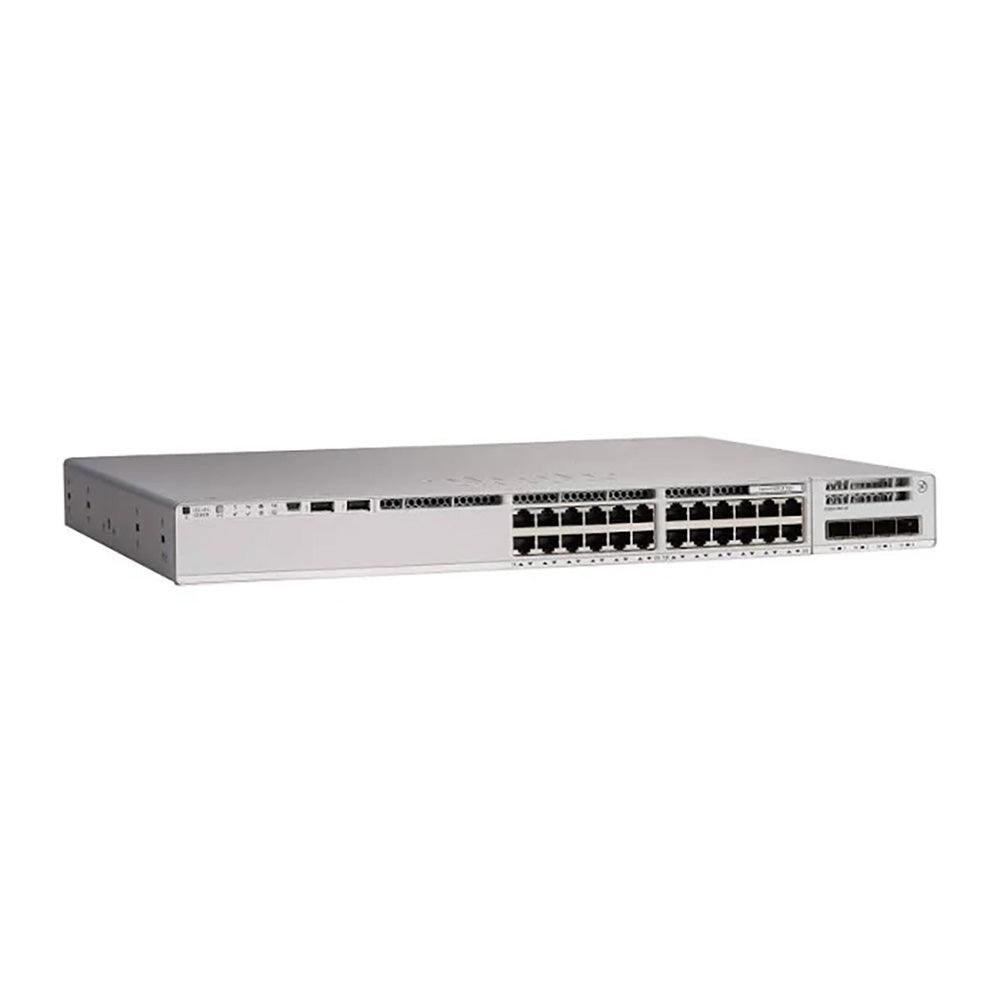

Cisco Catalyst C9200L-24T-4G Switch | Data-Only | Network Essentials & Advantage

Engineer's Choice: Why 24T (Data) instead of 24P (PoE)?

• Energy Efficiency: Significantly lower power consumption (0.283 kW max) and heat dissipation make it ideal for standard office racks, branch closets, and server rooms without powered devices.

• Cost Savings: Perfect for connecting workstations, servers, and printers where PoE+ is unnecessary, reducing initial hardware and operational costs.

• Essentials vs Advantage:

  • Essentials: Cost-effective Layer 2 + basic Layer 3 routing for SMB or branch offices.

  • Advantage: Full Layer 3 (BGP, VRF, VXLAN) and SD-Access for mission-critical data cores.

• Silent & Cool Operation: Reduced thermal output and optimized fan speeds make it suitable for open-office environments or racks without dedicated cooling.

Pro Tip: For Wi-Fi APs or IP cameras, external PoE injectors or the C9200L-24P-4G (PoE+) version are recommended.

Overview

The Cisco Catalyst C9200L-24T-4G series provides 24 fixed 1G Ethernet data ports and 4 fixed 1G SFP uplinks, designed for high-speed wired edge networks in branch, SMB, and campus environments.

• C9200L-24T-4G-E (Essentials): Efficient L2/L3 switch for cost-conscious deployments.

• C9200L-24T-4G-A (Advantage): Unlocks full Layer 3, SD-Access, Flexible NetFlow, streaming telemetry, and advanced security.

Technical Highlights:

• Built on Cisco UADP 2.0 Mini ASIC (same engine as higher-end Catalyst 9000 models).

• Supports StackWise-80, mixing up to 8 units in a single logical switch to manage 192 Gigabit ports through one IP address.

• Integrates with Cisco DNA Center for automation, assurance, and policy-based segmentation.

• Ideal for servers, desktops, and printers; non-PoE design ensures lower power, quieter operation, and reduced thermal footprint, perfect for quiet office environments.

Advantages

• 24× 1G Data Downlinks - Fixed RJ-45 ports, 100/1000 Mbps.

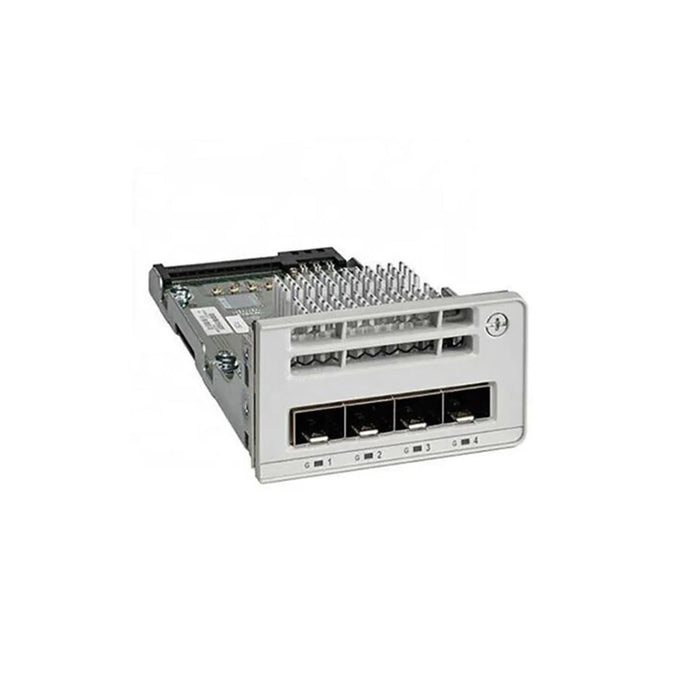

• 4× 1G SFP Uplinks - Fiber or copper connections; no optional modules required.

• StackWise-80 Support - Up to 8 switches, 80 Gbps bidirectional bandwidth, sub-50ms failover, single IP management for stacked units.

• Switching Performance - 56 Gbps non-blocking, 41.66 Mpps.

• Enterprise Security - AES-128 MACsec, 802.1X, DHCP Snooping, DAI, IP Source Guard, ACLs.

• Layer 3 Capabilities - Essentials: Static, RIP, OSPF; Advantage: adds BGP, EIGRP, VRF, VXLAN.

• Programmability & Automation - Model-driven APIs, streaming telemetry, Plug-and-Play, Cisco DNA Center.

• Deployment Scenarios: Branch offices, SMB networks, campus edge, retail, education, wired office environments, server rooms.

Use Cases & Deployment Scenarios

The C9200L-24T-4G is designed for high-speed, energy-efficient, and reliable wired networks where PoE is not required. Its non-PoE design makes it ideal for a variety of scenarios:

1. Branch Office & SMB Networks

• Connect desktops, laptops, servers, and printers with lower power consumption.

• Ideal for small offices, branch locations, or satellite sites where PoE devices are minimal or nonexistent.

• Silent operation allows placement in open office racks or shared IT closets without disruptive fan noise.

2. Campus Edge & Education

• Provides high-density 1G access for classrooms, labs, or administrative buildings.

• Combine multiple 24T units in StackWise-80 for simplified management and unified network control.

• Essentials license suitable for basic L2/L3 routing; Advantage license supports segmentation, SD-Access, and advanced Layer 3 routing for campus cores.

3. Server Rooms & Data Closets

• Connect rack servers, NAS storage, or backup appliances efficiently.

• Low heat generation and small power footprint are ideal for tight racks or energy-conscious deployments.

• Supports high-performance data transfer with wire-speed forwarding and 6 MB packet buffers to prevent micro-burst packet loss.

4. Office & Retail Environments

• Ideal for wired desktops, POS terminals, printers, or scanners in office or retail branches.

• Silent operation ensures comfortable noise levels in customer-facing areas or open offices.

• Supports stacking up to 8 switches, simplifying management of multiple locations or floors.

5. Mixed PoE / Non-PoE Deployments

• Can be stacked alongside other C9200L-24P PoE+ units (with same license level) to manage mixed environments.

• Enables cost-effective deployment: only supply PoE where needed, while data-only ports maintain energy efficiency.

Pro Tip: For deployments requiring high-speed uplinks or server aggregation, consider C9200L-24T-4X (10G uplinks). For fiber connections, use NS-SFP-1G-SX/LX modules for full Cisco compatibility at lower TCO.
