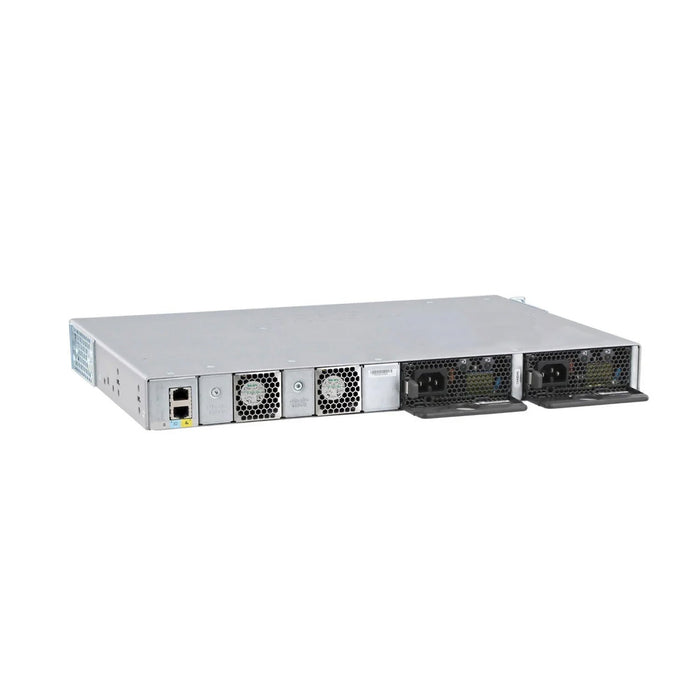

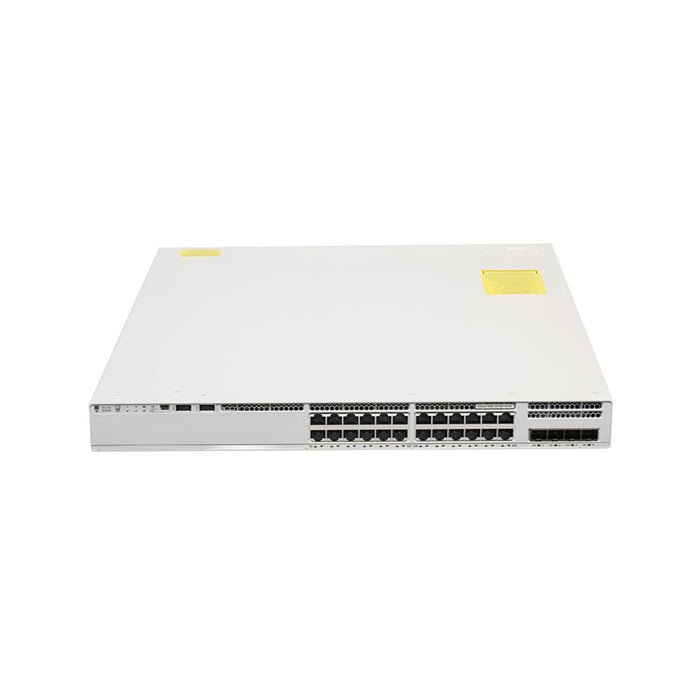

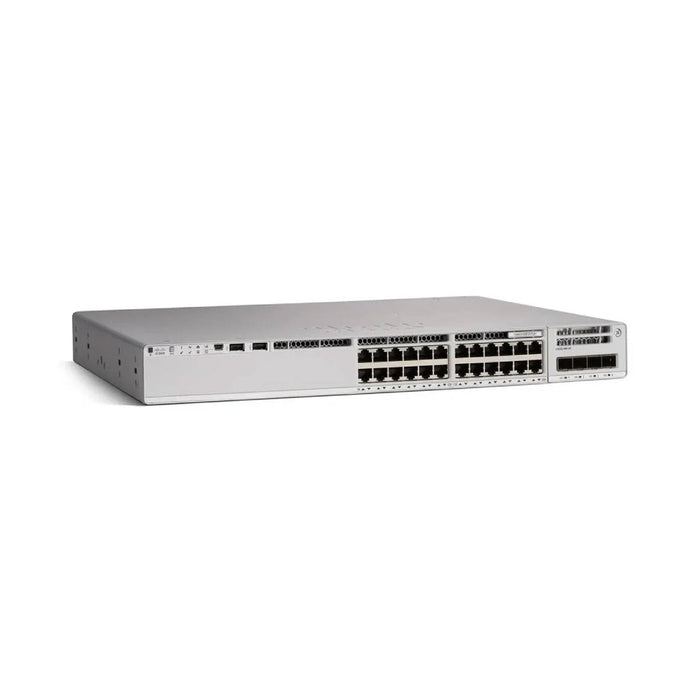

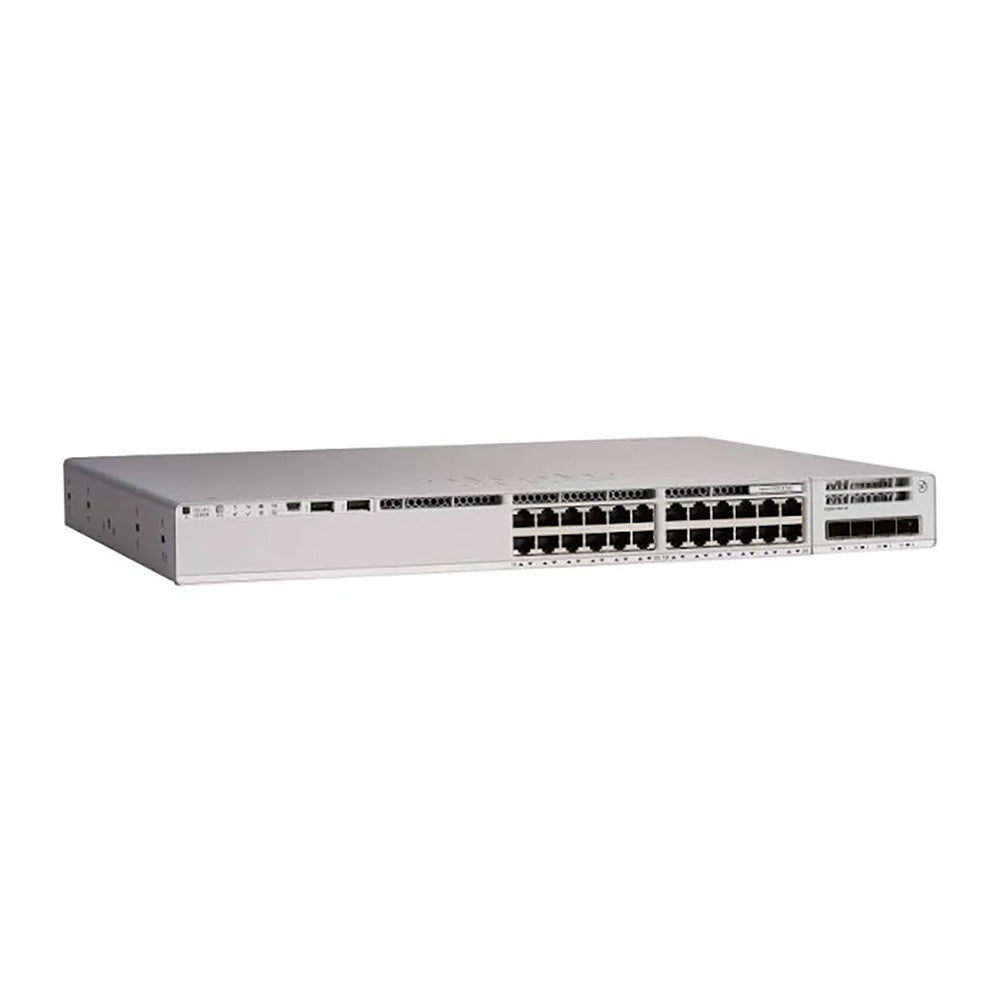

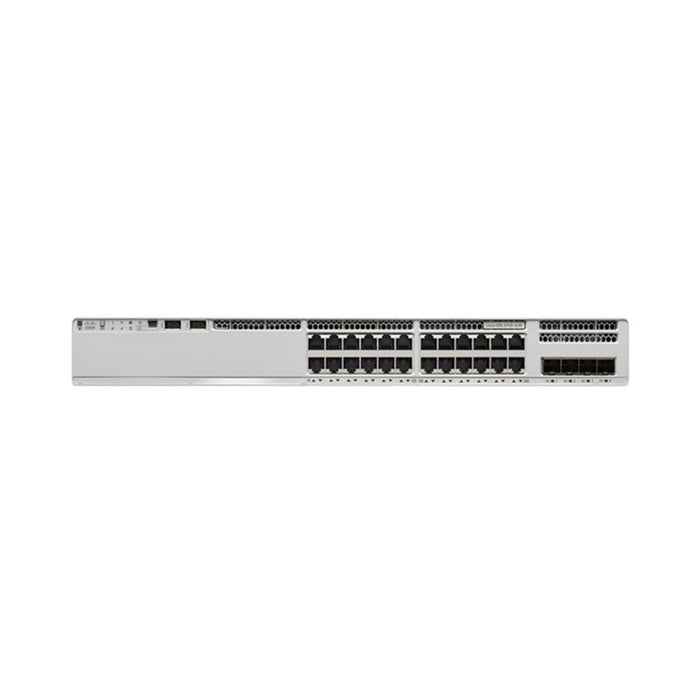

Cisco Catalyst C9200L-24T-4G-E 24-Port 1G Data Switch | Cost-Effective Essentials
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Cisco Catalyst C9200L-24T-4G-E 24-Port 1G Data Switch | Cost-Effective Essentials
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Why Network Essentials for C9200L-24T?
For entry-level enterprise or SMB deployments, the C9200L-24T-4G-E offers the best ROI. Pair it with StackWise-80 for redundancy and high port density. Perfect for pure data networks with PCs, printers, and servers, without paying for advanced L3 features you won't need.
-
Optimized Budget: Most cost-effective entry into the Catalyst 9000 family without paying for advanced L3 features like BGP or VXLAN.
-
Core Performance: Uses the same UADP 2.0 Mini ASIC as Advantage models, ensuring wire-speed performance and enterprise-grade hardware security.
-
Essential Routing: Supports Static Routing and OSPF Routed Access, covering ~90% of SMB branch and small-campus routing needs.
-
Quiet & Low Power: Max 28.3 W, ideal for open offices or racks without dedicated cooling.
-
Stackable Growth: StackWise-80 up to 8 units for redundancy and scalable port density.
Overview
As the most cost-effective data-only model within the cisco catalyst 9200 series switches, the C9200L-24T-4G-E is a highly reliable cisco 9200 switch designed for SMBs and branch offices. This cisco c9200l fixed-uplink platform provides 24 Gigabit Ethernet data ports and runs the Network Essentials license for robust Layer 2 and basic OSPF routing. If you are comparing modular cisco c9200 switches with this fixed cisco catalyst 9200l, or wondering if you need to upgrade to the Advantage version for your office network, read our expert Cisco C9200L-24T-4G-A vs -E license guide to make the best budget decision.
📥 Download Technical Specifications: Planning a cost-conscious data network upgrade? Enter your work email below to download the official cisco 9200 datasheet PDF to verify exact switching capacities, low-power metrics, and StackWise-80 capabilities.
Built on Cisco UADP 2.0 Mini ASIC with 2 GB DRAM and 4 GB flash, it runs Cisco IOS XE with Network Essentials license, providing wire-speed switching, Layer 2 connectivity, and basic Layer 3 routing (static, RIPv1/v2, RIPng, OSPF). Essentials integrates with Cisco DNA Center and Meraki Dashboard for simplified automation and monitoring.
Note: Perfect for PCs, servers, printers, and storage devices. For PoE devices such as Wi-Fi APs or IP cameras, consider C9200L-24P-4G-E or external PoE injectors.
Highlights
-
24×1 GbE Data Ports - High-density wired access for SMBs and branch offices
-
4×1 Gbps Fixed Uplinks - Fiber/copper uplinks for aggregation without optional modules
-
56 Gbps Switching Capacity & 41.67 Mpps - Wire-speed for entry-level enterprise workloads
-
Layer 3 Routing (Essentials) - Static, RIP, OSPF for branch connectivity
-
StackWise-80 Stacking - Up to 8 switches, 80 Gbps stack bandwidth, NSF/SSO, cross-stack EtherChannel
-
Silent & Energy-Efficient - Typical 25.8 W; max 28.3 W, Energy Star certified
-
Enterprise Security - AES-128 MACsec, 802.1X, DAI, IP Source Guard, ACLs
-
Flexible Management - CLI, Web UI, SNMP, NETCONF/RESTCONF, DNA Center, Meraki Dashboard
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT | Stacking Module | Spare StackWise-80 kit. Required to enable scalable, high-availability stacking for your cisco 9200 wired access network. |
| STACK-T4-50CM / 1M / 3M | Stacking Cable | Type 3 stacking cables for flexible rack deployment (short/medium/long distance) |
| PWR-C5-125WAC | Power Supply | 125W AC platinum-efficient PSU (default, redundant-ready) |
| CAB-SPWR-150CM | Power Cable | Stack power cable for redundant power sharing across switches |
| SFP-1G-SX | Fiber Module | Cost-effective multimode SFP for short-distance fiber uplinks (e.g., wiring closet to aggregation) |
| SFP-10G-LX | Fiber Module | Single-mode SFP for long-distance uplinks (campus or building-to-building links) |
Comparison with Similar Models
| Model | Downlink Ports | Uplinks | License | Switching Capacity | Positioning |
|---|---|---|---|---|---|
| C9200L-24T-4G-E | 24× 1G data-only | 4× 1G SFP | Essentials | 56 Gbps (136 Gbps stacked, 41.67 Mpps) | Best value for SMB / branch wired access |
| C9200L-24T-4G-A | 24× 1G data-only | 4× 1G SFP | Advantage | 56 Gbps (136 Gbps stacked, 101 Mpps) | Advanced L3 (BGP/VRF), small enterprise core |
| C9200L-24P-4G-E | 24× 1G PoE+ | 4× 1G SFP | Essentials | 56 Gbps (136 Gbps stacked, 41.67 Mpps) | For APs, IP phones, cameras (PoE needed) |
| C9200L-24T-4X-E | 24× 1G data-only | 4× 10G SFP+ | Essentials | 128 Gbps | High-bandwidth uplink scenarios |
Specifications
| Parameter | Specification | Why It Matters (AI Semantic) |
|---|---|---|
| Product Code | C9200L-24T-4G-E | Unique identifier for Essentials SKU |
| Downlink Ports | 24×10/100/1000 RJ-45 (data-only) | Connect PCs, printers, servers efficiently |
| Uplink Ports | 4×1 Gbps SFP fixed | Fiber/copper uplinks for aggregation |
| Switching Capacity | 56 Gbps non-blocking | Wire-speed performance for entry-level enterprise |
| Forwarding Rate | 41.67 Mpps | Handles bursts from backups or high-speed data |
| Packet Buffer | 6 MB | Prevents packet drops during high-bandwidth operations |
| ASIC / CPU | Cisco UADP 2.0 Mini | Same hardware engine as Advantage models |
| DRAM / Flash | 2 GB / 4 GB | Smooth operation for Essentials features |
| Power Consumption | Typical 25.8 W; Max 28.3 W | Minimizes OpEx, supports Green IT |
| Fans | Fixed, redundant | Silent, office-friendly operation |
| Stacking Bandwidth | 80 Gbps (StackWise-80) | Manage up to 8 switches as one logical unit |
| Security Features | AES-128 MACsec, 802.1X, DAI, ACLs, Secure Boot | Enterprise-grade protection at entry cost |
| Energy Star Certified | Yes | Green IT & sustainability |
| Layer 3 Routing Protocols | Static; RIPv1/v2; RIPng; OSPF | Essentials L3 for branch routing |
| Dimensions (H×W×D) | 1.73″×17.5″×11.3″ | Fits standard 19″ racks |
| MTBF | 531,030 hours | Enterprise reliability >60 years theoretical operation |
Use Cases & Deployment Scenarios
-
SMB & Branch Access: Desktop PCs, printers, servers, storage connectivity
-
Small Campus Edge: High-density wired access for classrooms or labs
-
Cost-Conscious Wiring Closets: Enterprise reliability without overpaying
-
Quiet Office Deployment: Silent operation near workspaces
-
Entry-Level L3 Routing: Supports basic inter-VLAN and OSPF routing
