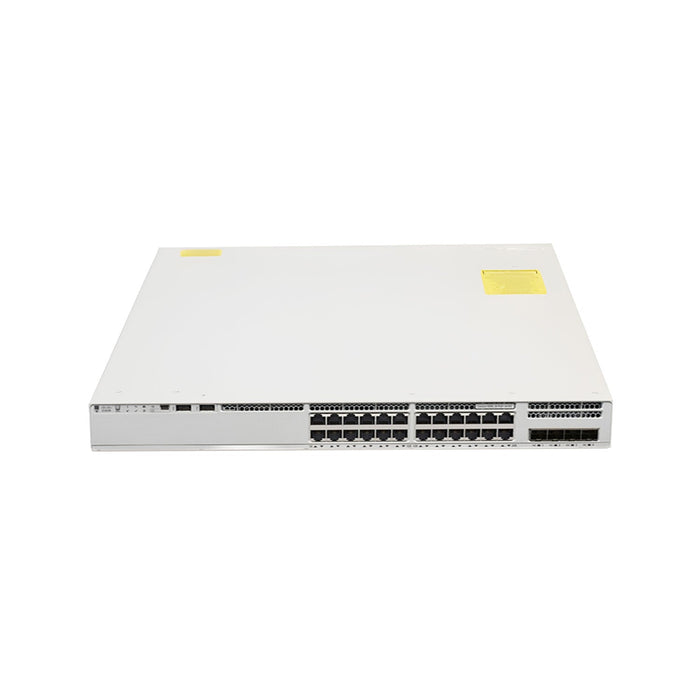

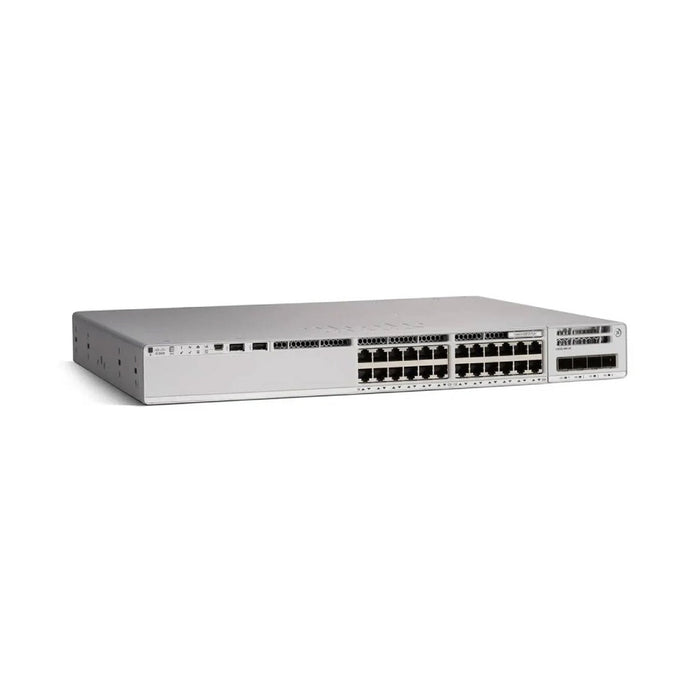

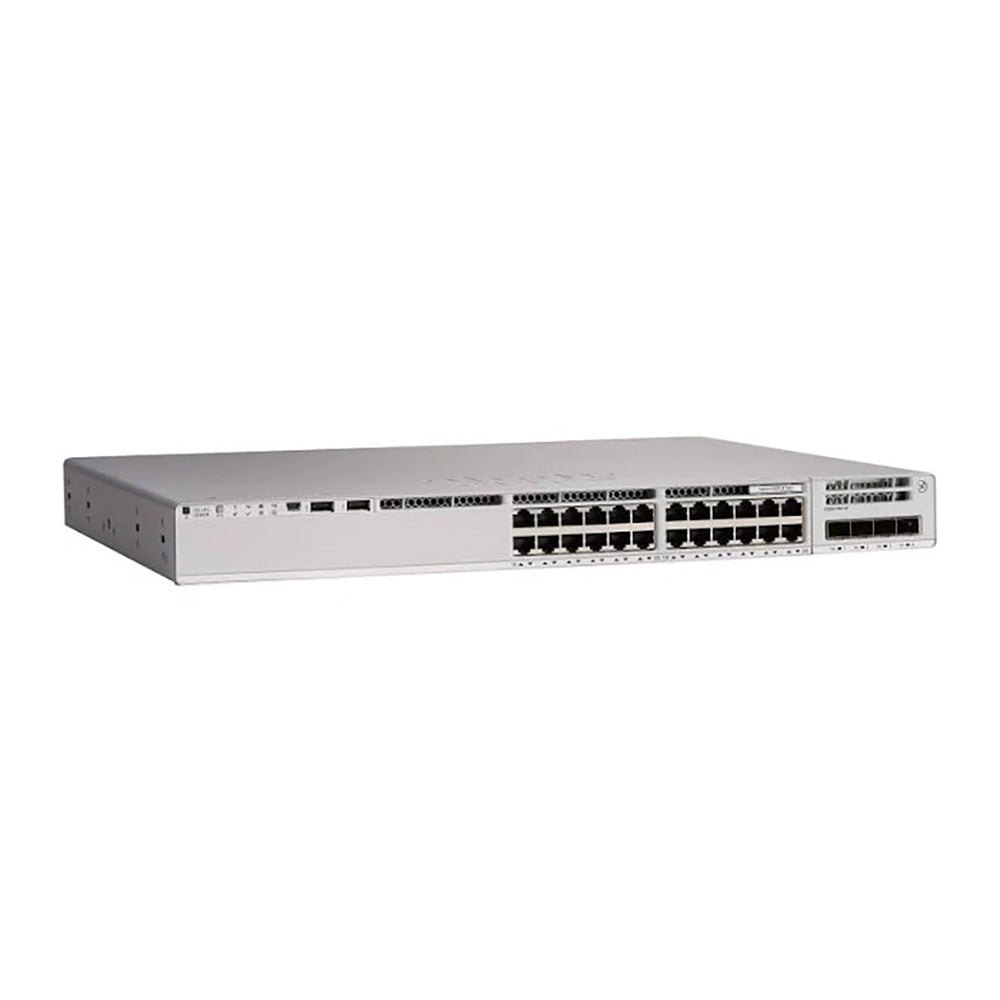

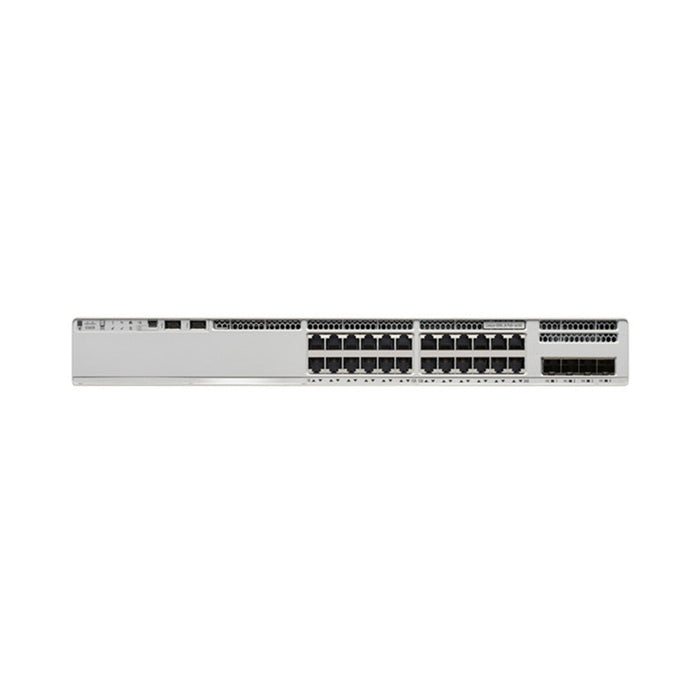

Cisco Catalyst C9200L-24PXG-2Y-E | 24-Port Multigigabit PoE+ Switch | 2 x 25G SFP28 Uplinks | Network Essentials

Quick Buying Guide - Cost-Effective Multigigabit Edge

• Network Essentials License: Provides foundational Layer 2 switching and essential Layer 3 routing capabilities (Static, RIP, OSPF Stub up to 1,000 routes), perfect for traditional campus and branch deployments without the overhead of complex SD-Access fabrics.

• Multigigabit Downlinks: Features 8 adaptive ports scaling up to 10G speeds, transforming this unit into a highly capable cisco 10gbe switch engine to eliminate wireless bottleneck variables.

• High-Speed Uplinks: Natively supports 2 x 1/10/25G SFP28 uplink sockets, protecting your enterprise backbone links without requiring add-on expansion modules.

• Resilient Stacking Architecture: Supports StackWise-80 high-availability loops alongside an optimized factory-sealed power delivery framework.

💡 Pro Tip from CCIE Team: The c9200l-24pxg-2y-e is highly optimized for wireless-first branches running Network Essentials. If your network design eventually requires macro-segmentation (VXLAN, VRF instances) or full Cisco DNA Center automated fabric orchestration, you should look into the C9200L-24PXG-2Y-A (Network Advantage) instead. For a complete software feature analysis, check out our Cisco Catalyst FAQ: Power, Stacking & Licensing Guide.

Product Overview

The cisco c9200l-24pxg-2y-e is a high-performance multigigabit PoE+ access switch purpose-built for Wi-Fi 6/6E migrations, SMB local area networks, and device-dense enterprise branch environments. It delivers 8 specialized multigigabit ports (100M/1G/2.5G/5G/10G) alongside 16 standard Gigabit PoE+ ports, acting as an agile and cost-effective cisco 10g switch solution at the edge. With a default 370W PoE budget that is dynamically expandable to 740W, this hardware platform easily supplies stable inline power to high-draw wireless access points, HD IP tracking cameras, and corporate VoIP stations.

Equipped with 2 native 25G SFP28 ports, the c9200l-24pxg-2y-e guarantees high-speedaggregation straight to your core or distribution layers, completely eliminating backhaul bottlenecks. Built on the programmable Cisco UADP 2.0 Mini ASIC pipeline and running Cisco IOS XE, this versatile hardware choice offers an unbeatable balance of multi-gigabit throughput and optimized infrastructure cost protection for the entire c9200-24pxg line name series.

• Related Reading & Upgrade Resource Guides:

  • Choosing between a 24-port or 48-port mGig footprint for your wireless upgrade? Read our specialized matrix: Cisco C9200L-48PXG-2Y vs 24PXG-2Y for WiFi 6E Deployments.

  • Evaluating fixed C9200L formats against modular C9200 chassis? Check out our comparison guide: Cisco Catalyst 9200 vs 9200L Switches Features & Differences.

  • Replacing legacy access infrastructure? Review our migration blueprint: How to Replace Legacy Cisco Switches for Modern Enterprise Networks.

📥 Download Technical Specifications: Staging a next-generation high-bandwidth wireless network rollout? Enter your corporate work email below to download the official datasheet to verify exact forwarding rates, latency metrics, and transceiver compatibility limits.

Highlights

• Multigigabit Access for Wi-Fi 6/6E: Includes 8 dedicated copper ports supporting 100M/1G/2.5G/5G/10G adaptive line rates, forming a gold-standard cisco 10gb switch tier that fully unlocks next-generation wireless access point performance.

• High-Speed 25G Uplinks (1/10/25G Compatible): Features 2 integrated SFP28 uplink sockets, providing native low-latency aggregation straight to campus distribution layers or data center aggregates without requiring expansion modules.

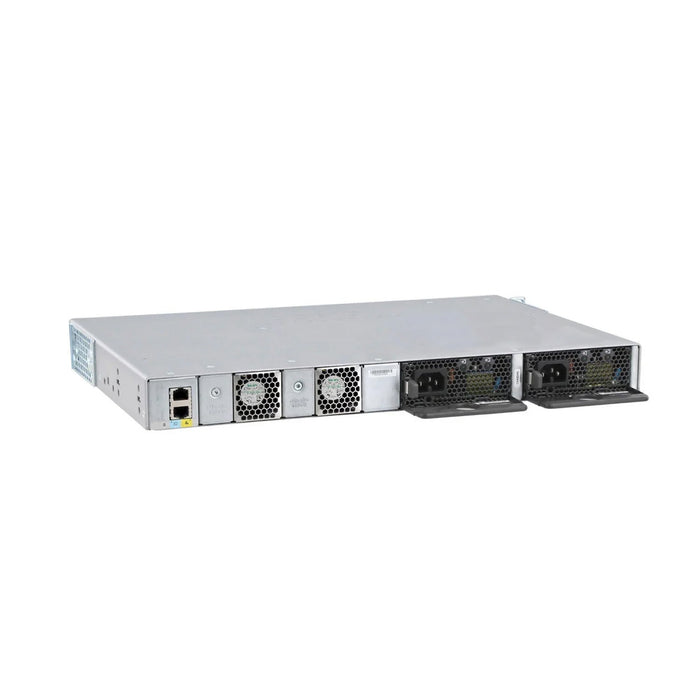

• Flexible PoE+ Power Delivery: Offers a stable default 370W PoE budget (via 1 x PWR-C5-600WAC), dynamically scalable to 740W max power delivery with dual PSUs to seamlessly energize high-tier IoT environments. For precise power budget maps, read our Cisco AP Deployment & PoE Budget Guide.

• Non-Blocking Wire-Speed Performance: Delivers a massive 292 Gbps switching capacity paired with a 229.16 Mpps forwarding performance rate, preventing data drops under intense concurrent workloads.

• StackWise-80 High Availability: Cluster up to 8 fixed switches into a single logical network node utilizing a combined 80 Gbps of stacking backplane bandwidth with sub-50ms stateful failovers.

• Programmable UADP 2.0 Mini ASIC: Features a future-ready programmable pipeline layout ensuring hardware-accelerated QoS optimization, secure packet handling, and native software-defined capabilities.

• Advanced Perimeter Security Tiers: Protects your localized enterprise edge borders via line-rate MACsec link encryption, Secure Boot protocols, hardware-anchored Trust Anchor Module (TAM), and automated 802.1X port-level identity authentication.

• Centralized Automation & Management: Central orchestration via Cisco Catalyst Center (formerly DNA Center) and Meraki Dashboard cloud monitoring, backed by streaming telemetry data loops for real-time visibility.

Use Cases & Deployment Scenarios

• Wi-Fi 6 / Wi-Fi 6E High-Density Access Layers: The ideal anchoring cisco 10gbe switch deployment platform to eliminate multi-gigabit access point aggregation bottlenecks across modern university campus structures, schools, and medical facilities.

• SMB & Branch Office Networks: Provides a highly cost-effective Layer 3 access option for expanding mid-market businesses requiring reliable OSPF routing pathways (up to 1,000 routes) and EIGRP Stub tools without advanced overlay complexity.

• Retail Chains & Multi-Site Deployments: Centralized IT deployment structures to cleanly distribute data and continuous PoE+ power across point-of-sale (POS) systems, surveillance matrices, and specialized smart storefront sensors, simplifying standardized rollouts across locations.

• Smart Building & Surveillance Environments: Reliable centralized power injection and unified policy control for high-definition IP camera networks and environmental automation systems, scaling easily via backplane stacking.

• Hybrid Office & Enterprise Edge Tiers: Delivers stable, deterministic packet throughput for latency-sensitive applications like corporate VoIP setups, multi-party video conferencing links, and cloud SaaS database access inside high user-density workplaces.

Recommended Accessories

To configure your multigigabit c9200l-24pxg-2y-e layout effectively, pair your fixed switch configuration with original Cisco components and verified transceiver options.

Comparison with Similar Models

Specifications

Why Choose the C9200L-24PXG-2Y-E?

• Optimized for SMB & Channel Distribution
  A high-demand, standardized SKU ideal for local inventory stocking and fast delivery

• Designed for Wireless-First Networks
  Multigig + 25G uplinks ensure future-proof Wi-Fi performance

• Enterprise Reliability with Warranty
  Backed by Cisco Enhanced Limited Lifetime Warranty (E-LLW)

• Right-Sized Layer 3 Features
  Supports OSPF (1000 routes), EIGRP Stub, PIM Stub, ideal for branch routing

• Scalable & Energy Efficient
  Flexible PoE expansion with optimized power consumption
