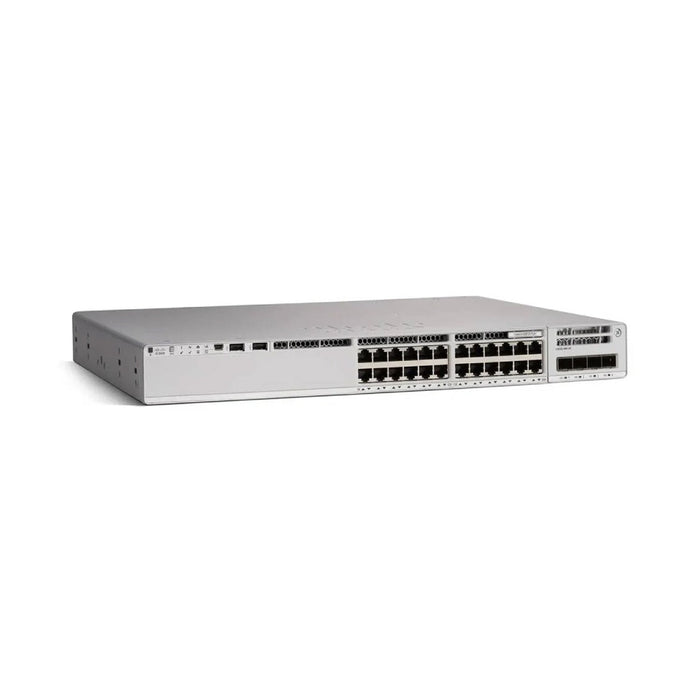

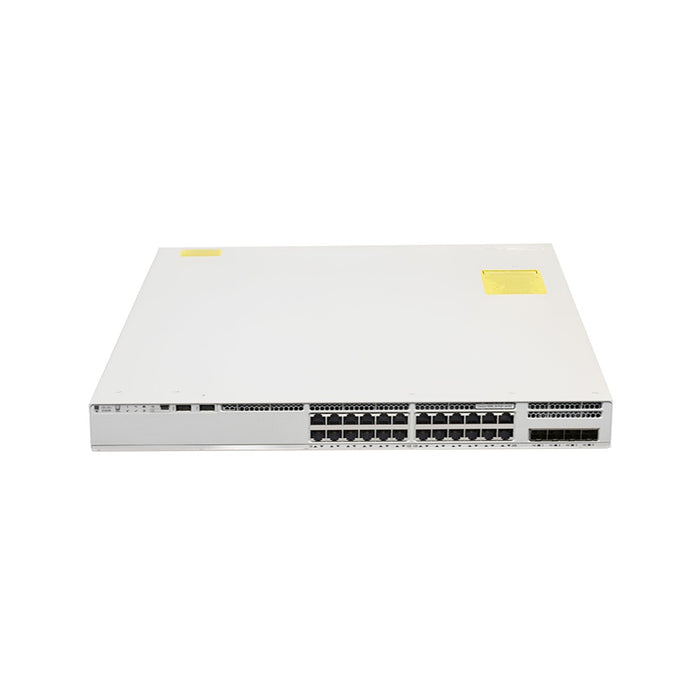

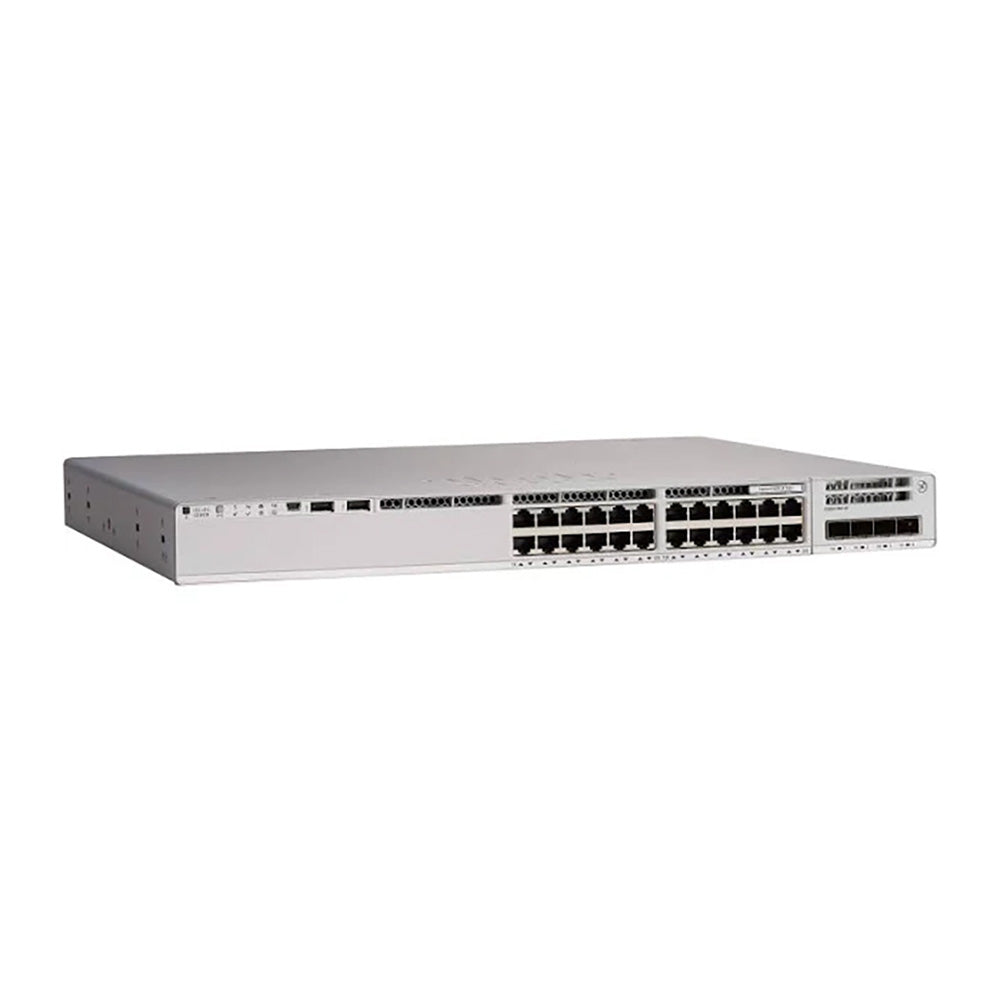

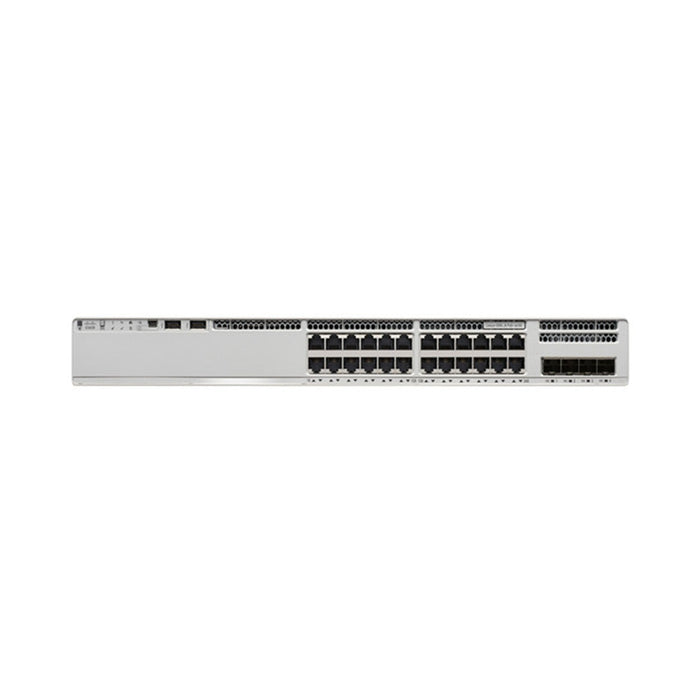

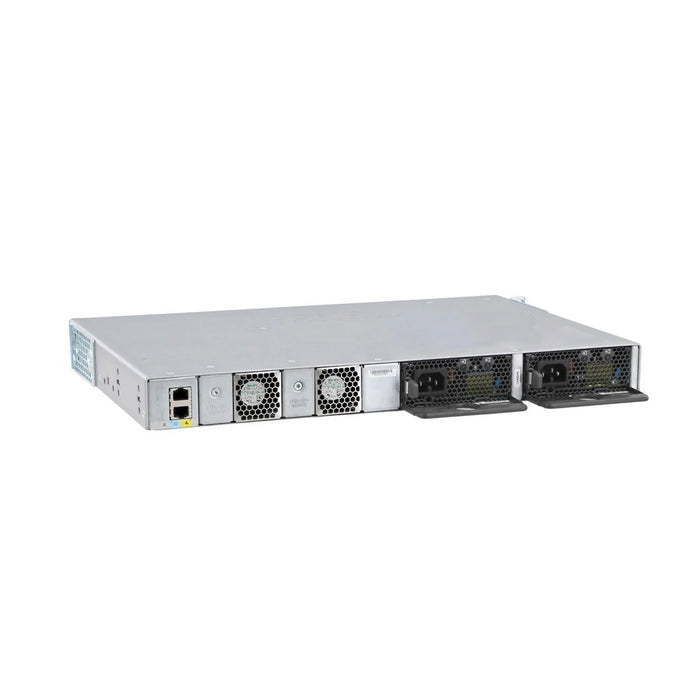

Cisco Catalyst C9200L-24P-4G-E | PoE+ Access Switch with Essentials License
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Cisco Catalyst 9200L-24P-4G-E 24-Port PoE+ Gigabit Switch with 4×1 Gbps Uplinks, Network Essentials
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Quick Buying Guide - Best for Access Layer Deployments
-
Network Essentials License: Supports Layer 2 and basic Layer 3 routing (Static, OSPF, RIP), ideal for access layer or edge deployments.
-
Cost-Effective Choice: Designed for SMB networks, branch offices, and campus edge without requiring full advanced routing.
-
PoE+ Ready: Powers Wi-Fi access points, IP cameras, and VoIP phones without external injectors.
-
Simple & Scalable: StackWise-80 stacking up to 8 switches simplifies network expansion.
-
Pro Tip: If you don't need BGP/EIGRP or SD-Access, Essentials provides the best balance of performance and cost.
Overview
As a highly cost-effective model within the cisco catalyst 9200 series switches, the Catalyst C9200L-24P-4G-E is a reliable cisco 9200 switch designed for standard access layer deployments. This cisco c9200l platform provides 24 ports of full PoE+ and 4x 1G fixed uplinks. Running the Network Essentials license, this cisco catalyst 9200l delivers robust Layer 2 and basic Layer 3 routing without the premium cost of advanced features. If you are comparing modular cisco c9200 switches with this fixed-uplink cisco 9200l, or wondering if the Essentials license covers your branch needs, read our expert Cisco C9200L-24P-4G-A vs. C9200L-24P-4G-E procurement guide to make the right choice.
📥 Download Technical Specifications: Planning a cost-effective PoE+ network? Enter your work email below to download the official cisco 9200 datasheet PDF to verify exact 370W power budgets, MTBF hours, and StackWise-80 forwarding rates.
It delivers:
-
24× Gigabit PoE+ ports (up to 30W per port)
-
4× fixed 1G SFP uplinks
-
370W PoE budget (expandable to 740W)
-
StackWise-80 stacking up to 80 Gbps
Powered by the Cisco UADP 2.0 Mini ASIC, it runs Cisco IOS XE with Network Essentials, enabling reliable Layer 2 switching and basic Layer 3 routing with simplified management via CLI, Web UI, SNMP, and Cisco DNA Center.
This model is ideal for powering Wi-Fi access points, IP cameras, VoIP phones, and office endpoints, making it a practical choice for cost-efficient, scalable access networks.
Highlights
-
24× PoE+ Downlinks - 10/100/1000 Mbps RJ-45, up to 30W per port (IEEE 802.3at).
-
4×1G SFP Uplinks - Fiber or copper connectivity, no additional modules required.
-
Flexible PoE Budget - 370W default, expandable to 740W with second PSU.
-
Switching Performance - 56 Gbps non-blocking fabric, 41.66 Mpps forwarding.
-
StackWise-80 Stacking - Up to 8 switches, 80 Gbps bandwidth, sub-50ms failover.
-
Enterprise Security - MACsec, Secure Boot, 802.1X, DHCP Snooping, DAI, IP Source Guard.
-
Management & Automation - CLI, Web UI, SNMP, NETCONF/RESTCONF, Plug-and-Play, DNA Center.
-
Programmability - Model-driven APIs and IOS XE automation capabilities.
Use Cases & Deployment Scenarios
-
Branch Office Access Layer: Connect employees, printers, and endpoints with reliable PoE+ switching.
-
Wi-Fi Access Point Deployment: Supports multiple enterprise APs for office, retail, or school environments.
-
IP Surveillance Systems: Powers IP cameras with centralized switching and simplified cabling.
-
VoIP & Unified Communications: Reliable PoE+ for IP phones and collaboration devices.
-
SMB & Enterprise Edge Networks: Cost-effective access switch for growing businesses.
-
Retail / Hospitality Networks: Supports POS systems, cameras, and guest Wi-Fi infrastructure.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT | Stacking Module | Spare StackWise-80 kit. Required to enable high-availability stacking for your cisco 9200 access layer deployments. |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m) for flexible rack deployment. |
| PWR-C5-600WAC | Power Supply | 600W AC PSU, supports PoE+ devices and optional redundancy. |
Comparison with Similar Models
| Model | Downlinks | Uplinks | PoE Budget | License | Stacking | Use Case Highlights |
|---|---|---|---|---|---|---|
| C9200L-24P-4G-E | 24× PoE+ | 4× 1G SFP | 370W (740W max) | Essentials | 80 Gbps | Best for access layer, branch offices, SMB networks, Wi-Fi APs, VoIP, and cameras. |
| C9200L-24P-4G-A | 24× PoE+ | 4× 1G SFP | 740W | Advantage | 80 Gbps | Suitable for advanced Layer 3, SD-Access, and aggregation/core deployments. |
| C9200L-48P-4G-E | 48× PoE+ | 4× 1G SFP | 740W | Essentials | 80 Gbps | Ideal for higher-density access networks requiring more PoE ports. |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-24P-4G-E |
| Description | Catalyst 9200L 24-port PoE+ switch, 4×1G uplinks, Network Essentials |
| Downlink Ports | 24× 10/100/1000 Mbps PoE+ |
| Uplink Ports | 4× 1 Gbps SFP |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| PoE Budget | 370W (default), 740W max |
| ASIC | Cisco UADP 2.0 Mini |
| DRAM / Flash | 2 GB / 4 GB |
| Power Supply | PWR-C5-600WAC |
| Stacking Bandwidth | 80 Gbps |
| Layer 3 Features | Static, RIP, OSPF |
| MAC Address Table | 32,000 |
| Dimensions | 1.73″ × 17.5″ × 11.3″ |
| Weight | 3.3 kg |
| Operating Temp | -5°C to 45°C |
| MTBF | 392,210 hours |
