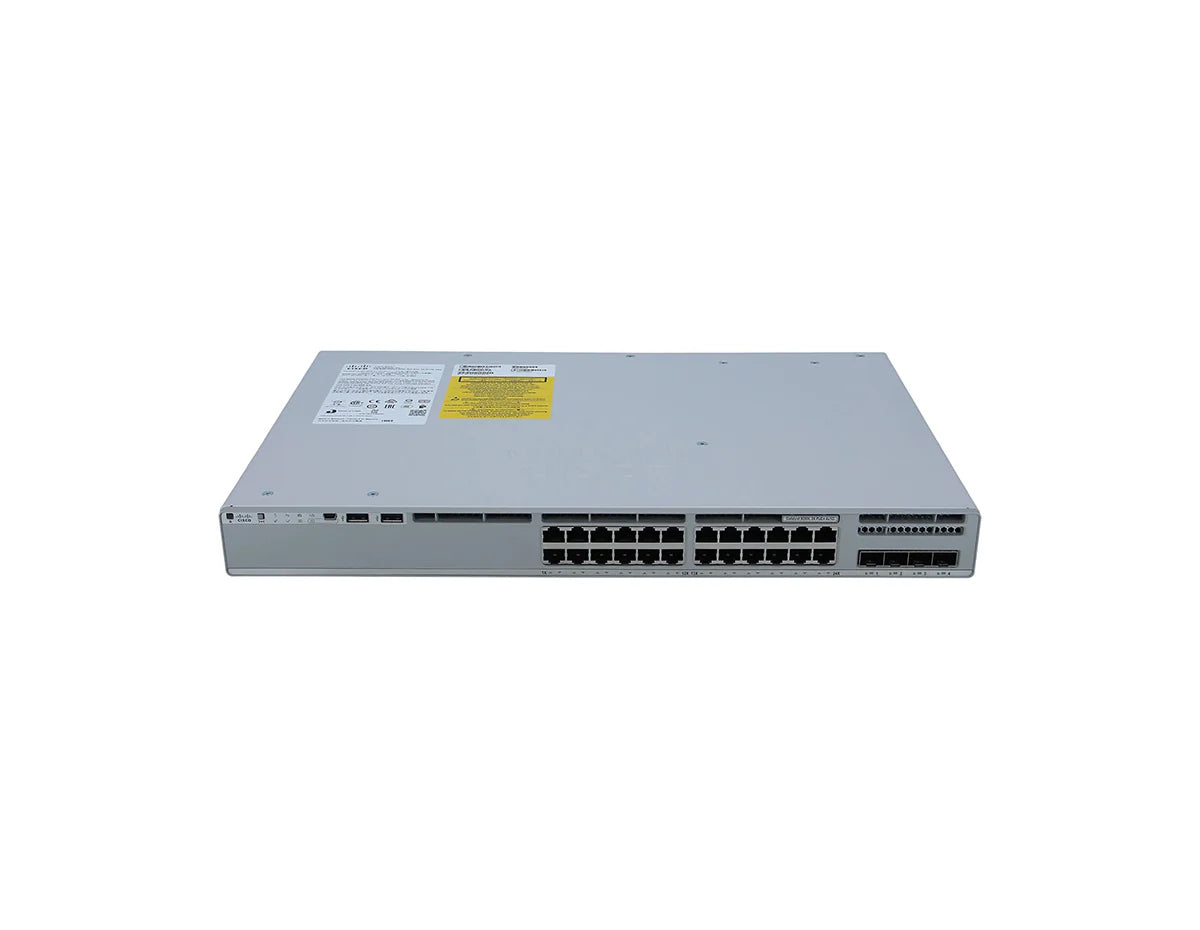

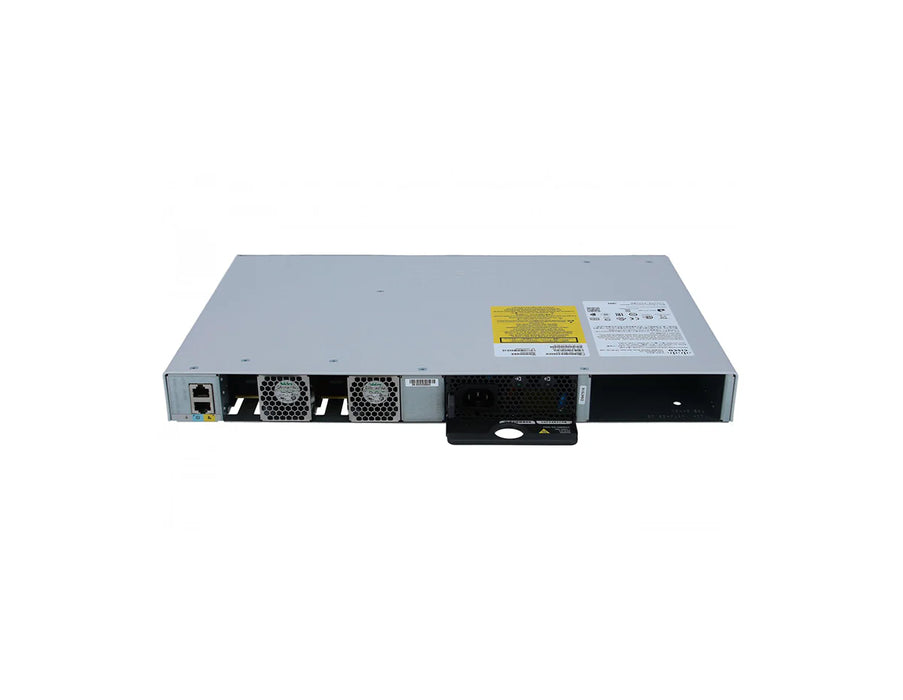

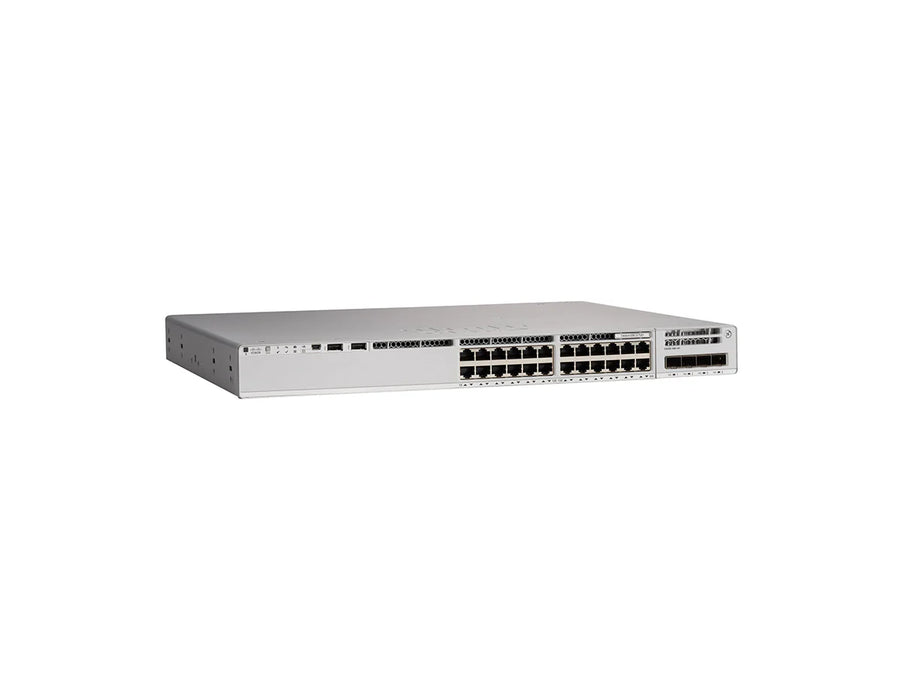

Cisco Catalyst C9200L-24P-4G-A 24-Port Full PoE+ Switch, 4x1G Uplinks, Network Advantage
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst C9200L-24P-4G-A 24-Port Full PoE+ Switch, 4x1G Uplinks, Network Advantage
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst C9200L-24P-4G-A 24-Port Full PoE+ Switch, 4x1G Uplinks, Network Advantage
Cisco Catalyst C9200L-24P-4G-A 24-Port Full PoE+ Switch, 4x1G Uplinks, Network Advantage

Cisco Catalyst C9200L-24P-4G-A 24-Port Full PoE+ Switch, 4x1G Uplinks, Network Advantage

por Cisco
Desconto de 45%
R$ 48.172,92
R$ 26.580,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Network Advantage
  • switch
  • L3
  • 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
  • rack-mountable
  • PoE+ (370 W)
[/shortdesc]

[properties]

Properties C9200L-24P-4G-A
Description Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Advantage
Product Family Catalyst 9200L
Product Type Ethernet Switch
Number of Ports 24
Downlinks total 10/100/1000
or PoE+ copper ports		 24 ports full PoE+
Uplink configuration 4x 1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C5-600WAC
Available PoE power with
additional secondary
power supply		 740W
Fans Fixed redundant
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 12.9

[/properties]

[specifications]

Specifications C9200L-24P-4G-A
Console Ports RJ45 or mini USB connectors
DRAM 2 GB
Flash Memory 4 GB
Switching capacity 56 Gbps
Forwarding rate 41.67 Mpps
MAC addresses 16,000
VLAN IDs 4096
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety Certifications IEC 60950-1/62368-1, UL 60950-1/62368-1, CAN/CSA C22.2 No. 60950-1/62368-1, EN 60950-1/62368-1, AS/NZS 60950.1, AS/NZS 62368.1, Class I Equipment
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking Support StackWise-80
Stacking bandwidth support 80 Gbps
Stacking hardware C9200L-STACK-KIT
Number of
members		 8
Supported stack members Other C9200L models with the same license level
Stacking accessories
C9200L-STACK-KIT Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM Data stack 50 cm cable (default cable with Stack Kit)
STACK-T4-1M Data stack 1 m cable
STACK T4-3M Data stack 3 m cable

[/accesories]

  • Ports: 24 × 10/100/1000 PoE+ Ethernet ports
  • Uplinks: 4 × 1G SFP fixed uplinks
  • Stacking: StackWise-80 with 80 Gbps bandwidth
  • PoE Budget: Up to 370W

The Cisco C9200L-24P-4G-A is a fixed-uplink, stackable Layer 3 switch built for enterprise-grade access deployments. Designed to simplify branch and campus access networks, it offers 24 full PoE+ ports and 4 fixed 1G SFP uplinks—ideal for connecting phones, access points, and IP cameras.

Running Cisco IOS XE with the Network Advantage license tier, it delivers advanced routing, secure segmentation, and automation via Cisco Catalyst Center. Built on the UADP 2.0 Mini ASIC, the switch ensures efficient wired and wireless convergence. The C9200L-24P-4G-A supports StackWise-80, enabling up to 8-member stacking for redundancy and management simplicity.

Hardware

  • Model: C9200L-24P-4G-A
  • Ports: 24 × 10/100/1000 PoE+ Ethernet ports
  • Uplinks: 4 × 1G SFP fixed uplink ports
  • Stacking Support: StackWise-80
  • Stacking Bandwidth: 80 Gbps
  • Power Supply: 1 × PWR-C5-600WAC (supports dual redundant PSUs)
  • PoE Budget: Up to 370W
  • Fan Modules: Fixed
  • Physical Dimensions: 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm)
  • Weight: 10.38 lbs (4.71 kg)

Performance

  • Switching Capacity: 56 Gbps
  • Forwarding Rate: 41.67 Mpps
  • DRAM: 2 GB
  • Flash Memory: 4 GB
  • VLAN Support: 4096 VLANs
  • MAC Address Table Size: 16,000 entries
  • Jumbo Frame Support: Up to 9198 bytes

Software & Features

  • Operating System: Cisco IOS XE
  • License Tier: Network Advantage
  • Routing Protocols: OSPF, EIGRP, RIP, IS-IS, VRF
  • Security Features: 802.1X, SGT, TrustSec, MACsec (128-bit), ACLs

What uplinks are included on the C9200L-24P-4G-A?

It comes with 4 fixed 1G SFP uplink ports.

Is the power supply replaceable?

Yes, the C9200L series uses field-replaceable power supplies and supports dual redundant PSUs for high availability.

Can this switch be stacked with other Cisco switches?

Yes. It supports StackWise-80 and can stack with other C9200L models (up to 8 switches).

What is the total PoE budget available?

With the default 600W PSU, the switch provides up to 370W. A second 600W PSU can be added to increase the total PoE budget to 740W.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Network Advantage
  • switch
  • L3
  • 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
  • rack-mountable
  • PoE+ (370 W)
[/shortdesc]

[properties]

Properties C9200L-24P-4G-A
Description Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Advantage
Product Family Catalyst 9200L
Product Type Ethernet Switch
Number of Ports 24
Downlinks total 10/100/1000
or PoE+ copper ports		 24 ports full PoE+
Uplink configuration 4x 1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C5-600WAC
Available PoE power with
additional secondary
power supply		 740W
Fans Fixed redundant
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 12.9

[/properties]

[specifications]

Specifications C9200L-24P-4G-A
Console Ports RJ45 or mini USB connectors
DRAM 2 GB
Flash Memory 4 GB
Switching capacity 56 Gbps
Forwarding rate 41.67 Mpps
MAC addresses 16,000
VLAN IDs 4096
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety Certifications IEC 60950-1/62368-1, UL 60950-1/62368-1, CAN/CSA C22.2 No. 60950-1/62368-1, EN 60950-1/62368-1, AS/NZS 60950.1, AS/NZS 62368.1, Class I Equipment
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking Support StackWise-80
Stacking bandwidth support 80 Gbps
Stacking hardware C9200L-STACK-KIT
Number of
members		 8
Supported stack members Other C9200L models with the same license level
Stacking accessories
C9200L-STACK-KIT Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM Data stack 50 cm cable (default cable with Stack Kit)
STACK-T4-1M Data stack 1 m cable
STACK T4-3M Data stack 3 m cable

[/accesories]

At a Glance
  • Ports: 24 × 10/100/1000 PoE+ Ethernet ports
  • Uplinks: 4 × 1G SFP fixed uplinks
  • Stacking: StackWise-80 with 80 Gbps bandwidth
  • PoE Budget: Up to 370W
Product Overview

The Cisco C9200L-24P-4G-A is a fixed-uplink, stackable Layer 3 switch built for enterprise-grade access deployments. Designed to simplify branch and campus access networks, it offers 24 full PoE+ ports and 4 fixed 1G SFP uplinks—ideal for connecting phones, access points, and IP cameras.

Running Cisco IOS XE with the Network Advantage license tier, it delivers advanced routing, secure segmentation, and automation via Cisco Catalyst Center. Built on the UADP 2.0 Mini ASIC, the switch ensures efficient wired and wireless convergence. The C9200L-24P-4G-A supports StackWise-80, enabling up to 8-member stacking for redundancy and management simplicity.

Technical Specifications

Hardware

  • Model: C9200L-24P-4G-A
  • Ports: 24 × 10/100/1000 PoE+ Ethernet ports
  • Uplinks: 4 × 1G SFP fixed uplink ports
  • Stacking Support: StackWise-80
  • Stacking Bandwidth: 80 Gbps
  • Power Supply: 1 × PWR-C5-600WAC (supports dual redundant PSUs)
  • PoE Budget: Up to 370W
  • Fan Modules: Fixed
  • Physical Dimensions: 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm)
  • Weight: 10.38 lbs (4.71 kg)

Performance

  • Switching Capacity: 56 Gbps
  • Forwarding Rate: 41.67 Mpps
  • DRAM: 2 GB
  • Flash Memory: 4 GB
  • VLAN Support: 4096 VLANs
  • MAC Address Table Size: 16,000 entries
  • Jumbo Frame Support: Up to 9198 bytes

Software & Features

  • Operating System: Cisco IOS XE
  • License Tier: Network Advantage
  • Routing Protocols: OSPF, EIGRP, RIP, IS-IS, VRF
  • Security Features: 802.1X, SGT, TrustSec, MACsec (128-bit), ACLs
Frequently Asked Questions

What uplinks are included on the C9200L-24P-4G-A?

It comes with 4 fixed 1G SFP uplink ports.

Is the power supply replaceable?

Yes, the C9200L series uses field-replaceable power supplies and supports dual redundant PSUs for high availability.

Can this switch be stacked with other Cisco switches?

Yes. It supports StackWise-80 and can stack with other C9200L models (up to 8 switches).

What is the total PoE budget available?

With the default 600W PSU, the switch provides up to 370W. A second 600W PSU can be added to increase the total PoE budget to 740W.
