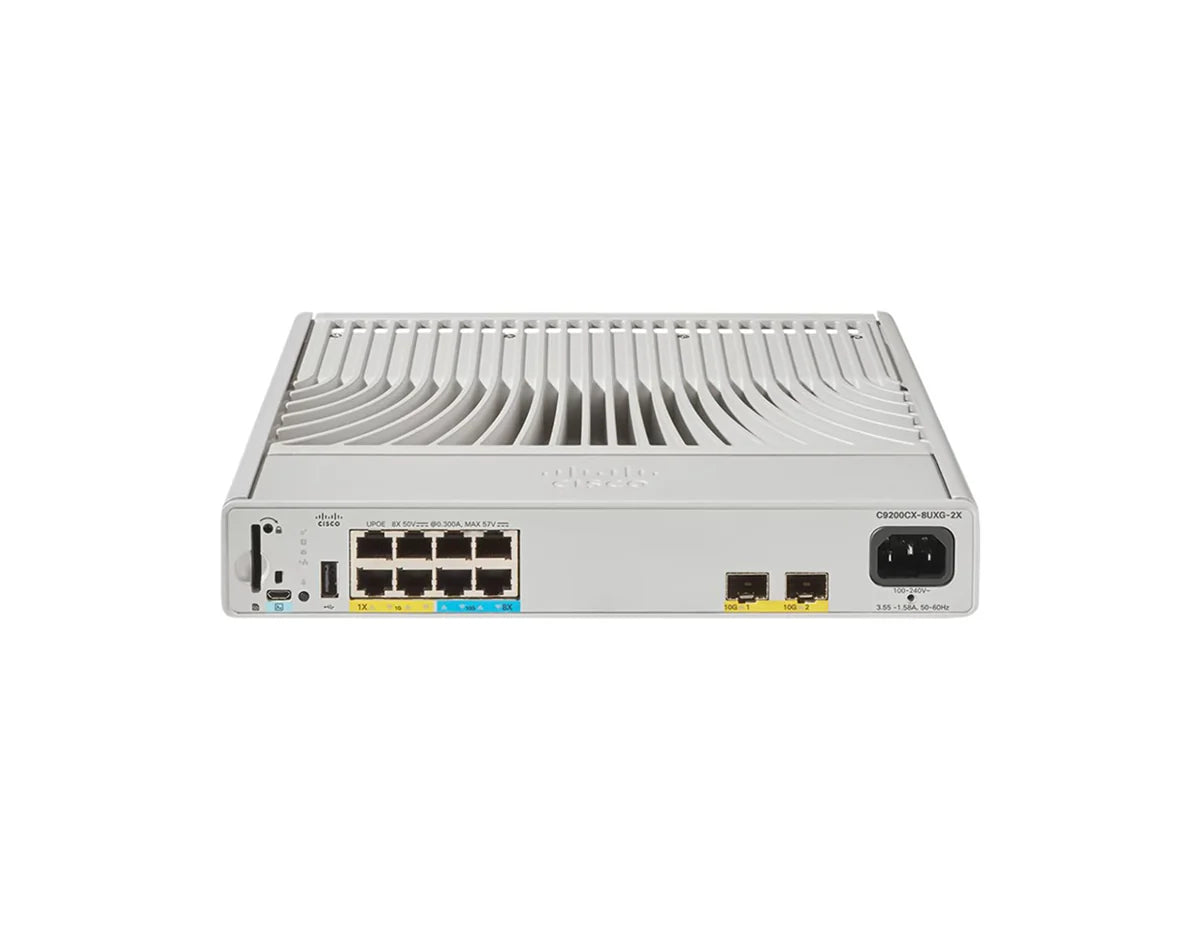

Cisco Catalyst C9200CX-8UXG-2X-A 8-Port UPoE Compact Switch, 2x10G Uplinks, Network Advantage
Cisco Catalyst C9200CX-8UXG-2X-A 8-Port UPoE Compact Switch, 2x10G Uplinks, Network Advantage

Cisco Catalyst C9200CX-8UXG-2X-A 8-Port UPoE Compact Switch, 2x10G Uplinks, Network Advantage

por Cisco
Desconto de 43%
R$ 54.002,76
R$ 30.792,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 8 total UPOE ports (4x mGig, 4x 1G), 2x 10G SFP+ uplinks, 240W PoE budget, fanless, Layer 3, rack-mountable [/shortdesc]

[properties]

Model Cisco C9200CX-8UXG-2X-A
Product Type Managed Layer 3 Compact Switch
Series Catalyst 9200CX Series
Form Factor Rack-mountable, DIN Rail Mountable, Compact, Fanless
Port Configuration 4 x 100/1000/2.5/5/10G (mGig) UPOE ports + 4 x 10/100/1000 (1G) UPOE ports + 2 x 10G SFP+ uplinks
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
MAC Address Table 32,000 entries
PoE Budget 240 W UPOE
Power Consumption 315 W
Power Supply Internal Power Supply
Input Voltage AC 115/230 V (50/60 Hz)
Operating Temperature 23 °F to 104 °F (−5 °C to 40 °C)
Storage Temperature −40 °F to 158 °F (−40 °C to 70 °C)
Operating Humidity 5% to 90% non-condensing
Dimensions (H × W × D) 1.7 × 10.6 × 9.6 in
Weight 7.01 lb (3.18 kg)
Mounting Options Rack-mount, Wall, or Under-table Installation
Software License Network Advantage
Management Interfaces Console (micro-USB), USB 2.0, SNMP, RMON, RESTCONF, CLI, YANG
Supported Standards IEEE 802.1x, 802.1Q, 802.3at, 802.3bt, 802.3z, 802.3ab, 802.3ad (LACP)
Encryption 256-bit AES MACsec

[/properties]

[specifications]

Layer Support Layer 3
Switching Type Gigabit Ethernet / 10 Gigabit Ethernet
Network Technology 10/100/1000Base-T, 10GBase-X
Uplink Interfaces 2 x 10G SFP+
PoE Type UPOE (802.3bt compliant)
Features Flexible NetFlow, Zero-Touch Provisioning (ZTP), QoS, ACLs, CoS, Energy Efficient Ethernet (EEE), PVLAN, SPAN/RSPAN
Routing Protocols OSPF, OSPFv3, RIP, RIPng, EIGRP, EIGRP for IPv6, PIM-SM, PIM-SSM, Policy-Based Routing
Security Features MACsec 256-bit encryption, 802.1x authentication, Control Plane Protection (CoPP), DHCP snooping, Dynamic ARP Inspection
Memory 4 GB DRAM, 8 GB Flash
Performance Switching capacity: 128 Gbps; Forwarding rate: 95.23 Mpps; Buffer: 6 MB
Virtual LAN Support Up to 4096 VLAN IDs
Stacking Bandwidth Not supported on this compact model (C9200CX)
MTBF 711,500 hours
Compliance EN 55032 Class A, CISPR 24, UL 60950-1, FCC Part 15B Class A, RoHS, WEEE
Management Software Cisco DNA Center, Cisco IOS XE 17.9 Universal
Network Monitoring Full Flexible NetFlow

[/specifications]

[accesories]

Included power cord, documentation
Optional – Power Adapters Auxiliary AC or DC power adaptors (optional for certain C9200CX models, consult specifications)
Optional – Accessories SFP+ Transceivers; 19-Inch Rack Mounting Brackets; DIN Rail Mount; Cable Guard

[/accesories]

The Cisco Catalyst C9200CX-8UXG-2X-A extends Cisco’s trusted enterprise switching into space-limited environments. This compact, fanless Layer 3 switch delivers a mix of mGig and 1G UPOE on 8 total ports, two 10G SFP+ uplinks, and a 240W power budget. Running on the Network Advantage license tier, it is designed for modern branch, campus, and IoT deployments, combining performance, security, and flexibility in a single, silent unit.

  • High-Power UPOE: Provides a 240W total power budget, supporting Cisco UPOE for demanding devices like high-power access points and compact IP servers.
  • Multi-Gigabit (mGig) Downlinks: Includes four mGig ports supporting 2.5/5/10G speeds, plus four 1G ports, ideal for Wi-Fi 6/6E.
  • Dual 10G SFP+ Uplinks: Provides high-speed fiber connectivity for aggregation or uplink redundancy.
  • Fanless Compact Design: Enables silent operation for office, retail, or branch environments with limited ventilation.
  • Enterprise Layer 3 Capabilities: Supports OSPF, EIGRP, RIP, PIM, and advanced QoS for efficient network control.
  • Advanced Security: Features AES-256 MACsec encryption, 802.1X authentication, and TrustSec segmentation.
  • Enterprise branch offices requiring compact, high-performance PoE switching with multi-gigabit speeds.
  • Smart building or retail deployments with low noise and high-density IoT device requirements.
  • IP surveillance and unified communications environments utilizing the higher UPOE power budget.
  • Campus edge aggregation or IoT device networks where space is limited.
  • Ports: 4x mGig UPOE + 4x 1G UPOE (RJ-45) downlinks, 2x 10G SFP+ fixed uplinks
  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 95.23 Mpps
  • PoE Budget: 240W total UPOE
  • Network Layer: Layer 3
  • MAC Table Size: 32,000 entries
  • Form Factor: Rack-mountable, fanless, compact
  • Dimensions (W x D x H): 10.6 x 9.6 x 1.7 inches
  • Weight: 7.01 lb (3.18 kg)
  • Software: Cisco IOS XE 17.9 Universal (Network Advantage)

Boost enterprise connectivity and simplify management with the Cisco Catalyst C9200CX-8UXG-2X-A. Compact power meets enterprise-grade performance. Order now to elevate your edge infrastructure.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 8 total UPOE ports (4x mGig, 4x 1G), 2x 10G SFP+ uplinks, 240W PoE budget, fanless, Layer 3, rack-mountable [/shortdesc]

[properties]

Model Cisco C9200CX-8UXG-2X-A
Product Type Managed Layer 3 Compact Switch
Series Catalyst 9200CX Series
Form Factor Rack-mountable, DIN Rail Mountable, Compact, Fanless
Port Configuration 4 x 100/1000/2.5/5/10G (mGig) UPOE ports + 4 x 10/100/1000 (1G) UPOE ports + 2 x 10G SFP+ uplinks
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
MAC Address Table 32,000 entries
PoE Budget 240 W UPOE
Power Consumption 315 W
Power Supply Internal Power Supply
Input Voltage AC 115/230 V (50/60 Hz)
Operating Temperature 23 °F to 104 °F (−5 °C to 40 °C)
Storage Temperature −40 °F to 158 °F (−40 °C to 70 °C)
Operating Humidity 5% to 90% non-condensing
Dimensions (H × W × D) 1.7 × 10.6 × 9.6 in
Weight 7.01 lb (3.18 kg)
Mounting Options Rack-mount, Wall, or Under-table Installation
Software License Network Advantage
Management Interfaces Console (micro-USB), USB 2.0, SNMP, RMON, RESTCONF, CLI, YANG
Supported Standards IEEE 802.1x, 802.1Q, 802.3at, 802.3bt, 802.3z, 802.3ab, 802.3ad (LACP)
Encryption 256-bit AES MACsec

[/properties]

[specifications]

Layer Support Layer 3
Switching Type Gigabit Ethernet / 10 Gigabit Ethernet
Network Technology 10/100/1000Base-T, 10GBase-X
Uplink Interfaces 2 x 10G SFP+
PoE Type UPOE (802.3bt compliant)
Features Flexible NetFlow, Zero-Touch Provisioning (ZTP), QoS, ACLs, CoS, Energy Efficient Ethernet (EEE), PVLAN, SPAN/RSPAN
Routing Protocols OSPF, OSPFv3, RIP, RIPng, EIGRP, EIGRP for IPv6, PIM-SM, PIM-SSM, Policy-Based Routing
Security Features MACsec 256-bit encryption, 802.1x authentication, Control Plane Protection (CoPP), DHCP snooping, Dynamic ARP Inspection
Memory 4 GB DRAM, 8 GB Flash
Performance Switching capacity: 128 Gbps; Forwarding rate: 95.23 Mpps; Buffer: 6 MB
Virtual LAN Support Up to 4096 VLAN IDs
Stacking Bandwidth Not supported on this compact model (C9200CX)
MTBF 711,500 hours
Compliance EN 55032 Class A, CISPR 24, UL 60950-1, FCC Part 15B Class A, RoHS, WEEE
Management Software Cisco DNA Center, Cisco IOS XE 17.9 Universal
Network Monitoring Full Flexible NetFlow

[/specifications]

[accesories]

Included power cord, documentation
Optional – Power Adapters Auxiliary AC or DC power adaptors (optional for certain C9200CX models, consult specifications)
Optional – Accessories SFP+ Transceivers; 19-Inch Rack Mounting Brackets; DIN Rail Mount; Cable Guard

[/accesories]

Empower Edge Networks with Compact Enterprise Switching

The Cisco Catalyst C9200CX-8UXG-2X-A extends Cisco’s trusted enterprise switching into space-limited environments. This compact, fanless Layer 3 switch delivers a mix of mGig and 1G UPOE on 8 total ports, two 10G SFP+ uplinks, and a 240W power budget. Running on the Network Advantage license tier, it is designed for modern branch, campus, and IoT deployments, combining performance, security, and flexibility in a single, silent unit.

Key Benefits & Features
  • High-Power UPOE: Provides a 240W total power budget, supporting Cisco UPOE for demanding devices like high-power access points and compact IP servers.
  • Multi-Gigabit (mGig) Downlinks: Includes four mGig ports supporting 2.5/5/10G speeds, plus four 1G ports, ideal for Wi-Fi 6/6E.
  • Dual 10G SFP+ Uplinks: Provides high-speed fiber connectivity for aggregation or uplink redundancy.
  • Fanless Compact Design: Enables silent operation for office, retail, or branch environments with limited ventilation.
  • Enterprise Layer 3 Capabilities: Supports OSPF, EIGRP, RIP, PIM, and advanced QoS for efficient network control.
  • Advanced Security: Features AES-256 MACsec encryption, 802.1X authentication, and TrustSec segmentation.
Ideal Use Cases
  • Enterprise branch offices requiring compact, high-performance PoE switching with multi-gigabit speeds.
  • Smart building or retail deployments with low noise and high-density IoT device requirements.
  • IP surveillance and unified communications environments utilizing the higher UPOE power budget.
  • Campus edge aggregation or IoT device networks where space is limited.
Technical Specifications
  • Ports: 4x mGig UPOE + 4x 1G UPOE (RJ-45) downlinks, 2x 10G SFP+ fixed uplinks
  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 95.23 Mpps
  • PoE Budget: 240W total UPOE
  • Network Layer: Layer 3
  • MAC Table Size: 32,000 entries
  • Form Factor: Rack-mountable, fanless, compact
  • Dimensions (W x D x H): 10.6 x 9.6 x 1.7 inches
  • Weight: 7.01 lb (3.18 kg)
  • Software: Cisco IOS XE 17.9 Universal (Network Advantage)
Upgrade Your Network Efficiency Today

Boost enterprise connectivity and simplify management with the Cisco Catalyst C9200CX-8UXG-2X-A. Compact power meets enterprise-grade performance. Order now to elevate your edge infrastructure.
