Cisco Catalyst C9200-48T-E 48-Port Gigabit Enterprise Access Switch | Modular 10G Uplink | StackWise-160 | Network Essentials

Overview

The cisco c9200-48t-e is a high-density modular enterprise access solution engineered to deliver secure, scalable, and high-performance data connectivity. Running Cisco IOS XE with the cost-optimized Network Essentials feature set, this robust c9200-48t-e hardware platform provides 48 full Gigabit data downlinks, hot-swappable uplink slots, and essential Layer 3 static and OSPF routing paths. It acts as an incredibly efficient, non-PoE cisco 48 port switch asset designed to eliminate unneeded software licensing overhead across campus networks, branch offices, and corporate enterprise LAN environments.

Built on Cisco's unified programmable UADP 2.0 ASIC core and driven by an x86 multicore CPU framework, this dedicated data layer maximizes network energy efficiency while maintaining enterprise-grade reliability. Whether you are expanding a corporate office network, standardizing school campus buildings, or deploying regional retail branches, implementing this scalable cisco network switch 48 port platform guarantees continuous always-on connectivity.

• Related Reading & Architecture Resource Guides:

  • Deploying a 48-port access layer? Read our direct matchup: Cisco 9200 48P vs 9300 48P: Complete Comparison Matrix.

  • Evaluating modular capabilities across different series? Read our guide: Cisco Catalyst 9200 vs 9300 Series Switches Features Comparison.

  • Replacing legacy non-PoE hardware assets? Check out our blueprint: How to Replace Legacy Cisco Switches for Modern Enterprise Networks.

📥 Download Technical Specifications: Staging a standard data-intensive network upgrade? Enter your corporate work email below to download the official c9200 48t e datasheet to review exact 48-port forwarding thresholds, switching capacity metrics, and expansion module footprints.

Highlights

• 48 Gigabit Data Ports: 48 auto-sensing 10/100/1000 RJ-45 ports designed purely for high-density, wire-speed wired data access layers without PoE overhead.

• Modular Uplink Flexibility: One hot-swappable slot accommodating official original network modules (C9200-NM-4G or C9200-NM-4X only) for flexible network scaling and future-proof fiber backhauls.

• StackWise-160 High Availability: Cluster up to 8 switches into a single logical entity with a combined 160 Gbps stacking backplane bandwidth, featuring NSF/SSO sub-50ms failover metrics.

• Wire-Speed Switching Capacity: Non-blocking 176 Gbps switching fabric paired with a line-rate 130.95 Mpps forwarding performance rate to eliminate network edge bottlenecks.

• Deep 6 MB Packet Buffer: Allocates a specialized 6 MB RAM buffer block to prevent drop anomalies during burst traffic congestion loops inside dense user environments.

• Optimed Network Essentials Licensing: Pre-integrated out-of-the-box support for core Layer 2 traits and foundational Layer 3 routed access (Static, RIP, OSPF Stub up to 1,000 routes).

• Enterprise-Grade Security Tiers: Features line-rate AES-128 MACsec link encryption, secure 802.1X port authentication, DHCP Snooping, Dynamic ARP Inspection (DAI), and Secure Boot with Trust Anchor safeguards.

• Cloud & Automation Ready Operations: Native seamless integration with Cisco Catalyst Center (formerly DNA Center) and Meraki Dashboard for streaming telemetry and zero-touch Plug-and-Play provisioning.

Use Cases & Deployment Scenarios

• Enterprise Office Networks: High-density, reliable wired LAN access layers for corporate headquarters and regional office branches, connecting workstations and network devices cleanly.

• Education Sector LAN Tiers: Campus-wide access infrastructure for university classrooms, school administration buildings, student labs, and non-PoE training rooms.

• Healthcare IT Infrastructure: Secure, stable, and highly isolated hospital network access layers for administrative desks, laboratory data paths, and patient data processing.

• Government Infrastructure: Resilient public sector communication networks built for secure internal administrative data access without advanced overlay complexity.

• Multi-Branch Distributed Enterprises: Scalable and standardized network edge deployments across regional retail store chains, distributed offices, and logistics centers.

• Campus Network Access Layer: Building-level non-blocking switching nodes to feed clean data distributions straight into structured campus LAN architectures.

Recommended Accessories

To configure your modular cisco c9200-48t-e deployment effectively, select original Cisco matching expansion components and stacking loop options.

Comparison with Similar Models

Specifications

Why Choose C9200-48T-E?

1. High-Density Enterprise Access Layer (48 Ports)

The 48 copper data interfaces provide reliable, high-speed wired connectivity across a clean cisco network switch 48 port layout. This serves as a solid edge layer for connecting employee workstations, high-speed shared network printers, internal application servers, and corporate wired endpoints smoothly.

2. Correct Modular Uplink Support (Cisco Validated)

The c9200-48t-e safely accommodates official original network modules to guarantee absolute hardware compatibility, lower deployment risk, and future-proof your investment:

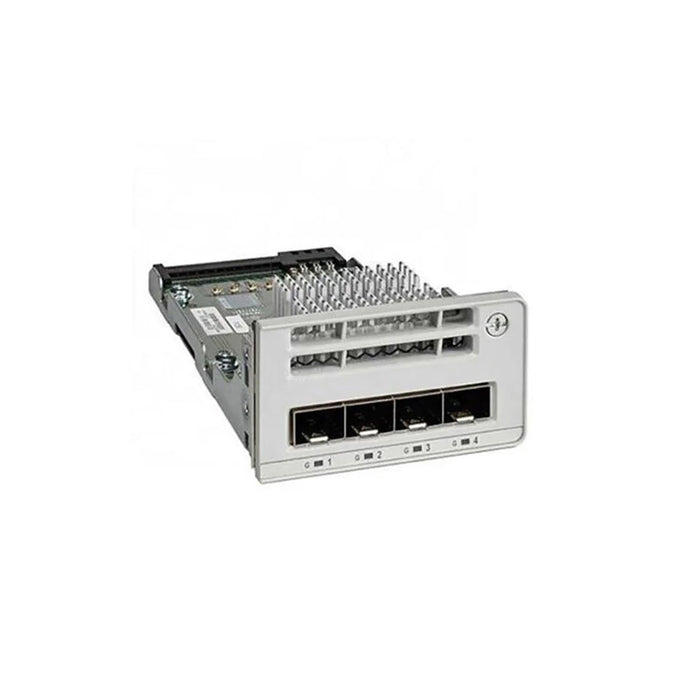

• C9200-NM-4G: 4 x 1G SFP slots for standard fiber run aggregation.

• C9200-NM-4X: 4 x 1G/10G SFP+ slots for high-speed core aggregationAggregation.

• Reseller/Engineering Note: High-tier slots like C9200-NM-8X or 40G modules are completely incompatible with the standard 9200 series access line.

3. StackWise-160 High Availability Resiliency

Allows your engineering group to physically loop up to 8 switches into a single logical switch using original STACK-T4 series stacking cables. Operating at a combined 160 Gbps of stacking backplane throughput drastically simplifies multi-floor office expansion, reduces administrative management points, and ensures sub-50ms hitless failovers.

4. Optimized Network Essentials Features (Cost-Efficient Design)

Delivers a highly cost-efficient data-only solution for enterprises that do not require advanced automation fabric overlays or complex segmentation macro-routing:

• Supports Static routing, RIP, OSPF Stub routing (up to 1,000 active routes), and EIGRP Stub protocols.

• Critical Technical Balance: Advanced virtual topologies (VRF instances), VXLAN fabric segmentation, and carrier-grade BGP routing protocols are NOT supported under this license tier. For a detailed software comparison, review our Cisco Catalyst FAQ: Power, Stacking & Licensing Guide.

5. Hardware Advantage over C9200L Alternative Lines

Unlike fixed-uplink C9200L alternative lines, this premium system supports full uplink module card swapping and hot-swappable field-replaceable fan trays (FRU layout) to deliver maximum enterprise investment protection. For a comprehensive matchup of modular vs fixed variables, read our hardware analysis: Cisco Catalyst 9200 vs 9200L Switches Hardware Deep Dive.

More Details

Quality Certifications

Do you have any question about the Cisco C9200-48T-E Data Switch?
