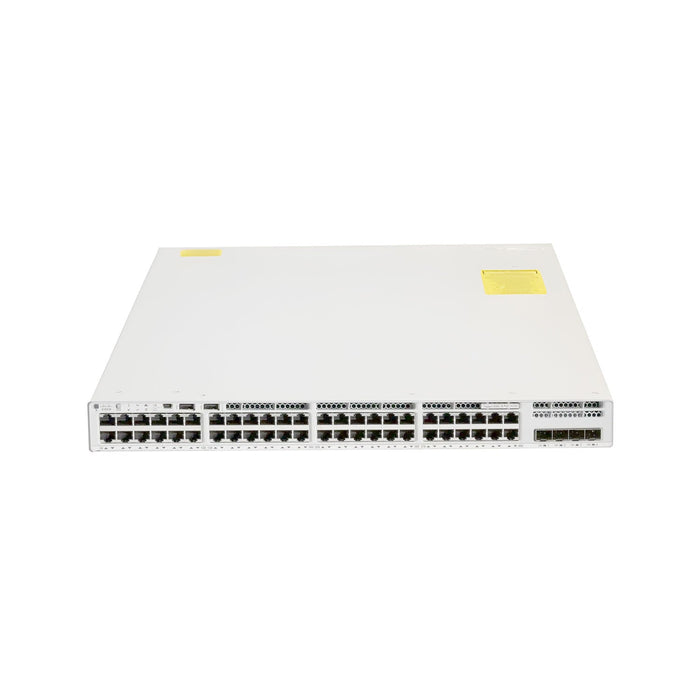

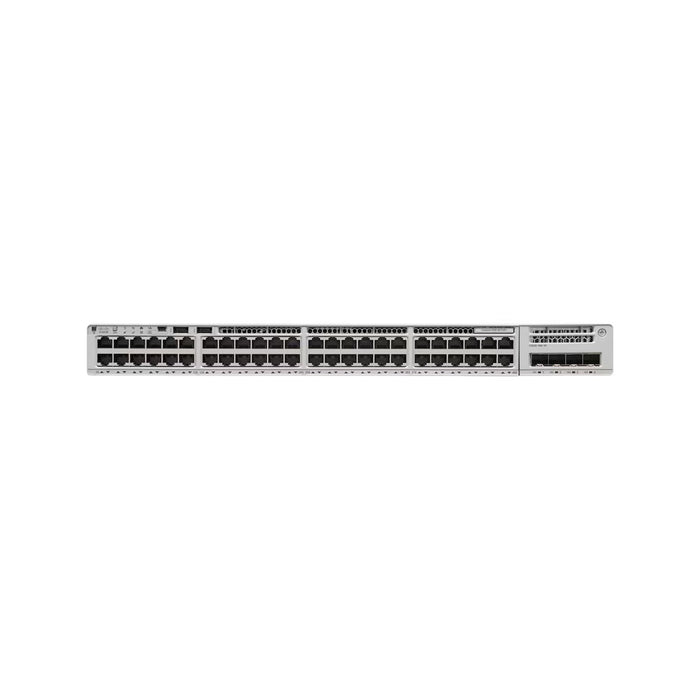

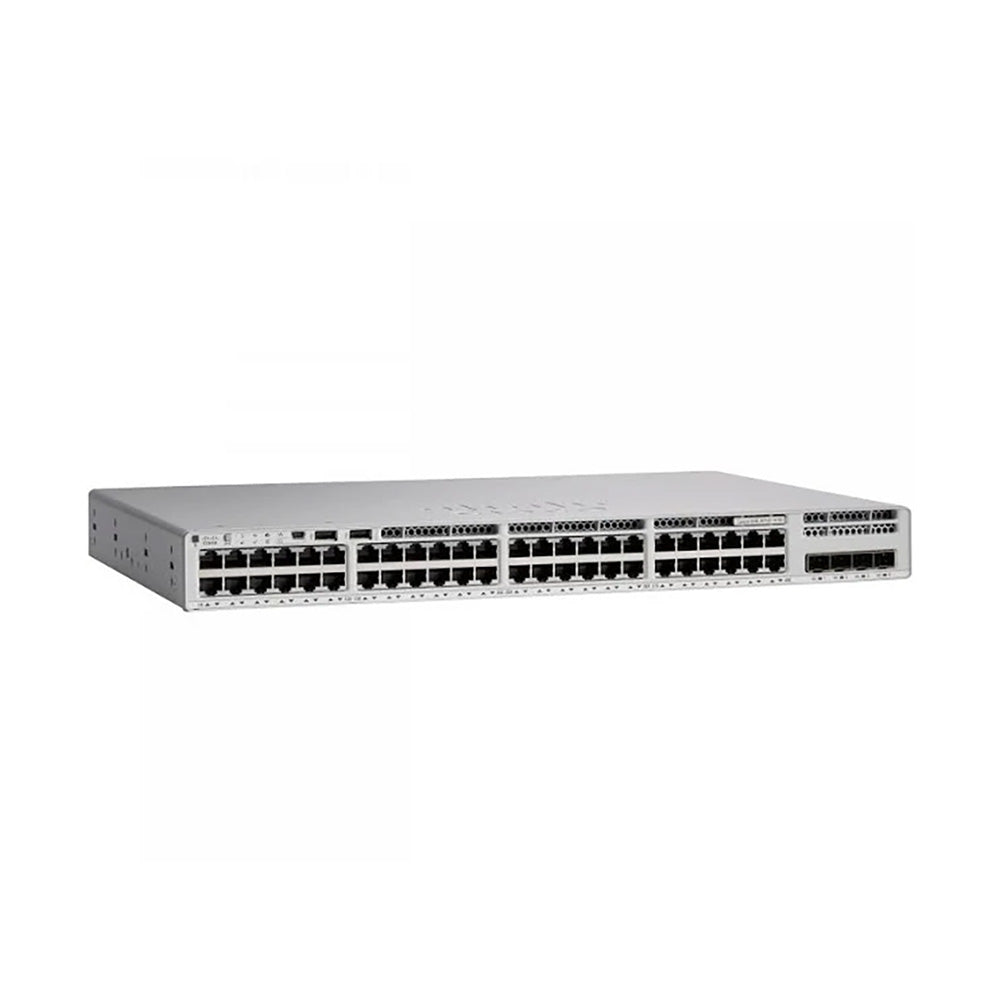

Cisco Catalyst C9200-48T-A 48-Port Gigabit Enterprise Access Switch | Modular 10G Uplink | StackWise-160 | Network Advantage

Overview

The cisco c9200-48t-a is a high-density modular enterprise-grade cisco 48 port switch purpose-built for advanced Layer 3 data access layers in campus networks, expansive corporate branches, and device-dense distribution environments. Operating under the modern Cisco IOS XE operating system with a premier Network Advantage license, this high-performance c9200-48t-a platform delivers enhanced Layer 3 dynamic routing, policy-based macro-segmentation, and programmatic automation capabilities without the thermal load or power budget overhead of PoE circuitry.

Built on Cisco's unified programmable UADP 2.0 ASIC core and driven by an x86 multicore CPU framework, the non-PoE c9200 48t platform delivers true wire-speed non-blocking switching capacity, deterministic ultra-low latency, and an outstanding MTBF reliability rating of 571,440 hours. With hot-swappable uplink slots, field-replaceable power supplies, and robust software-defined networking (SD-Access) capabilities, it serves as the ultimate foundational link for corporate office floors, server rooms, and latency-sensitive operations.

• Related Reading & Architecture Resource Guides:

  • Upgrading legacy 48-port non-PoE access layers? View our structural roadmap: How to Replace Legacy Cisco Switches for Modern Enterprise Networks.

  • Evaluating modular capabilities across different series? Read our guide: Cisco Catalyst 9200 vs 9300 Series Switches.

  • Not sure which specific hardware footprint aligns with your network topology? Consult our comprehensive Cisco Switch Guide: Which Fits Your Network?.

📥 Download Technical Specifications: Planning a data-intensive network architecture? Enter your corporate email below to download the official datasheet PDF to review exact 48-port forwarding thresholds, MAC address table capacities, and VRF parameters to cleanly fit your installation staging map.

Highlights

• 48-Port Full Data Access (Non-PoE Design): Features 48 auto-sensing 10/100/1000 RJ-45 dedicated data ports. Removing PoE components drastically reduces baseline power consumption and facility HVAC cooling costs, making it a premier cisco 48 port switch choice for high-density wired endpoints and server rack aggregates.

• High-Performance Switching & Low Latency: Provides 176 Gbps non-blocking switching fabric capacity paired with a wire-speed 130.95 Mpps forwarding performance rate. An integrated 6 MB deep packet buffer handles intense burst traffic loops smoothly, ensuring stable video streaming and deterministic low latency under heavy concurrency.

• Modular Uplink Flexibility (Real Deployment Protection): Unlike fixed alternative tiers, this customizable cisco c9200-48t-a chassis accommodates hot-swappable line cards to eliminate upstream link constraints as your backbone scales:

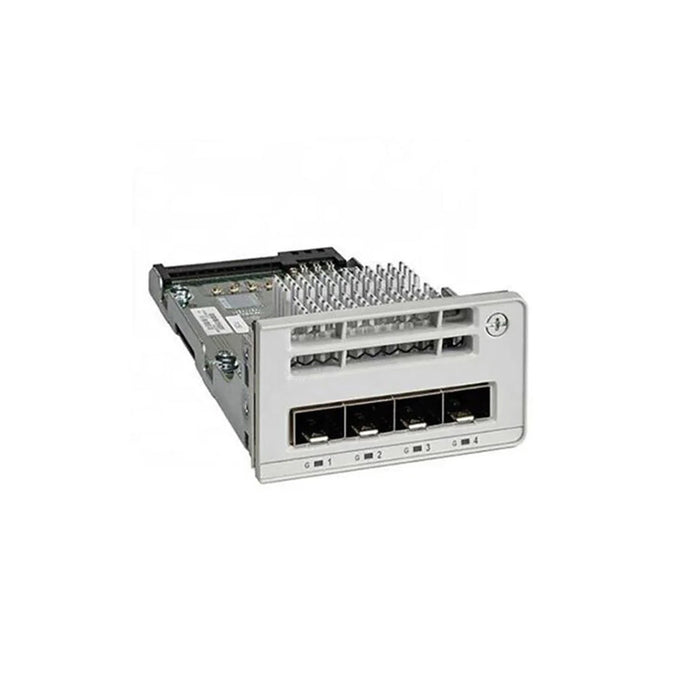

  • C9200-NM-4G: 4 x 1G SFP interfaces for standard fiber connectivity aggregation.

  • C9200-NM-4X: 4 x 10G SFP+ slots for high-speed campus aggregation backhauls.

  • (Note: 25G or 40G module expansions are not compatible with this specific chassis series).

• StackWise-160 High Availability Stacking: Physically cluster up to 8 switches into a single logical entity operating at a combined 160 Gbps of stacking backplane throughput. Fully supports NSF/SSO high-availability architecture for sub-50 ms stateful failovers.

• Network Advantage: Advanced Layer 3 Capabilities: Pre-integrated out-of-the-box support for full dynamic Layer 3 routing protocols (OSPF, EIGRP, RIP, IS-IS) and policy-based routing (PBR). Supports up to 4 distinct isolated Virtual Networks (VRF) for secure campus virtualization and multi-department segmentation.

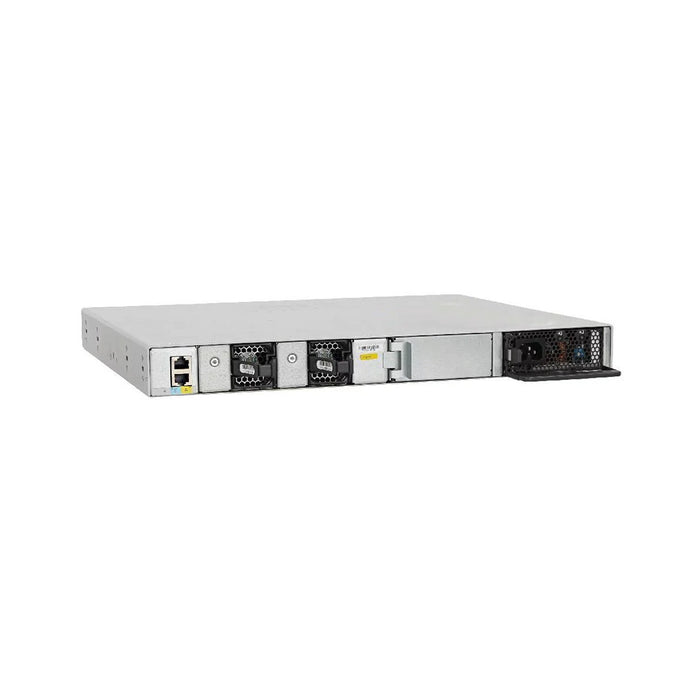

• True Enterprise Hardware Reliability: Equipped with field-replaceable hot-swappable fan modules (FRU layout) and dual redundant power supply slots to secure 24/7 corporate uptime.

  • Architectural Insight: These FRU elements represent a vital operational advantage over fixed 9200L models. For a complete matchup of modular vs fixed layout variables, read our hardware comparison: Cisco Catalyst 9200 vs 9200L Switches Hardware Deep Dive.

• Perimeter Security & Cloud Automation: Features hardware-accelerated AES-128 MACsec link encryption, secure 802.1X port authentication, DHCP Snooping, Dynamic ARP Inspection (DAI), and full Cisco Catalyst Center programmability via NETCONF/RESTCONF APIs for proactive streaming telemetry.

Use Cases & Deployment Scenarios

• Enterprise Campus Networks: High-density data access layer with robust Layer 3 segmentation for corporate IT floors, connecting employee workstations, high-speed printers, and non-PoE endpoints.

• Multi-Branch Enterprise Deployments: Routing-enabled access switch for distributed regional offices, allowing secure, localized policy enforcement directly at the edge network fabric.

• Education Tiers & Classrooms: University campuses and research centers requiring strict traffic control, isolated lab VLANs, and high-speed data transmission without PoE overhead.

• Healthcare Data Infrastructure: Secure and compliant medical network infrastructure to aggregate administrative desks, file processing stations, and local healthcare records.

• Government & Public Sector: Policy-based virtualization, micro-segmentation, and secure access controls across isolated multi-department networks.

• Retail & Chain Enterprises: Centralized IT orchestration combined with scalable branch connectivity, providing low-inventory SKU options for rapid retail hardware rollouts.

Recommended Accessories

To configure your modular c9200-48t-a deployment effectively, pair your hardware chassis with original Cisco components and expansion line cards.

Comparison with Similar Models

Specifications

More Details

Quality Certifications

Do you have any question about the Cisco C9200-48T-A Data Switch?
