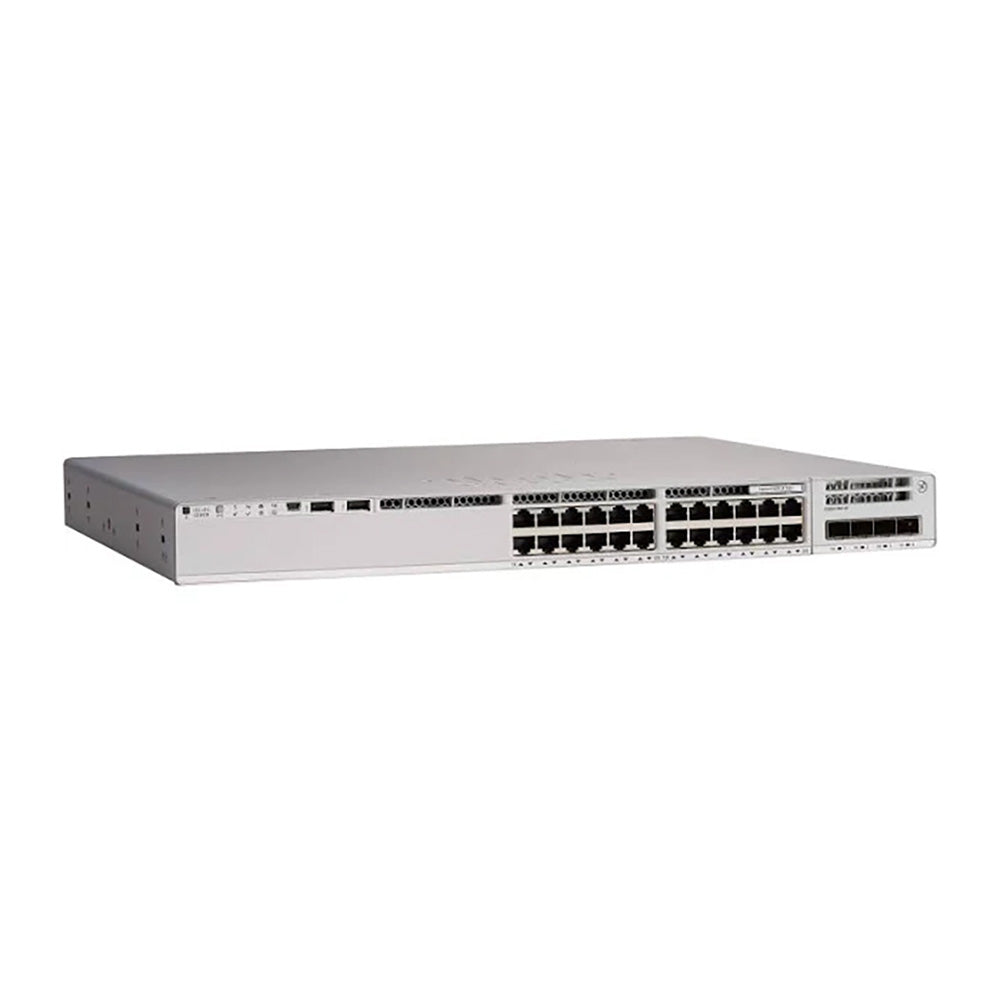

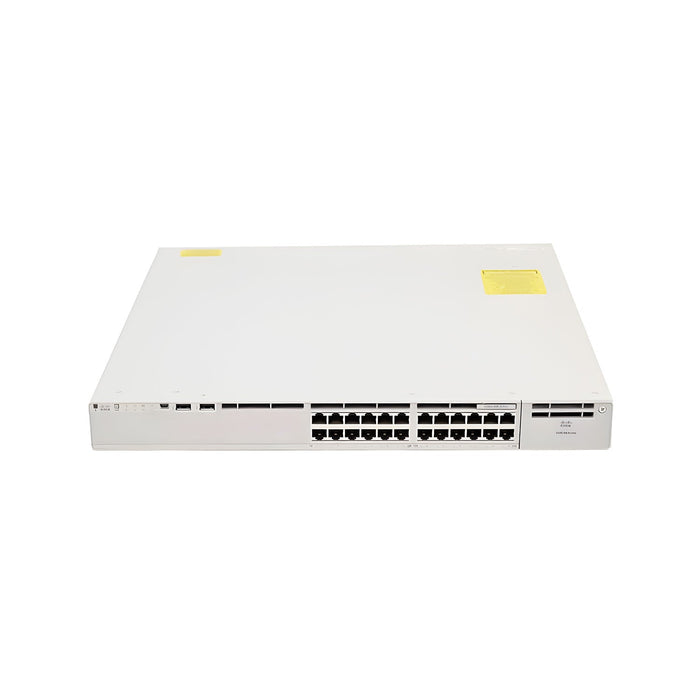

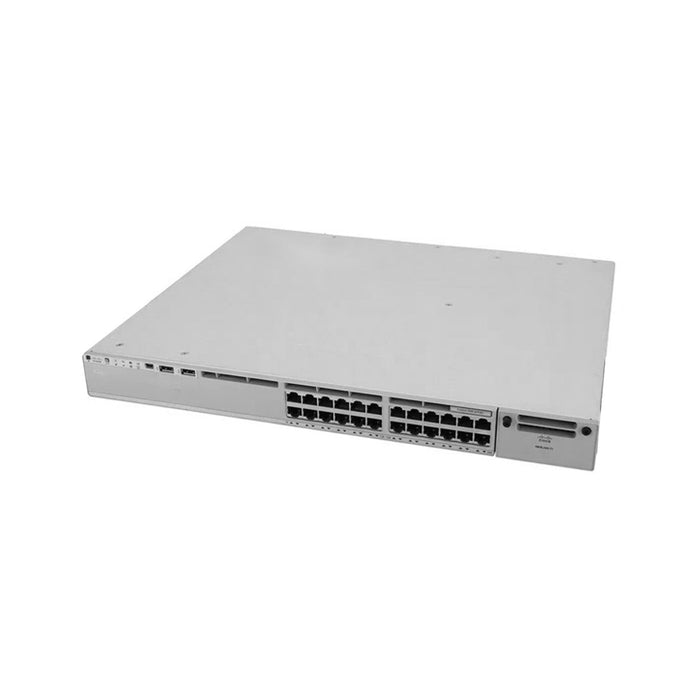

Cisco Catalyst C9200-24P-E 24-Port PoE+ Modular Access Switch, Network Essentials

Overview

Cisco Catalyst C9200-24P-E Modular PoE+ Access Switch for SMB & Branch Networks

The cisco c9200-24p-e is a modular enterprise-grade cisco 24 port poe switch purpose-built for small-to-medium businesses (SMB), corporate branch offices, retail chains, educational institutions, and traditional campus edge deployments. Running Cisco IOS XE with the cost-optimized Network Essentials license, this high-performance cisco poe switch 24 port platform delivers robust Layer 2 capabilities alongside foundational Layer 3 static and OSPF routing paths, allowing organizations to maximize project budgets without sacrificing enterprise-grade reliability.

As a core member of the modern cisco catalyst 9200 switch portfolio, the c9200-24p-e supports hot-swappable network modules, field-replaceable dual fan trays, and dual redundant power supply configurations to guarantee continuous always-on connectivity. Whether you are aggregating smart IoT endpoints or provisioning secure network paths, this modular hardware platform offers premium deployment flexibility over fixed-uplink equivalents.

• Related Reading & Architecture Resource Guides:

  • Evaluating access line capabilities? Check out our guide: Cisco Catalyst 9200 vs 9300 Series Switches.

  • Fixed vs. Modular hardware deep dive: Cisco Catalyst 9200 vs 9200L Switches Comparison Matrix.

  • Upgrading legacy 2960 infrastructure? Read our blueprint: Is Cisco Catalyst 2960 Still Worth It?.

📥 Download Technical Specifications: Planning a campus network deployment? Enter your corporate email below to download the official datasheet to review exact forwarding performance, layout scales, and hardware power limits.

Highlights

1. 24 x 1G PoE+ Ports for Endpoint Access

Features 24 auto-sensing 10/100/1000 RJ-45 copper access ports delivering up to 30W PoE+ per port (IEEE 802.3at specifications), making it a highly efficient cisco 24 port poe switch option.

• Ideal For: Energizing Wi-Fi 6 wireless access points, HD IP security surveillance cameras, unified VoIP desks, and smart retail POS hardware.

• Configuration Tip: For a step-by-step terminal CLI guide on initializing inline power paths, check out our resource: How to Enable PoE on a Cisco Switch Port.

2. Flexible Modular Uplinks (1G / 10G Expansion Ready)

Unlike fixed alternative lines, this adaptable cisco catalyst 9200 switch chassis accommodates hot-swappable network module additions to future-proof upstream links:

• C9200-NM-4G: 4 x 1G SFP interfaces for standard fiber connectivity backhaul runs.

• C9200-NM-4X: 4 x 10G SFP+ slots for high-speed uplink aggregation backplanes.

• Note: 25G / 40G high-tier uplink expansion modules are not supported on this specific chassis profile.

3. Optimized PoE Power Budget Design

• Single Power Supply Option: Yields a stable 370W PoE budget via a default PWR-C6-600WAC module.

• Dual Power Supply Option: Expands the shared inline power delivery pool to a massive 740W max PoE budget.

• Staging Tip: To accurately blueprint per-port deployment constraints, explore our technical layout resource: Cisco AP Deployment & PoE Budget Guide.

4. Wire-Speed Performance + Ultra-Low Latency Handling

• Delivers an outstanding 128 Gbps non-blocking switching fabric capacity paired with a 95.23 Mpps line-rate forwarding metric.

• An integrated 6 MB deep packet buffer ensures clean, stable handling of real-time voice/video traffic and smooth burst data transmission under unexpected local LAN congestion loops.

5. StackWise-160 High Availability Stacking

• Physically cluster up to 8 separate hardware units into a single logical entity using dedicated stacking kits, operating at a combined 160 Gbps stacking backplane bandwidth.

• Supports NSF/SSO failover parameters (<50 ms target response) to eliminate critical branch or retail downtime anomalies.

6. True Enterprise Hardware (FRU Design Advantage vs C9200L)

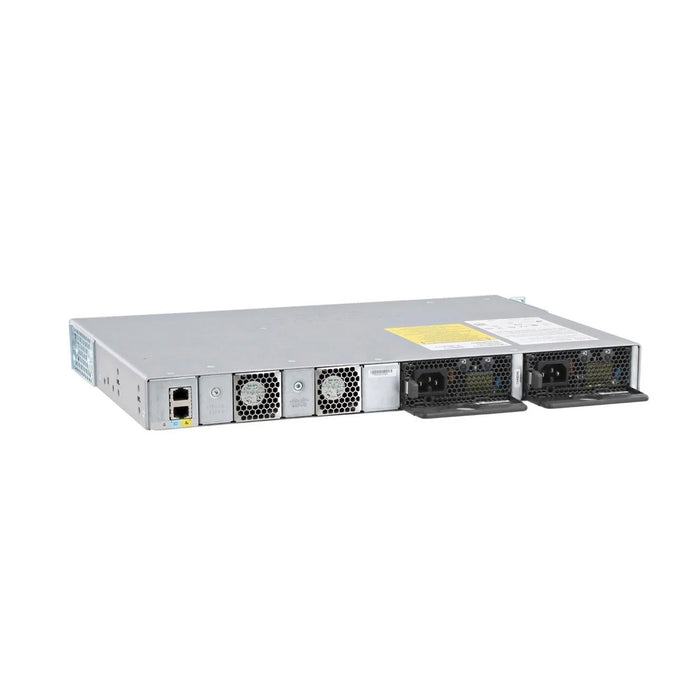

• Equipped with field-replaceable dual fan trays (FRU layout) and dual hot-swappable platinum power slots.

• Provides lower maintenance downtime, easier hardware upgrades, and superior branch reliability compared to fixed fixed-fan 9200L models.

7. Essentials Feature Set (Cost-Optimized Staging)

• Includes full support for multi-VLAN segmentation, Spanning Tree Protocol (STP), granular enterprise QoS metrics, static routing, and OSPF routing (supporting up to 1,000 active routes).

• Note: Advanced virtual fabrics (VRF, VXLAN, LISP, SGT) require upgrading to a Network Advantage model (C9200-24P-A).

8. Advanced Enterprise-Grade Security Borders

• Protects local enterprise infrastructure using hardware-accelerated AES-128 MACsec link encryption, secure 802.1X port authentication, DHCP Snooping, Dynamic ARP Inspection (DAI), and Secure Boot with Trust Anchor safeguards.

9. Cisco E-LLW Warranty Framework

• Completely backed by the standard Cisco Enhanced Limited Lifetime Warranty (E-LLW), supplying Next-Business-Day (NBD) hardware replacement logistics along with 90 days of factory 8x5 Cisco TAC access.

Recommended Accessories

To configure your modular c9200-24p-e system effectively, pair your hardware chassis with genuine Cisco replacement accessories.

Comparison with Similar Models

Specifications

More Details

Quality Certifications

Do you have any question about the Cisco C9200-24P-E Switch?
