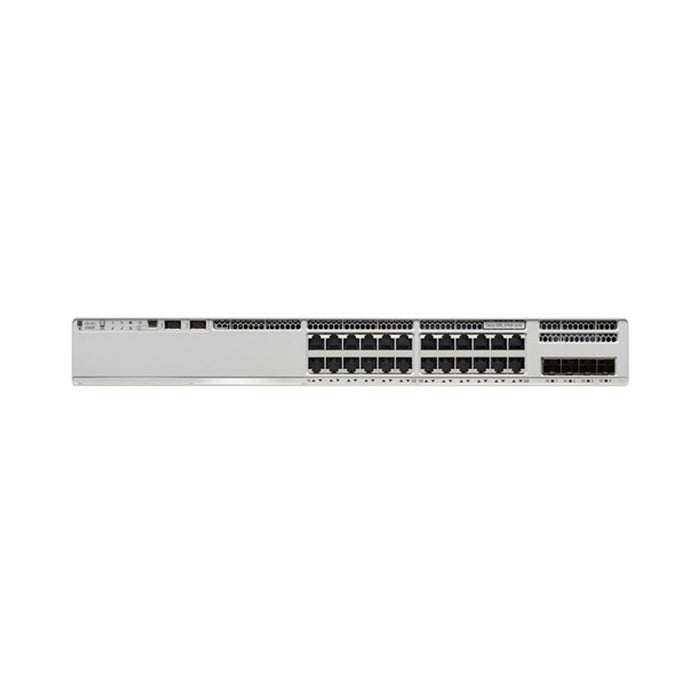

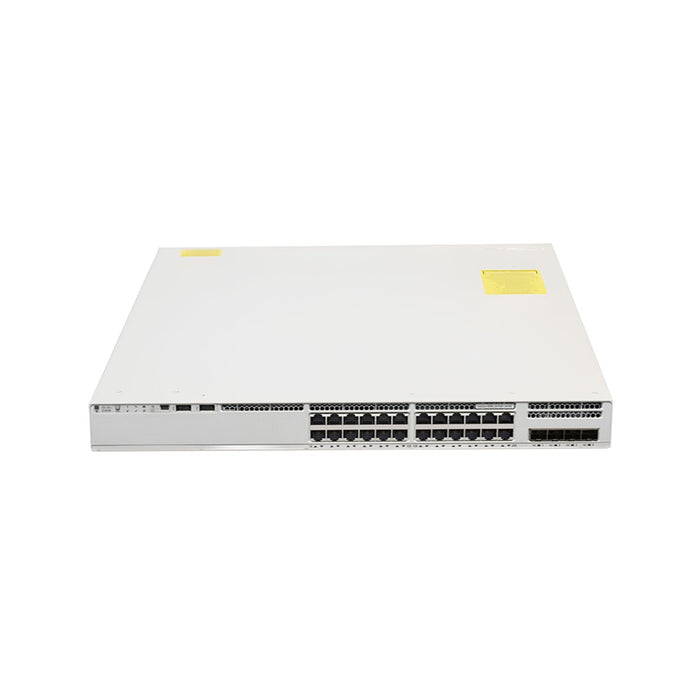

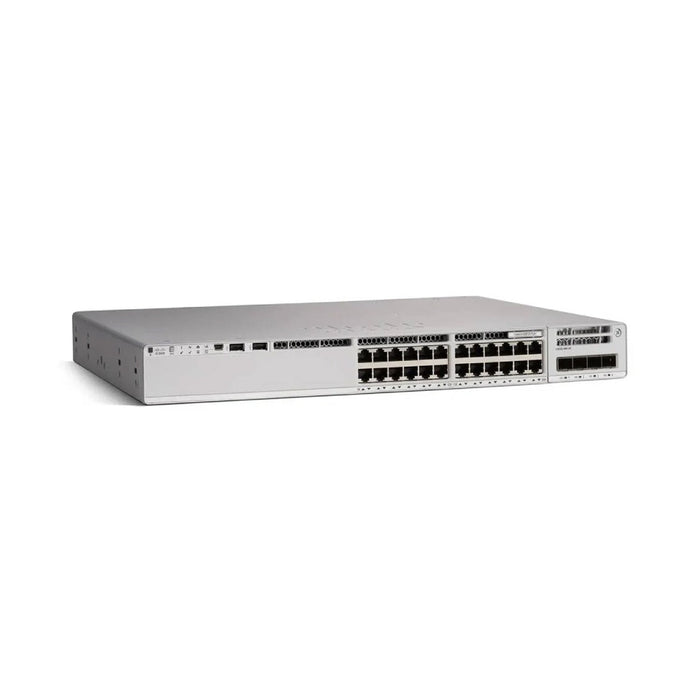

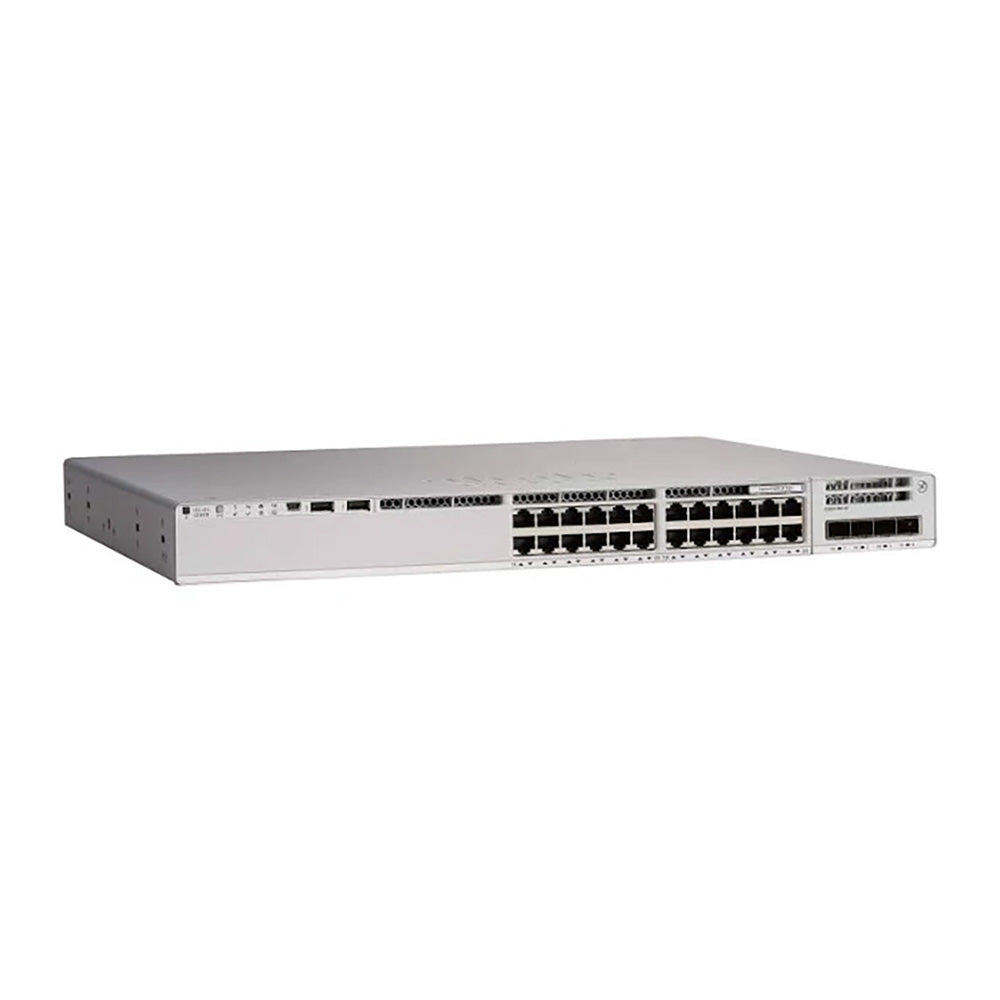

Cisco Catalyst C9200-24P-A 24-Port PoE+ Access Switch, Modular Uplinks, Network Advantage

Overview

The cisco c9300-24p-a sister platform-the flagship cisco c9200-24p-a-is a modular enterprise-grade cisco 24 port poe switch designed for high-availability campus networks, secure branch offices, and converged wired/wireless infrastructure layouts. Running on the modern Cisco IOS XE operating system under the elite Network Advantage license package, this high-performance c9200-24p-a platform delivers 24 full PoE+ Gigabit interfaces, flexible hot-swappable uplink additions, and advanced Layer 3 routing out of the box.

Built on Cisco's unified programmable UADP 2.0 ASIC architecture and backed by an x86 CPU core, this robust hardware asset is optimized for mission-critical enterprise layers. Whether you are scaling multi-floor branch access, establishing secure smart retail environments, or rolling out high-density Wi-Fi networks, implementing cisco catalyst 9200 series solutions guarantees zero-bottleneck performance.

With field-replaceable hardware elements (FRU), redundant power input configurations, and a versatile c9200 24p frame footprint, this system ensures maximum enterprise uptime, simplified lifecycle maintenance, and long-term network scale.

• Related Reading & Architecture Resource Guides:

  • Upgrading your branch access layer? View our migration blueprint: How to Replace Legacy Cisco Switches for Modern Enterprises.

  • Evaluating performance metrics? Read our deep-dive comparison: Cisco Catalyst 9200 vs 9300 Series Switches.

  • Not sure which lineup fits your topology? Consult the complete Cisco Switch Guide: Which Fits Your Network?

Core Highlights

1. 24 Full PoE+ Access Ports (High-Density Edge Deployment)

Features 24 auto-sensing 10/100/1000 RJ-45 copper ports delivering up to 30W of robust power per port (IEEE 802.3at parameters), making it a gold-standard cisco 24 port poe switch solution.

• Ideal For: Powering Wi-Fi 6 / Wi-Fi 6E Wireless Access Points, high-definition IP cameras, unified VoIP phone stations, and specialized IoT smart retail POS terminals.

2. Flexible Modular Uplinks (1G / 10G Aggregation Ready)

Unlike fixed-uplink hardware tiers, this customizable cisco catalyst 9200 system accommodates hot-swappable line cards to adapt quickly as your network core or upstream backbone demands scale:

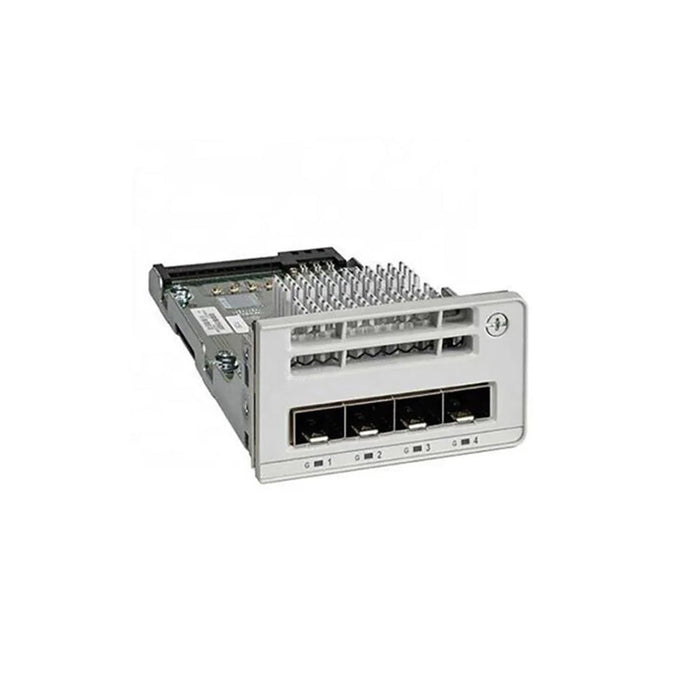

• C9200-NM-4G: 4 x 1G SFP interfaces for standard campus fiber aggregations.

• C9200-NM-4X: 4 x 10G SFP+ slots for high-speed uplink aggregation backhauls.

3. Scalable PoE Power Architecture (370W to 740W Budget Allocation)

• Single Default PSU configuration: Provides a solid 370W PoE power budget via 1 x PWR-C6-600WAC.

• Dual Redundant PSU configuration: Expands the available inline power pool to a massive 740W PoE budget.

• Staging Tip: To accurately calculate power draws across varying IoT environments, consult our technical resource: Cisco AP Deployment & PoE Budget Guide.

4. Wire-Speed Performance + Ultra-Low Latency

• Delivers a robust 128 Gbps non-blocking switching capacity paired with a wire-speed 95.23 Mpps forwarding rate.

• Features an integrated 6 MB packet buffer to protect against burst traffic congestion and eliminate packet drops on streaming audio, enterprise voice, or high-concurrency IoT environments.

5. StackWise-160 High Availability Resiliency

• Physically interconnect up to 8 distinct hardware entities using dedicated stacking kits to form a singular logical node operating at an industry-leading 160 Gbps of stacking backplane bandwidth.

• Supports NSF/SSO architecture and sub-50ms stateful failovers to protect mission-critical campus access layers from service disruptions.

6. FRU Hardware Elements (Key Edge Advantage vs C9200L)

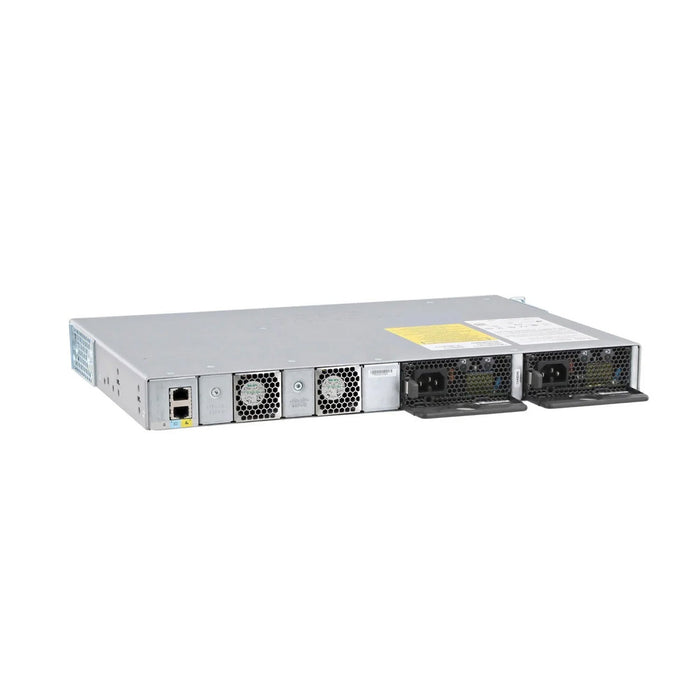

• Equipped with field-replaceable dual fan modules (FRU) and hot-swappable dual redundant power supplies.

• Architectural Insight: These FRU elements represent a vital design advantage for 24/7 corporate uptime. For a comprehensive matchup of modular vs fixed capabilities, read our breakdown: Cisco Catalyst 9200 vs 9200L Switches Hardware Deep Dive.

7. Advanced Software Routing Capabilities (Network Advantage)

• Unlocks full enterprise Layer 3 capabilities right out of the box, including advanced dynamic routing rules (OSPF, EIGRP, IS-IS) along with policy-based routing (PBR).

• Enables up to 4 distinct isolated Virtual Networks (VRF) for secure campus segmentation and multi-VLAN enterprise corporate compliance.

8. Enhanced Security & Zero-Trust Architecture Access

• Hardware-accelerated AES-128 MACsec link encryption, secure 802.1X port-level authentication, DHCP Snooping, Dynamic ARP Inspection (DAI), and IP Source Guard protect your network borders from sophisticated rogue intrusions.

Recommended Accessories

To configure your c9200-24p-a deployment effectively, ensure your chassis upgrades are paired with original Cisco components and expansion line cards.

Comparison with Similar Models

Specifications

Why Choose Cisco C9200-24P-A Switch?

• ✔ Modular uplink flexibility (1G/10G on demand)

• ✔ True enterprise hardware (FRU fans + redundancy)

• ✔ Accurate PoE scaling (370W 740W)

• ✔ Ultra-low latency with 6 MB buffer

• ✔ Supports up to 4 Virtual Networks (vs 1 on C9200L)

• ✔ Ideal for campus, retail chains, hospitals, and branch offices

• ✔ Perfect for Wi-Fi 6, IP surveillance, and IoT deployments
