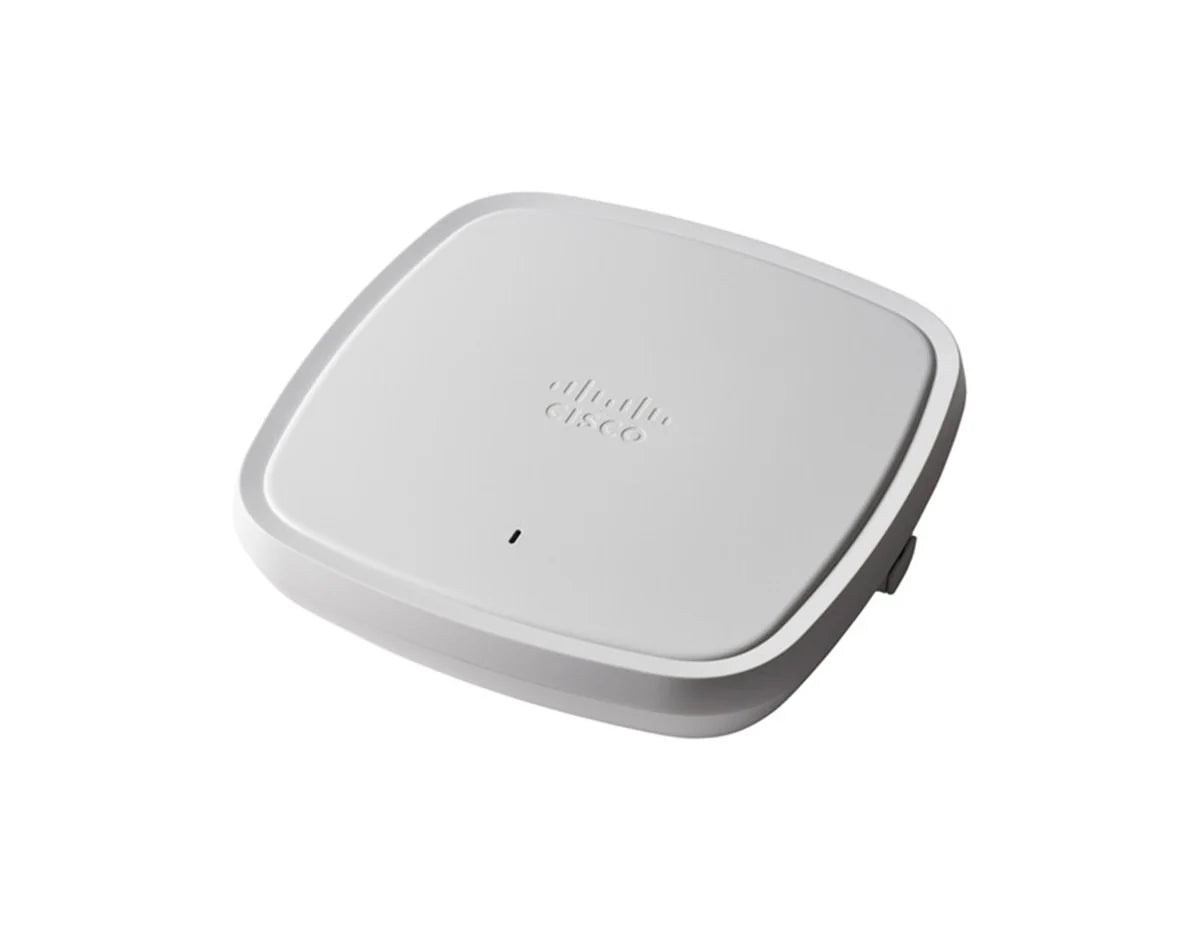

Cisco Catalyst C9105AXI-B Indoor Wi-Fi 6 Access Point
Cisco Catalyst C9105AXI-B Indoor Wi-Fi 6 Access Point

Cisco Catalyst C9105AXI-B Indoor Wi-Fi 6 Access Point

por Cisco
R$ 1.500,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]Wi-Fi 6, 2x2 MU-MIMO, two spatial streams, internal antennas, 1GE uplink, B domain[/shortdesc]

[properties]

Brand Cisco
Model Catalyst 9105AXI
SKU C9105AXI-B
Product Type Indoor Access Point
Series Cisco Catalyst 9105 Series
Regulatory Domain B Domain
Antenna Type Internal antenna
Wireless Standard Wi-Fi 6, 802.11ax
MIMO 2x2 uplink/downlink MU-MIMO with two spatial streams
Uplink Interface 1x 10/100/1000 Base-T Ethernet
PoE Support 802.3af PoE
Dimensions 5.9 x 5.9 x 1.18 in. (150 x 150 x 30 mm)
Mounting Type Ceiling mount with mounting bracket or desk placement

[/properties]

[specifications]

Software Cisco Unified Wireless Network Software Release 8.10.MR3 or later; Cisco IOS XE Software Release 17.3.1 or later
Supported Controllers Cisco Catalyst 9800 Series Wireless Controllers; Cisco 3504, 5520, 8540 Wireless Controllers; Cisco Virtual Wireless Controller
802.11ax Features Uplink/downlink OFDMA, TWT, BSS coloring, MRC, 802.11ax beamforming, 20-, 40-, 80- channels
PHY Data Rate Up to 1.488 Gbps
2.4 GHz Antenna Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
5 GHz Antenna Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
Management Port Management console port RJ-45
Bluetooth and IoT Integrated Bluetooth Low Energy BLE 5.0 and Zigbee radio
Indicators Status LED for boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Operating Temperature 32° to 122°F (0° to 50°C)
Storage Temperature -22° to 158°F (-30° to 70°C)
Operating Humidity 10% to 90% noncondensing
Operating Altitude 40°C, 9843 ft. (3000 m)
Storage Altitude 25°C, 15,000 ft (4600 m)
Security 802.11i, WPA2, WPA3, 802.1X, AES
IEEE Standards IEEE 802.3, 802.3ab, 802.3af, 802.11a/b/g/n/ac/ax, 802.11h, 802.11d

[/specifications]

[accesories]

Optional Mounting Kit AIR-AP-BRACKET-W4= mounting bracket, available as spare
Optional Power Supply AIR-PWRINJ5= Power Injector (802.3af)

[/accesories]

The Cisco C9105AXI-B is a Catalyst 9105AX indoor access point designed for enterprise wireless deployments that need Wi-Fi 6 connectivity in a compact internal antenna form factor. It supports 2x2 uplink and downlink MU-MIMO with two spatial streams, OFDMA, BSS coloring, Target Wake Time, and WPA3 support for modern wireless network performance.

  • Wi-Fi 6 support helps improve efficiency for wireless users, collaboration apps, all-wireless offices, and IoT environments.
  • 2x2 uplink and downlink MU-MIMO with two spatial streams supports efficient wireless connectivity for compatible clients.
  • OFDMA, BSS coloring, and Target Wake Time help reduce overhead, support spatial reuse, and improve client power efficiency.
  • Integrated Bluetooth Low Energy 5.0 and Zigbee radio supports location-based use cases such as asset tracking, wayfinding, and analytics.
  • Internal omnidirectional antennas simplify deployment in indoor enterprise spaces.
  • Enterprise indoor wireless access for offices and shared workspaces
  • Wi-Fi 6 upgrades for organizations using Cisco wireless controllers
  • High-density collaboration environments using video and cloud applications
  • IoT-ready wireless deployments with BLE and Zigbee location-based services
  • Secure wireless access for business and operational networks
  • Brand: Cisco
  • SKU: C9105AXI-B
  • Product Type: Catalyst 9105AX indoor access point
  • Wireless Standard: Wi-Fi 6, IEEE 802.11ax
  • MIMO: 2x2 uplink and downlink MU-MIMO with two spatial streams
  • PHY Data Rate: Up to 1.488 Gbps with 80 MHz at 5 GHz and 20 MHz at 2.4 GHz
  • Integrated Antenna: 2.4 GHz peak gain 4 dBi and 5 GHz peak gain 5 dBi, internal omnidirectional antenna
  • Interfaces: 1 x 10/100/1000 Base-T Ethernet uplink and RJ-45 management console port
  • Supported Controllers: Cisco Catalyst 9800 Series, Cisco 3504, 5520, 8540, and Cisco Virtual Wireless Controller

Choose the Cisco C9105AXI-B for compact enterprise-grade Wi-Fi 6 coverage, internal antennas, controller-based management support, and efficient wireless performance for modern business environments.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]Wi-Fi 6, 2x2 MU-MIMO, two spatial streams, internal antennas, 1GE uplink, B domain[/shortdesc]

[properties]

Brand Cisco
Model Catalyst 9105AXI
SKU C9105AXI-B
Product Type Indoor Access Point
Series Cisco Catalyst 9105 Series
Regulatory Domain B Domain
Antenna Type Internal antenna
Wireless Standard Wi-Fi 6, 802.11ax
MIMO 2x2 uplink/downlink MU-MIMO with two spatial streams
Uplink Interface 1x 10/100/1000 Base-T Ethernet
PoE Support 802.3af PoE
Dimensions 5.9 x 5.9 x 1.18 in. (150 x 150 x 30 mm)
Mounting Type Ceiling mount with mounting bracket or desk placement

[/properties]

[specifications]

Software Cisco Unified Wireless Network Software Release 8.10.MR3 or later; Cisco IOS XE Software Release 17.3.1 or later
Supported Controllers Cisco Catalyst 9800 Series Wireless Controllers; Cisco 3504, 5520, 8540 Wireless Controllers; Cisco Virtual Wireless Controller
802.11ax Features Uplink/downlink OFDMA, TWT, BSS coloring, MRC, 802.11ax beamforming, 20-, 40-, 80- channels
PHY Data Rate Up to 1.488 Gbps
2.4 GHz Antenna Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
5 GHz Antenna Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
Management Port Management console port RJ-45
Bluetooth and IoT Integrated Bluetooth Low Energy BLE 5.0 and Zigbee radio
Indicators Status LED for boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Operating Temperature 32° to 122°F (0° to 50°C)
Storage Temperature -22° to 158°F (-30° to 70°C)
Operating Humidity 10% to 90% noncondensing
Operating Altitude 40°C, 9843 ft. (3000 m)
Storage Altitude 25°C, 15,000 ft (4600 m)
Security 802.11i, WPA2, WPA3, 802.1X, AES
IEEE Standards IEEE 802.3, 802.3ab, 802.3af, 802.11a/b/g/n/ac/ax, 802.11h, 802.11d

[/specifications]

[accesories]

Optional Mounting Kit AIR-AP-BRACKET-W4= mounting bracket, available as spare
Optional Power Supply AIR-PWRINJ5= Power Injector (802.3af)

[/accesories]

Compact Wi-Fi 6 Access for Enterprise Networks

The Cisco C9105AXI-B is a Catalyst 9105AX indoor access point designed for enterprise wireless deployments that need Wi-Fi 6 connectivity in a compact internal antenna form factor. It supports 2x2 uplink and downlink MU-MIMO with two spatial streams, OFDMA, BSS coloring, Target Wake Time, and WPA3 support for modern wireless network performance.

Key Benefits and Features
  • Wi-Fi 6 support helps improve efficiency for wireless users, collaboration apps, all-wireless offices, and IoT environments.
  • 2x2 uplink and downlink MU-MIMO with two spatial streams supports efficient wireless connectivity for compatible clients.
  • OFDMA, BSS coloring, and Target Wake Time help reduce overhead, support spatial reuse, and improve client power efficiency.
  • Integrated Bluetooth Low Energy 5.0 and Zigbee radio supports location-based use cases such as asset tracking, wayfinding, and analytics.
  • Internal omnidirectional antennas simplify deployment in indoor enterprise spaces.
Ideal Use Cases
  • Enterprise indoor wireless access for offices and shared workspaces
  • Wi-Fi 6 upgrades for organizations using Cisco wireless controllers
  • High-density collaboration environments using video and cloud applications
  • IoT-ready wireless deployments with BLE and Zigbee location-based services
  • Secure wireless access for business and operational networks
Technical Specifications
  • Brand: Cisco
  • SKU: C9105AXI-B
  • Product Type: Catalyst 9105AX indoor access point
  • Wireless Standard: Wi-Fi 6, IEEE 802.11ax
  • MIMO: 2x2 uplink and downlink MU-MIMO with two spatial streams
  • PHY Data Rate: Up to 1.488 Gbps with 80 MHz at 5 GHz and 20 MHz at 2.4 GHz
  • Integrated Antenna: 2.4 GHz peak gain 4 dBi and 5 GHz peak gain 5 dBi, internal omnidirectional antenna
  • Interfaces: 1 x 10/100/1000 Base-T Ethernet uplink and RJ-45 management console port
  • Supported Controllers: Cisco Catalyst 9800 Series, Cisco 3504, 5520, 8540, and Cisco Virtual Wireless Controller
Upgrade Indoor Wireless with Cisco Wi-Fi 6

Choose the Cisco C9105AXI-B for compact enterprise-grade Wi-Fi 6 coverage, internal antennas, controller-based management support, and efficient wireless performance for modern business environments.
