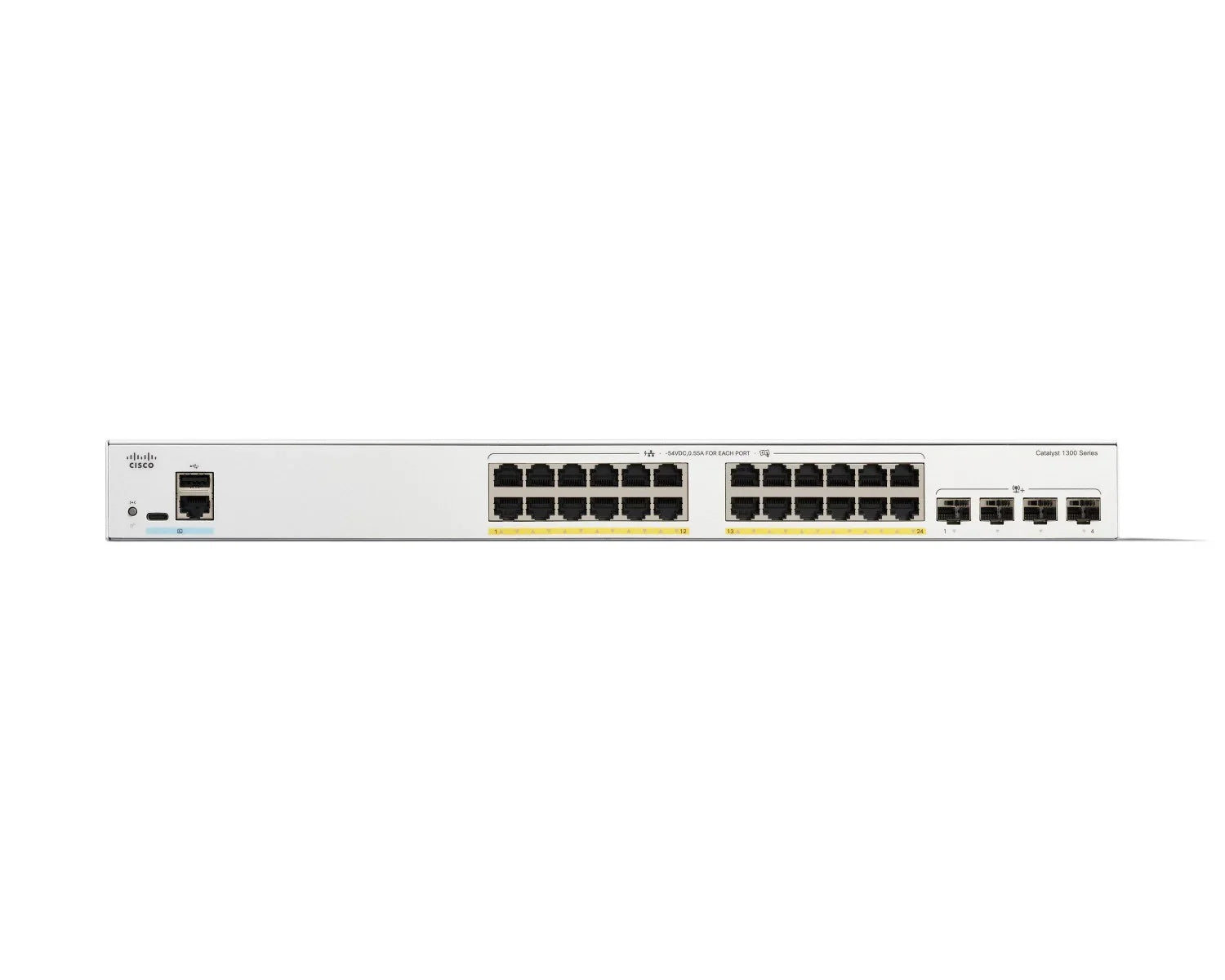

Cisco Catalyst C1300-24FP-4X 24-Port PoE+ Switch with 4 SFP+
Cisco Catalyst C1300-24FP-4X 24-Port PoE+ Switch with 4 SFP+

Cisco Catalyst C1300-24FP-4X 24-Port PoE+ Switch with 4 SFP+

por Cisco
Desconto de 9%
R$ 20.309,16
R$ 18.492,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • The Cisco C1300-24FP-4X is a 24-port Gigabit PoE+ Layer 3 managed switch with four 10G SFP+ uplinks and a 375W PoE budget, built for high-performance business networks

[/shortdesc]

[properties]

Model Cisco Catalyst C1300-24FP-4X
Product Type Managed Layer 3 Switch
Total System Ports 28 (24 × 10/100/1000 RJ-45 PoE+, 4 × 10G SFP+)
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
PoE Budget 375 W total (IEEE 802.3af/at; up to 30 W/port)
Packet Buffer 1.5 MB (shared)
MAC Address Table 16,000 entries
Memory / Flash 1 GB DDR4 / 512 MB
Processor ARM dual-core up to 1.4 GHz
Stacking Front-panel stacking up to 8 switches
Cooling / Acoustics 1 fan, ~39 dBA @ 25 °C
Power Supply Internal, 100–240 V AC, 50/60 Hz
System Power (Max) ~40.9 W
Power (with PoE, worst case) ~454.2 W @ 110 V / ~441.2 W @ 220 V
Idle Power ~21.9 W @ 110 V / ~22.5 W @ 220 V
Heat Dissipation ~1548.8 BTU/hr (worst case)
Dimensions (W × D × H) 445 × 350 × 44 mm (17.5 × 13.78 × 1.73 in)
Unit Weight 4.92 kg (10.84 lb)
Operating Temperature −5 °C to 50 °C (23 °F to 122 °F)
Certifications UL 62368, CSA, CE, FCC Class A

[/properties]

[specifications]

Layer Support Layer 2 and Layer 3 (static IPv4/IPv6; up to ~990 routes, ~128 SVIs)
VLANs Up to 4093 VLANs; Private VLAN/Edge; Voice/Guest VLAN; VLAN translation; Q-in-Q
Link Aggregation IEEE 802.3ad LACP (up to 8 groups; up to 8 ports per group)
Spanning Tree 802.1D STP, 802.1w RSTP, 802.1s MSTP; PVST+/RPVST+
Multicast IGMP snooping v1/v2/v3 with querier; MLD snooping (IPv6)
QoS 8 queues per port; Strict Priority & WRR; CoS/DSCP trust and remarking; shaping/policing
Security 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Port Security, Storm Control
Jumbo Frames Up to 9000 bytes (default MTU 2000 bytes)
Management Web GUI, CLI/SSH, SNMP v1/v2c/v3, RMON, Syslog, Cisco Business Dashboard (probe), PnP
Discovery LLDP, LLDP-MED, Cisco Discovery Protocol (CDP), Bonjour

[/specifications]

[accessories]

Accessory Details
CAB-CONSOLE-RJ45 RJ-45 console cable
CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= USB-C console cable
PWR-CLP Power cable clip
RCKMNT-1RU-1K= Rack-mount kit for 1U devices

[/accessories]

The Cisco Catalyst C1300-24FP-4X is a high-performance Layer 3 managed switch designed for SMB and branch deployments that need Gigabit PoE+ access and 10G uplinks. With 24 PoE+ ports and four 10G SFP+ uplinks, it delivers high-speed connectivity while powering Wi-Fi access points, IP cameras, and VoIP phones from a 375 W PoE budget. The platform combines advanced L2/L3 features, strong security, and rich QoS in a 1U rack-mount chassis and integrates with familiar tools via Web UI/CLI/SNMP for streamlined operations.

Key Features

  • 24× PoE+ access + 4× 10G SFP+ uplinks: Flexible, high-bandwidth edge with fiber aggregation options.
  • 375 W PoE budget: Up to 30 W/port for APs, phones, and cameras.
  • Efficient L3: Static IPv4/IPv6 routing with scalable route/SVI limits for segmented designs.
  • Security by default: 802.1X, DAI, DHCP Snooping, IPSG, and granular ACLs.
  • Traffic engineering: 8 hardware queues/port with SP/WRR scheduling, shaping, and policing.

Technical Overview

  • Performance: 128 Gbps switching / 95.23 Mpps forwarding.
  • Tables & buffers: 16K MAC, 1.5 MB shared packet buffer.
  • Frames: Jumbo up to 9000 bytes (default MTU 2000).
  • Power & thermal: System max ~40.9 W; with PoE ~454.2 W @110 V / ~441.2 W @220 V; idle ~21.9/22.5 W; ~1548.8 BTU/hr.
  • Mechanical: 445 × 350 × 44 mm; 4.92 kg; 1 fan; ~39 dBA @ 25 °C.
  • Environment: −5 °C to 50 °C operating; 100–240 V AC internal PSU.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • The Cisco C1300-24FP-4X is a 24-port Gigabit PoE+ Layer 3 managed switch with four 10G SFP+ uplinks and a 375W PoE budget, built for high-performance business networks

[/shortdesc]

[properties]

Model Cisco Catalyst C1300-24FP-4X
Product Type Managed Layer 3 Switch
Total System Ports 28 (24 × 10/100/1000 RJ-45 PoE+, 4 × 10G SFP+)
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
PoE Budget 375 W total (IEEE 802.3af/at; up to 30 W/port)
Packet Buffer 1.5 MB (shared)
MAC Address Table 16,000 entries
Memory / Flash 1 GB DDR4 / 512 MB
Processor ARM dual-core up to 1.4 GHz
Stacking Front-panel stacking up to 8 switches
Cooling / Acoustics 1 fan, ~39 dBA @ 25 °C
Power Supply Internal, 100–240 V AC, 50/60 Hz
System Power (Max) ~40.9 W
Power (with PoE, worst case) ~454.2 W @ 110 V / ~441.2 W @ 220 V
Idle Power ~21.9 W @ 110 V / ~22.5 W @ 220 V
Heat Dissipation ~1548.8 BTU/hr (worst case)
Dimensions (W × D × H) 445 × 350 × 44 mm (17.5 × 13.78 × 1.73 in)
Unit Weight 4.92 kg (10.84 lb)
Operating Temperature −5 °C to 50 °C (23 °F to 122 °F)
Certifications UL 62368, CSA, CE, FCC Class A

[/properties]

[specifications]

Layer Support Layer 2 and Layer 3 (static IPv4/IPv6; up to ~990 routes, ~128 SVIs)
VLANs Up to 4093 VLANs; Private VLAN/Edge; Voice/Guest VLAN; VLAN translation; Q-in-Q
Link Aggregation IEEE 802.3ad LACP (up to 8 groups; up to 8 ports per group)
Spanning Tree 802.1D STP, 802.1w RSTP, 802.1s MSTP; PVST+/RPVST+
Multicast IGMP snooping v1/v2/v3 with querier; MLD snooping (IPv6)
QoS 8 queues per port; Strict Priority & WRR; CoS/DSCP trust and remarking; shaping/policing
Security 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Port Security, Storm Control
Jumbo Frames Up to 9000 bytes (default MTU 2000 bytes)
Management Web GUI, CLI/SSH, SNMP v1/v2c/v3, RMON, Syslog, Cisco Business Dashboard (probe), PnP
Discovery LLDP, LLDP-MED, Cisco Discovery Protocol (CDP), Bonjour

[/specifications]

[accessories]

Accessory Details
CAB-CONSOLE-RJ45 RJ-45 console cable
CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= USB-C console cable
PWR-CLP Power cable clip
RCKMNT-1RU-1K= Rack-mount kit for 1U devices

[/accessories]

Cisco Catalyst C1300-24FP-4X 24-Port PoE+ Switch with 4 SFP+

The Cisco Catalyst C1300-24FP-4X is a high-performance Layer 3 managed switch designed for SMB and branch deployments that need Gigabit PoE+ access and 10G uplinks. With 24 PoE+ ports and four 10G SFP+ uplinks, it delivers high-speed connectivity while powering Wi-Fi access points, IP cameras, and VoIP phones from a 375 W PoE budget. The platform combines advanced L2/L3 features, strong security, and rich QoS in a 1U rack-mount chassis and integrates with familiar tools via Web UI/CLI/SNMP for streamlined operations.

Key Features

  • 24× PoE+ access + 4× 10G SFP+ uplinks: Flexible, high-bandwidth edge with fiber aggregation options.
  • 375 W PoE budget: Up to 30 W/port for APs, phones, and cameras.
  • Efficient L3: Static IPv4/IPv6 routing with scalable route/SVI limits for segmented designs.
  • Security by default: 802.1X, DAI, DHCP Snooping, IPSG, and granular ACLs.
  • Traffic engineering: 8 hardware queues/port with SP/WRR scheduling, shaping, and policing.

Technical Overview

  • Performance: 128 Gbps switching / 95.23 Mpps forwarding.
  • Tables & buffers: 16K MAC, 1.5 MB shared packet buffer.
  • Frames: Jumbo up to 9000 bytes (default MTU 2000).
  • Power & thermal: System max ~40.9 W; with PoE ~454.2 W @110 V / ~441.2 W @220 V; idle ~21.9/22.5 W; ~1548.8 BTU/hr.
  • Mechanical: 445 × 350 × 44 mm; 4.92 kg; 1 fan; ~39 dBA @ 25 °C.
  • Environment: −5 °C to 50 °C operating; 100–240 V AC internal PSU.
