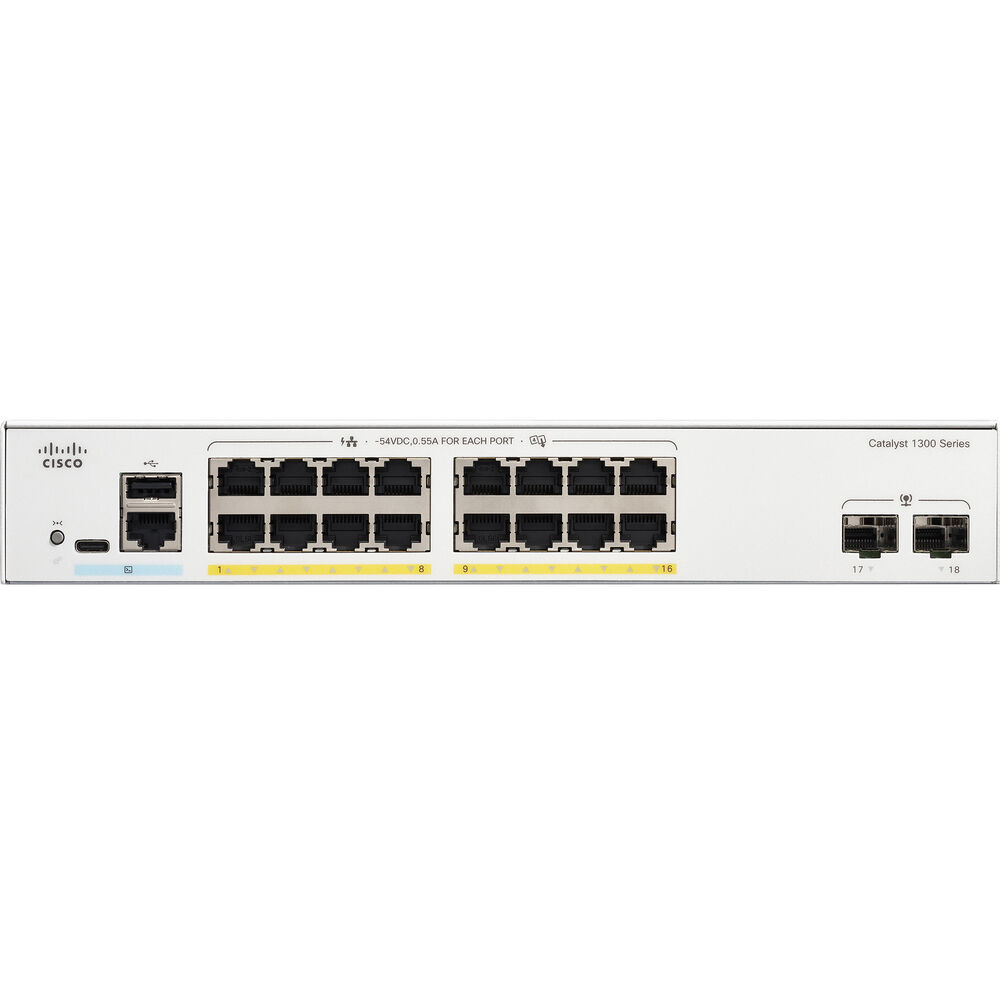

Cisco Catalyst C1300-16P-2G 16-Port PoE+ Switch with 120W and 2 SFP
Cisco Catalyst C1300-16P-2G 16-Port PoE+ Switch with 120W and 2 SFP

Cisco Catalyst C1300-16P-2G 16-Port PoE+ Switch with 120W and 2 SFP

por Cisco
Desconto de 2%
R$ 9.579,72
R$ 9.360,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • 16× Gigabit PoE+ (30W) RJ-45, 2× 1G SFP uplinks, 36 Gbps switching, 26.78 Mpps forwarding, Layer 3, fanless, rack-mountable

[/shortdesc]

[properties]

Product Line Cisco Catalyst 1300 Series
Model C1300-16P-2G
Product Type Managed Layer 3 Gigabit PoE+ Switch
Total System Ports 18 (16 × 10/100/1000 PoE+ RJ-45, 2 × 1G SFP)
PoE Budget 120 W total (IEEE 802.3af/at; up to 30 W/port)
Switching Capacity 36 Gbps
Forwarding Rate 26.78 Mpps
Packet Buffer 1.5 MB (aggregate)
MAC Address Table 16,000 entries
CPU / Memory / Flash ARM dual-core 1.4 GHz / 1 GB DDR4 / 512 MB
Stacking Not supported
Cooling / Acoustics Fanless (silent)
Power Supply Internal, 100–240 VAC, 50/60 Hz
System Power (Max) ≈20.6 W @110 V / ≈22.1 W @220 V
Power (with PoE) ≈159.4 W @110 V / ≈154.5 W @220 V
Idle Power ≈12.6 W @110 V / ≈13.6 W @220 V
Heat Dissipation ≈527 BTU/hr (with PoE)
Dimensions (W × D × H) 268 × 323.3 × 43.94 mm (10.56 × 12.72 × 1.73 in)
Weight ≈2.38 kg (5.25 lb)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Certifications UL 62368, CSA, CE, FCC Part 15 Class A

[/properties]

[specifications]

Layer Support L2 & L3: IPv4/IPv6 static routing, RIP v2, Policy-Based Routing (PBR); up to 990 routes & 128 SVIs
VLANs Up to 4093; Private VLAN/PVE; Voice/Guest VLAN; VLAN translation; Q-in-Q
Spanning Tree 802.1D STP, 802.1w RSTP (default), 802.1s MSTP; PVST+/RPVST+
Link Aggregation IEEE 802.3ad LACP (up to 8 groups; up to 8 ports/group)
Multicast IGMP snooping v1/v2/v3 with querier; up to 2000 multicast groups
ACLs IPv4/IPv6/MAC; protocol/port/DSCP; ingress/egress; up to 1024 rules
QoS 8 queues/port; Strict Priority & WRR; DiffServ/DSCP; rate limiting & shaping
Security 802.1X (RADIUS), DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Port Security, Storm Control, DoS prevention
Jumbo Frames Up to 9000 bytes
Management Web GUI, CLI/SSH, SNMP v1/v2c/v3, Cisco Business Dashboard (embedded probe), Cisco Business mobile app, PnP
Discovery LLDP, LLDP-MED, Cisco Discovery Protocol

[/specifications]

[accesories]

Accessory Details
CAB-CONSOLE-RJ45 Console cable, 6 ft, RJ-45
CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= USB-C console cable
PWR-CLP Power cable restraining clip
RCKMNT-CMPCT-1K= 19″ rack-mount kit for compact models

[/accesories]

The Cisco Catalyst C1300-16P-2G is a fanless, fully managed Layer 3 Gigabit access switch for SMB and branch deployments that need quiet operation and PoE+ power. It provides 16 × 10/100/1000 PoE+ downlinks (30 W/port) and 2 × 1G SFP uplinks, delivering wire-speed performance with a 36 Gbps switching fabric and 26.78 Mpps forwarding. With a 120 W PoE budget, rich L2/L3 services (static, RIP v2, PBR), advanced QoS, and strong security (802.1X, DHCP snooping, IPSG, DAI), it powers access points, phones, and cameras while keeping acoustics at zero. Operations are simplified via the Web GUI, CLI/SSH, SNMP, the embedded Cisco Business Dashboard probe, and Cisco Business mobile app.

Key Features

  • Silent PoE+ access: Fanless design with 120 W total PoE+ budget (up to 30 W/port).
  • Wire-speed performance: 36 Gbps switching / 26.78 Mpps forwarding for non-blocking throughput.
  • Enterprise security: 802.1X, DHCP Snooping, IP Source Guard, DAI, and granular ACLs.
  • L3 services: IPv4/IPv6 static routing, RIP v2, and PBR for efficient segmentation.
  • Simplified ops: Web/CLI/SNMP, Cisco Business Dashboard probe, PnP onboarding.

Technical Overview

  • Interfaces: 16 × 1G PoE+ RJ-45; 2 × 1G SFP uplinks.
  • Tables & buffers: 16K MAC; 1.5 MB shared packet buffer; 8 QoS queues/port.
  • L2 resiliency: STP/RSTP/MSTP with PVST+/RPVST+; LACP aggregation.
  • Multicast: IGMP snooping/querier; up to 2000 groups.
  • Power & thermal: ≈20.6/22.1 W system max (110/220 V); ≈159.4/154.5 W with PoE; ≈527 BTU/hr; idle ≈12.6/13.6 W.
  • Mechanical: 268 × 323.3 × 43.94 mm; ~2.38 kg; 1U rack-mount.
  • Environment: 0–50 °C operation; 10–90% RH non-condensing.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • 16× Gigabit PoE+ (30W) RJ-45, 2× 1G SFP uplinks, 36 Gbps switching, 26.78 Mpps forwarding, Layer 3, fanless, rack-mountable

[/shortdesc]

[properties]

Product Line Cisco Catalyst 1300 Series
Model C1300-16P-2G
Product Type Managed Layer 3 Gigabit PoE+ Switch
Total System Ports 18 (16 × 10/100/1000 PoE+ RJ-45, 2 × 1G SFP)
PoE Budget 120 W total (IEEE 802.3af/at; up to 30 W/port)
Switching Capacity 36 Gbps
Forwarding Rate 26.78 Mpps
Packet Buffer 1.5 MB (aggregate)
MAC Address Table 16,000 entries
CPU / Memory / Flash ARM dual-core 1.4 GHz / 1 GB DDR4 / 512 MB
Stacking Not supported
Cooling / Acoustics Fanless (silent)
Power Supply Internal, 100–240 VAC, 50/60 Hz
System Power (Max) ≈20.6 W @110 V / ≈22.1 W @220 V
Power (with PoE) ≈159.4 W @110 V / ≈154.5 W @220 V
Idle Power ≈12.6 W @110 V / ≈13.6 W @220 V
Heat Dissipation ≈527 BTU/hr (with PoE)
Dimensions (W × D × H) 268 × 323.3 × 43.94 mm (10.56 × 12.72 × 1.73 in)
Weight ≈2.38 kg (5.25 lb)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Certifications UL 62368, CSA, CE, FCC Part 15 Class A

[/properties]

[specifications]

Layer Support L2 & L3: IPv4/IPv6 static routing, RIP v2, Policy-Based Routing (PBR); up to 990 routes & 128 SVIs
VLANs Up to 4093; Private VLAN/PVE; Voice/Guest VLAN; VLAN translation; Q-in-Q
Spanning Tree 802.1D STP, 802.1w RSTP (default), 802.1s MSTP; PVST+/RPVST+
Link Aggregation IEEE 802.3ad LACP (up to 8 groups; up to 8 ports/group)
Multicast IGMP snooping v1/v2/v3 with querier; up to 2000 multicast groups
ACLs IPv4/IPv6/MAC; protocol/port/DSCP; ingress/egress; up to 1024 rules
QoS 8 queues/port; Strict Priority & WRR; DiffServ/DSCP; rate limiting & shaping
Security 802.1X (RADIUS), DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Port Security, Storm Control, DoS prevention
Jumbo Frames Up to 9000 bytes
Management Web GUI, CLI/SSH, SNMP v1/v2c/v3, Cisco Business Dashboard (embedded probe), Cisco Business mobile app, PnP
Discovery LLDP, LLDP-MED, Cisco Discovery Protocol

[/specifications]

[accesories]

Accessory Details
CAB-CONSOLE-RJ45 Console cable, 6 ft, RJ-45
CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= USB-C console cable
PWR-CLP Power cable restraining clip
RCKMNT-CMPCT-1K= 19″ rack-mount kit for compact models

[/accesories]

Cisco Catalyst C1300-16P-2G 16-Port PoE+ Switch

The Cisco Catalyst C1300-16P-2G is a fanless, fully managed Layer 3 Gigabit access switch for SMB and branch deployments that need quiet operation and PoE+ power. It provides 16 × 10/100/1000 PoE+ downlinks (30 W/port) and 2 × 1G SFP uplinks, delivering wire-speed performance with a 36 Gbps switching fabric and 26.78 Mpps forwarding. With a 120 W PoE budget, rich L2/L3 services (static, RIP v2, PBR), advanced QoS, and strong security (802.1X, DHCP snooping, IPSG, DAI), it powers access points, phones, and cameras while keeping acoustics at zero. Operations are simplified via the Web GUI, CLI/SSH, SNMP, the embedded Cisco Business Dashboard probe, and Cisco Business mobile app.

Key Features

  • Silent PoE+ access: Fanless design with 120 W total PoE+ budget (up to 30 W/port).
  • Wire-speed performance: 36 Gbps switching / 26.78 Mpps forwarding for non-blocking throughput.
  • Enterprise security: 802.1X, DHCP Snooping, IP Source Guard, DAI, and granular ACLs.
  • L3 services: IPv4/IPv6 static routing, RIP v2, and PBR for efficient segmentation.
  • Simplified ops: Web/CLI/SNMP, Cisco Business Dashboard probe, PnP onboarding.

Technical Overview

  • Interfaces: 16 × 1G PoE+ RJ-45; 2 × 1G SFP uplinks.
  • Tables & buffers: 16K MAC; 1.5 MB shared packet buffer; 8 QoS queues/port.
  • L2 resiliency: STP/RSTP/MSTP with PVST+/RPVST+; LACP aggregation.
  • Multicast: IGMP snooping/querier; up to 2000 groups.
  • Power & thermal: ≈20.6/22.1 W system max (110/220 V); ≈159.4/154.5 W with PoE; ≈527 BTU/hr; idle ≈12.6/13.6 W.
  • Mechanical: 268 × 323.3 × 43.94 mm; ~2.38 kg; 1U rack-mount.
  • Environment: 0–50 °C operation; 10–90% RH non-condensing.
