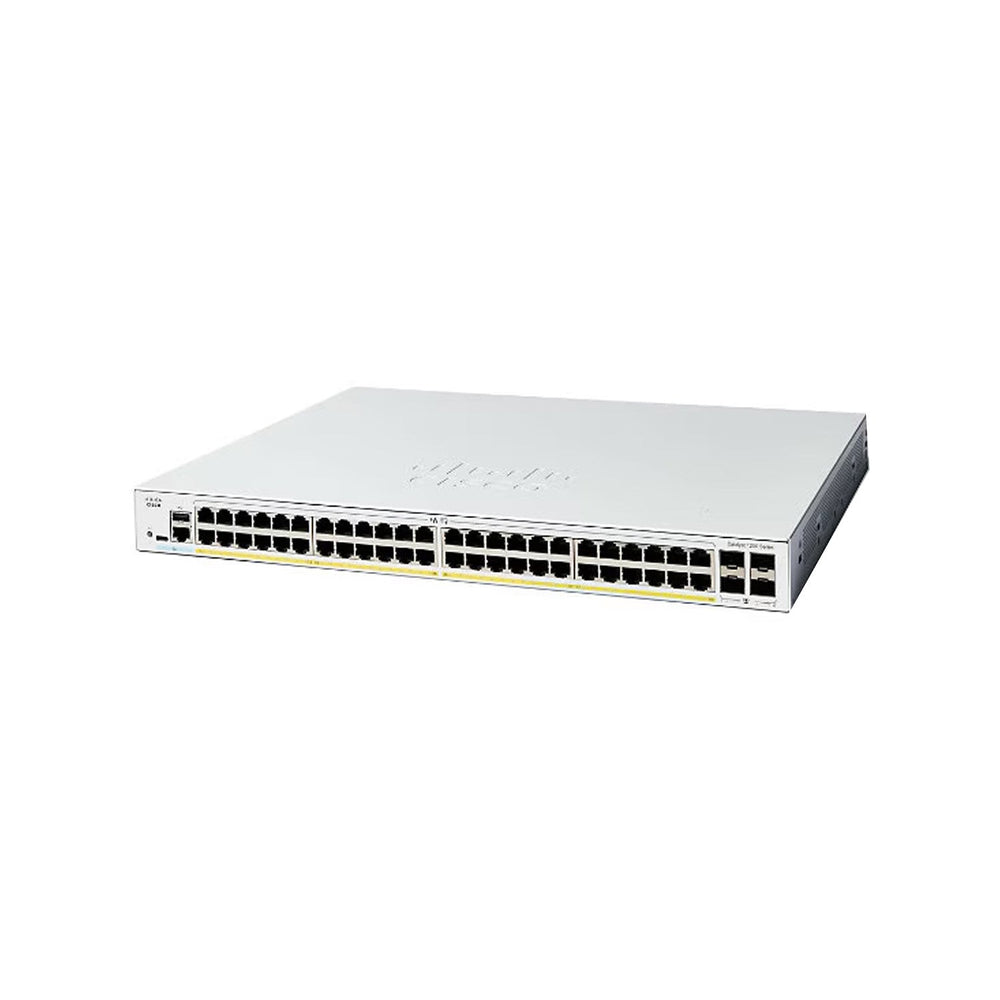

Cisco Catalyst C1200-48P-4X PoE 10G Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Descrição, características do produto
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The cisco c1200-48p-4x stands as the top-tier, high-density PoE+ Layer 3 static routing platform within the Catalyst 1200 Series. Purpose-built for small-to-medium businesses (SMBs), expanding corporate branches, and localized networks, this enterprise-grade 48 port managed switch delivers high-capacity connectivity without the budget overhead or configuration complexity of high-end data center lines.
As the flagship model in this smart-managed portfolio, the cisco catalyst 1200 48p 4x seamlessly combines 48 Gigabit Ethernet downlinks, 4 dedicated 10 GbE SFP+ uplinks, and a robust 370W total PoE+ power budget. Whether you are upgrading your branch infrastructure or building out high-performance data pipelines, deploying this reliable 48 port poe switch ensures wire-speed packet processing and silent, energy-efficient operation inside your network cabinets.
-
Related Reading & Architecture Resource Guides:
-
Navigating the midmarket switch landscape? Check out our specialized guide: Cisco Small Business Switches Buyers Guide.
-
Staging a complete access tier overhaul for your business? Review our walkthrough: How to Choose the Best Gigabit Switch for SMBs.
-
📥 Download Technical Specifications: Staging a clean network deployment layout? Enter your corporate email below to download the official datasheet to verify exact layout frames, MTBF ratings, and configuration parameters for the c1200-48p-4x family series.
Highlights
1. High-Density PoE+ Power Delivery
Features 48 auto-sensing 10/100/1000 RJ-45 copper access interfaces running full IEEE 802.3at PoE+ parameters (up to 30W per port). This high-capacity 48 port gigabit switch matrix safely distributes a total 370W power pool to effortlessly energize high-throughput Wi-Fi 6 wireless access points, HD IP surveillance networks, and corporate VoIP stations.
-
Power Planning: To accurately map out inline power distribution draws across your endpoints, consult our engineering resource: Cisco AP Deployment & PoE Budget Guide.
2. 10 Gigabit Line-Rate Uplinks
Equipped with 4 native 10 GbE SFP+ uplink slots, this flexible 10g uplink switch architecture guarantees non-blocking, wire-speed aggregation straight to your core server racks or central storage arrays, completely eliminating backhaul bottlenecks.
-
Transceiver Selection: To configure your high-speed core links effectively, view our selector guide: 10G SFP Transceivers Buying Guide for Enterprise Networks.
3. Layer 3 Static Routing & Network Intelligence
Unlike a standard unmanaged network tier, the cisco c1200-48p-4x provides Layer 2+ IPv4/IPv6 static routing capabilities out of the box. Securely route traffic between different VLANs right at the access edge to optimize local network segmentation, isolate sensitive domains, and enhance traffic prioritization.
4. Silent Fanless Architecture
Engineered with an advanced fanless thermal design and an efficient internal power supply, this silent powerhouse provides quiet operation, making it ideal for open office layouts, retail environments, or standard data closets where background noise must be eliminated.
5. Intuitive On-Device Smart Management
Simplify setup, monitoring, and lifecycle administration. Manage your 48 port managed switch configurations your way-whether via the intuitive on-device graphical Web UI, the Cisco Business Mobile App, or centralized network orchestration frameworks.
Recommended Accessories
To configure your high-density c1200-48p-4x system effectively, match your deployment specs with genuine Cisco line components and verified transceiver options.
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets compatible with all Catalyst 1200 Series models |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for configuration and management |
| SFP-10G-SR / SFP-10G-LR / GLC-T | SFP/SFP+ Modules | 1G and 10G copper/optical transceivers for uplink slots |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-48T-4G | 48 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | 1G uplink data-only model |
| C1200-48P-4G | 48 × 1 GbE PoE+ + 4 × 1 GbE SFP | 370 W | Fanless | Internal | Full PoE+ power, standard 1G uplinks |
| C1200-48T-4X | 48 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | Non-PoE model with 10G uplinks |
| C1200-48P-4X (this model) | 48 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 370 W | Fanless | Internal | Full PoE+ model with 10G uplinks for enterprise-grade networks |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-48P-4X |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch with 10G uplinks |
| Downlink Ports | 48 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 4 × 10 GbE SFP+ uplinks |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 16,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 370 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 35 W (no PoE load), ≈ 450 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,600,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 440 × 270 × 44 mm (17.3 × 10.6 × 1.7 in) |
| Weight | 3.58 kg (7.89 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
