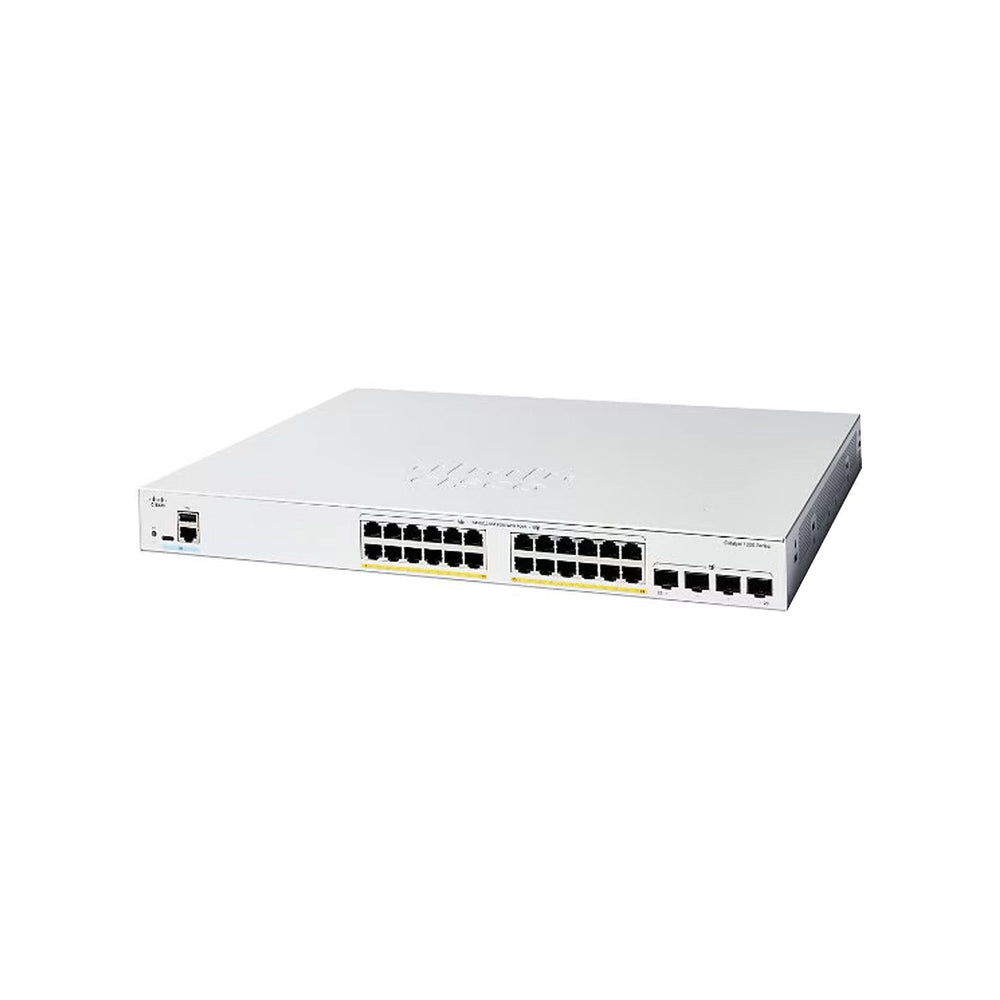

Cisco Catalyst C1200-24FP-4G Full PoE Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Descrição, características do produto
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The cisco c1200 24fp 4g is a high-power Layer 2+ smart-managed Gigabit Ethernet switch purpose-built for small-to-medium businesses (SMBs), growing branch offices, and distributed workspaces that require uncompromised data performance alongside full power delivery. As a flagship 24-port high-density option within Cisco's smart business portfolio, this platform provides 24 full PoE+ Gigabit ports with an expansive 370W total inline power pool, backed by 4 dedicated Gigabit SFP uplinks.
While the switch excels at provisioning high-density copper access drops, its 4 integrated SFP transceiver slots allow it to act as an efficient hybrid uplink node. This eliminates the need to deploy a separate standalone 24 port fiber switch just to handle local branch backbone links. By natively integrating these optical interfaces, the c1200-24fp-4g delivers the core uplink flexibility of a managed fiber switch layer, ensuring seamless aggregation straight to your distribution network while maintaining completely silent, fanless operation.
-
Related Reading & Architecture Resource Guides:
-
Navigating the midmarket switch landscape? Check out our specialized guide: Cisco Small Business Switches Buyers Guide.
-
Staging an access layer upgrade for your business network? Review our technical walkthrough: How to Choose the Best Gigabit Switch for SMBs.
-
📥 Download Technical Specifications: Staging a clean network deployment layout? Enter your corporate email below to download the official datasheet to verify exact forwarding thresholds, MTBF metrics, and cabinet footprints for the c1200-24fp-4g family line.
Highlights
-
Full 24-Port High-Power PoE+ Delivery: Features 24 auto-sensing 10/100/1000 RJ-45 copper access ports running full IEEE 802.3at PoE+ parameters (up to 30W per port). This robust matrix safely distributes a total 370W power budget to effortlessly energize high-throughput wireless networks, PTZ surveillance security frameworks, and VoIP phone arrays. For precise power budget mapping, explore our technical resource: Cisco AP Deployment & PoE Budget Guide.
-
Integrated 1G SFP Fiber Sockets: Equipped with 4 native SFP transceiver slots, this model handles line-rate fiber aggregation, providing the structural connectivity of an enterprise managed fiber switch to guarantee clean backhauls directly to corporate distribution tiers.
-
Layer 2+ Static Routing Intelligence: Natively handles Inter-VLAN routing directly at the access edge. Securely route traffic between different subnets and optimize local network segmentation without paying a premium for complex enterprise dynamic license renewals.
-
Fanless, Silent Thermal Operation: Engineered with an advanced fanless cooling layout and an efficient internal power supply, the cisco c1200 24fp 4g ensures completely silent performance-ideal for noise-sensitive open office workspaces, classrooms, and meeting spaces.
-
Centralized Visibility & Cloud-Ready Staging: Configure and monitor your entire network layout your way. Supports intuitive on-device graphical Web UI setups, the localized Cisco Business Mobile App, or the centralized Cisco Business Dashboard lifecycle management platform.
-
Advanced Perimeter Security Borders: Protects your localized enterprise edge attack surface via hardware-accelerated AES-128 MACsec link encryption, secure 802.1X port identity (RADIUS) authentication, DHCP Snooping, and Dynamic ARP Inspection (DAI).
Recommended Accessories
To configure your high-speed deployment effectively, pair your hardware platform with original Cisco components and verified transceiver options.
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets compatible with Catalyst 1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for initial setup and management |
| GLC-SX-MM / GLC-LH-SM | SFP Transceivers | 1G optical modules for fiber uplinks |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-24P-4G | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 195 W | Fanless | Internal | Standard PoE+ model for SMB access |
| C1200-24FP-4G (this model) | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 370 W | Fanless | Internal | Full-power PoE+ model for dense device networks |
| C1200-24T-4X | 24 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | Data-only 10G uplink model |
| C1200-24P-4X | 24 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 195 W | Fanless | Internal | PoE+ with 10G uplinks for high-speed access |
| C1200-48FP-4X | 48 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 740 W | Fanless | Internal | High-capacity PoE+ switch for enterprise and surveillance systems |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-24FP-4G |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 4 × 1 GbE SFP fiber uplinks |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 370 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 22 W (no PoE load), ≈ 410 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,850,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 2.35 kg (5.18 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
