Why Choose Cisco C9200L-48T-4X-A?
-
Reliable for Mission-Critical Networks: Features an industry-leading MTBF of 503,400 hours. With fixed redundant fans and the high-efficiency PWR-C5-125WAC power supply, it ensures continuous uptime for enterprise backbones.
-
High-Performance Layer 3 Access: Delivers a standalone forwarding rate of 130.95 Mpps. StackWise-80 technology allows up to 8 switches to operate as a single logical unit with sub-50 ms failover, ideal for low-latency applications.
-
Advanced Software & SD-Access Ready: The Network Advantage license supports full EIGRP, IS-IS, BGP, VRF, and VXLAN, enabling secure multi-tenant isolation and policy-based automation.
-
Future-Proof Programmable Hardware: The UADP 2.0 Mini ASIC with a programmable pipeline allows for software-defined updates to enhance Layer 2/3 forwarding and QoS entries.
-
Energy-Efficient & Sustainable: ENERGY STAR® certified and supports IEEE 802.3az (EEE) to reduce power consumption and operational costs.
Overview

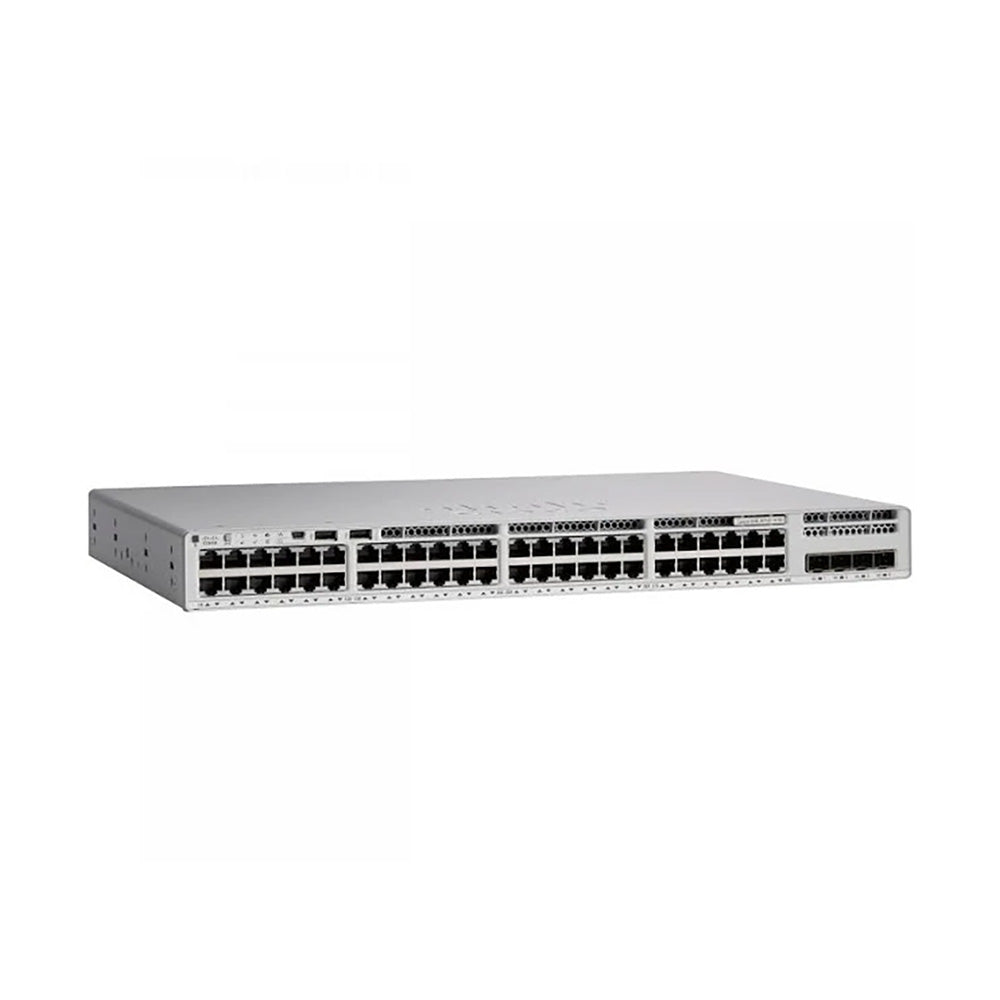

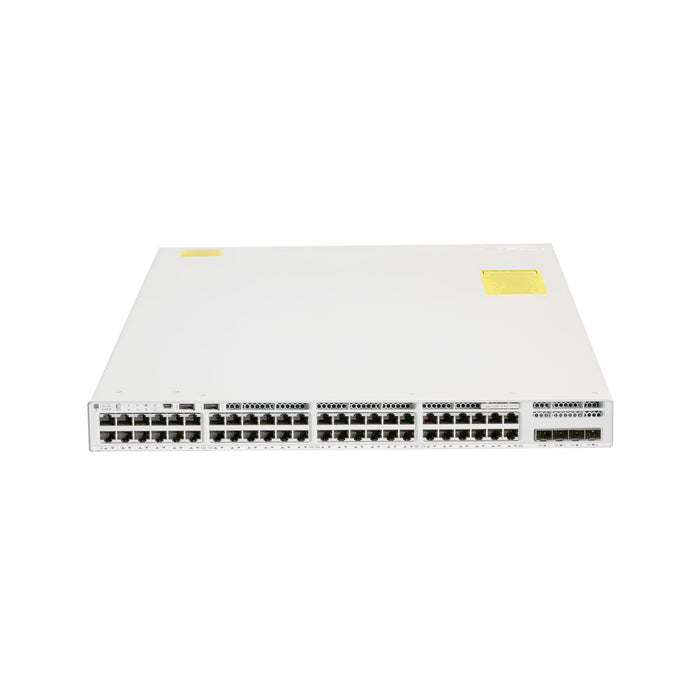

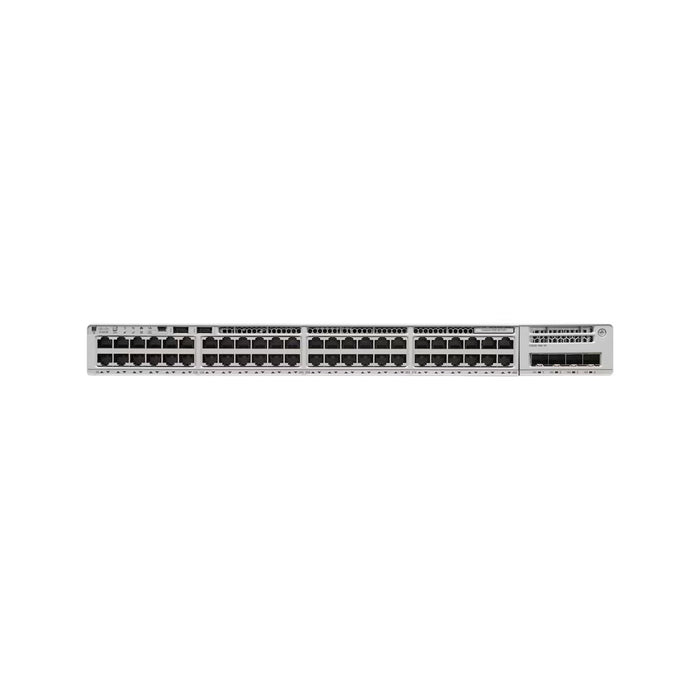

The Cisco Catalyst C9200L-48T-4X-A is a 1RU fixed-access Layer 3 switch optimized for high-density branch offices, small campuses, and non-PoE aggregation layers. With 48 auto-sensing 1G RJ-45 data-only ports and four fixed 10G SFP+ uplinks, it delivers wire-speed performance without PoE overhead.
Powered by the UADP 2.0 Mini ASIC, the heart of the Catalyst 9000 family, the switch features a programmable pipeline and micro-engine capabilities, protecting your investment by enabling support for future protocols and Layer 2/3 forwarding enhancements via software updates.
Running Cisco IOS XE with the Network Advantage license, this model supports full Layer 3 routing (EIGRP, OSPF, BGP, IS-IS), advanced segmentation (VRF, VXLAN, LISP, SGT), and SD-Access compliance as a Fabric Edge node.
StackWise-80 technology allows up to eight switches to operate as a single logical unit, offering 80 Gbps bidirectional stacking bandwidth and sub-50 ms failover, tested under enterprise-grade conditions.
Ideal Deployment Scenarios:
-
Financial trading floors: low-latency, deterministic Layer 3 forwarding for high-frequency trading.
-
High-density campus wired access: lecture halls, laboratories, or administrative buildings.
-
Branch office aggregation: consolidating multiple floors or small sites with high-speed uplinks.
-
Data center edge: reliable, non-PoE uplinks for servers, storage, and backbone aggregation.
Recommended Accessories
| Accessory | Category | Description | Use Case |
|---|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | StackWise-80 kit (2 adapters + cable) | Multi-switch branch/campus deployments |
| STACK-T4-50CM / 1M / 3M | Stacking Cable | Type 3 cables, flexible lengths | Rack stacking in data centers or wiring closets |
| PWR-C5-125WAC | Power Supply | 125 W AC PSU | Standard operation in non-PoE environments |
| PWR-C5-125WAC= | Redundant PSU | 1+1 redundant power | High-availability, mission-critical deployments |
| SFP-10G-SR | Transceiver | 10G MMF short-range | Campus aggregation / backbone |
| SFP-10G-LR | Transceiver | 10G SMF long-range | Long-distance backbone connectivity |
| GLC-T | SFP Module | 1G copper | Gradual uplink upgrades |
Comparison with Similar Models
| Model | Downlinks | Uplinks | License | Stacking |
|---|---|---|---|---|
| C9200L-48T-4X-A | 48×1 GbE data-only | 4×10 Gbps SFP+ | Advantage | 80 Gbps |
| C9200L-48T-4X-E | 48×1 GbE data-only | 4×10 Gbps SFP+ | Essentials | 80 Gbps |
| C9200L-48P-4X-A | 48×1 GbE PoE+ | 4×10 Gbps SFP+ | Advantage | 80 Gbps |
Insights:
-
48T-A: Optimal for non-PoE, mission-critical environments like trading floors, labs, and branch aggregation with full L3.
-
48T-E: Cost-efficient branch deployment with Essentials features.
-
48P-A: When PoE+ is required for APs, IP cameras, or IoT devices.
Specifications
| Parameter | Detailed Specifications | Technical Value / Use Case |
|---|---|---|
| Product Code | C9200L-48T-4X-A | Fixed-uplink 48-port Data Advantage SKU |
| Forwarding Rate | 130.95 Mpps (Standalone) / 190 Mpps (Stacked) | Wire-speed processing for high-density traffic |
| Switching Capacity | 176 Gbps (Standalone) / 256 Gbps (Stacked) | Non-blocking architecture for core aggregation |
| Stacking Technology | StackWise-80 | Stack up to 8 units; single-IP management |
| Routing Protocols | BGP, EIGRP, IS-IS, OSPF, RIP | Advanced L3 services for complex enterprise LANs |
| Network Segmentation | VRF, VXLAN, LISP, SGT | Secure multi-tenant isolation and SD-Access compliance |
| MAC Address Table | 16,000 entries | Optimized for medium-to-large branch scale |
| Reliability (MTBF) | 503,400 hours | High MTBF for mission-critical non-PoE environments |
| Memory | 2 GB DRAM / 4 GB Flash | Robust base for Cisco IOS XE programmability |
| Chassis Weight | 9.97 lbs (4.53 kg) | Lightweight, efficient rack deployment |
| Fans | Fixed redundant | Enterprise-grade cooling with failover protection |
| Power Supply | PWR-C5-125WAC (default, optional redundant) | Efficient AC power for non-PoE environments |
| Virtual Networks | 1 | SD-Access support as Fabric Edge node |
