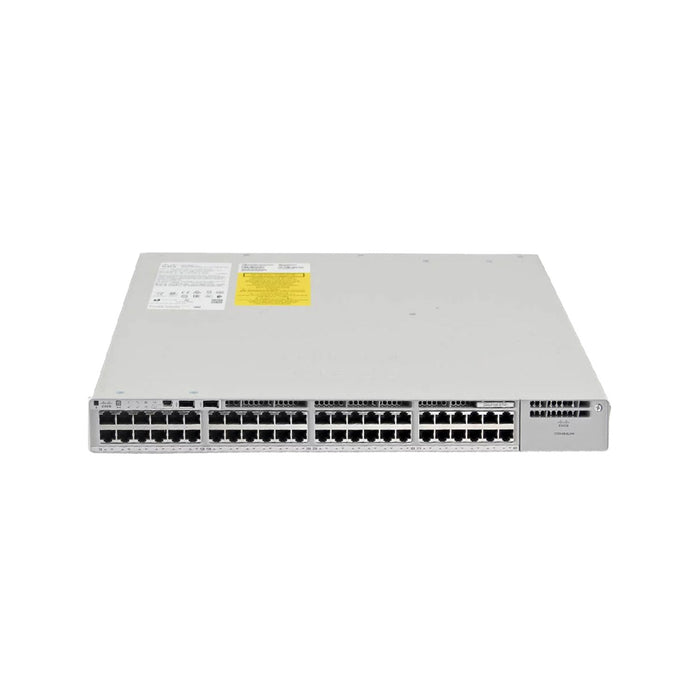

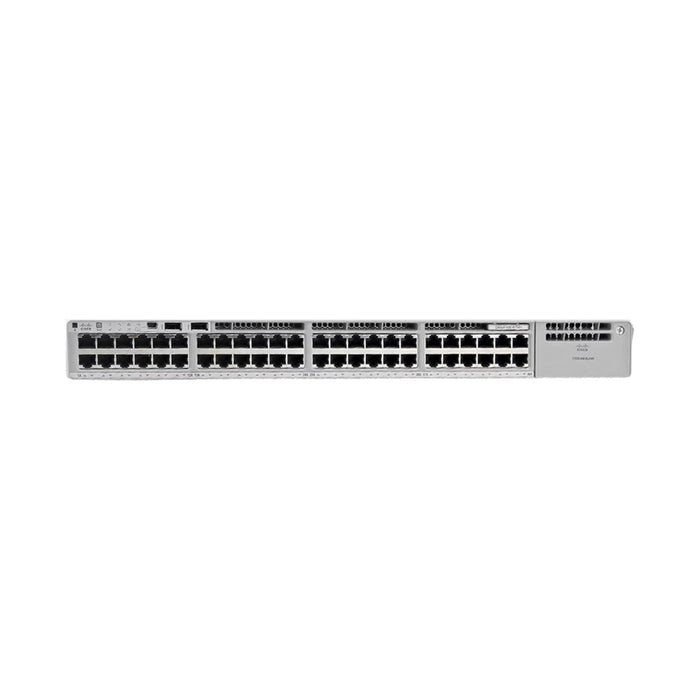

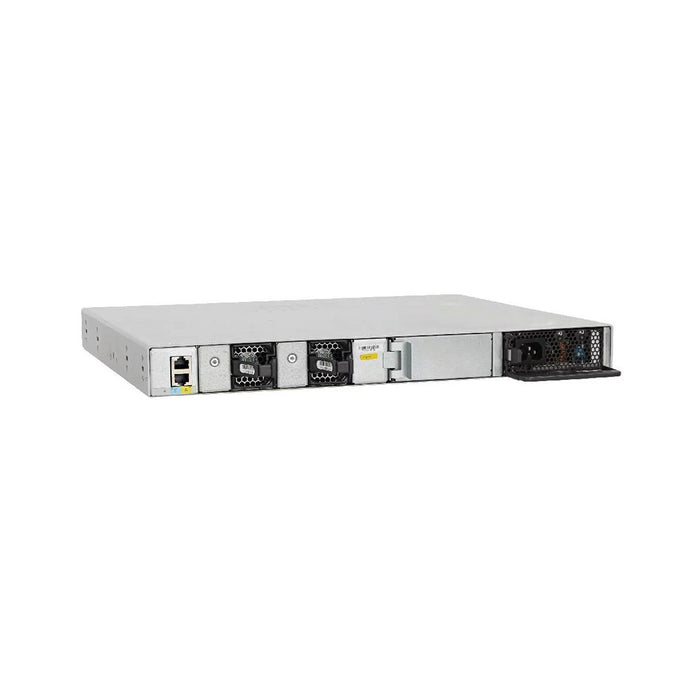

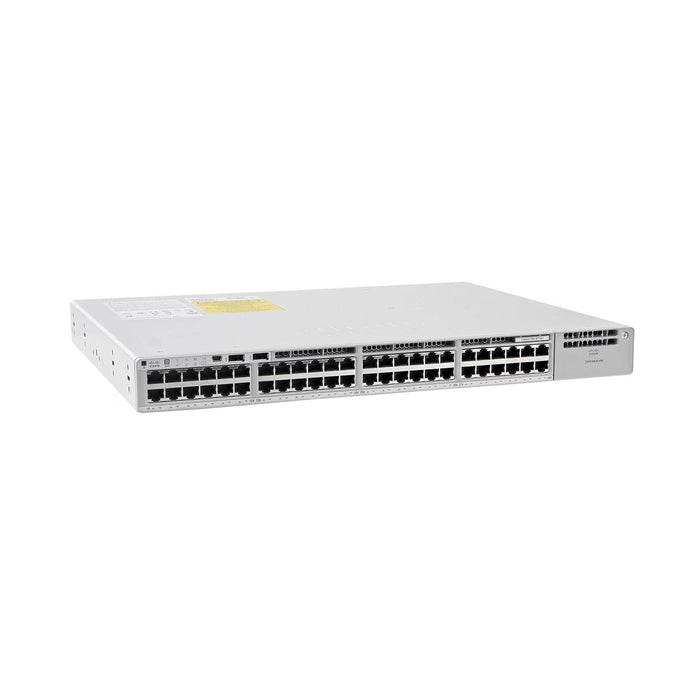

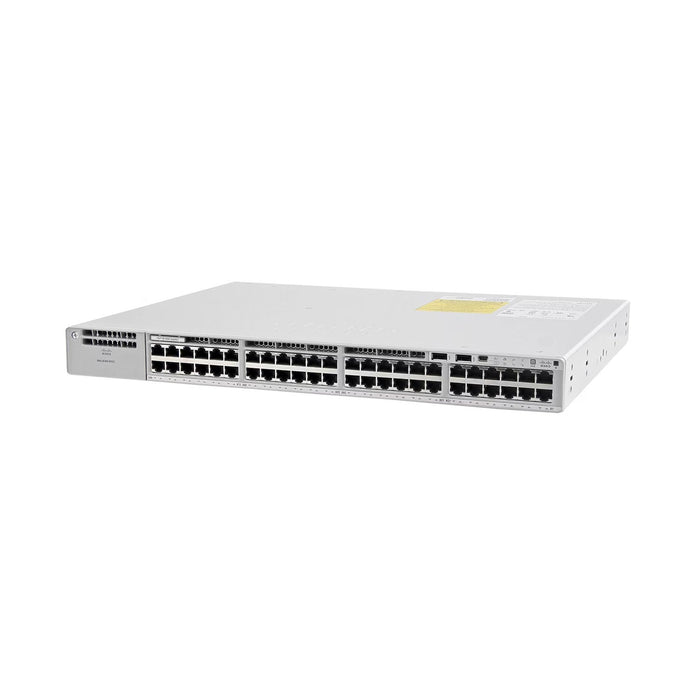

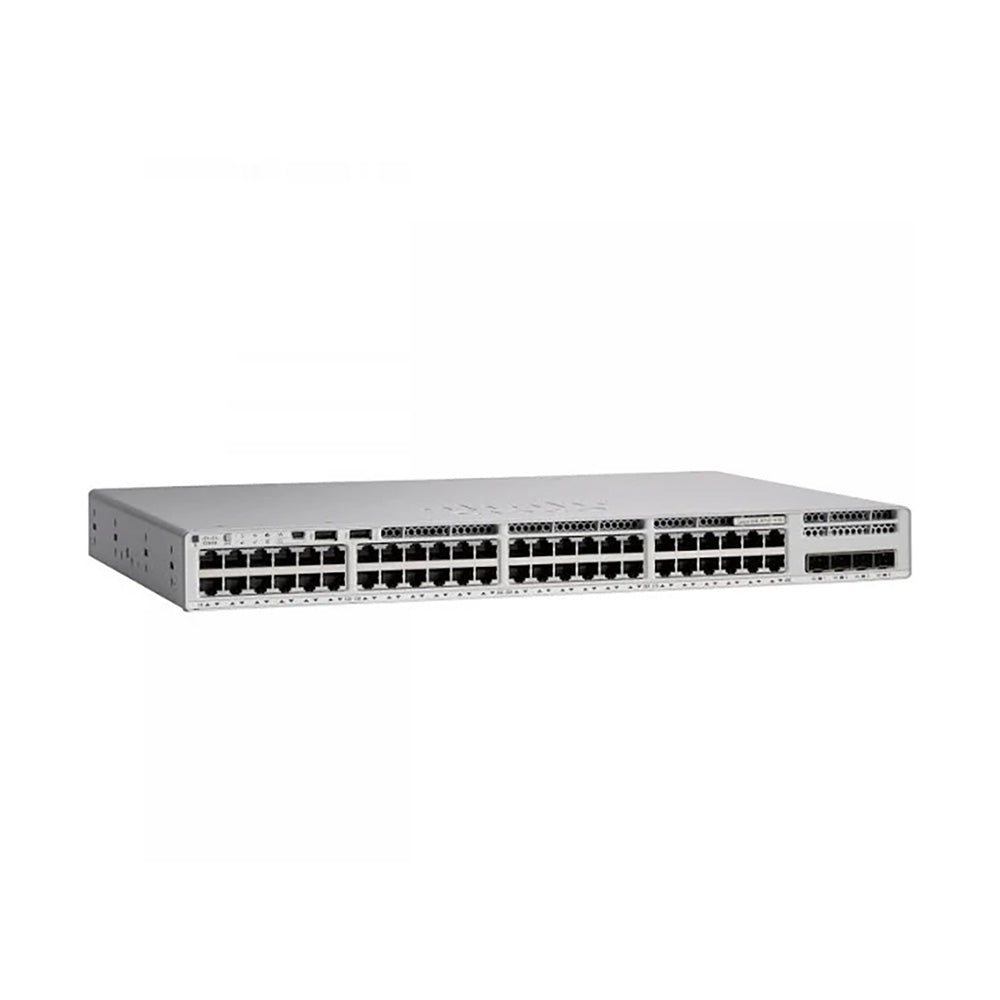

Cisco Catalyst 9200-48P-E 48-Port PoE+ Switch, Modular Uplinks, Network Essentials

Quick Buying Guide - Best for High-Density PoE+ Access

• Network Essentials License: Provides foundational Layer 2 switching and essential Layer 3 routing (Static routing, RIP, OSPF Stub up to 1,000 routes), ideal for standard campus and branch environments that do not require complex automated fabric overlays.

• High-Density Inline Power: Delivers 48 ports of full 802.3at PoE+ compliance, transforming this system into a high-capacity cisco power over ethernet switch 48 port platform that easily provisions up to 30W per port for high-draw edge devices.

• Modular Uplinks Flexibility: Customize your upstream backbone using hot-swappable expansion network modules supporting 1G and 10G speeds to adapt smoothly as bandwidth demands scale.

• Enterprise Resiliency: Supports StackWise-160 high-availability technology, field-replaceable dual fan modules, and dual platinum power inputs to guarantee uninterrupted corporate uptime.

💡 Pro Tip from CCIE Team: This modular platform is highly optimized for high-density access layers when running the network essentials feature set. If your modern infrastructure layout requires advanced segmentation fabrics (VRF, VXLAN, LISP, SGT) or deep Cisco DNA Center/Catalyst Center network automation, upgrade to the C9200-48P-A (Network Advantage) variant. For a complete software feature analysis, check out our Cisco Catalyst FAQ: Power, Stacking & Licensing Guide.

Product Overview

The cisco c9200-48p-e is a high-density 48-port PoE+ enterprise access switch purpose-built for scalable branch operations, large office complexes, smart buildings, retail networks, and commercial surveillance systems. Operating on the modern Cisco IOS XE operating system, this reliable cisco 48 port poe switch delivers robust line-rate switching alongside essential edge routing, letting businesses cut out the unnecessary licensing overhead of complex software fabrics when they aren't strictly required.

If your structural data closets require massive endpoint density combined with dependable power allocation, implementing the modular c9200 48p e switch platform provides an unbeatable balance of investment protection and 160 Gbps stacking scale.

• Related Reading & Architecture Resource Guides:

  • Deploying a 48-port access layer in 2026? Read our direct matchup: Cisco 9200 48P vs 9300 48P: 2026 Edition Comparison Matrix.

  • Evaluating modular capabilities across different series? Read our guide: Cisco Catalyst 9200 vs 9300 Series Switches.

  • Replacing legacy access infrastructure? Check out our blueprint: How to Replace Legacy Cisco Switches for Modern Enterprise Networks.

📥 Download Technical Specifications: Staging a campus edge expansion? Enter your work email below to download the official datasheet to review exact PoE allocations, forwarding performance, and module options to flawlessly map out your c9200-48p-e installation template.

Core Highlights

1. Full 48-Port PoE+ Access for High-Density Edge

Features 48 auto-sensing 10/100/1000 RJ-45 copper ports delivering up to 30W PoE+ per interface, solidifying its place as a cornerstone cisco power over ethernet switch 48 port asset.

• Yields a robust 740W PoE budget out-of-the-box via a single 1000W AC Platinum power supply (PWR-C6-1KWAC), dynamically expandable up to 1440W with dual power inputs.

• Ideal For: Full-floor VoIP phone deployments, dense Wi-Fi 6/6E access point aggregation, and campus/warehouse IP camera systems.

• Staging Insight: To accurately blueprint per-port draw restrictions across IoT networks, explore our technical layout resource: Cisco AP Deployment & PoE Budget Guide. For quick command execution clues, view How to Enable PoE on a Cisco Switch Port.

2. High-Performance Switching & Low Latency

• Provides 176 Gbps non-blocking switching fabric capacity paired with a wire-speed 130.95 Mpps forwarding performance rate.

• An integrated 6 MB deep packet buffer handles intense burst traffic loops smoothly, ensuring stable video surveillance streaming and low-jitter voice (VoIP) communication inside dense user environments.

3. Modular Uplink Flexibility (Real Deployment Advantage)

Unlike fixed fixed-uplink hardware lines, this customizable cisco 48 port poe switch platform accommodates hot-swappable network modules to eliminate upstream links bottlenecks:

• C9200-NM-4G: 4 x 1G SFP interfaces for standard fiber aggregation lines.

• C9200-NM-4X: 4 x 10G SFP+ slots for high-speed campus aggregation backhauls.

4. Enterprise-Grade Resiliency & Stacking (FRU Hardware)

• Equipped with field-replaceable power supplies (PSU) and dual hot-swappable fan modules (FRU layout) to minimize downtime during maintenance routines.

• Architectural Insight: These FRU elements represent a vital operational advantage for 24/7 corporate uptime. For a complete matchup of modular vs fixed layout variables, read our analysis: Cisco Catalyst 9200 vs 9200L Switches Hardware Deep Dive.

5. StackWise-160 for Scalable Access Layer

• Physically cluster up to 8 switches into a single logical entity using dedicated stacking kits, operating at a combined 160 Gbps of stacking backplane bandwidth.

• Fully supports NSF/SSO architecture for sub-50 ms stateful failovers, streamlining administrative management across multi-floor branch deployments.

6. Optimized Essentials Feature Set (Cost-Efficient Design)

• Driven by the unified programmable Cisco UADP 2.0 ASIC core, it supports core Layer 2 and Layer 3 traits (VLAN, static routing, and OSPF routing scaled up to 1,000 routes).

• Note: Advanced virtual fabrics (VRF, VXLAN, LISP, SGT) require upgrading to a Network Advantage model.

7. Enterprise Security Built-In

• Hardware-accelerated AES-128 MACsec link encryption, secure 802.1X port authentication, DHCP Snooping, Dynamic ARP Inspection (DAI), and IP Source Guard shield your branch borders from sophisticated rogue intrusions.

8. Cisco E-LLW Hardware Protection

• Completely backed by the standard Cisco Enhanced Limited Lifetime Warranty (E-LLW), supplying Next-Business-Day (NBD) hardware replacement logistics along with 90 days of factory 8x5 Cisco TAC access.

Recommended Accessories

To configure your high-density c9200-48p-e system effectively, pair your hardware chassis with original Cisco components and expansion line cards.
