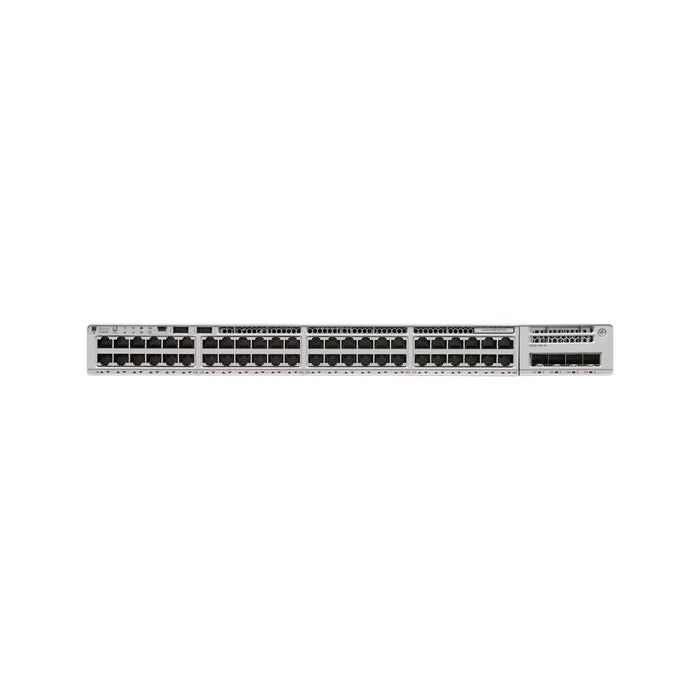

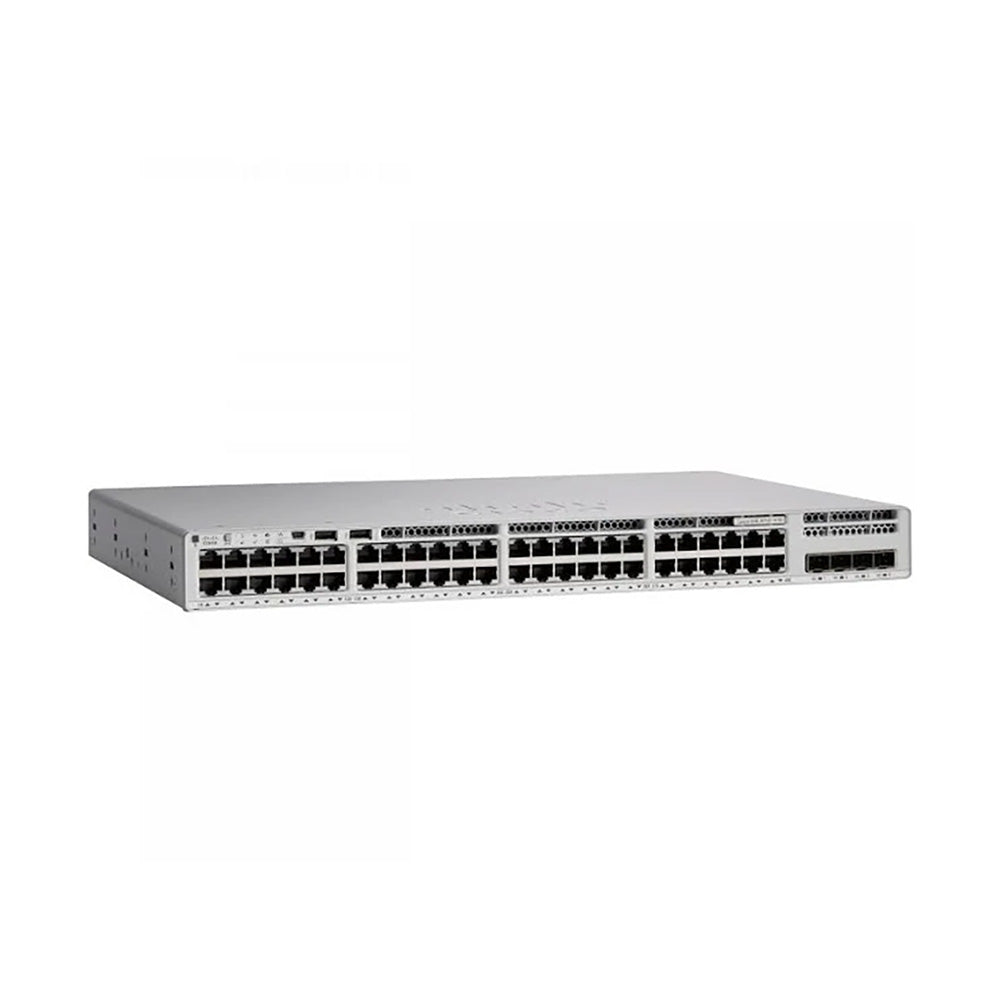

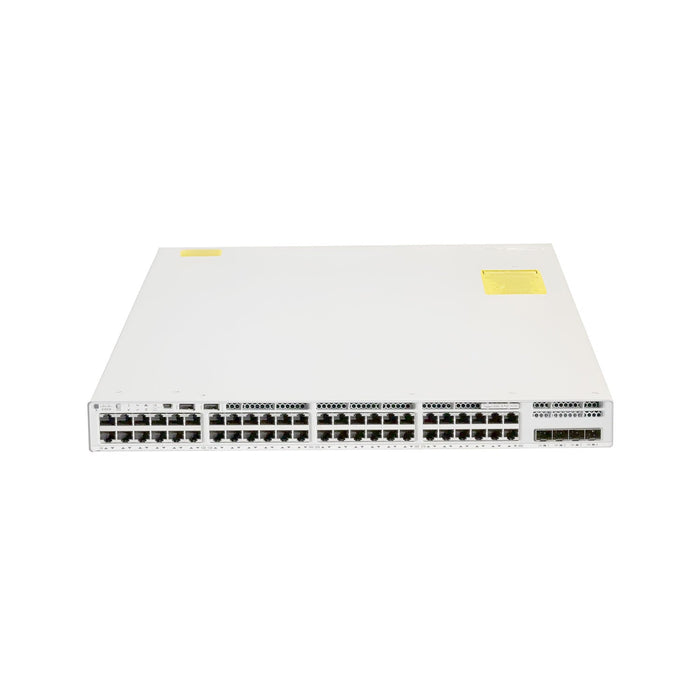

Cisco Catalyst 9200-48P-A 48-Port PoE+ Switch, Modular Uplinks, Network Advantage

Overview

The cisco c9200-48p-a is a high-density, enterprise-grade cisco 48 port poe switch purpose-built for scalable campus networks, large enterprise branch layers, smart infrastructure facilities, and device-dense edge environments. Operating under the modern Cisco IOS XE operating system with a premier Network Advantage license, this robust c9200-48p-a hardware asset delivers 48 full PoE+ Gigabit downlinks, modular hot-swappable uplinks, and unrestricted advanced Layer 3 routing tools out of the box.

Built on Cisco's programmable UADP 2.0 ASIC core and driven by an x86 multicore CPU framework, the c9200 48p a switch enables line-rate packet handling, policy-driven segmentation, and zero-trust security architecture. It fully supports StackWise-160 technology to ensure massive horizontal scaling and non-disruptive high availability for data closets requiring maximum wire-speed efficiency.

• Related Reading & Architecture Resource Guides:

  • Deploying a 48-port access layer in 2026? Read our direct matchup: Cisco 9200 48P vs 9300 48P: 2026 Edition Comparison Matrix.

  • Evaluating modular capabilities across the series? Read our guide: Cisco Catalyst 9200 vs 9300 Series Switches.

  • Replacing legacy edge infrastructure? Check out our blueprint: How to Replace Legacy Cisco Switches for Modern Enterprise Networks.

📥 Download Technical Specifications: Staging a campus network overhaul? Enter your corporate email below to download the official datasheet to review exact multi-switch forwarding thresholds, frame metrics, and power draw variables.

Highlights

1. 48-Port Full PoE+ for High-Density Access

Features 48 auto-sensing 10/100/1000 RJ-45 copper ports delivering up to 30W PoE+ per interface (IEEE 802.3at parameters), making it an ideal high-tier cisco 48 port poe switch choice.

• Ideal For: Dense workstation floor deployments running unified VoIP desks, HD IP security surveillance setups, and wireless campus edge points.

• Configuration Tip: For a terminal command overview on bringing up inline power parameters safely, view our resource: How to Enable PoE on a Cisco Switch Port.

2. Scalable PoE Power for Real-World Deployments

• Out-of-the-Box Configuration: Yields a robust 740W PoE power pool via a default 1000W AC power supply module (PWR-C6-1KWAC).

• Dual Power Supply Expansion: Expands total inline power delivery to a massive 1440W PoE budget by adding a secondary PSU module.

• Staging Insight: To cleanly blueprint per-port draw restrictions on Wi-Fi 6 networks, consult our technical design guide: Cisco AP Deployment & PoE Budget Guide.

3. High Performance Switching & Low Latency

• Provides 176 Gbps non-blocking switching fabric capacity paired with a wire-speed 130.95 Mpps forwarding performance rate.

• Features an integrated 6 MB deep packet buffer to prevent drop anomalies on streaming surveillance video feeds, avoid jitter on real-time voice arrays, and accommodate unexpected burst data spikes across dense user environments smoothly.

4. Modular Uplink Flexibility (Enterprise-Ready)

Unlike fixed alternative lines, this customizable cisco c9200-48p-a chassis accommodates hot-swappable line cards to eliminate layout bottlenecks as upstream demands grow:

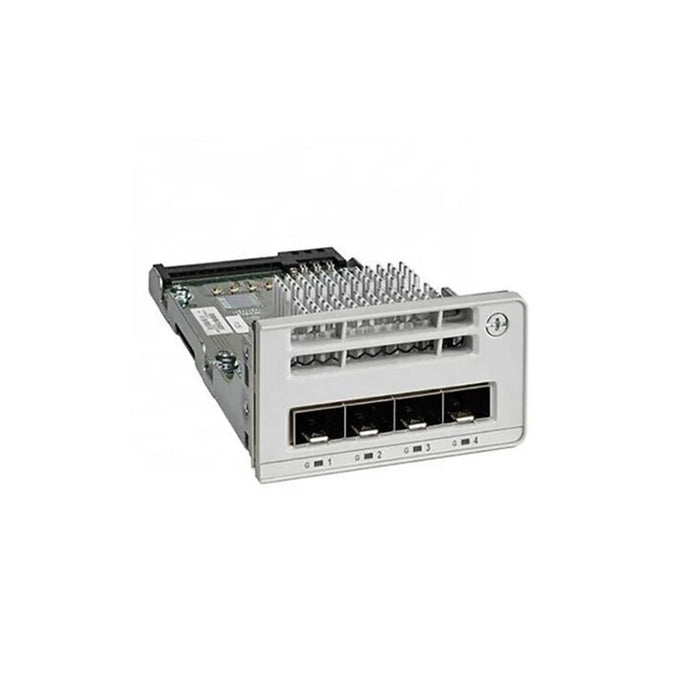

• C9200-NM-4G: 4 x 1G SFP interfaces for standard fiber connectivity backhauls.

• C9200-NM-4X: 4 x 10G SFP+ slots for high-speed uplink core aggregations.

5. StackWise-160 High Availability Stacking

• Physically cluster up to 8 separate hardware units into a single logical node operating at an industry-leading 160 Gbps of stacking backplane throughput.

• Supports NSF/SSO architecture and sub-50ms stateful failovers to achieve zero-downtime campus access layer protection.

6. Advanced Segmentation with Network Advantage

• Supports up to 4 distinct isolated Virtual Networks (VN) along with VRF, VXLAN, LISP, and SGT segmentation tools to establish clean policy-based network virtualization.

• Perfect for secure department isolation across multi-tenant enterprise environments, healthcare campus setups, or university networks. (Note: Advanced carrier-grade BGP is not supported on standard 9200 series platforms).

7. Enterprise Security Built-In

• Hardware-accelerated AES-128 MACsec link encryption, secure 802.1X port-level authentication, DHCP Snooping, Dynamic ARP Inspection (DAI), and IP Source Guard shield your branch borders from sophisticated persistent threats.

8. FRU Hardware = True Enterprise Reliability

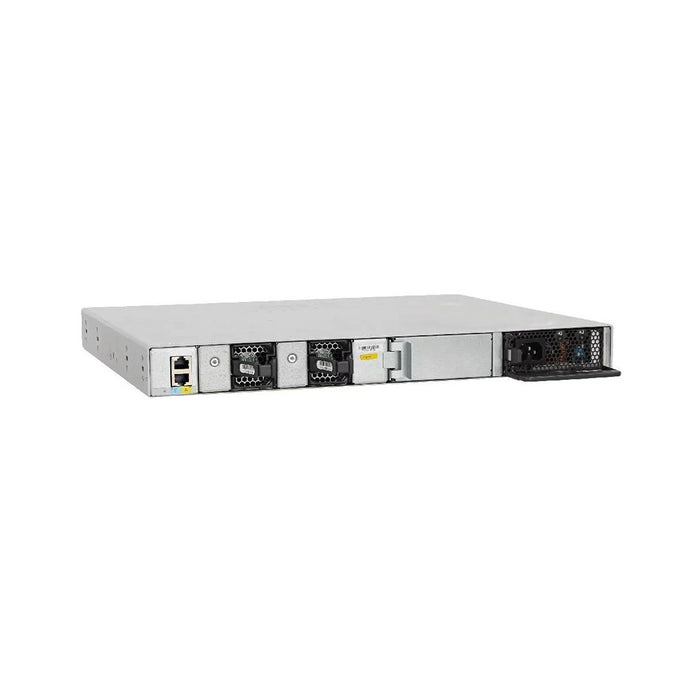

• Equipped with field-replaceable fan modules (FRU layout) and dual hot-swappable power supplies to ensure continuous 24/7 corporate uptime.

• Architectural Insight: These FRU elements represent a vital operational advantage over fixed 9200L models. For a complete matchup of modular vs fixed layout variables, read our analysis: Cisco Catalyst 9200 vs 9200L Switches Hardware Deep Dive.

Recommended Accessories

To configure your high-density c9200-48p-a deployment effectively, pair your hardware chassis with original Cisco components and line expansion modules.

Comparison with Similar Models

Specifications

Why Choose C9200-48P-A?

1. Built for Real Enterprise Deployments

Ideal for:

• Enterprise campus networks

• Smart buildings & IoT environments

• Retail chains & branch offices

• Surveillance-heavy infrastructures

2. Advantage License = Long-Term Investment

Unlocks:

• SD-Access

• Network segmentation

• Advanced routing & automation

3. Flexible Stocking for Resellers

• Modular uplinks reduce SKU complexity

• One chassis fits multiple deployment scenarios

• Faster delivery from local inventory

4. Cisco E-LLW Warranty

Includes:

• Next-Business-Day (NBD) hardware replacement

• 90-day 85 Cisco TAC support
