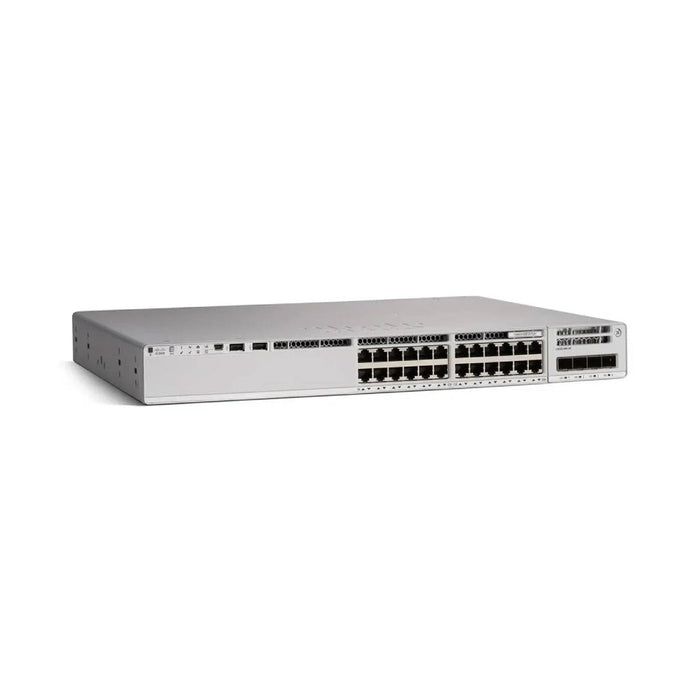

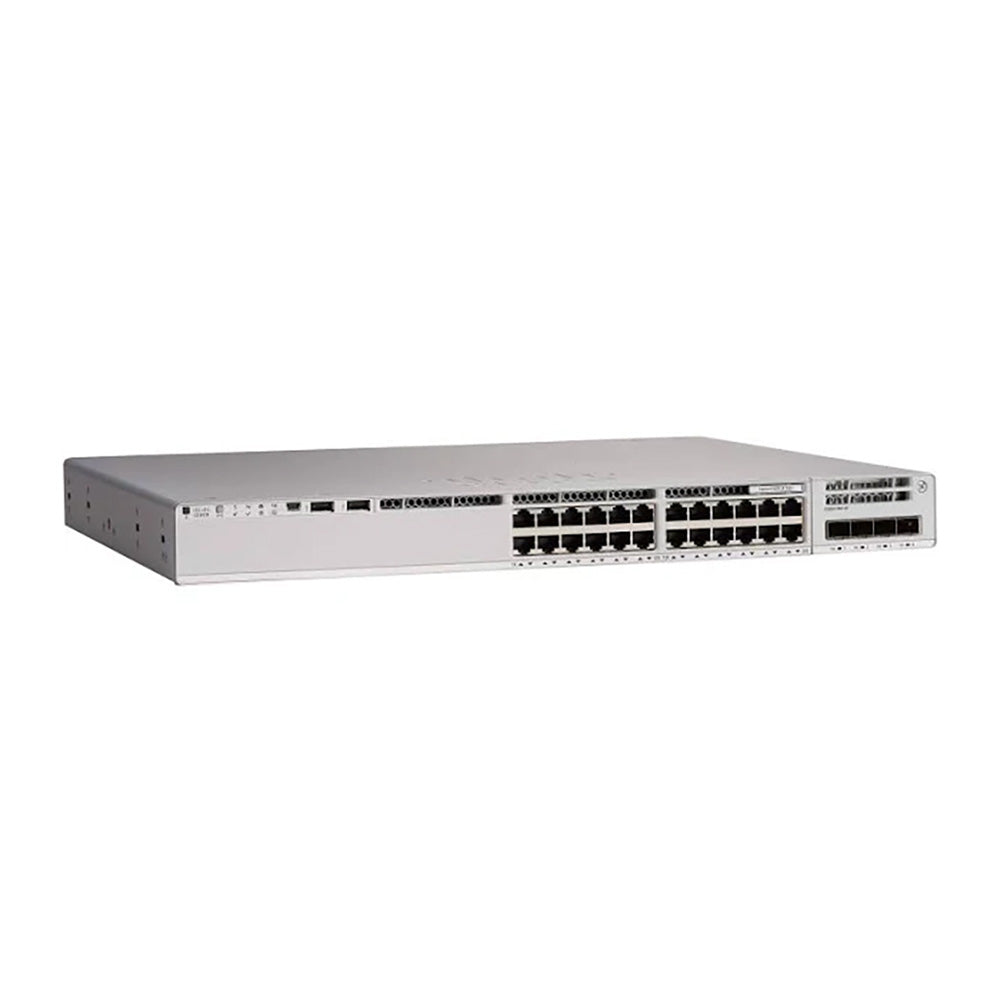

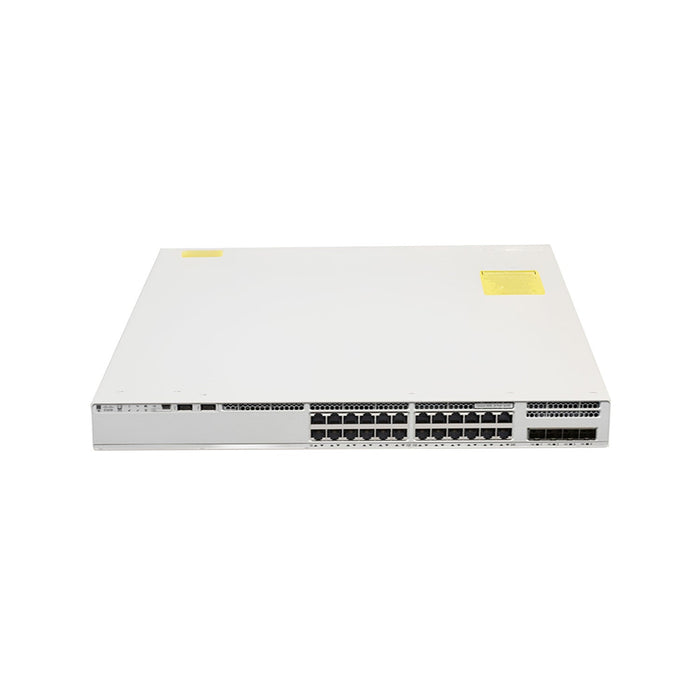

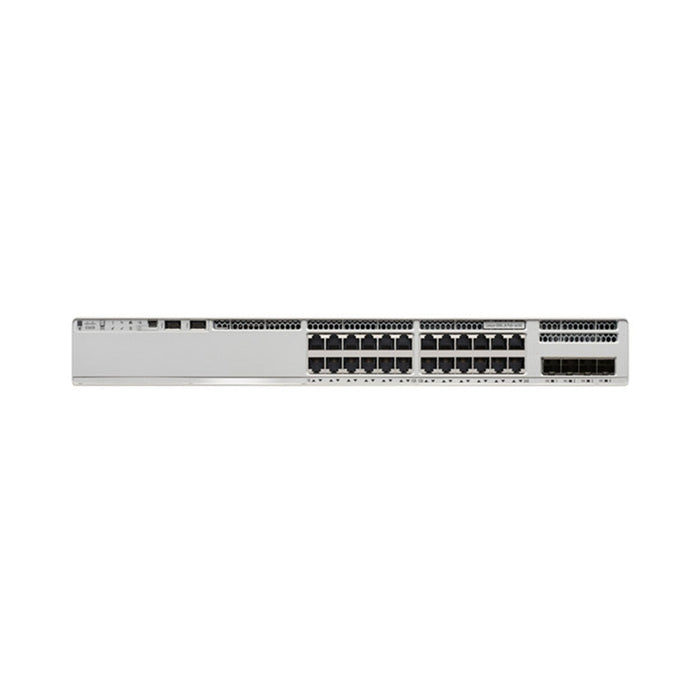

Cisco Catalyst 9200-24T-A 24-Port Data Switch, Network Advantage, Modular Uplinks

Overview

The cisco c9200-24t-a is a premium enterprise-grade cisco 24 port switch designed from the ground up as a highly secure, scalable, and high-performance data-only access layer. Running the sophisticated Cisco IOS XE operating system under an elite Network Advantage license, this high-reliability c9200-24t-a hardware platform unlocks advanced routing architectures, programmable macro-segmentation, and seamless software-defined automation without the thermal footprint or power overhead of PoE circuitry.

Built on Cisco's flagship unified programmable UADP 2.0 ASIC and driven by a robust x86 multicore CPU core, this non-PoE c9200 24t platform delivers true wire-speed data processing, deterministic ultra-low latency, and an outstanding MTBF reliability rating of 587,800 hours. Featuring hot-swappable uplink capabilities, field-replaceable power supplies, and a robust feature matrix, it serves as the ultimate foundational link for secure campus boundaries, latency-sensitive server spaces, and high-density workstation operations.

• Related Reading & Architecture Resource Guides:

  • Upgrading legacy corporate access closets? View our structural roadmap: How to Replace Legacy Cisco Switches for Modern Enterprise Networks.

  • Evaluating modular capabilities vs. alternative tiers? Check out our guide: Cisco Catalyst 9200 vs 9300 Series Switches Features Comparison.

  • Not sure which specific hardware footprint aligns with your network topology? Consult our comprehensive Cisco Switch Guide: Which Fits Your Network?.

📥 Download Technical Specifications: Planning a clean data-intensive deployment? Enter your work email below to download the official datasheet PDF to review exact 24-port forwarding rates, MAC address table sizing rules, and advanced Layer 3 routing thresholds.

Recommended Deployment Scenarios

1. Enterprise Campus Access with Segmentation

Ideal for corporate headquarters, government networks, and multi-department campus backbones requiring ironclad network security. Utilizing Cisco SD-Access and supporting up to 4 distinct isolated Virtual Networks (VNs) ensures clean department isolation and automated, group-based policy enforcement across the entire corporate fabric.

2. Secure Branch & Micro-Segmentation Networks

The perfect foundational block for distributed branch offices and secure remote enterprise sites. Pre-integrated VRF-based routing paths and identity-based access control policies allow your engineering division to deploy granular security borders directly at the network edge.

3. SMB Server Rack Access

Purpose-built for small-to-medium business IT server racks, application clusters, and localized network-attached storage (NAS) environments. Focuses entirely on delivering zero-bottleneck east-west traffic distribution and low-latency client-server interconnectivity.

4. IT Closet Aggregation (IDF/MDF)

Deployed natively within campus buildings and multi-floor office data closets to seamlessly aggregate downstream access links. Provides efficient, high-speed 10G uplink delivery straight to your network distribution or core layer infrastructure.

5. Financial & Low-Latency Environments

Highly optimized for trading systems, localized banking platforms, and transactional databases. Combining a deep 6 MB packet buffer with non-blocking, wire-speed packet processing guarantees deterministic latency and total traffic stability during volatile burst cycles.

6. Education & Enterprise Testing Labs

An excellent choice for university research networks, enterprise innovation centers, and multi-tenant training labs that require completely isolated experimental VLANs, custom Python scripting configurations, and dynamic multi-tenant testing environments.

Highlights

1. 24-Port Data Access (Non-PoE Data-Only Design)

Features 24 auto-sensing 10/100/1000 RJ-45 dedicated data ports. Removing PoE circuitry vastly reduces baseline power consumption and structural cooling costs, making it a premier choice when designing a clean, high-density cisco 24 port switch layout for wired endpoints and server rack links.

2. High Performance & Ultra-Low Latency

• Delivers a robust 128 Gbps non-blocking switching capacity paired with a wire-speed 95.23 Mpps forwarding performance rate.

• The integrated 6 MB deep packet buffer ensures smooth data flow, protects critical enterprise applications from drop anomalies, and handles intense burst traffic loops effortlessly.

3. Modular Uplink Flexibility (Real Deployment Protection)

Unlike fixed alternative tiers, this customizable cisco c9200-24t-a chassis accommodates hot-swappable line cards to eliminate upstream link constraints:

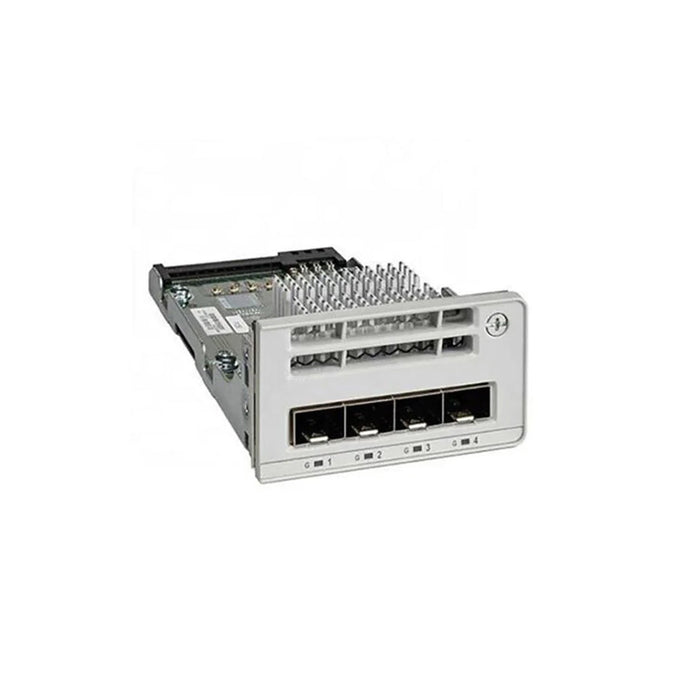

• C9200-NM-4G: 4 x 1G SFP interfaces for standard fiber connectivity aggregation.

• C9200-NM-4X: 4 x 10G SFP+ slots for high-speed campus distribution aggregations.

• (Note: 25G NM-2Y or 40G NM-2Q expansion module cards are NOT supported on this specific chassis model).

4. StackWise-160 High Availability Stacking

• Physically cluster up to 8 separate hardware units into a single logical entity operating at a combined 160 Gbps of stacking backplane throughput.

• Supports NSF/SSO high-availability architecture to achieve sub-50 ms stateful failovers, simplifying management across expanding campus footprints.

5. Enterprise Hardware Advantage (True FRU Design)

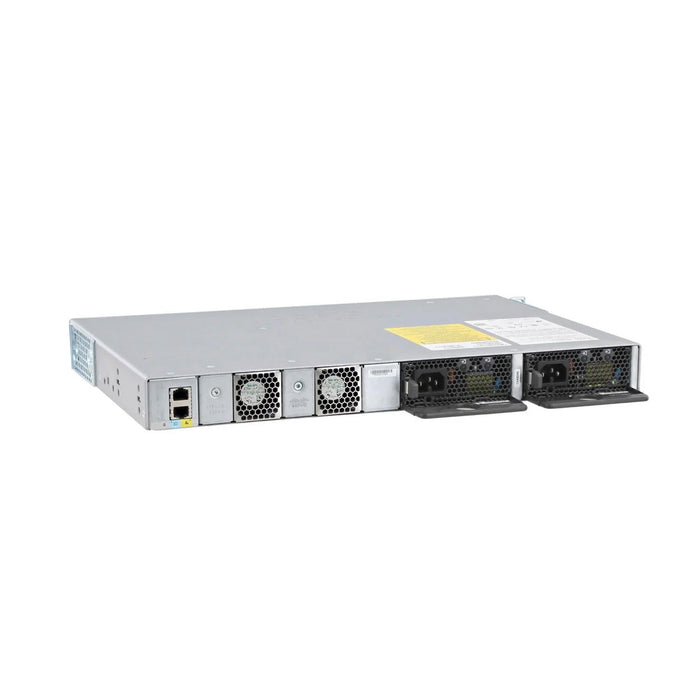

• Equipped with field-replaceable hot-swappable fan modules and dual redundant power supply slots to secure 24/7 corporate uptime.

• Architectural Insight: These FRU elements represent a vital operational advantage for business continuity. For a complete matchup of modular vs fixed layout variables, read our hardware comparison: Cisco Catalyst 9200 vs 9200L Switches Hardware Deep Dive.

6. Network Advantage: Advanced Software Capabilities

• Advanced Routing Paths: Out-of-the-box support for dynamic Layer 3 routing protocols, including EIGRP, IS-IS, and full OSPF. (Note: Carrier-grade BGP is not supported on standard 9200 series devices).

• Macro-Segmentation Fabrics: Full native implementation of VRF, VXLAN, LISP, and Cisco TrustSec Security Group Tags (SGT).

• Telemetry & Automation: Natively supports NETCONF/RESTCONF programmable APIs alongside streaming telemetry data arrays for proactive network assurance.

7. Enhanced Security & Zero-Trust Access Border

• Hardware-accelerated AES-128 MACsec link encryption, secure 802.1X port-level authentication, DHCP Snooping, and Dynamic ARP Inspection (DAI) defend your network perimeter from sophisticated persistent threats.

8. Cisco E-LLW Hardware Protection

• Completely backed by the standard Cisco Enhanced Limited Lifetime Warranty (E-LLW), supplying Next-Business-Day (NBD) hardware replacement logistics along with 90 days of factory 8x5 Cisco TAC access.

Recommended Accessories

To configure your modular c9200-24t-a system effectively, ensure your chassis upgrades are paired with original Cisco components and expansion line cards.

Comparison with Similar Models

Specifications

Why Choose Cisco C9200-24T-A?

1. Full SD-Access Capability (vs Essentials)

• Supports 4 Virtual Networks

• Enables true segmentation architecture

Ideal for:

• Multi-tenant enterprise

• Secure campus networks

2. Ultra-High Reliability

• MTBF: 587,800 hours

Higher than PoE models, designed for long-term deployment

3. Cost-Efficient Data-Only Architecture

• No PoE = lower cost

• Lower power & cooling

Best for:

• Server networks

• Data aggregation

4. Flexible Modular Investment

• Upgrade uplinks anytime

• Extend lifecycle

Future-proof network design

5. Enterprise Hardware Advantage (vs C9200L)

• Modular uplinks

• FRU fans

• 4 Virtual Networks support

Stronger enterprise capability

6. Channel-Friendly & Easy Stocking

• Standard SKU

• Flexible modules

Faster delivery & lower inventory risk

More Details

Quality Certifications

Do you have any question about the Cisco C9200-24T-A Switch?
