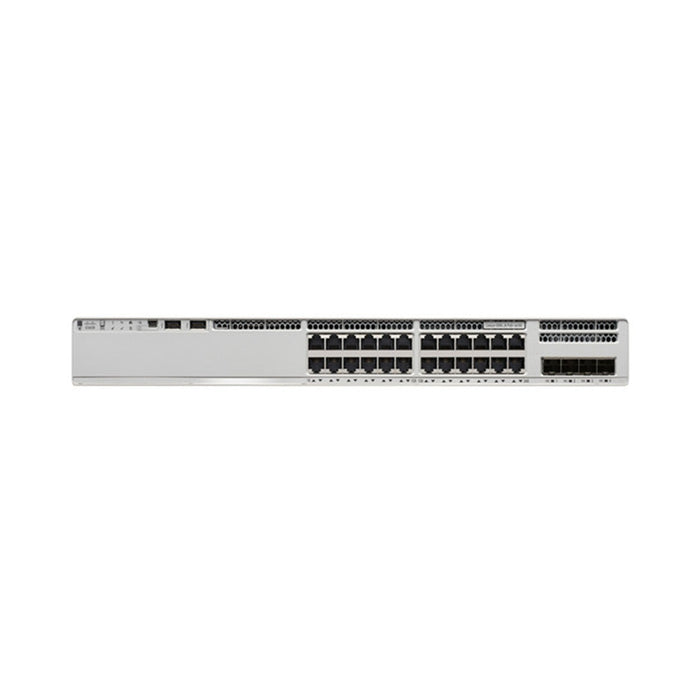

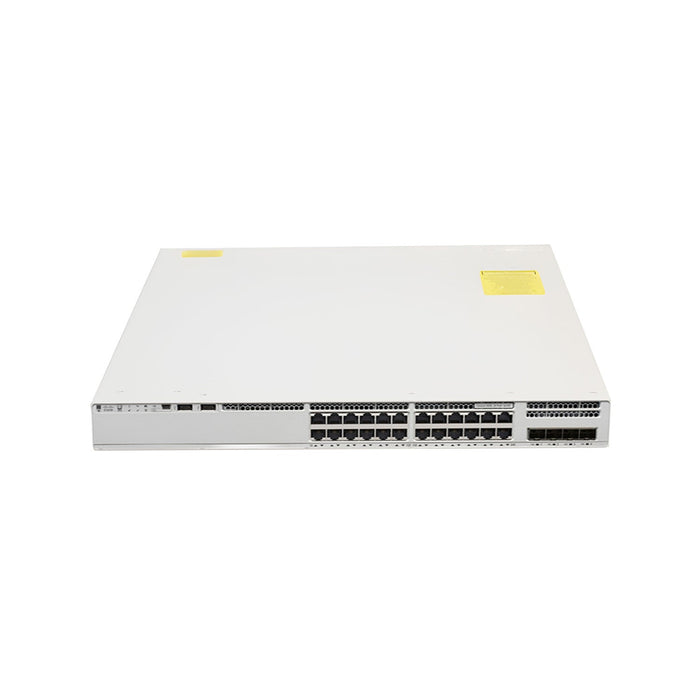

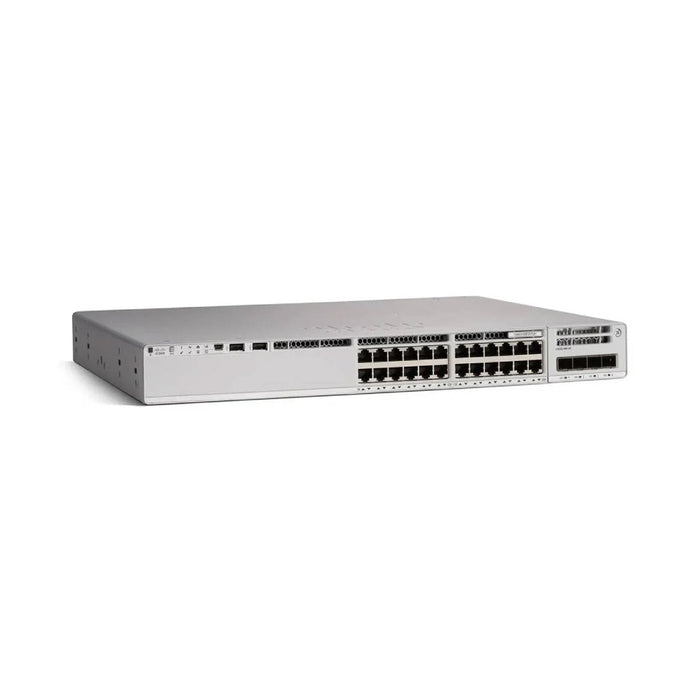

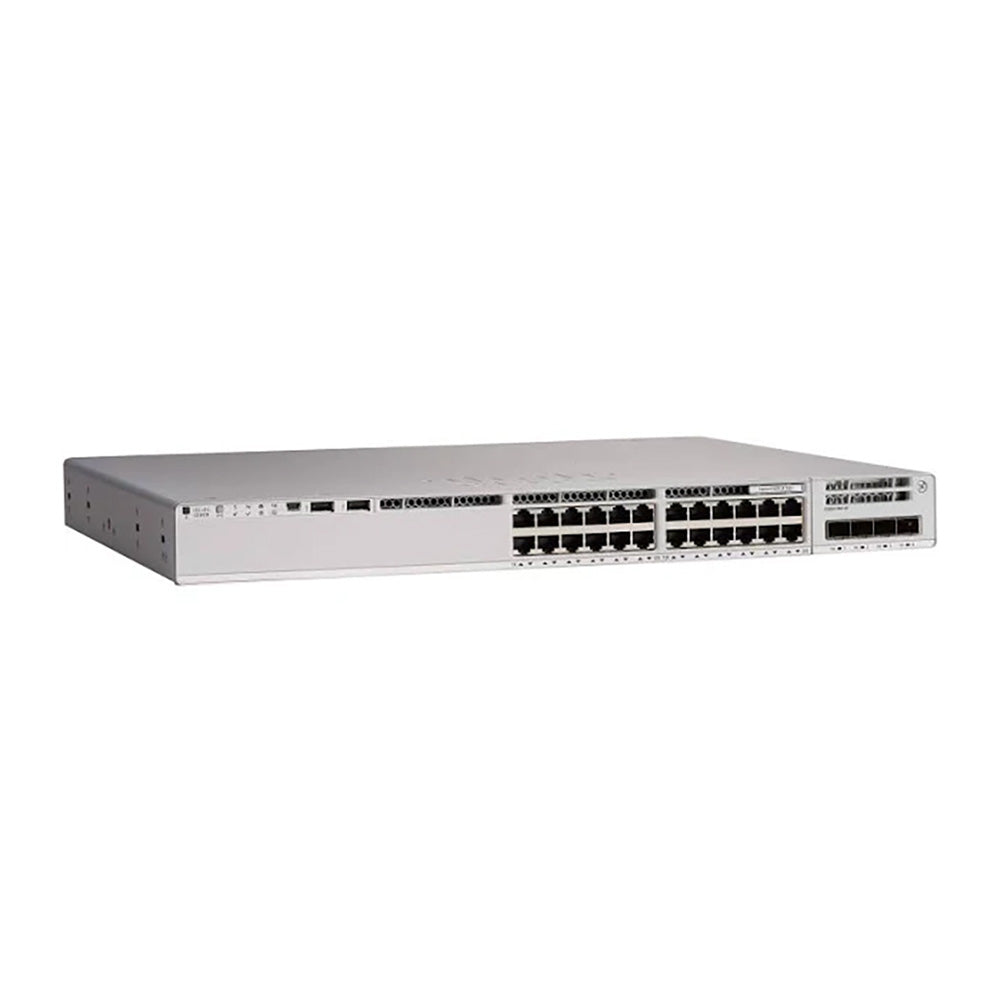

Cisco Catalyst 9200-24T 24-Port Data Switch, Modular Uplinks, Enterprise Access

Overview

The Cisco Catalyst 9200-24T is a 24-port Gigabit data access switch (non-PoE) built for high-reliability wired connectivity in enterprise and SMB environments such as campus networks, branch offices, IT closets, and server rack access deployments.

Powered by the Cisco UADP 2.0 ASIC and running Cisco IOS XE, it delivers wire-speed performance, ultra-low latency, and exceptional hardware reliability, making it ideal for data-only environments without PoE requirements.

Thanks to its modular uplink design, StackWise-160 high availability, and FRU components, the C9200-24T is widely used in:

• Enterprise wired office access (non-PoE)

• SMB server rack access

• IT closet aggregation (IDF/MDF)

• Finance and low-latency environments

• Education labs and training networks

Recommended Deployment Scenarios

1. Enterprise Wired Office Networks (Non-PoE Environments)

Perfect for corporate offices, government agencies, and administrative campuses where endpoints such as PCs, printers, and terminals do not require PoE power.

2. SMB Server Rack Access

Ideal for small-to-medium business server environments, connecting:

• Application servers

• File servers

• Backup systems

Provides stable throughput and low latency for internal traffic

3. IT Closet Aggregation (IDF/MDF)

Deployed in:

• Campus buildings

• Multi-floor enterprises

• Network wiring closets

Aggregates access switches and uplinks to core/distribution layers via 10G

4. Financial & Low-Latency Networks

Designed for:

• Trading systems

• Banking infrastructure

• Real-time analytics

6 MB packet buffer + wire-speed forwarding ensures deterministic latency

5. Education & Lab Environments

Suitable for:

• University labs

• Certification training rooms

• Testing environments

Cost-efficient data-only infrastructure

6. Retail & Back-End IT Networks

Used in:

• Retail HQ networks

• Inventory systems

• POS backend infrastructure

Reliable connectivity without PoE overhead

Highlights

1. 24-Port Data Access (Non-PoE)

• 24 10/100/1000 RJ-45 ports

• No PoE lower power consumption & cost

Best for:

• Desktop networks

• Server access

• Aggregation layers

2. High Performance & Ultra-Low Latency

• 128 Gbps switching capacity

• 95.23 Mpps forwarding rate

• 6 MB packet buffer

Benefits:

• Smooth data-intensive workloads

• Low latency for critical applications

• Stable handling of burst traffic

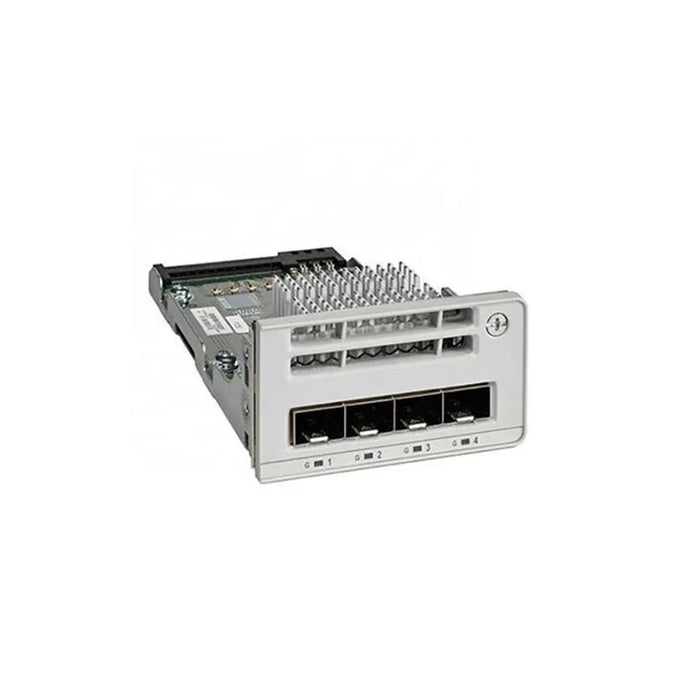

3. Modular Uplink Flexibility

• 1 hot-swappable uplink slot

• Supports:

  • C9200-NM-4G (1G uplinks)

  • C9200-NM-4X (10G uplinks)

Enables:

• Flexible fiber aggregation

• Scalable network upgrades

4. StackWise-160 High Availability

• 160 Gbps stacking bandwidth

• Up to 8 switches

Enables:

• Simplified management

• High availability for enterprise networks

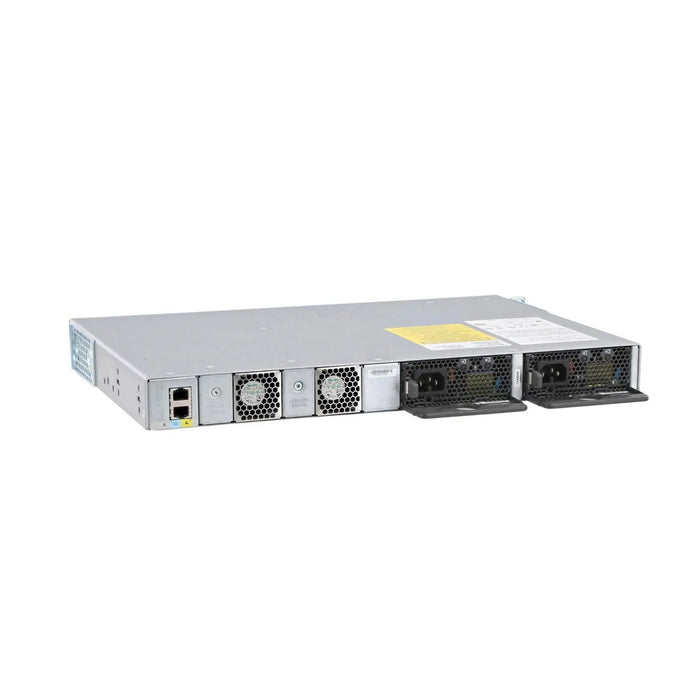

5. Enterprise Hardware Resiliency (FRU)

• Hot-swappable fans

• Redundant PSU support

Minimizes downtime in mission-critical environments

6. Network Essentials Licensing

• Layer 2 + basic Layer 3

• OSPF limited to 1000 routes

• No segmentation (VRF / SD-Access not supported)

7. Network Advantage Licensing

• Advanced routing (EIGRP, IS-IS, full OSPF)

• Segmentation (VRF / VXLAN / LISP / SGT)

• SD-Access (up to 4 Virtual Networks)

Note: BGP is NOT supported on C9200

8. Enterprise Security

• MACsec encryption

• 802.1X authentication

• DHCP Snooping / DAI

Protects enterprise access layer

9. Cisco E-LLW Warranty

• Next-Business-Day replacement

• 90-day TAC support

Long-term reliability assurance

Recommended Accessories

Comparison with Similar Models

Specifications

Why Choose Cisco C9200-24T?

1. Ultra-High Reliability (Corrected MTBF Advantage)

• MTBF: 587,800 hours

Higher than PoE models due to:

• No PoE thermal load

• Simpler power architecture

Ideal for long-term stable deployments

2. Cost-Optimized Data Access

No PoE = lower:

• CapEx

• Power consumption

• Cooling requirements

Perfect for pure data networks

3. Deterministic Performance

With:

• 128 Gbps throughput

• 95.23 Mpps forwarding

• 6 MB buffer

Ensures:

• Low latency

• Stable performance under congestion

4. Flexible & Scalable Investment

• Modular uplinks (1G 10G)

• Stackable architecture

Future-proof enterprise deployments

5. Enterprise Hardware vs Fixed Models

Compared to entry-level switches:

• ✔ FRU fans

• ✔ Modular uplinks

• ✔ StackWise-160

Better suited for enterprise IT environments

6. Channel-Friendly & Easy Deployment

• Standardized SKU

• Flexible module combinations

• Easy stocking for resellers

Faster delivery & lower inventory risk
