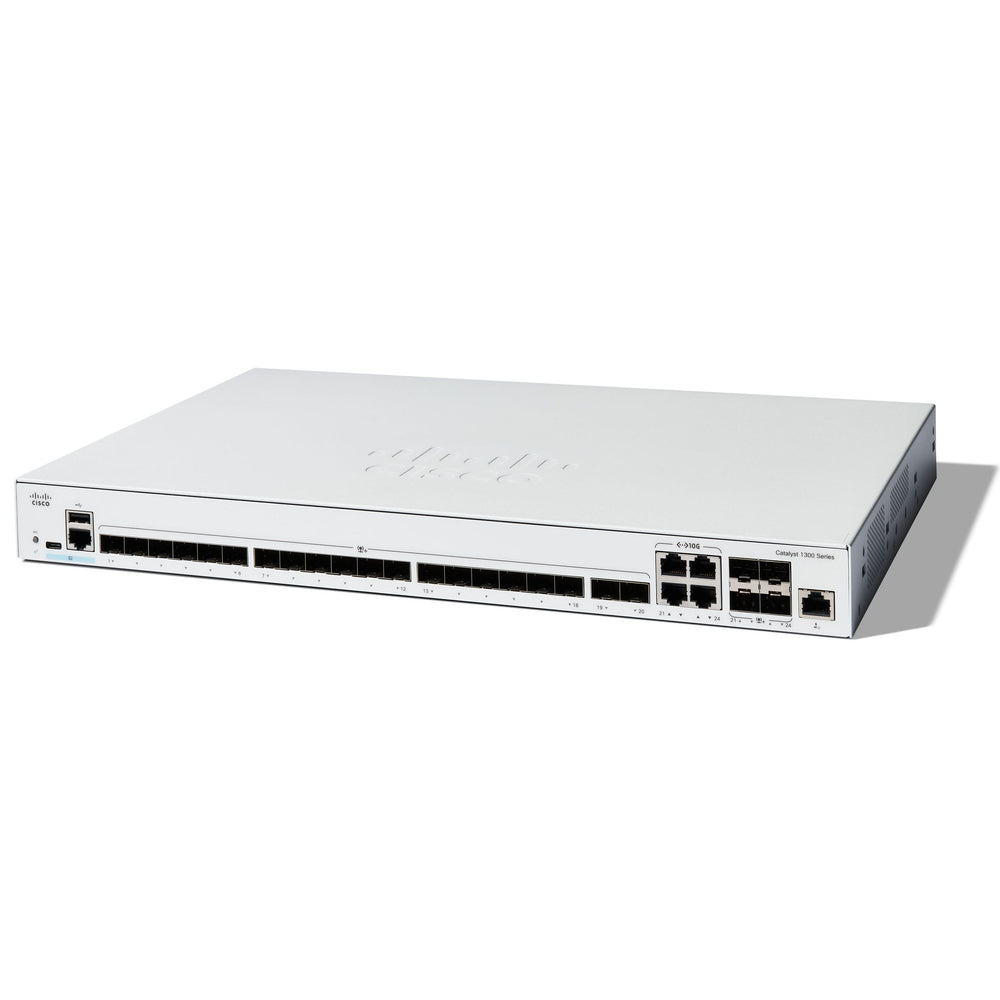

Cisco Catalyst 1300 Series 20x SFP+ 4x SFP+ Combo Managed Switch (C1300-24XS)
Cisco Catalyst 1300 Series 20x SFP+ 4x SFP+ Combo Managed Switch (C1300-24XS)

Cisco Catalyst 1300 Series 20x SFP+ 4x SFP+ Combo Managed Switch (C1300-24XS)

por Cisco
R$ 32.100,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Managed 10G aggregation switch with 20 × 10G SFP+, 4 × 10G copper/SFP+ combo, front-panel stacking (up to 8), 480 Gbps switching, advanced L2/L3, and comprehensive security (C1300-24XS)

[/shortdesc]

[properties]

Property Details
Product Line Cisco Catalyst 1300 Series
Model Number C1300-24XS
Management Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
Ports 20 × 10G SFP+
Combo Ports 4 × 10G copper/SFP+ combo
Out-of-Band (OOB) Management 1 × 1G RJ-45 OOB management port
Console & USB RJ-45 console + USB-C (console/file/image management)
Stacking Front-panel stacking up to 8 units (Family 2 only)
Switching Capacity 480 Gbps
Forwarding Rate 357.14 Mpps
Layer Support Layer 2 and Layer 3
Jumbo Frame Support Up to 9000 bytes
CPU ARM dual-core 1.4 GHz
Memory / Flash 1 GB DDR4 / 512 MB Flash
Packet Buffer 8 MB (shared)
Power Internal AC 100–240 V, 50/60 Hz
Power Consumption (Max / Idle) ≈49.46 W max / ≈21.3–21.5 W idle
Dimensions (W × D × H) 444 × 286 × 44 mm (17.49 × 11.26 × 1.73 in)
Weight 4.15 kg (9.15 lb)
Operating Temperature −5°C to 50°C
Certifications UL, CSA, CE, FCC Class A

[/properties]

[specifications]

Specification Details
VLANs Up to 4093 VLANs; 802.1Q, MAC/protocol/IP-subnet VLANs; Private VLAN/Edge
Spanning Tree 802.1D, RSTP (802.1w), MSTP (802.1s), PVST+/RPVST+
Link Aggregation 802.3ad LACP; up to 8 groups, 8 ports/group (16 candidates)
L3 Routing IPv4/IPv6 wire-speed; up to 990 static routes & up to 128 SVIs; RIP v2; PBR
DHCP DHCP server (multiple pools), DHCP relay (L2/L3), UDP relay
Security 802.1X, MAB, WebAuth, DHCP Snooping, DAI, IP Source Guard, RA Guard, IPv6 FHS, Port Security, DoS prevention
ACLs Up to 1024 rules; MAC/IPv4/IPv6/DSCP/TCP flags; time-based ACLs
QoS 8 hardware queues; strict priority & WRR; 2R3C policing; egress shaping; DSCP/CoS trust & remarking
Multicast IGMP snooping v1/v2/v3 with querier/proxy; MLD snooping/proxy
Stacking Details Up to 8 units; fast failover; LAG across members; Family 2 models only (incl. C1300-24XS)
Management Web GUI (HTTP/HTTPS), CLI/SSH, SNMP v1/v2c/v3, Cisco Business Dashboard probe, Cisco PnP
Diagnostics RMON (4 groups), sFlow, port/VLAN mirroring, cable diagnostics, syslog, NTP
Energy Efficiency EEE (802.3az), energy detect, cable-length power adjust, LED disable
PoE Not applicable (non-PoE model)
Supported Optics 1G SFP & 10G SFP+/DAC/AOC modules (Cisco listed)

[/specifications]

[accessories]

Accessory Details
CAB-CONSOLE-RJ45 RJ-45 console cable
CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= USB-C console cable
PWR-CLP Power cable clip
RCKMNT-1RU-1K= Rack-mount kit for 1U devices

[/accessories]

The Cisco Catalyst 1300 Series Managed Switch C1300-24XS delivers high-density 10G aggregation with enterprise-class security and L3 capabilities for branch and SMB networks. It provides twenty 10G SFP+ ports and four 10G copper/SFP+ combo ports, plus a dedicated 1G RJ-45 out-of-band management port. Designed for growth, it supports front-panel stacking of up to eight switches (Family 2) so you can manage the stack as one system. With 480 Gbps switching capacity and 357.14 Mpps forwarding, along with features like 802.1X, DHCP snooping, DAI, and IPv6 First Hop Security, the C1300-24XS is a robust 10G platform for high-performance access or aggregation. :contentReference[oaicite:0]{index=0}

Key Features

  • 20 × 10G SFP+ + 4 × 10G combo: Flexible fiber or copper uplinks on a compact 1U form factor.
  • Front-panel stacking (up to 8): Single-IP management, cross-stack LAG/QoS/VLANs for simplified operations.
  • Advanced L3 services: Static IPv4/IPv6 routing, RIP v2, PBR, DHCP server/relay.
  • Hardened security: 802.1X/MAB/WebAuth, DHCP snooping, DAI, IPSG, RA Guard, IPv6 FHS, ACLs.
  • High performance: 480 Gbps switching / 357.14 Mpps forwarding; 8-queue QoS with WRR & strict priority.
  • Operational convenience: RJ-45 console + USB-C console/file mgmt, 1G OOB management port, Cisco PnP.
  • Energy efficient: IEEE 802.3az EEE, energy detect, and cable-length power optimization.

Technical Overview

  • Hardware: ARM dual-core 1.4 GHz CPU, 1 GB DDR4, 512 MB flash, 8 MB shared packet buffer.
  • Resiliency: Dual image support; fast stack failover; LAG across stack members.
  • L2 features: RSTP/MSTP, 802.3ad LACP, Private VLAN/Edge, rich VLAN options (up to 4093).
  • L3 features: Up to 990 static routes, up to 128 SVIs, DHCP server/relay, UDP relay.
  • Monitoring: RMON (4 groups), sFlow export, port/VLAN mirroring, cable diagnostics.
  • Form factor & power: 1U rack-mount, internal universal AC (100–240 V); ≈49.46 W max, ≈21.3–21.5 W idle.
  • Environment: −5°C to 50°C operating; 444 × 286 × 44 mm; 4.15 kg.



Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Managed 10G aggregation switch with 20 × 10G SFP+, 4 × 10G copper/SFP+ combo, front-panel stacking (up to 8), 480 Gbps switching, advanced L2/L3, and comprehensive security (C1300-24XS)

[/shortdesc]

[properties]

Property Details
Product Line Cisco Catalyst 1300 Series
Model Number C1300-24XS
Management Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
Ports 20 × 10G SFP+
Combo Ports 4 × 10G copper/SFP+ combo
Out-of-Band (OOB) Management 1 × 1G RJ-45 OOB management port
Console & USB RJ-45 console + USB-C (console/file/image management)
Stacking Front-panel stacking up to 8 units (Family 2 only)
Switching Capacity 480 Gbps
Forwarding Rate 357.14 Mpps
Layer Support Layer 2 and Layer 3
Jumbo Frame Support Up to 9000 bytes
CPU ARM dual-core 1.4 GHz
Memory / Flash 1 GB DDR4 / 512 MB Flash
Packet Buffer 8 MB (shared)
Power Internal AC 100–240 V, 50/60 Hz
Power Consumption (Max / Idle) ≈49.46 W max / ≈21.3–21.5 W idle
Dimensions (W × D × H) 444 × 286 × 44 mm (17.49 × 11.26 × 1.73 in)
Weight 4.15 kg (9.15 lb)
Operating Temperature −5°C to 50°C
Certifications UL, CSA, CE, FCC Class A

[/properties]

[specifications]

Specification Details
VLANs Up to 4093 VLANs; 802.1Q, MAC/protocol/IP-subnet VLANs; Private VLAN/Edge
Spanning Tree 802.1D, RSTP (802.1w), MSTP (802.1s), PVST+/RPVST+
Link Aggregation 802.3ad LACP; up to 8 groups, 8 ports/group (16 candidates)
L3 Routing IPv4/IPv6 wire-speed; up to 990 static routes & up to 128 SVIs; RIP v2; PBR
DHCP DHCP server (multiple pools), DHCP relay (L2/L3), UDP relay
Security 802.1X, MAB, WebAuth, DHCP Snooping, DAI, IP Source Guard, RA Guard, IPv6 FHS, Port Security, DoS prevention
ACLs Up to 1024 rules; MAC/IPv4/IPv6/DSCP/TCP flags; time-based ACLs
QoS 8 hardware queues; strict priority & WRR; 2R3C policing; egress shaping; DSCP/CoS trust & remarking
Multicast IGMP snooping v1/v2/v3 with querier/proxy; MLD snooping/proxy
Stacking Details Up to 8 units; fast failover; LAG across members; Family 2 models only (incl. C1300-24XS)
Management Web GUI (HTTP/HTTPS), CLI/SSH, SNMP v1/v2c/v3, Cisco Business Dashboard probe, Cisco PnP
Diagnostics RMON (4 groups), sFlow, port/VLAN mirroring, cable diagnostics, syslog, NTP
Energy Efficiency EEE (802.3az), energy detect, cable-length power adjust, LED disable
PoE Not applicable (non-PoE model)
Supported Optics 1G SFP & 10G SFP+/DAC/AOC modules (Cisco listed)

[/specifications]

[accessories]

Accessory Details
CAB-CONSOLE-RJ45 RJ-45 console cable
CAB-CONSOLE-USB-C / CAB-CONSOLE-USB-C= USB-C console cable
PWR-CLP Power cable clip
RCKMNT-1RU-1K= Rack-mount kit for 1U devices

[/accessories]

Cisco Catalyst 1300 Series 20x SFP+ 4x SFP+ Combo Managed Switch (C1300-24XS)

The Cisco Catalyst 1300 Series Managed Switch C1300-24XS delivers high-density 10G aggregation with enterprise-class security and L3 capabilities for branch and SMB networks. It provides twenty 10G SFP+ ports and four 10G copper/SFP+ combo ports, plus a dedicated 1G RJ-45 out-of-band management port. Designed for growth, it supports front-panel stacking of up to eight switches (Family 2) so you can manage the stack as one system. With 480 Gbps switching capacity and 357.14 Mpps forwarding, along with features like 802.1X, DHCP snooping, DAI, and IPv6 First Hop Security, the C1300-24XS is a robust 10G platform for high-performance access or aggregation. :contentReference[oaicite:0]{index=0}

Key Features

  • 20 × 10G SFP+ + 4 × 10G combo: Flexible fiber or copper uplinks on a compact 1U form factor.
  • Front-panel stacking (up to 8): Single-IP management, cross-stack LAG/QoS/VLANs for simplified operations.
  • Advanced L3 services: Static IPv4/IPv6 routing, RIP v2, PBR, DHCP server/relay.
  • Hardened security: 802.1X/MAB/WebAuth, DHCP snooping, DAI, IPSG, RA Guard, IPv6 FHS, ACLs.
  • High performance: 480 Gbps switching / 357.14 Mpps forwarding; 8-queue QoS with WRR & strict priority.
  • Operational convenience: RJ-45 console + USB-C console/file mgmt, 1G OOB management port, Cisco PnP.
  • Energy efficient: IEEE 802.3az EEE, energy detect, and cable-length power optimization.

Technical Overview

  • Hardware: ARM dual-core 1.4 GHz CPU, 1 GB DDR4, 512 MB flash, 8 MB shared packet buffer.
  • Resiliency: Dual image support; fast stack failover; LAG across stack members.
  • L2 features: RSTP/MSTP, 802.3ad LACP, Private VLAN/Edge, rich VLAN options (up to 4093).
  • L3 features: Up to 990 static routes, up to 128 SVIs, DHCP server/relay, UDP relay.
  • Monitoring: RMON (4 groups), sFlow export, port/VLAN mirroring, cable diagnostics.
  • Form factor & power: 1U rack-mount, internal universal AC (100–240 V); ≈49.46 W max, ≈21.3–21.5 W idle.
  • Environment: −5°C to 50°C operating; 444 × 286 × 44 mm; 4.15 kg.
