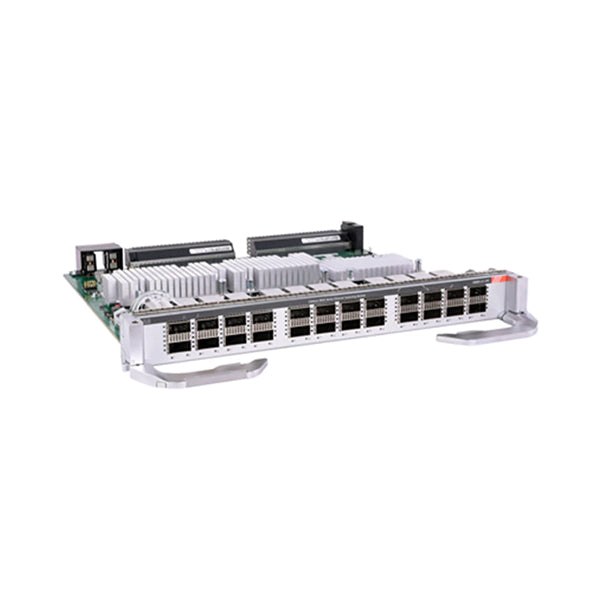

Cisco C9600-LC-24C Line Card
Cisco C9600-LC-24C Line Card

Cisco C9600-LC-24C Line Card

por Cisco
Desconto de 49%
R$ 396.285,48
R$ 202.116,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Switch, 24 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28, Plug-in module
[/shortdesc] [properties]
Properties Cisco C9600-LC-24C
Description Cisco Catalyst 9600 Series 24-Port 40GE/12-Port 100GE
Product Family Catalyst 9600
Product Type Switch Line Card
Ports for LC-48TX
Port Speed Maximum Ports
40 GE C9600X-SUP-2: 96
C9600-SUP-1: 96
100 GE C9600X-SUP-2: 96
C9600-SUP-1: 48
10 GE (with CVR adapter) C9600X-SUP-2: 96
C9600-SUP-1: 96
Physical dimensions 1.7 x 15.0 x 13.41¢‚¬ (to faceplate) (4.32 x 38.1 x 34.06 cm)
1.7 x 15.0 x 15.7¢‚¬ (to ejector) (4.32 x 38.1 x 39.88 cm)
Weight 3.48 Kg (7.67 lbs)
Max rated power C9600X-SUP-2 280 W
Max rated power C9600-SUP-1 200 W
[/properties]

[specifications]
Specifications C9600-LC-24C
Standards Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab
Highlights ‚ ‚ ‚ ‚ ‚ Paired with C9600-SUP-1, this line card provides up to 24 ports of 40 GE or 12 ports of 100 GE nonblocking

‚ ‚ ‚ ‚ ‚ Paired with C9600X-SUP-2, this line card provides up to 24 ports of 100/40 GE nonblocking

‚ ‚ ‚ ‚ ‚ 40 GE, 100 GE QSFP28 ports

‚ ‚ ‚ ‚ ‚ IPv6 support on the UADP Application-Specific Integrated Circuit (ASIC) (UADP ASIC is part of the Cisco Catalyst 9600 Series Supervisor Engine 1), providing wire-rate forwarding for IPv6 networks

‚ ‚ ‚ ‚ ‚ Advanced Encryption Standard 256 (AES-256) support with the powerful MACsec-256 encryption algorithm is available on the UADP ASIC (This line card does not support MACsec with C9600X-SUP-2)
Bandwidth
C9600-SUP-1 2.4 Tbps
C9600X-SUP-2 4.8 Tbps
Minimum SW requirement
C9600-SUP-1 16.11.1
C9600X-SUP-2 17.7.1
Operating temperature -5° to 45° C (23° to 113° F) up to 6,000 feet
-5° to 40° C (23° to 104° F) up to 10,000 feet
Storage temperature -40° to 75° C (40° to 167° F)
Relative Humidity, Operating and Non- operating, Non-condensing 10% to 95%, noncondensing
Operating altitude -60 to 3000 m (-197 to 9843 feet)
Rated MTBF (hours) 710,750
Safety conditions Fiber optic lasers: Class 1 laser products
Safety certifications ‚ UL 60950-1
‚ CAN/CSA-C222.2 No. 60950-1
‚ EN 60950-1
‚ IEC 60950-1
‚ AS/NZS 60950.1
‚ IEEE 802.3
Electromagnetic emissions certifications ‚
‚ EN55032:2015
‚ EN61000-3-2:2014
‚ EN55032:2012
‚ NM EN 55032:2015
‚ QCVN 118:2018/BTTTT
‚ ICES-003:2016:Iss:6
‚ NM EN 61000-3-3:2015
‚ NM EN 61000-3-2:2015
‚ 47 CFR Part 15:2016
‚ KN61000-3-3:2014
‚ CISPR32:2012:Ed:1
‚ EN300 386:2012:V1.6.1
‚ KN61000-3-2:2014
‚ CNS13438:2006
‚ CISPR32:2015:Ed:2
‚ KN32:2015
‚ VCCI-CISPR 32:2016
‚ EN61000-3-3:2013
‚ CISPR24:2010+A1:2015
‚ CISPR35:2016:Ed:1
‚ EN55024:2010
‚ EN55024:2010:A1
‚ EN55035:2017
‚ EN61000-6-1:2007
‚ EN61000-6-2:2005
‚ IEC61000-6-1:2016:Ed:3
‚ IEC61000-6-2:2016:Ed:3
‚ KN35:2015
‚ NM EN 55024:2018
‚ TCVN 7317:2003
ROHS compliance ROHS5
[/specifications]

The line cards of the C9600 Series offer functional transparency as all processing and QoS occur in the supervisor engine. They acquire the features and capabilities of the installed supervisor engine. They are designed for high availability and wire-speed bandwidth. The C9600-LC-24C is ideal for campus core and enterprise applications. It also supports Cisco StackWise Virtual technology, which is critical for campus core deployments.

Quick Specs:

  • 24-Port 40GE/12-Port 100GE
  • Nonblocking
  • MACsec-256 encryption with the C9600-SUP-1

Please check the related tabs for the C9600-LC-24C datasheet and detailed specifications.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Switch, 24 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28, Plug-in module
[/shortdesc] [properties]
Properties Cisco C9600-LC-24C
Description Cisco Catalyst 9600 Series 24-Port 40GE/12-Port 100GE
Product Family Catalyst 9600
Product Type Switch Line Card
Ports for LC-48TX
Port Speed Maximum Ports
40 GE C9600X-SUP-2: 96
C9600-SUP-1: 96
100 GE C9600X-SUP-2: 96
C9600-SUP-1: 48
10 GE (with CVR adapter) C9600X-SUP-2: 96
C9600-SUP-1: 96
Physical dimensions 1.7 x 15.0 x 13.41¢‚¬ (to faceplate) (4.32 x 38.1 x 34.06 cm)
1.7 x 15.0 x 15.7¢‚¬ (to ejector) (4.32 x 38.1 x 39.88 cm)
Weight 3.48 Kg (7.67 lbs)
Max rated power C9600X-SUP-2 280 W
Max rated power C9600-SUP-1 200 W
[/properties]

[specifications]
Specifications C9600-LC-24C
Standards Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab
Highlights ‚ ‚ ‚ ‚ ‚ Paired with C9600-SUP-1, this line card provides up to 24 ports of 40 GE or 12 ports of 100 GE nonblocking

‚ ‚ ‚ ‚ ‚ Paired with C9600X-SUP-2, this line card provides up to 24 ports of 100/40 GE nonblocking

‚ ‚ ‚ ‚ ‚ 40 GE, 100 GE QSFP28 ports

‚ ‚ ‚ ‚ ‚ IPv6 support on the UADP Application-Specific Integrated Circuit (ASIC) (UADP ASIC is part of the Cisco Catalyst 9600 Series Supervisor Engine 1), providing wire-rate forwarding for IPv6 networks

‚ ‚ ‚ ‚ ‚ Advanced Encryption Standard 256 (AES-256) support with the powerful MACsec-256 encryption algorithm is available on the UADP ASIC (This line card does not support MACsec with C9600X-SUP-2)
Bandwidth
C9600-SUP-1 2.4 Tbps
C9600X-SUP-2 4.8 Tbps
Minimum SW requirement
C9600-SUP-1 16.11.1
C9600X-SUP-2 17.7.1
Operating temperature -5° to 45° C (23° to 113° F) up to 6,000 feet
-5° to 40° C (23° to 104° F) up to 10,000 feet
Storage temperature -40° to 75° C (40° to 167° F)
Relative Humidity, Operating and Non- operating, Non-condensing 10% to 95%, noncondensing
Operating altitude -60 to 3000 m (-197 to 9843 feet)
Rated MTBF (hours) 710,750
Safety conditions Fiber optic lasers: Class 1 laser products
Safety certifications ‚ UL 60950-1
‚ CAN/CSA-C222.2 No. 60950-1
‚ EN 60950-1
‚ IEC 60950-1
‚ AS/NZS 60950.1
‚ IEEE 802.3
Electromagnetic emissions certifications ‚
‚ EN55032:2015
‚ EN61000-3-2:2014
‚ EN55032:2012
‚ NM EN 55032:2015
‚ QCVN 118:2018/BTTTT
‚ ICES-003:2016:Iss:6
‚ NM EN 61000-3-3:2015
‚ NM EN 61000-3-2:2015
‚ 47 CFR Part 15:2016
‚ KN61000-3-3:2014
‚ CISPR32:2012:Ed:1
‚ EN300 386:2012:V1.6.1
‚ KN61000-3-2:2014
‚ CNS13438:2006
‚ CISPR32:2015:Ed:2
‚ KN32:2015
‚ VCCI-CISPR 32:2016
‚ EN61000-3-3:2013
‚ CISPR24:2010+A1:2015
‚ CISPR35:2016:Ed:1
‚ EN55024:2010
‚ EN55024:2010:A1
‚ EN55035:2017
‚ EN61000-6-1:2007
‚ EN61000-6-2:2005
‚ IEC61000-6-1:2016:Ed:3
‚ IEC61000-6-2:2016:Ed:3
‚ KN35:2015
‚ NM EN 55024:2018
‚ TCVN 7317:2003
ROHS compliance ROHS5
[/specifications]
Cisco C9600-LC-24C Line Card

The line cards of the C9600 Series offer functional transparency as all processing and QoS occur in the supervisor engine. They acquire the features and capabilities of the installed supervisor engine. They are designed for high availability and wire-speed bandwidth. The C9600-LC-24C is ideal for campus core and enterprise applications. It also supports Cisco StackWise Virtual technology, which is critical for campus core deployments.

Quick Specs:

  • 24-Port 40GE/12-Port 100GE
  • Nonblocking
  • MACsec-256 encryption with the C9600-SUP-1

Please check the related tabs for the C9600-LC-24C datasheet and detailed specifications.
