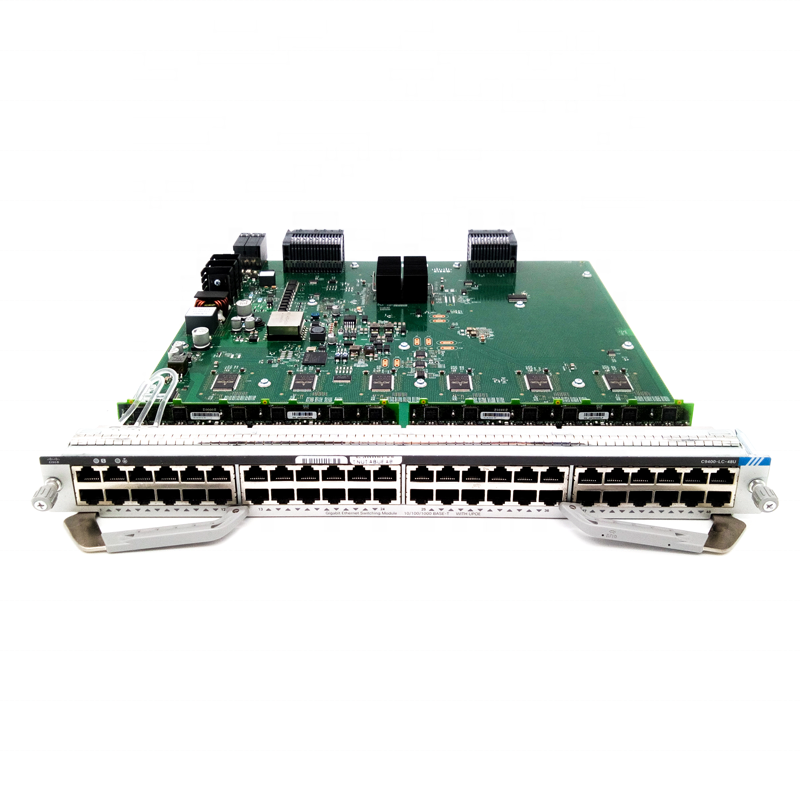

Cisco C9400-LC-48H Line Card
Cisco C9400-LC-48H Line Card

Cisco C9400-LC-48H Line Card

por Cisco
Desconto de 49%
R$ 134.737,08
R$ 68.724,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • 48 High-Speed Ports, 10/25G Support, 1G Support, Modular Design, Hot-Swappable, Enterprise-Grade Security
[/shortdesc]

[properties]

Properties C9400-LC-48H
Description Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45)
Product Family Catalyst 9400
Product Type Line Card
Number of ports 48
Port speed 10/100/1000M
Port type RJ-45 UPOE+ IEEE 802.3bt, IEEE, 802.3at, IEEE, 802.3af, Cisco pre-standard
Min/max ports for C9404R 48/96
Min/max ports for C9407R 48/240
Min/max ports for C9410R 48/384
Physical dimensions Occupies one slot in Cisco Catalyst 9400 Series switches

Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)
Max rated power (W) 65

[/properties][specifications]

Specifications C9400-LC-48H
Standards Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an
Features ●      48 ports nonblocking.
●      10/100/1000 module (RJ-45).
●      Supported on Cisco IOS XE Software Release 16.12.1 or later.
●      Cisco UPOE+ is enabled, capable of up to 90W on all ports in the line card.
●      Energy Efficient Ethernet 802.3az.
●      IEEE 802.3bt/af/at and Cisco pre-standard PoE.
●      IEEE 802.1AE (MACsec-256) capability in hardware.
●      Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes.
●      Ideal for campus and branch applications requiring enhanced performance for large file transfers and network backups.
Bandwidth per slot by chassis
C9400 Supervisor Engine-1 (C9400-SUP-1) Bandwidth per slot
Chassis C9404R: 80 Gbps
Chassis C9407R: 80 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-1XL (C9400-SUP-1XL) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 120 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-1XL-Y (C9400-SUP-1XL-Y) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 120 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) Bandwidth per slot
Chassis C9404R: 480 Gbps
Chassis C9407R: 480 Gbps
Chassis C9410R: 480 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-2 (C9400X-SUP-2) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 240 Gbps
Chassis C9410R: 240 Gbps
Oversubscription: 1:1
Operating temperature ◦    23° to 113°F (-5 to +45°C), up to 6,000 feet (1800 m)

◦    23° to 104°F (-5 to +40°C), up to 10,000 feet (3000 m)
Relative humidity 10 to 95%, noncondensing
Rated MTBF (hours) 874,14
Safety conditions Fiber optic lasers: Class 1 laser products
Safety certifications ●  UL 60950-1
●  CAN/CSA-C222.2 No. 60950-1
●  EN 60950-1
●  IEC 60950-1
●  AS/NZS 60950.1
●  IEEE 802.3
Electromagnetic emissions certifications ●  47 CFR Part 15
●  CISPR22 Class A
●  EN 300 386 V1.6.1
●  EN 55022 Class A
●  EN 55032 Class A
●  CISPR 32 Class A
●  EN61000-3-2
●  EN61000-3-3
●  ICES-003 Class A
●  TCVN 7189 Class A
●  V-3 Class A
●  CISPR24
●  EN 300 386
●  EN55024
●  TCVN 7317
ROHS compliance ROHS5

[/specifications]

The Cisco Catalyst C9400-LC-48H Line Card is a high-performance module designed for the Cisco Catalyst 9400 Series modular switches, providing advanced connectivity and power delivery for enterprise networks. This line card features 48 ports that support both Multigigabit Ethernet and UPOE+ (Universal Power Over Ethernet Plus), offering robust and scalable connectivity for a wide range of devices, including wireless access points, IP phones, and more. The C9400-LC-48H is engineered to meet the evolving needs of modern enterprise environments, delivering flexibility, energy efficiency, and the power needed to support growing network demands.

Key Features:

  • 48 x Multigigabit Ethernet Ports with UPOE+ Support: Delivers high-speed connectivity and up to 60W of power per port, supporting various high-demand devices.
  • Advanced Power Delivery: Supports Universal Power Over Ethernet Plus (UPOE+), providing sufficient power for devices such as IP cameras, phones, and high-performance access points.
  • Scalable Architecture: Seamlessly integrates with the Cisco Catalyst 9400 Series chassis, allowing for easy network expansion and future growth.
  • Enterprise-Grade Security: Includes advanced security features to protect your network from threats and unauthorized access.
  • Energy Efficient: Designed to reduce power consumption while maintaining high performance, contributing to lower operational costs.

Technical Overview:

  • Recommended for: Large enterprise networks requiring scalable, high-performance connectivity with advanced power options.
  • Ports: 48 x Multigigabit Ethernet ports with UPOE+ support (up to 60W per port).
  • Compatibility: Fully compatible with Cisco Catalyst 9400 Series modular switches.
  • Management: Managed through Cisco DNA Center and other Cisco network management tools.
  • Security: Integrated with advanced security features, including network segmentation and access control.

You can check the related tab for the C9400-LC-48H datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • 48 High-Speed Ports, 10/25G Support, 1G Support, Modular Design, Hot-Swappable, Enterprise-Grade Security
[/shortdesc]

[properties]

Properties C9400-LC-48H
Description Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45)
Product Family Catalyst 9400
Product Type Line Card
Number of ports 48
Port speed 10/100/1000M
Port type RJ-45 UPOE+ IEEE 802.3bt, IEEE, 802.3at, IEEE, 802.3af, Cisco pre-standard
Min/max ports for C9404R 48/96
Min/max ports for C9407R 48/240
Min/max ports for C9410R 48/384
Physical dimensions Occupies one slot in Cisco Catalyst 9400 Series switches

Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)
Max rated power (W) 65

[/properties][specifications]

Specifications C9400-LC-48H
Standards Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an
Features ●      48 ports nonblocking.
●      10/100/1000 module (RJ-45).
●      Supported on Cisco IOS XE Software Release 16.12.1 or later.
●      Cisco UPOE+ is enabled, capable of up to 90W on all ports in the line card.
●      Energy Efficient Ethernet 802.3az.
●      IEEE 802.3bt/af/at and Cisco pre-standard PoE.
●      IEEE 802.1AE (MACsec-256) capability in hardware.
●      Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes.
●      Ideal for campus and branch applications requiring enhanced performance for large file transfers and network backups.
Bandwidth per slot by chassis
C9400 Supervisor Engine-1 (C9400-SUP-1) Bandwidth per slot
Chassis C9404R: 80 Gbps
Chassis C9407R: 80 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-1XL (C9400-SUP-1XL) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 120 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-1XL-Y (C9400-SUP-1XL-Y) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 120 Gbps
Chassis C9410R: 80 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) Bandwidth per slot
Chassis C9404R: 480 Gbps
Chassis C9407R: 480 Gbps
Chassis C9410R: 480 Gbps
Oversubscription: 1:1
C9400 Supervisor Engine-2 (C9400X-SUP-2) Bandwidth per slot
Chassis C9404R: 240 Gbps
Chassis C9407R: 240 Gbps
Chassis C9410R: 240 Gbps
Oversubscription: 1:1
Operating temperature ◦    23° to 113°F (-5 to +45°C), up to 6,000 feet (1800 m)

◦    23° to 104°F (-5 to +40°C), up to 10,000 feet (3000 m)
Relative humidity 10 to 95%, noncondensing
Rated MTBF (hours) 874,14
Safety conditions Fiber optic lasers: Class 1 laser products
Safety certifications ●  UL 60950-1
●  CAN/CSA-C222.2 No. 60950-1
●  EN 60950-1
●  IEC 60950-1
●  AS/NZS 60950.1
●  IEEE 802.3
Electromagnetic emissions certifications ●  47 CFR Part 15
●  CISPR22 Class A
●  EN 300 386 V1.6.1
●  EN 55022 Class A
●  EN 55032 Class A
●  CISPR 32 Class A
●  EN61000-3-2
●  EN61000-3-3
●  ICES-003 Class A
●  TCVN 7189 Class A
●  V-3 Class A
●  CISPR24
●  EN 300 386
●  EN55024
●  TCVN 7317
ROHS compliance ROHS5

[/specifications]

Cisco Catalyst C9400-LC-48H Line Card

The Cisco Catalyst C9400-LC-48H Line Card is a high-performance module designed for the Cisco Catalyst 9400 Series modular switches, providing advanced connectivity and power delivery for enterprise networks. This line card features 48 ports that support both Multigigabit Ethernet and UPOE+ (Universal Power Over Ethernet Plus), offering robust and scalable connectivity for a wide range of devices, including wireless access points, IP phones, and more. The C9400-LC-48H is engineered to meet the evolving needs of modern enterprise environments, delivering flexibility, energy efficiency, and the power needed to support growing network demands.

Key Features:

  • 48 x Multigigabit Ethernet Ports with UPOE+ Support: Delivers high-speed connectivity and up to 60W of power per port, supporting various high-demand devices.
  • Advanced Power Delivery: Supports Universal Power Over Ethernet Plus (UPOE+), providing sufficient power for devices such as IP cameras, phones, and high-performance access points.
  • Scalable Architecture: Seamlessly integrates with the Cisco Catalyst 9400 Series chassis, allowing for easy network expansion and future growth.
  • Enterprise-Grade Security: Includes advanced security features to protect your network from threats and unauthorized access.
  • Energy Efficient: Designed to reduce power consumption while maintaining high performance, contributing to lower operational costs.

Technical Overview:

  • Recommended for: Large enterprise networks requiring scalable, high-performance connectivity with advanced power options.
  • Ports: 48 x Multigigabit Ethernet ports with UPOE+ support (up to 60W per port).
  • Compatibility: Fully compatible with Cisco Catalyst 9400 Series modular switches.
  • Management: Managed through Cisco DNA Center and other Cisco network management tools.
  • Security: Integrated with advanced security features, including network segmentation and access control.

You can check the related tab for the C9400-LC-48H datasheet.
