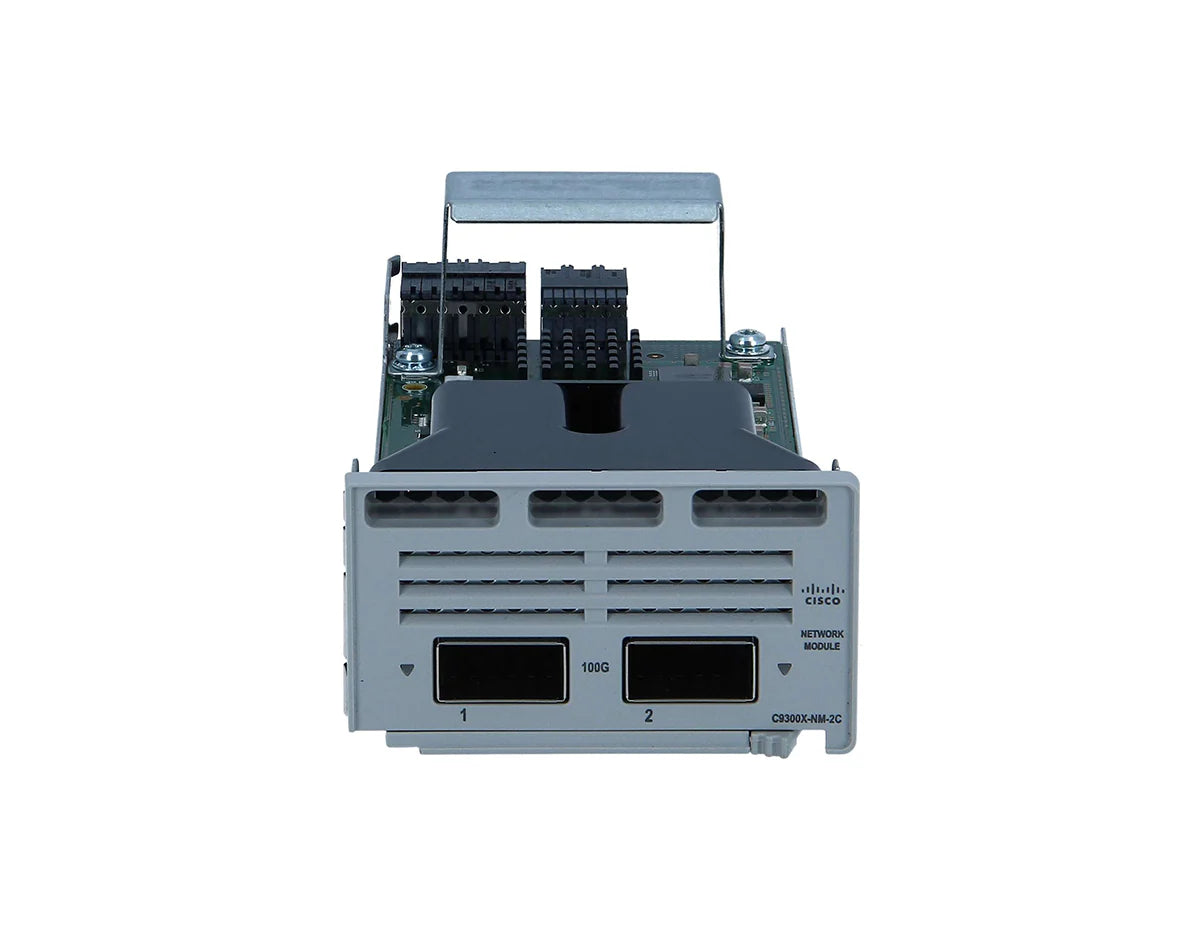

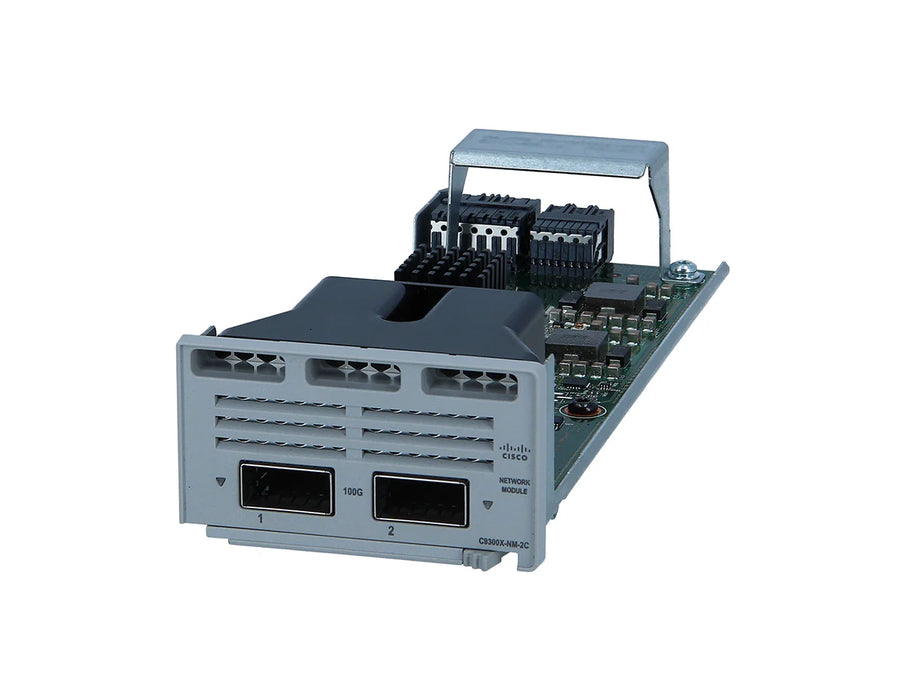

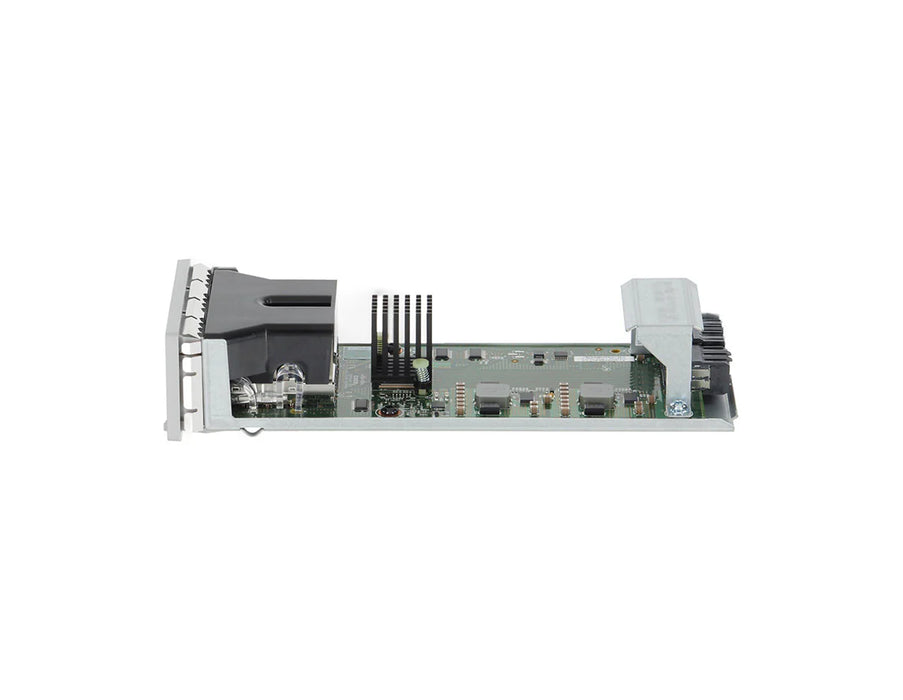

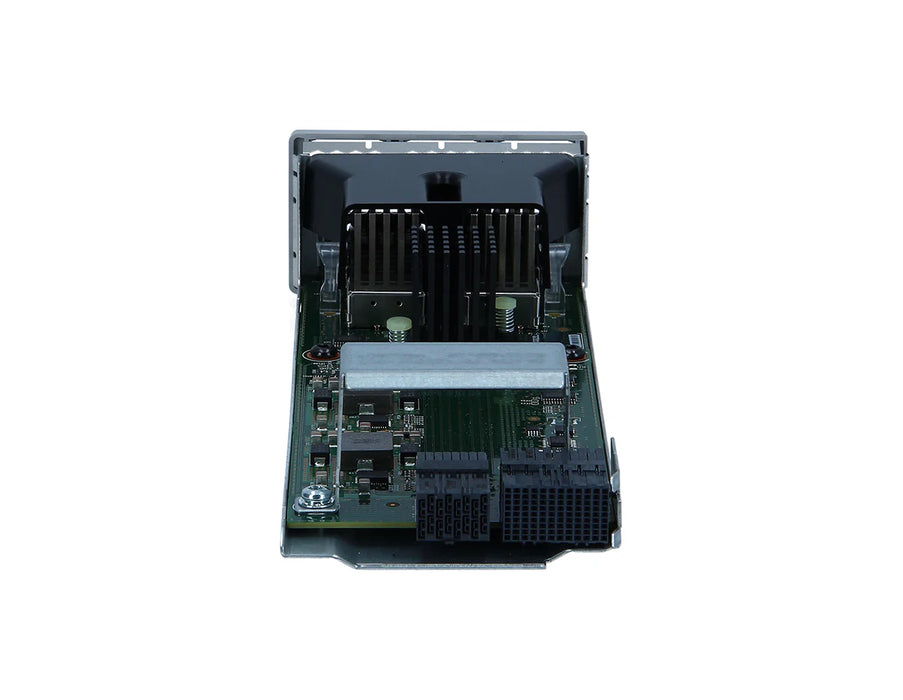

Cisco C9300X-NM-2C Expansion Module
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300X-NM-2C Expansion Module
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300X-NM-2C Expansion Module
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300X-NM-2C Expansion Module
Cisco C9300X-NM-2C Expansion Module

Cisco C9300X-NM-2C Expansion Module

por Cisco
Desconto de 46%
R$ 37.427,04
R$ 20.220,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Expansion module, for P/N: C9300X-12Y-A, C9300X-12Y-EDU, C9300X-24Y-E, 40Gb Ethernet / 100Gb Ethernet QSFP x 2, C9300X-12Y-E, C9300X-24Y-A
[/shortdesc]

[properties]

Properties Cisco Catalyst C9300-NM-2C
Description Catalyst 9300 2 x 100G/40G dual rate QSFP Network Module
Product Family Catalyst 9300
Product Type Expansion Module
Supported Devices Cisco Catalyst 9300 Series Switches
Ports 2 x 40G/100G
Form Factor Plug-in module
Connectivity Technology Wired
Mean Time Between Failures
MTBF (hours)		 7,151,930

[/properties]

[specifications]

Specifications C9300-NM-2C
Connectors and cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
SFP transceivers: LC fiber connectors (single-mode or multimode fiber)
SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber)
QSFP+ transceivers: MPO and LC fiber connectors (single-mode or multimode fiber)
QSFP+ connector
SFP+ connector
Cisco StackWise stacking ports: copper-based Cisco StackWise cabling
Cisco StackPower: Cisco proprietary power stacking cables
Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Safety certifications UL 60950-1
CAN/CSA-C222.2 No. 60950-1
EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic emissions certifications 47 CFR Part 15
CISPR22 Class A
EN 300 386 V1.6.1
EN 55022 Class A
EN 55032 Class A
CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A
V-3 Class A
CISPR24
EN 300 386
EN55024
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
IEC 61000-6-1
EN 61000-6-1
Additional Certifications for C9300L SKUs:
QCVN 118:2018/BTTTT
CISPR24/25
CISPR 32 Class A
VCCI-CISPR 32 Class A
EN55035
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking accessories
STACK-T1-50CM‚ Data stack 50 cm (cable option with C9300 SKUs)
STACK-T1-1M Data stack 1m (cable option with C9300 SKUs)
STACK-T1-3M Data stack 3m (cable option with C9300 SKUs)
C9300L-STACK-KIT Stack kit for C9300L SKUs only: Two data stack adapters and one data stack cable
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)

[/accesories]

The Cisco Catalyst C9300X-NM-2C Network Module is a versatile expansion module designed to enhance the connectivity options of your Cisco Catalyst 9300X Series Switches. Featuring two dual-mode ports that support both 40G and 100G Ethernet connections, this module provides ultra-fast uplink capabilities, making it ideal for enterprises that require high-speed data transfer and robust network performance. The C9300X-NM-2C is perfect for organizations looking to future-proof their network infrastructure with scalable, high-speed solutions.

Key Features:

  • 2 x Dual-Mode 40G/100G Ports: Offers flexible high-speed uplink options, significantly increasing network capacity and speed for data-intensive environments.
  • Seamless Integration: Fully compatible with Cisco Catalyst 9300X Series Switches, ensuring smooth integration and enhanced network performance.
  • Scalable Design: Supports network growth and adaptation, making it an excellent choice for evolving business needs.
  • Easy Installation: Designed for straightforward installation, allowing for quick and efficient upgrades to your network infrastructure.

Technical Overview:

  • Recommended for: Enhancing the uplink capabilities of Cisco Catalyst 9300X Series Switches.
  • Ports: 2 x dual-mode 40G/100G Ethernet ports.
  • Compatibility: Specifically designed for Cisco Catalyst 9300X Series Switches.
  • Application: Ideal for enterprises requiring high-speed data transfer and expanded network capacity.

You can check the related tab for the C9300X-NM-2C datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Expansion module, for P/N: C9300X-12Y-A, C9300X-12Y-EDU, C9300X-24Y-E, 40Gb Ethernet / 100Gb Ethernet QSFP x 2, C9300X-12Y-E, C9300X-24Y-A
[/shortdesc]

[properties]

Properties Cisco Catalyst C9300-NM-2C
Description Catalyst 9300 2 x 100G/40G dual rate QSFP Network Module
Product Family Catalyst 9300
Product Type Expansion Module
Supported Devices Cisco Catalyst 9300 Series Switches
Ports 2 x 40G/100G
Form Factor Plug-in module
Connectivity Technology Wired
Mean Time Between Failures
MTBF (hours)		 7,151,930

[/properties]

[specifications]

Specifications C9300-NM-2C
Connectors and cabling 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
SFP transceivers: LC fiber connectors (single-mode or multimode fiber)
SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber)
QSFP+ transceivers: MPO and LC fiber connectors (single-mode or multimode fiber)
QSFP+ connector
SFP+ connector
Cisco StackWise stacking ports: copper-based Cisco StackWise cabling
Cisco StackPower: Cisco proprietary power stacking cables
Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Safety certifications UL 60950-1
CAN/CSA-C222.2 No. 60950-1
EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic emissions certifications 47 CFR Part 15
CISPR22 Class A
EN 300 386 V1.6.1
EN 55022 Class A
EN 55032 Class A
CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A
V-3 Class A
CISPR24
EN 300 386
EN55024
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
IEC 61000-6-1
EN 61000-6-1
Additional Certifications for C9300L SKUs:
QCVN 118:2018/BTTTT
CISPR24/25
CISPR 32 Class A
VCCI-CISPR 32 Class A
EN55035
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking accessories
STACK-T1-50CM‚ Data stack 50 cm (cable option with C9300 SKUs)
STACK-T1-1M Data stack 1m (cable option with C9300 SKUs)
STACK-T1-3M Data stack 3m (cable option with C9300 SKUs)
C9300L-STACK-KIT Stack kit for C9300L SKUs only: Two data stack adapters and one data stack cable
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)

[/accesories]

Cisco Catalyst C9300X-NM-2C Network Module

The Cisco Catalyst C9300X-NM-2C Network Module is a versatile expansion module designed to enhance the connectivity options of your Cisco Catalyst 9300X Series Switches. Featuring two dual-mode ports that support both 40G and 100G Ethernet connections, this module provides ultra-fast uplink capabilities, making it ideal for enterprises that require high-speed data transfer and robust network performance. The C9300X-NM-2C is perfect for organizations looking to future-proof their network infrastructure with scalable, high-speed solutions.

Key Features:

  • 2 x Dual-Mode 40G/100G Ports: Offers flexible high-speed uplink options, significantly increasing network capacity and speed for data-intensive environments.
  • Seamless Integration: Fully compatible with Cisco Catalyst 9300X Series Switches, ensuring smooth integration and enhanced network performance.
  • Scalable Design: Supports network growth and adaptation, making it an excellent choice for evolving business needs.
  • Easy Installation: Designed for straightforward installation, allowing for quick and efficient upgrades to your network infrastructure.

Technical Overview:

  • Recommended for: Enhancing the uplink capabilities of Cisco Catalyst 9300X Series Switches.
  • Ports: 2 x dual-mode 40G/100G Ethernet ports.
  • Compatibility: Specifically designed for Cisco Catalyst 9300X Series Switches.
  • Application: Ideal for enterprises requiring high-speed data transfer and expanded network capacity.

You can check the related tab for the C9300X-NM-2C datasheet.
