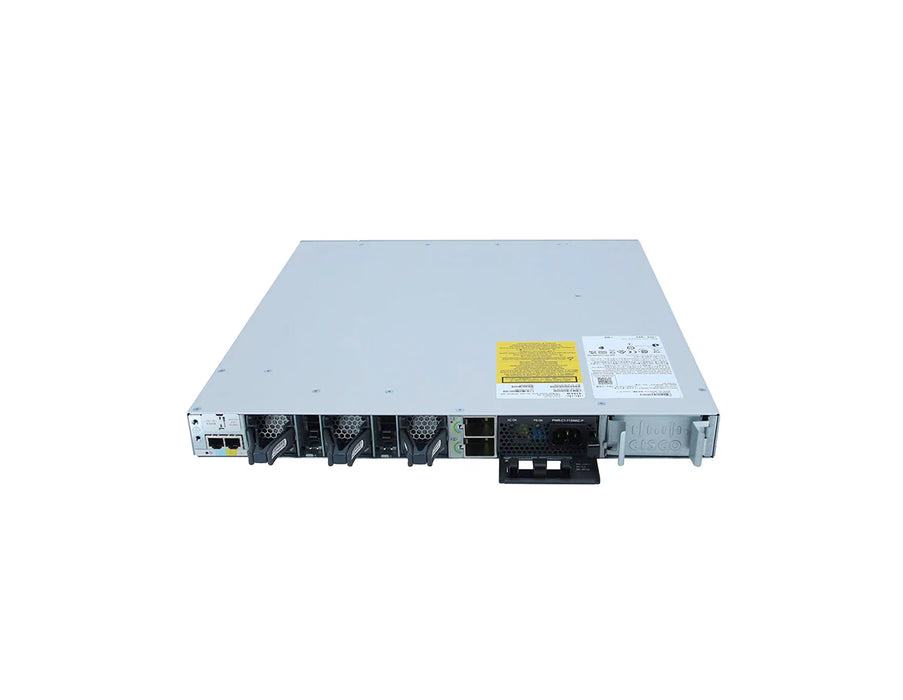

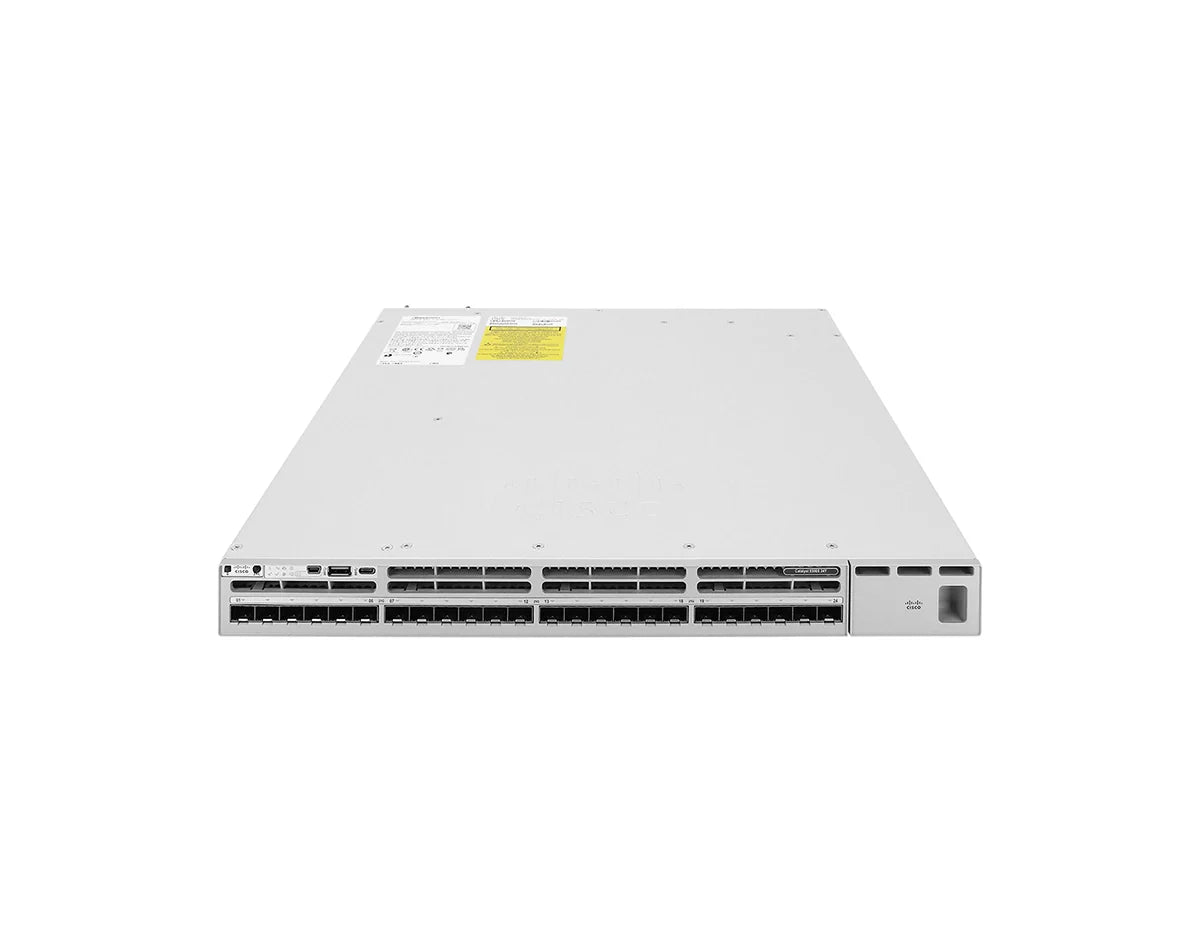

Cisco C9300X-24Y-E Switch

[shortdesc]24 x 1G/10G/25G SFP28 ports, modular uplink support, Layer 3 switching, StackWise-1T, Network Essentials license, MACsec encryption[/shortdesc]

[properties]

Brand	Cisco
SKU	C9300X-24Y-E
Product Type	Ethernet Switch
Series	Catalyst 9300X
Port Count	24
Interface	24 x SFP28
Port Speed	25G/10G/1G
Uplink Configuration	Modular uplinks
PoE Support	No PoE
Default Power Supply	PWR-C1-715WAC-P, 715W AC
Dimensions	1.73 x 17.5 x 19.2 in (4.4 x 44.5 x 48.8 cm) with default power supply
Weight	16.2 lb (7.35 kg) with default power supply
License	Network Essentials

[/properties]

[specifications]

Switching Capacity	2,000 Gbps
Switching Capacity with Stacking	3,000 Gbps
Forwarding Rate	1488 Mpps
Forwarding Rate with Stacking	2232 Mpps
Stacking Technology	StackWise-1T
Stacking Bandwidth	1 Tbps
Maximum Stack Members	8
DRAM	16 GB
Flash Memory	16 GB
Packet Buffer	32 MB
MAC Addresses	32,000
IPv4 Routes	39,000
IPv6 Routing Entries	19,500
Multicast Routing Scale	8,000
ACL Scale Entries	8,000
QoS Scale Entries	4,000
Flexible NetFlow Entries	128,000 flows
VLAN IDs	4094
Switched Virtual Interfaces	1000
Jumbo Frames	9198 bytes
Security Features	AES-256 MACsec, Encrypted Traffic Analytics, Secure Boot, Secure Unique Device Identification
Hardware-Based IPsec	Up to 100 Gbps
Operating System	Cisco IOS XE
Input Voltage	100 to 240 VAC
Input Frequency	47 to 63 Hz
Input Current	10 to 5A
Power Supply Receptacle	IEC 320-C16 (IEC60320-C16)
Operating Temperature	-5°C to +45°C up to 5000 ft (1500 m); -5°C to +40°C up to 10,000 ft (3000 m); -5°C to +35°C up to 15,000 ft (5000 m)
Storage Temperature	-40°C to 70°C
Relative Humidity	5% to 90% noncondensing

[/specifications]

[accesories]

Included	1 x power supply and 3 x field-replaceable fans
Optional Module	C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C
Optional Cable	STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M
Optional Power Supply	Second redundant power supply
Replacement Part	FAN-T2= fan module

[/accesories]

The Cisco Catalyst C9300X-24Y-E Switch is a high-performance, stackable enterprise fiber switching solution tailored for environments that require robust security, ultra-high-speed connectivity, and flexible infrastructure management. Featuring 24 x 25G SFP28 ports and modular uplink support up to 100G, this Layer 3 switch is engineered to provide fast, high-density fiber aggregation while ensuring advanced threat defense. Powered by the specialized Unified Access Data Plane 2.0sec (UADP) ASIC, the C9300X-24Y-E integrates line-rate hardware-based crypto acceleration, making it a future-proof choice for modern corporate network backbones.

Key Features:

• 24 x High-Speed SFP28 Fiber Ports: Delivers flexible, high-density multi-rate speeds of 25G, 10G, and 1G per port to accommodate demanding aggregation and core layer requirements.
• Advanced Modular Uplinks: Supports optional high-capacity network modules (including 100G, 40G, 25G, and 10G options) for seamless network scaling and backbone uplinks.
• Enterprise Layer 3 Routing: Built-in advanced IP unicast routing protocols—including OSPF, EIGRP, BGP, and static routing—facilitate complex network segmentation and traffic control.
• StackWise-1T Technology: Supports the industry's highest back-panel stacking bandwidth solution of up to 1 Tbps (1,000 Gbps) across up to 8 stack members for extreme redundancy and single-plane management.
• Hardware-Accelerated IPsec: Delivers up to 100 Gbps of line-rate hardware-based IPsec tunnel encryption to secure cloud connectivity and site-to-site tunnels without compromising throughput.
• Comprehensive Zero-Trust Security: Enhances access control with 256-bit AES MACsec link encryption, Trust Anchor technologies, and Encrypted Traffic Analytics (ETA) for malware threat detection in encrypted streams.

Technical Overview:

• Recommended for: Medium to large enterprise cores, high-speed aggregation layers, corporate campus branches, and next-generation cloud architectures.
• Ports: 24 x 25G/10G/1G SFP28 fiber ports with supporting modular slots for optional high-speed uplinks up to 100G.
• Switching Capacity: 2,000 Gbps (up to 3,000 Gbps in a StackWise-1T configuration).
• Forwarding Rate: 1,488 Mpps (up to 2,232 Mpps in a StackWise-1T configuration).
• Layer 3 Features: Full OSPF, EIGRP, BGP, Virtual Routing and Forwarding (VRF), VXLAN EVPN, and advanced ACLs.
• Management: Built-in WebUI, CLI, SNMP, and support for automated orchestration via Cisco Catalyst Center.
• Licensing: Network Essentials (Perpetual network stack coverage).
• Security: AES-256 MACsec encryption, Secure Boot, Secure Unique Device Identification (SUDI), and container-based application hosting support.
• Energy Efficiency: Supports low-power port modes and smart power utilization features under the modern Cisco IOS XE operating system.
