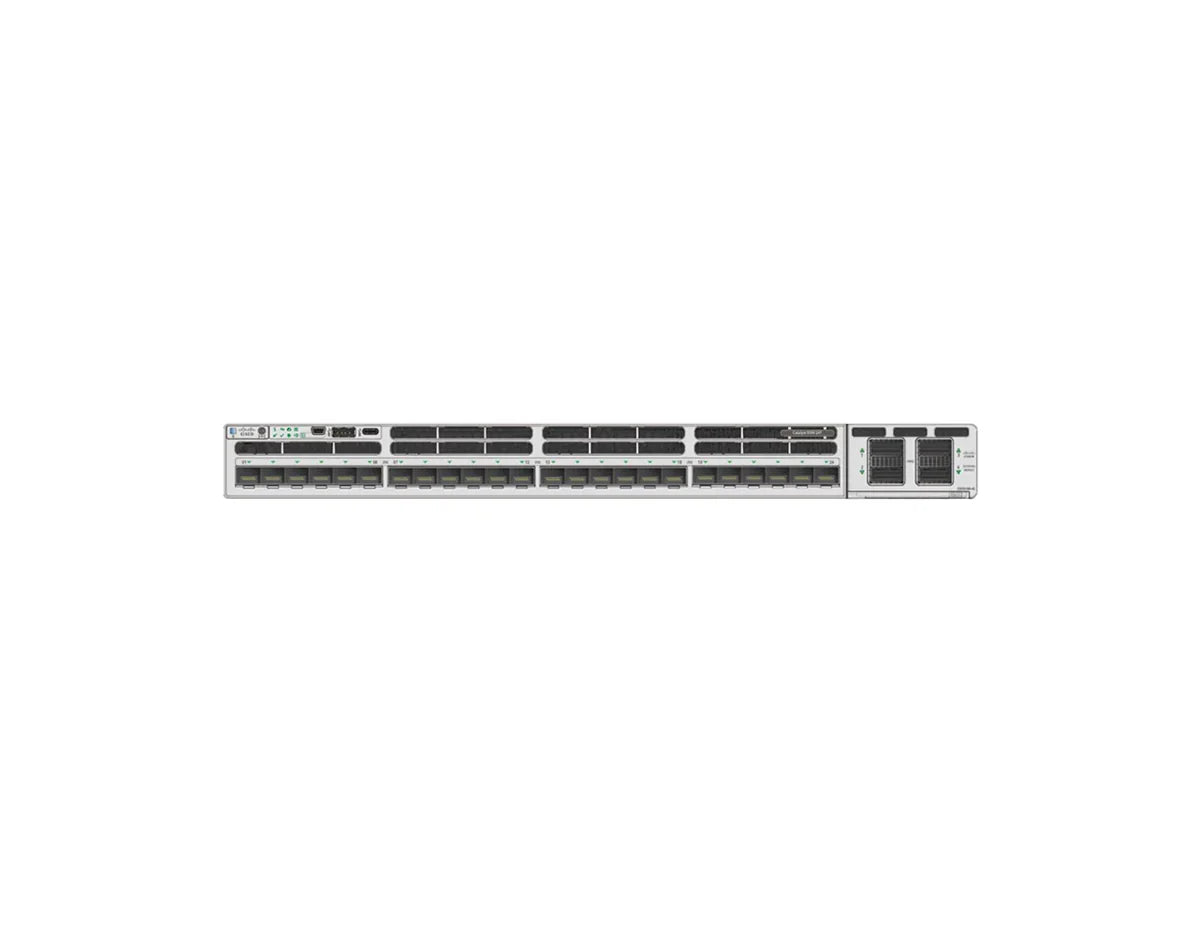

Cisco C9300X-24Y-A Switch
Cisco C9300X-24Y-A Switch

Cisco C9300X-24Y-A Switch

por Cisco
Desconto de 43%
R$ 467.305,32
R$ 266.364,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • 24 Ports, Network Advantage, Modular Uplinks.

[/shortdesc]



[properties]

Properties Cisco C9300X-24Y-A Switch
Description Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage
Product Family Cisco Catalyst 9300 Series Switches
Product Type Switch

[/properties] [specifications]

Specifications C9300X-24Y-A
Product Family Configurations (Catalyst 9300X)
Modular Uplinks and Speeds 10G, 25G, 40G, mGig and 100G
Stacking Bandwidth Support Stackwise-1T
(480G when stacking with Catalyst 9300 model)
mGig Density 48x 10G
Cisco StackPower 48x 10G
Cisco StackPower ✓ (Larger Power Budget)
HW-Based Ipsec Up to 100G Ipsec (Need to order HSEC Key for IPsec Feature.)
App hosting Capacity ✓ (2x hosting resources over Catalyst 9300 models)
Cisco C9300X-24Y-A Switch Configurations
Total 10/100/1000, Multigigabit copper or SFP Fiber 24 port 25G/10G/1G SFP28
Uplink Configuration Modular Uplinks
Default AC power supply 715W AC
Primary Power Supply PWR-C1-715WAC-P
Default or Upgrade Default
Available PoE No POE
With 350W Secondary PS No POE
With 715W secondary PS No POE
With 1100W Secondary PS No POE
With 1900W Secondary PS No POE
Bandwidth specifications - C9300X-24Y
Switching capacity 2,000 Gbps
Switching capacity with stacking 3,000 Gbps
Forwarding rate 1488 Mpps
Forwarding rate with stacking 2232 Mpps
General Specifications
Dimensions (H x W x D) inches Chassis only: 1.73 x 17.5 x 17.6
W/ Default Power Supply: 1.73 x 17.5 x 19.2
W/ 1100W Power Supply: 1.73 x 17.5 x 20.7
Dimensions (H x W x D) Cms Chassis only: 4.4 x 44.5 x 44.7
W/ Default Power Supply: 4.4 x 44.5 x48.8
W/ 1100W Power Supply: 4.4 x 44.5 x 52.6
Weight (with default power supply) Pounds: 16.2
Kilograms: 7.35
Mean Time Between Failures – MTBF (hours) 249,350

[/specifications] [accesories] [/accesories]

The Cisco Catalyst C9300X-24Y-A Switch is a high-performance, scalable solution designed for enterprise environments that require advanced security, high-speed connectivity, and flexible network management. Featuring 24 Multigigabit Ethernet ports and support for 10G/25G uplinks, this Layer 3 switch is ideal for powering connected devices such as IP phones, cameras, and access points while providing fast and reliable data transfer. The C9300X-24Y-A integrates cutting-edge security features with flexible uplink options, ensuring your network is prepared for future growth and increased demand.

Key Features:

  • 24 x Multigigabit Ethernet Ports: Supports multiple speeds (100M, 1G, 2.5G, 5G, 10G) per port, delivering high-speed and adaptable network performance.
  • Modular Uplinks: Offers 10G/25G uplink options, providing flexibility and scalability for growing network needs.
  • Advanced Layer 3 Routing: Includes support for OSPF, EIGRP, and BGP, facilitating sophisticated routing, traffic management, and segmentation.
  • StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
  • Energy-Efficient Design: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining high network performance.
  • Comprehensive Security: Features MACsec encryption and advanced access control lists (ACLs) to safeguard your network against unauthorized access.

Technical Overview:

  • Recommended for: Enterprise environments, large campuses, and data centers requiring scalable network infrastructure.
  • Ports: 24 x Multigigabit Ethernet ports (100M, 1G, 2.5G, 5G, 10G) with modular uplinks supporting 10G/25G.
  • Switching Capacity: 480 Gbps.
  • Forwarding Rate: 357.14 Mpps.
  • Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
  • Management: Web-based GUI, CLI, SNMP, and Cisco DNA Center for comprehensive network automation and monitoring.
  • Licensing: Network Advantage.
  • Security: MACsec encryption and advanced ACLs for enhanced security.
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the C9300X-24Y-A datasheet.
