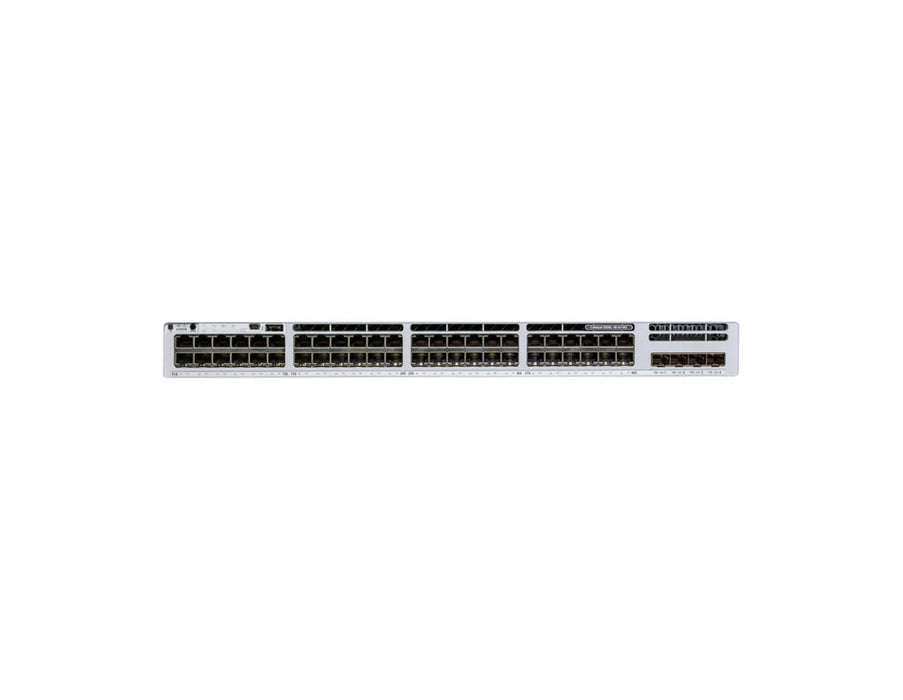

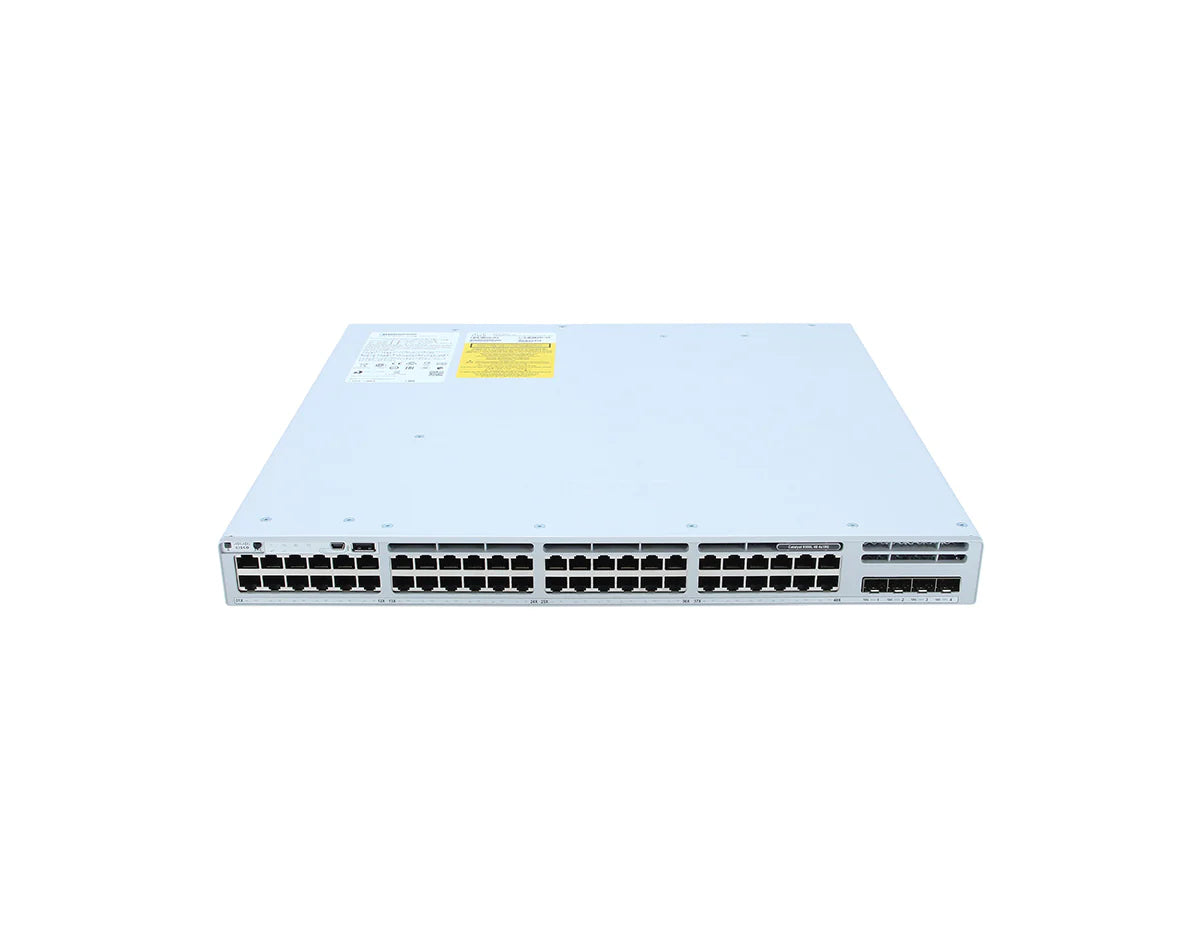

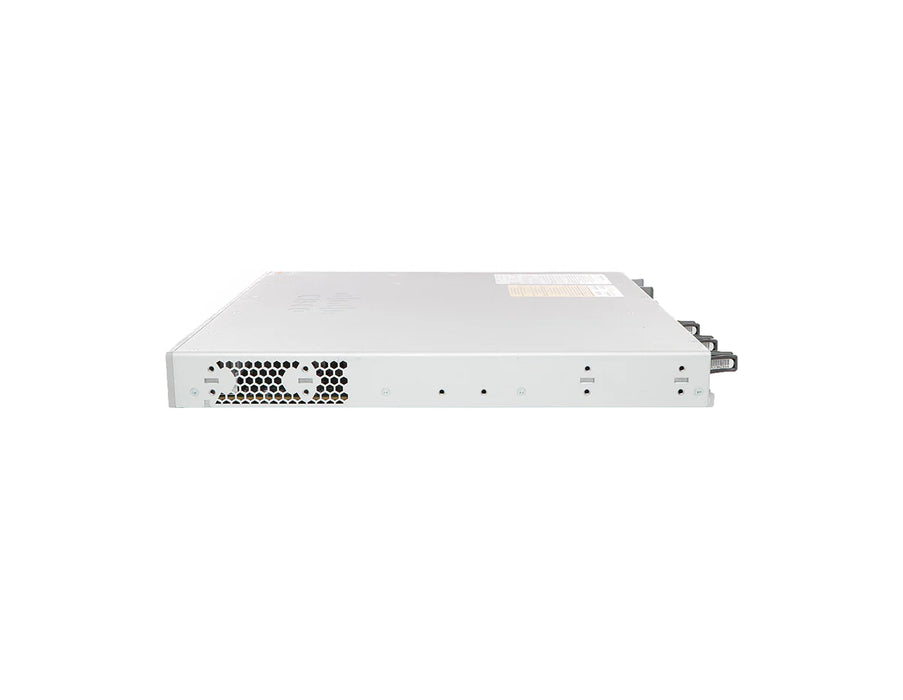

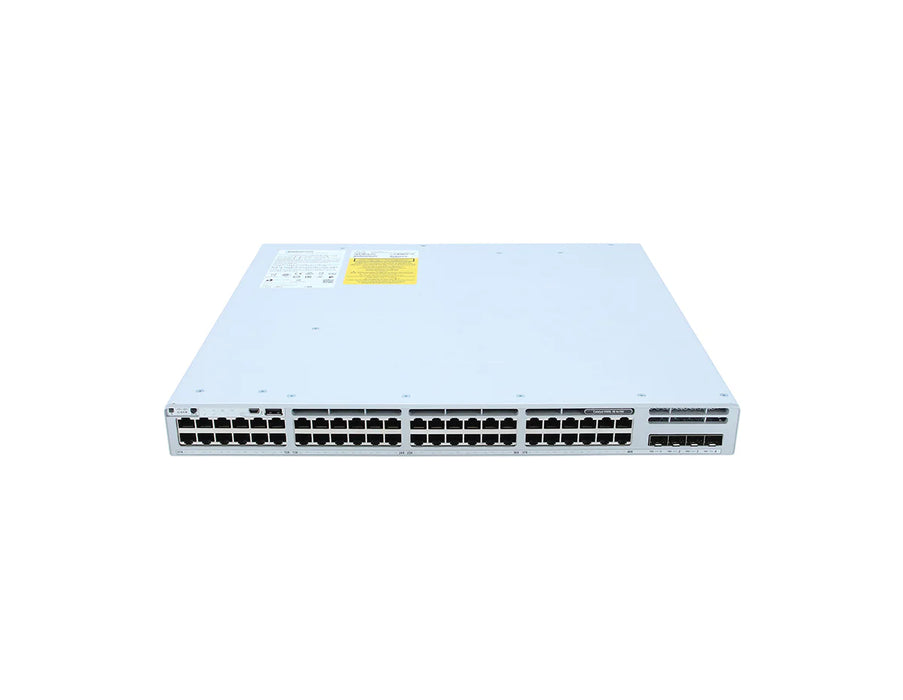

Cisco C9300L-48T-4X-A Switch – 48-Port Gigabit, 4× 10G Uplinks, Network Advantage
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300L-48T-4X-A Switch – 48-Port Gigabit, 4× 10G Uplinks, Network Advantage
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300L-48T-4X-A Switch – 48-Port Gigabit, 4× 10G Uplinks, Network Advantage
Cisco C9300L-48T-4X-A Switch – 48-Port Gigabit, 4× 10G Uplinks, Network Advantage

Cisco C9300L-48T-4X-A Switch – 48-Port Gigabit, 4× 10G Uplinks, Network Advantage

por Cisco
Desconto de 49%
R$ 145.965,60
R$ 74.100,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

Cisco C9300L-48T-4X-A is a 48× 1G non-PoE Layer 3 switch with 4× 10G SFP+ uplinks, StackWise-320 support, and a Network Advantage license.

[/shortdesc]

[properties]

Properties C9300L-48T-4X-A
Description Catalyst 9300L 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data-only, Network Advantage
Product Family Catalyst 9300L
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 port Data (non-PoE)
Uplink configuration 4x 10G/1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C1-350WAC-P
Available PoE power with
additional secondary
power supply		 No PoE
Fans Three field-replaceable fans
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 17.7

[/properties]

[specifications]

Specifications C9300L-48T-4X-A
Console Ports RJ-45 console (RJ-45-to-DB9 cable); USB console supported on some revisions
DRAM 8 GB
Flash Memory 16 GB
Switching capacity 176 Gbps
Forwarding rate 130.95 Mpps
MAC addresses 32,000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic compatibility
certifications		 47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
QCVN 118:2018/BTTTT
VCCI-CISPR 32 Class A
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking Support StackWise-320
Stacking bandwidth support 320 Gbps
Stacking hardware C9300L-STACK-KIT or C9300L-STACK-KIT2
Number of
members		 8
Supported stack members Other C9300L and C9300LM models with the same license level
Stacking accessories
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)

[/accesories]

  • Ports: 48 × 1G Ethernet (non-PoE)
  • Uplinks: 4 × 10G SFP+ fixed uplinks
  • Stacking: StackWise-320 (up to 8 units, 320 Gbps bandwidth)
  • Software: Network Advantage license (advanced Layer 3, SD-Access ready)

The Cisco C9300L-48T-4X-A is an enterprise-grade Layer 3 switch for high-performance access in campus and branch environments. It provides 48 non-PoE Gigabit ports with four 10G SFP+ uplinks and supports StackWise-320 for simplified, resilient operations. With Network Advantage, it enables advanced routing, segmentation, and automation on Cisco IOS XE and UADP ASIC.

Hardware

  • Model: C9300L-48T-4X
  • Ports: 48 × 10/100/1000 Ethernet ports (non-PoE)
  • Uplinks: 4 × 10G SFP+ fixed uplink ports
  • Stacking Support: StackWise-320
  • Stacking Bandwidth: 320 Gbps
  • Power Supply: 1 × 350W AC (standard efficiency)
  • Fan Modules: 3 × field-replaceable fans
  • Physical Dimensions: 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm)
  • Weight: 15.41 lbs (7.0 kg)

Performance

  • Switching Capacity: 176 Gbps
  • Forwarding Rate: 130.95 Mpps
  • DRAM: 8 GB
  • Flash Memory: 16 GB
  • VLAN Support: 4094 VLANs
  • MAC Address Table Size: 32,000 entries
  • Jumbo Frame Support: Up to 9198 bytes

Software & Features

  • Operating System: Cisco IOS XE
  • License Tier: Network Advantage
  • Routing Protocols: OSPF, EIGRP, BGP, IS-IS, VRF
  • Security Features: MACsec (AES-128/256), 802.1X, ACLs

Can the C9300L-48T-4X-A be stacked with other Catalyst 9300L switches?

Yes. This model supports StackWise-320 and can stack with other compatible Catalyst 9300L/C9300LM switches, up to 8 units.

Does this switch support Cisco StackPower?

No. StackPower is not supported on Catalyst 9300L models. Power redundancy is via optional dual PSUs.

How can I manage the switch?

Manage via CLI (console), Cisco DNA Center, and model-dependent monitor-only visibility in the Meraki dashboard. Full programmability is available through Cisco IOS XE.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

Cisco C9300L-48T-4X-A is a 48× 1G non-PoE Layer 3 switch with 4× 10G SFP+ uplinks, StackWise-320 support, and a Network Advantage license.

[/shortdesc]

[properties]

Properties C9300L-48T-4X-A
Description Catalyst 9300L 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data-only, Network Advantage
Product Family Catalyst 9300L
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 port Data (non-PoE)
Uplink configuration 4x 10G/1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C1-350WAC-P
Available PoE power with
additional secondary
power supply		 No PoE
Fans Three field-replaceable fans
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 17.7

[/properties]

[specifications]

Specifications C9300L-48T-4X-A
Console Ports RJ-45 console (RJ-45-to-DB9 cable); USB console supported on some revisions
DRAM 8 GB
Flash Memory 16 GB
Switching capacity 176 Gbps
Forwarding rate 130.95 Mpps
MAC addresses 32,000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic compatibility
certifications		 47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
QCVN 118:2018/BTTTT
VCCI-CISPR 32 Class A
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking Support StackWise-320
Stacking bandwidth support 320 Gbps
Stacking hardware C9300L-STACK-KIT or C9300L-STACK-KIT2
Number of
members		 8
Supported stack members Other C9300L and C9300LM models with the same license level
Stacking accessories
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)

[/accesories]

At a Glance
  • Ports: 48 × 1G Ethernet (non-PoE)
  • Uplinks: 4 × 10G SFP+ fixed uplinks
  • Stacking: StackWise-320 (up to 8 units, 320 Gbps bandwidth)
  • Software: Network Advantage license (advanced Layer 3, SD-Access ready)
Product Overview

The Cisco C9300L-48T-4X-A is an enterprise-grade Layer 3 switch for high-performance access in campus and branch environments. It provides 48 non-PoE Gigabit ports with four 10G SFP+ uplinks and supports StackWise-320 for simplified, resilient operations. With Network Advantage, it enables advanced routing, segmentation, and automation on Cisco IOS XE and UADP ASIC.

Technical Specifications

Hardware

  • Model: C9300L-48T-4X
  • Ports: 48 × 10/100/1000 Ethernet ports (non-PoE)
  • Uplinks: 4 × 10G SFP+ fixed uplink ports
  • Stacking Support: StackWise-320
  • Stacking Bandwidth: 320 Gbps
  • Power Supply: 1 × 350W AC (standard efficiency)
  • Fan Modules: 3 × field-replaceable fans
  • Physical Dimensions: 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm)
  • Weight: 15.41 lbs (7.0 kg)

Performance

  • Switching Capacity: 176 Gbps
  • Forwarding Rate: 130.95 Mpps
  • DRAM: 8 GB
  • Flash Memory: 16 GB
  • VLAN Support: 4094 VLANs
  • MAC Address Table Size: 32,000 entries
  • Jumbo Frame Support: Up to 9198 bytes

Software & Features

  • Operating System: Cisco IOS XE
  • License Tier: Network Advantage
  • Routing Protocols: OSPF, EIGRP, BGP, IS-IS, VRF
  • Security Features: MACsec (AES-128/256), 802.1X, ACLs
Frequently Asked Questions (FAQ)

Can the C9300L-48T-4X-A be stacked with other Catalyst 9300L switches?

Yes. This model supports StackWise-320 and can stack with other compatible Catalyst 9300L/C9300LM switches, up to 8 units.

Does this switch support Cisco StackPower?

No. StackPower is not supported on Catalyst 9300L models. Power redundancy is via optional dual PSUs.

How can I manage the switch?

Manage via CLI (console), Cisco DNA Center, and model-dependent monitor-only visibility in the Meraki dashboard. Full programmability is available through Cisco IOS XE.
