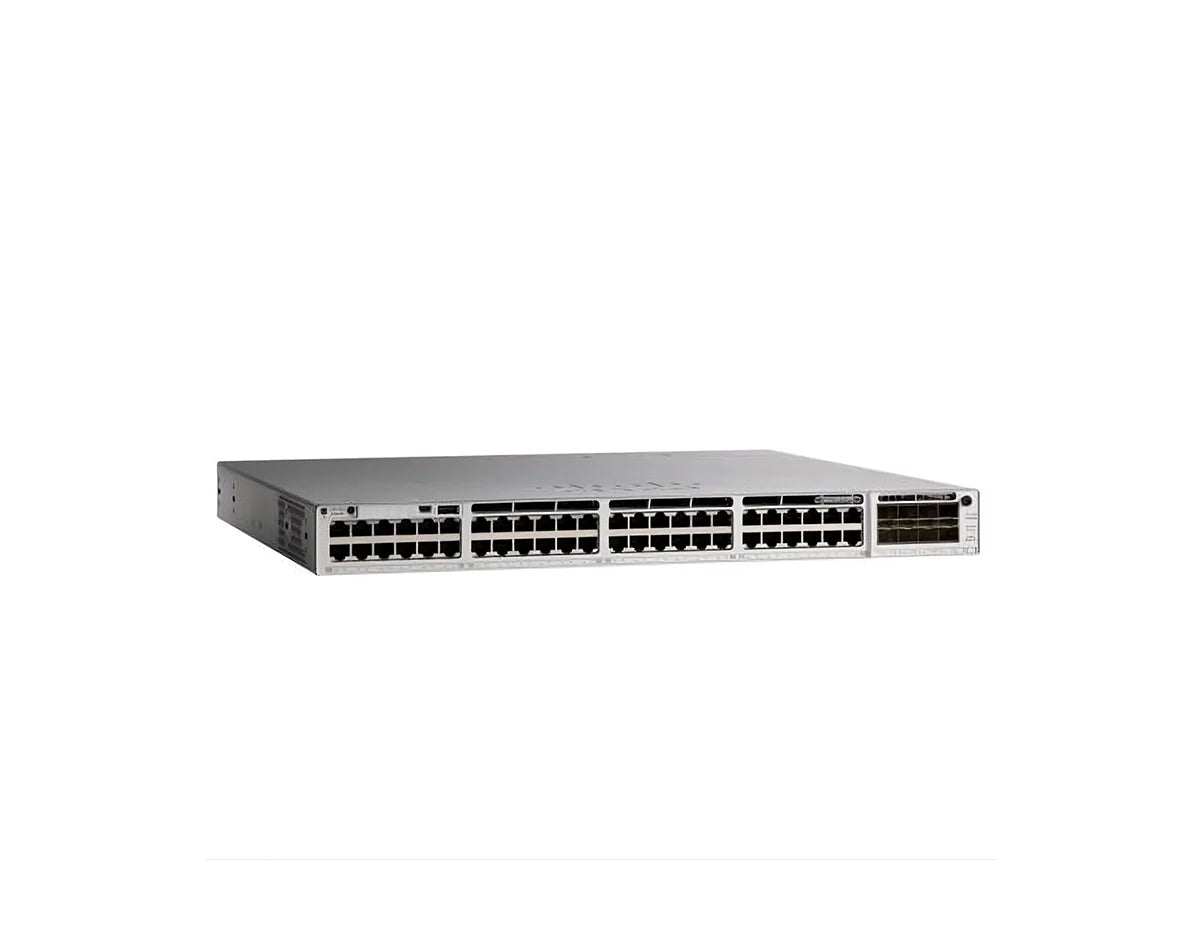

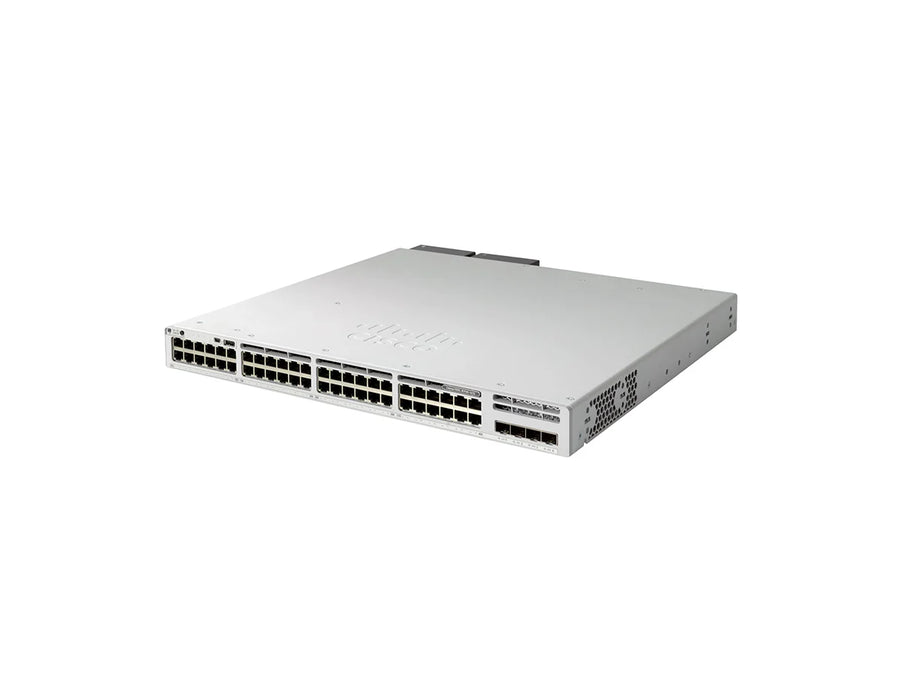

Cisco C9300L-48PF-4X-A Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300L-48PF-4X-A Switch
Cisco C9300L-48PF-4X-A Switch

Cisco C9300L-48PF-4X-A Switch

por Cisco
Desconto de 43%
R$ 192.799,56
R$ 109.896,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Rack-mountable, Fixed (4x10G/1G SFP+ uplinks), 48 x 1G ports, Full PoE+
[/shortdesc]

[properties]

Properties C9300L-48PF-4X-A
Description Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+ Network Advantage
Product Family Catalyst 9300
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 port PoE+
Uplink configuration 4x 10G/1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C1-1100WAC-P
Available PoE power with
additional secondary
power supply		 1440W (With 1100W Secondary PS)
Fans -
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 19.2

[/properties][specifications]

Specifications C9300L-48PF-4X-A
Console Ports RJ-45-to-DB9 cable for PC connections
DRAM 8 GB
Flash Memory 16 GB
Switching capacity 176 Gbps
Forwarding rate 130.95 Mpps
MAC addresses 32000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety ● UL 60950-1
● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1
● IEC 60950-1
● AS/NZS 60950.1
● IEEE 802.3
Electromagnetic compatibility
certifications		 ● 47 CFR Part 15
● EN 300 386 V1.6.1 ● EN 55032 Class A ● CISPR 32 Class A
● EN61000-3-2
● EN61000-3-3
● ICES-003 Class A
● TCVN 7189 Class A ● V-3 Class A
● CISPR 35
● EN 300 386
● EN 55035
● TCVN 7317
● V-2/2015.04
● V-3/2015.04
● CNS13438
● KN32
● KN35
● QCVN 118:2018/BTTTT
● VCCI-CISPR 32 Class A
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications][accesories]

Stacking Support Stackwise-320
Stacking bandwidth support 320 Gbps
Stacking hardware C9300L-STACK-KIT
Number of
members		 8
Supported stack members Other C9300 SKUs with same license level
Stacking accessories
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)
C9300L-STACK-KIT Stack kit for C9300L SKUs only: Two data stack adapters and one
C9300L-STACK-KIT2 Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack
cable
STACK-T3A-50CM Data stack 50cm cable (cable option with C9300L Stack Kit2)
STACK-T3A-1M Data stack 1m cable (cable option with C9300L Stack Kit2)
STACK-T3A-3M Data stack 3m cable (cable option with C9300L Stack Kit2)

[/accesories]

The Cisco Catalyst C9300L-48PF-4X-A Switch is an advanced enterprise-class networking solution designed to deliver robust power delivery, high-speed connectivity, and enhanced security. With 48 PoE+ Gigabit Ethernet ports featuring full power over Ethernet (PoE) support and 4 fixed 10G SFP+ uplink ports, this switch is ideal for powering a wide range of devices, including IP phones, cameras, and wireless access points. The C9300L-48PF-4X-A is equipped with advanced Layer 3 routing capabilities and StackWise-480 technology, making it an excellent choice for organizations looking to build a scalable, secure, and efficient network infrastructure.

Key Features:

  • 48 x PoE+ Gigabit Ethernet Ports: Delivers up to 30W per port, providing reliable power and data connectivity for devices such as IP phones and cameras.
  • 4 x Fixed 10G SFP+ Uplink Ports: Offers high-speed uplink options, ensuring fast data transfer between network segments and core infrastructure.
  • Full Power PoE: Supports full power over Ethernet (PoE) across all ports, making it ideal for environments with high power demands.
  • Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and traffic management.
  • StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
  • Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.

Technical Overview:

  • Recommended for: Medium to large enterprises, corporate campuses, and power-demanding environments.
  • Ports: 48 x 10/100/1000 Mbps PoE+ Gigabit Ethernet ports (up to 30W per port) and 4 x 10G SFP+ uplink ports.
  • Switching Capacity: 176 Gbps.
  • Forwarding Rate: 130.95 Mpps.
  • Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
  • Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
  • Licensing: Network Advantage.
  • Security: MACsec encryption and advanced access control features.
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the C9300L-48PF-4X-A datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Managed, Rack-mountable, Fixed (4x10G/1G SFP+ uplinks), 48 x 1G ports, Full PoE+
[/shortdesc]

[properties]

Properties C9300L-48PF-4X-A
Description Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+ Network Advantage
Product Family Catalyst 9300
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 port PoE+
Uplink configuration 4x 10G/1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C1-1100WAC-P
Available PoE power with
additional secondary
power supply		 1440W (With 1100W Secondary PS)
Fans -
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 19.2

[/properties][specifications]

Specifications C9300L-48PF-4X-A
Console Ports RJ-45-to-DB9 cable for PC connections
DRAM 8 GB
Flash Memory 16 GB
Switching capacity 176 Gbps
Forwarding rate 130.95 Mpps
MAC addresses 32000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety ● UL 60950-1
● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1
● IEC 60950-1
● AS/NZS 60950.1
● IEEE 802.3
Electromagnetic compatibility
certifications		 ● 47 CFR Part 15
● EN 300 386 V1.6.1 ● EN 55032 Class A ● CISPR 32 Class A
● EN61000-3-2
● EN61000-3-3
● ICES-003 Class A
● TCVN 7189 Class A ● V-3 Class A
● CISPR 35
● EN 300 386
● EN 55035
● TCVN 7317
● V-2/2015.04
● V-3/2015.04
● CNS13438
● KN32
● KN35
● QCVN 118:2018/BTTTT
● VCCI-CISPR 32 Class A
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications][accesories]

Stacking Support Stackwise-320
Stacking bandwidth support 320 Gbps
Stacking hardware C9300L-STACK-KIT
Number of
members		 8
Supported stack members Other C9300 SKUs with same license level
Stacking accessories
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)
C9300L-STACK-KIT Stack kit for C9300L SKUs only: Two data stack adapters and one
C9300L-STACK-KIT2 Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack
cable
STACK-T3A-50CM Data stack 50cm cable (cable option with C9300L Stack Kit2)
STACK-T3A-1M Data stack 1m cable (cable option with C9300L Stack Kit2)
STACK-T3A-3M Data stack 3m cable (cable option with C9300L Stack Kit2)

[/accesories]

Cisco Catalyst C9300L-48PF-4X-A Switch

The Cisco Catalyst C9300L-48PF-4X-A Switch is an advanced enterprise-class networking solution designed to deliver robust power delivery, high-speed connectivity, and enhanced security. With 48 PoE+ Gigabit Ethernet ports featuring full power over Ethernet (PoE) support and 4 fixed 10G SFP+ uplink ports, this switch is ideal for powering a wide range of devices, including IP phones, cameras, and wireless access points. The C9300L-48PF-4X-A is equipped with advanced Layer 3 routing capabilities and StackWise-480 technology, making it an excellent choice for organizations looking to build a scalable, secure, and efficient network infrastructure.

Key Features:

  • 48 x PoE+ Gigabit Ethernet Ports: Delivers up to 30W per port, providing reliable power and data connectivity for devices such as IP phones and cameras.
  • 4 x Fixed 10G SFP+ Uplink Ports: Offers high-speed uplink options, ensuring fast data transfer between network segments and core infrastructure.
  • Full Power PoE: Supports full power over Ethernet (PoE) across all ports, making it ideal for environments with high power demands.
  • Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and traffic management.
  • StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
  • Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.

Technical Overview:

  • Recommended for: Medium to large enterprises, corporate campuses, and power-demanding environments.
  • Ports: 48 x 10/100/1000 Mbps PoE+ Gigabit Ethernet ports (up to 30W per port) and 4 x 10G SFP+ uplink ports.
  • Switching Capacity: 176 Gbps.
  • Forwarding Rate: 130.95 Mpps.
  • Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
  • Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
  • Licensing: Network Advantage.
  • Security: MACsec encryption and advanced access control features.
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the C9300L-48PF-4X-A datasheet.
