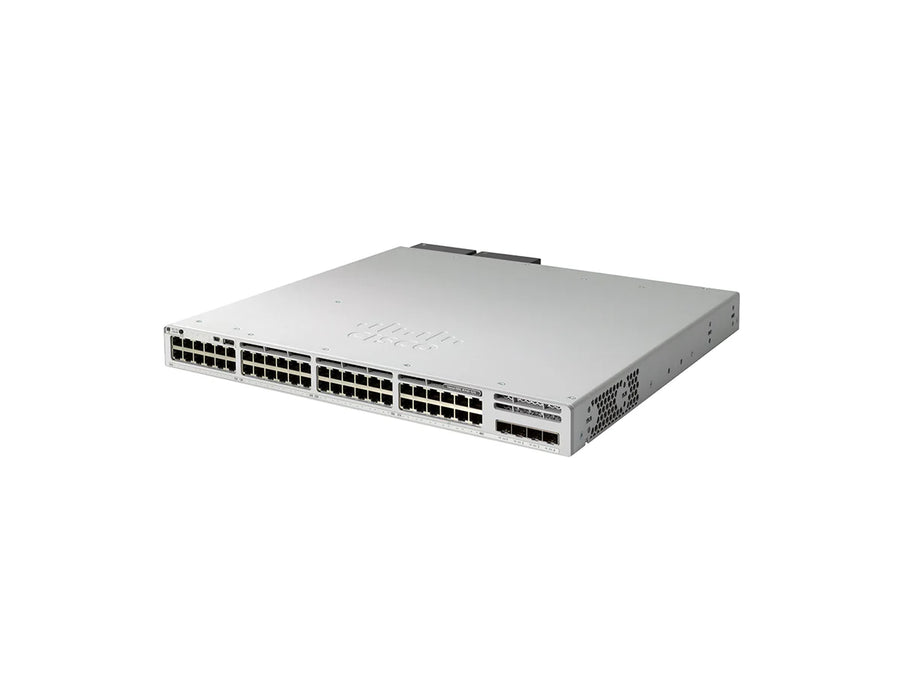

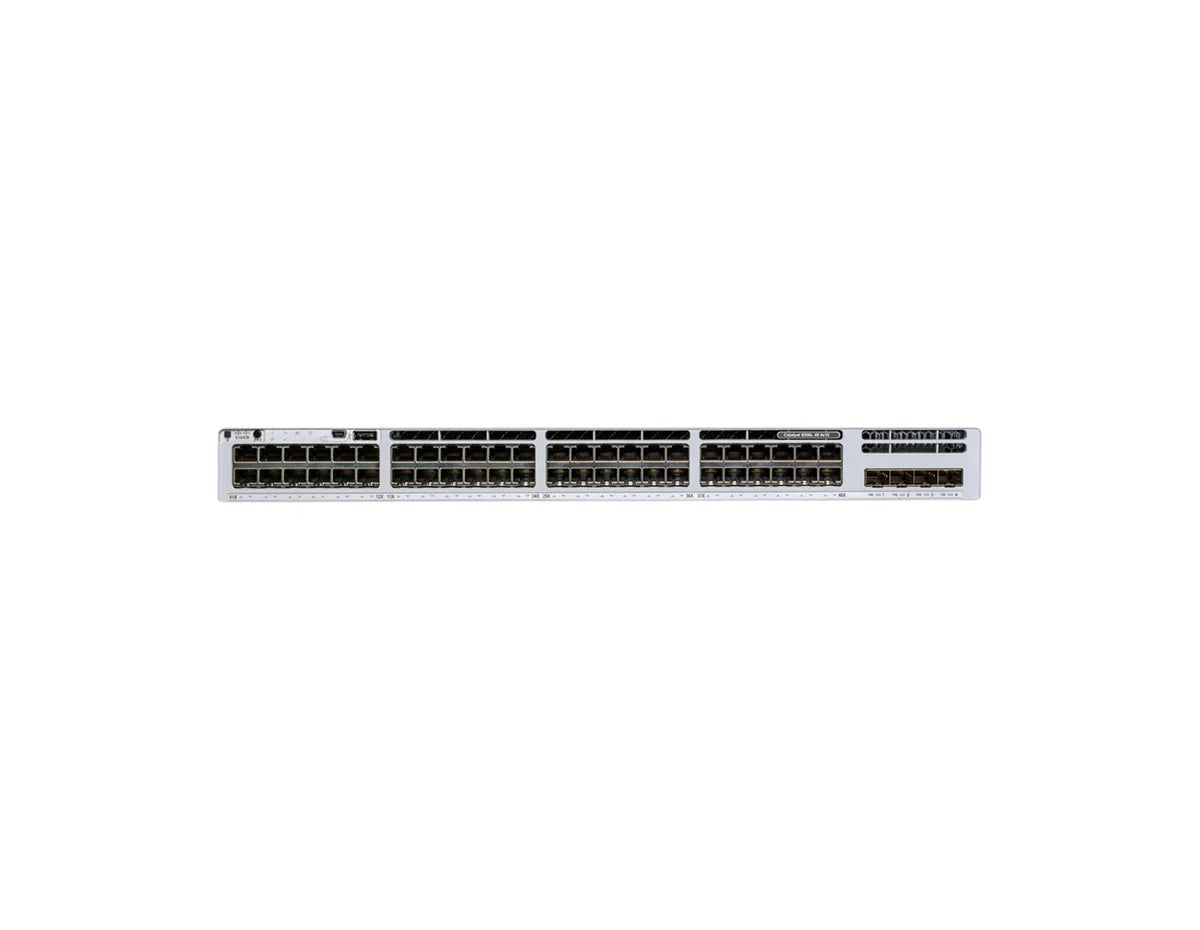

Cisco C9300L-48P-4G-E Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300L-48P-4G-E Switch
Cisco C9300L-48P-4G-E Switch

Cisco C9300L-48P-4G-E Switch

por Cisco
Desconto de 70%
R$ 144.023,28
R$ 43.140,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Rack-mountable, Fixed (4 x 1G SFP uplinks), 48 x 1G ports, PoE+ (505 W)
[/shortdesc]

[properties]

Properties C9300L-48P-4G-E
Description Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, PoE+ Network Essentials
Product Family Catalyst 9300
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 port PoE+
Uplink configuration 4x 1G fixed uplinks
Cisco IOS Software Network Essentials
Default primary AC
power supply		 PWR-C1-715WAC-P
Available PoE power with
additional secondary
power supply		 1220W (With 715W Secondary PS)
Fans -
Chassis + FEP +
‚ Fan Dimensions (HxWxD) Inches		 1.73 X 17.5 X 17.7

[/properties]

[specifications]

Specifications C9300L-48P-4G-E
Console Ports RJ-45-to-DB9 cable for PC connections‚
DRAM 8 GB
Flash Memory 16 GB
Switching capacity 104 Gbps
Forwarding rate 77.38 Mpps
MAC addresses 32000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic compatibility
certifications		 47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
QCVN 118:2018/BTTTT
VCCI-CISPR 32 Class A‚
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking Support Stackwise-320‚
Stacking bandwidth support 320 Gbps‚
Stacking hardware C9300L-STACK-KIT‚
Number of
members		 8
Supported stack members Other C9300 SKUs with the same license level
Stacking accessories
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)
C9300L-STACK-KIT Stack kit for C9300L SKUs only: Two data stack adapters and one
C9300L-STACK-KIT2 Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack
cable
STACK-T3A-50CM Data stack 50cm cable (cable option with C9300L Stack Kit2)
STACK-T3A-1M Data stack 1m cable (cable option with C9300L Stack Kit2)
STACK-T3A-3M Data stack 3m cable (cable option with C9300L Stack Kit2)

[/accesories]

The Cisco Catalyst C9300L-48P-4G-E Switch is a robust and versatile enterprise-class networking solution, ideal for organizations that require reliable connectivity, efficient power delivery, and advanced security features. With 48 PoE+ Gigabit Ethernet ports and 4 fixed Gigabit SFP uplink ports, this switch is designed to power connected devices such as IP phones, cameras, and wireless access points while providing high-speed, stable connections across your network. The C9300L-48P-4G-E also features advanced Layer 3 routing capabilities, making it a perfect choice for growing businesses looking to build a scalable and secure network infrastructure.

Key Features:

  • 48 x PoE+ Gigabit Ethernet Ports: Delivers up to 30W per port, offering reliable power and data transfer to connected devices.
  • 4 x Fixed Gigabit SFP Uplink Ports: Provides high-speed uplink options, ensuring efficient data transfer between network segments.
  • Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, and BGP, allowing for sophisticated routing and traffic management.
  • Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
  • Enhanced Security: Includes MACsec encryption, ACLs, and advanced security protocols to safeguard your network against unauthorized access.

Technical Overview:

  • Recommended for: Medium to large enterprises, corporate campuses, and data-driven environments.
  • Ports: 48 x 10/100/1000 Mbps PoE+ Gigabit Ethernet ports (up to 30W per port) and 4 x Gigabit SFP uplink ports.
  • Switching Capacity: 176 Gbps.
  • Forwarding Rate: 130.95 Mpps.
  • Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
  • Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
  • Licensing: Network Essentials.
  • Security: MACsec encryption and advanced access control features.
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the C9300L-48P-4G-E datasheet.
