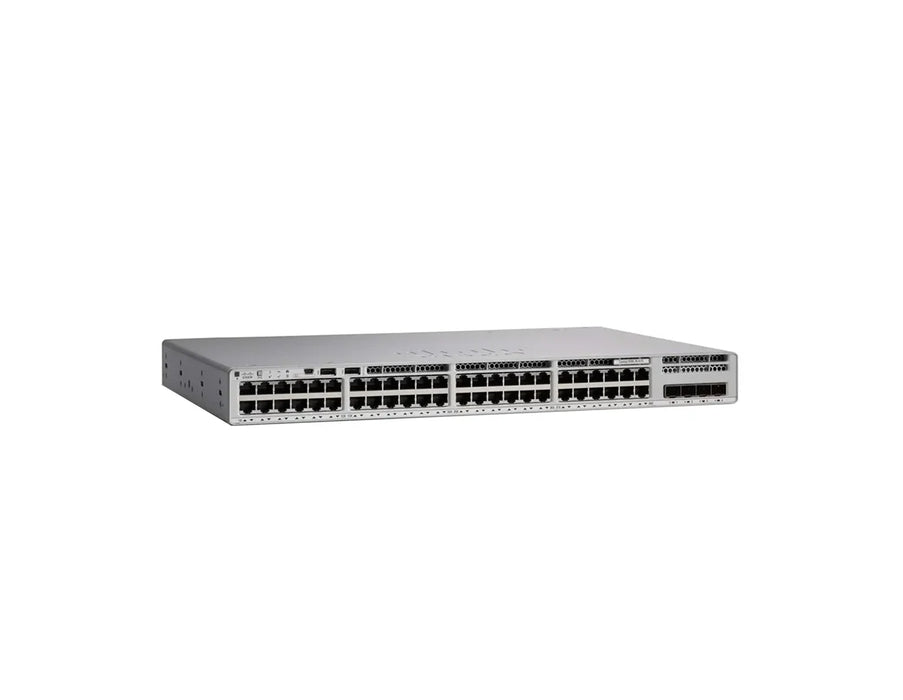

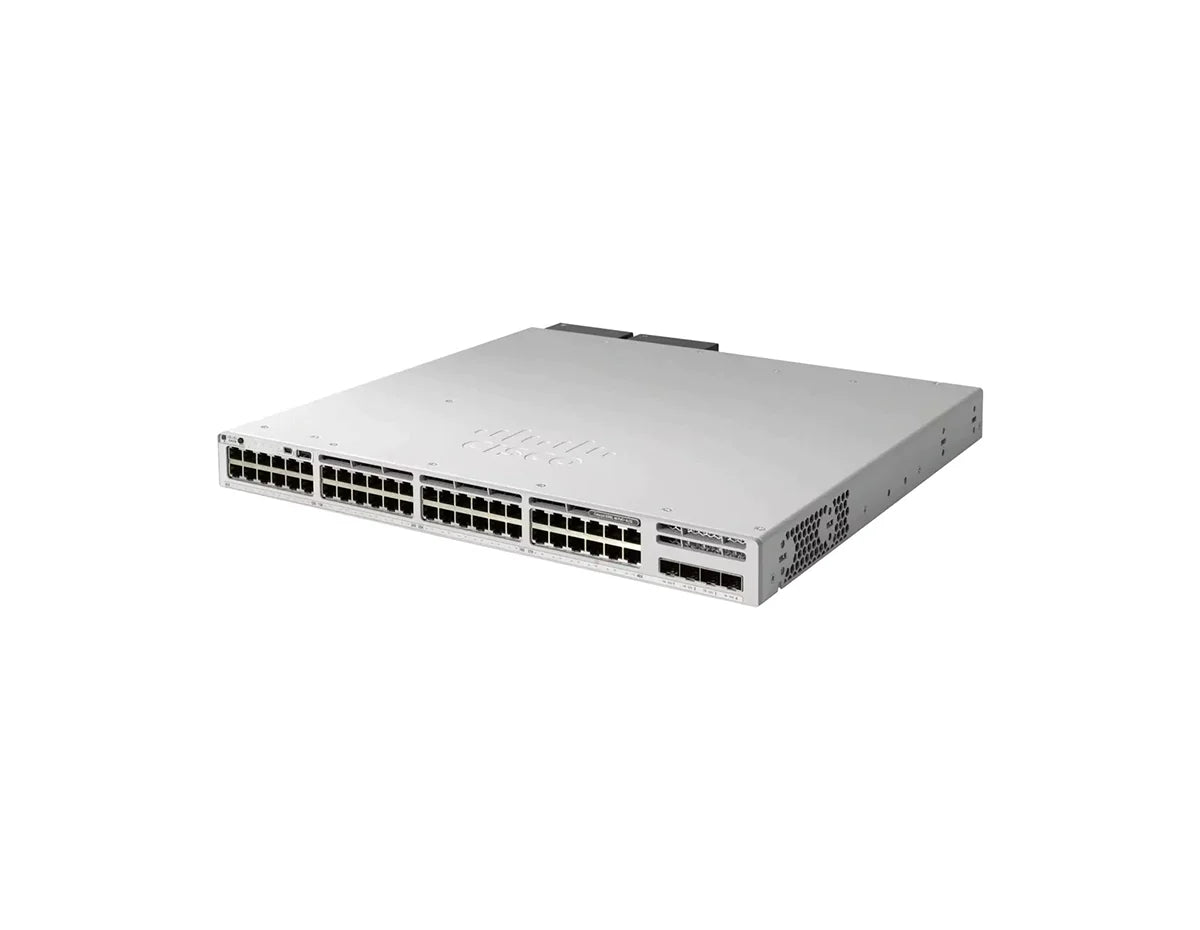

Cisco C9300L-48P-4G-A Switch – 48-Port PoE+, 1G Uplinks, Network Advantage
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300L-48P-4G-A Switch – 48-Port PoE+, 1G Uplinks, Network Advantage
Cisco C9300L-48P-4G-A Switch – 48-Port PoE+, 1G Uplinks, Network Advantage

Cisco C9300L-48P-4G-A Switch – 48-Port PoE+, 1G Uplinks, Network Advantage

por Cisco
Desconto de 43%
R$ 144.023,28
R$ 82.104,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

Cisco C9300L-48P-4G-A is a 48-port PoE+ Layer 3 switch with 4 × 1G SFP uplinks, StackWise-320 support, a 505W PoE budget, and a Network Advantage license.

[/shortdesc]

[properties]

Properties C9300L-48P-4G-A
Description Catalyst 9300L 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+, Network Advantage
Product Family Catalyst 9300L
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 port PoE+
Uplink configuration 4x 1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C1-715WAC-P
Available PoE power with
additional secondary
power supply		 Higher PoE with dual PSUs (varies by PSU option)
Fans Three field-replaceable fans
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 17.7

[/properties]

[specifications]

Specifications C9300L-48P-4G-A
Console Ports RJ-45-to-DB9 cable for PC connections
DRAM 8 GB
Flash Memory 16 GB
Switching capacity 104 Gbps
Forwarding rate 77.38 Mpps
MAC addresses 32,000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic compatibility
certifications		 47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
QCVN 118:2018/BTTTT
VCCI-CISPR 32 Class A
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking Support StackWise-320
Stacking bandwidth support 320 Gbps
Stacking hardware C9300L-STACK-KIT or C9300L-STACK-KIT2
Number of
members		 8
Supported stack members Other C9300L and C9300LM models with the same license level
Stacking accessories
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)

[/accesories]

  • Ports: 48 × 10/100/1000 PoE+ Ethernet ports
  • Uplinks: 4 × 1G SFP fixed uplinks
  • Stacking: StackWise-320 with 320 Gbps bandwidth
  • PoE Budget: Up to 505W (with included 715W PSU)

The Cisco C9300L-48P-4G-A is a fixed-uplink Layer 3 managed switch designed for enterprise access and aggregation. Equipped with 48 PoE+ ports and 4 × 1G SFP uplinks, it offers scalable connectivity for IP phones, wireless APs, and other edge devices. Built on Cisco’s UADP ASIC architecture, this switch supports software-defined access and simplified operations through Cisco IOS XE and DNA Center integration.

With StackWise-320 support, the C9300L-48P-4G-A can be stacked with up to 8 units for seamless management and redundancy, while delivering up to 320 Gbps stacking bandwidth. This model includes the Network Advantage license tier for advanced routing and segmentation features.

Hardware

  • Model: C9300L-48P-4G-A
  • Ports: 48 × 10/100/1000 PoE+ Ethernet ports
  • Uplinks: 4 × 1G SFP fixed uplink ports
  • Stacking Support: StackWise-320
  • Stacking Bandwidth: 320 Gbps
  • Power Supply: 1 × 715W AC (Platinum-rated)
  • PoE Budget: Up to 505W
  • Fan Modules: 3 × field-replaceable fans
  • Physical Dimensions: 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm)
  • Weight: 15.46 lbs (7.03 kg)

Performance

  • Switching Capacity: 104 Gbps
  • Forwarding Rate: 77.38 Mpps
  • DRAM: 8 GB
  • Flash Memory: 16 GB
  • VLAN Support: 4094 VLANs
  • MAC Address Table Size: 32,000 entries
  • Jumbo Frame Support: Up to 9198 bytes

Software & Features

  • Operating System: Cisco IOS XE
  • License Tier: Network Advantage
  • Routing Protocols: OSPF, EIGRP, BGP, IS-IS, VRF
  • Security Features: MACsec with AES-128 and AES-256 encryption, 802.1X, ACLs

What type of uplinks are included on this model?

The C9300L-48P-4G-A includes 4 × 1G SFP fixed uplink ports for fiber connectivity.

Can this switch be stacked with other models?

Yes. It supports StackWise-320 and can stack with other C9300L and C9300LM models (up to 8 units).

What is the available PoE budget with the included PSU?

With the 715W AC power supply, the switch provides up to 505W of PoE+ budget.

How is this switch managed?

It runs Cisco IOS XE and supports CLI and Cisco DNA Center; Meraki Dashboard monitor-only visibility is supported on some releases.
