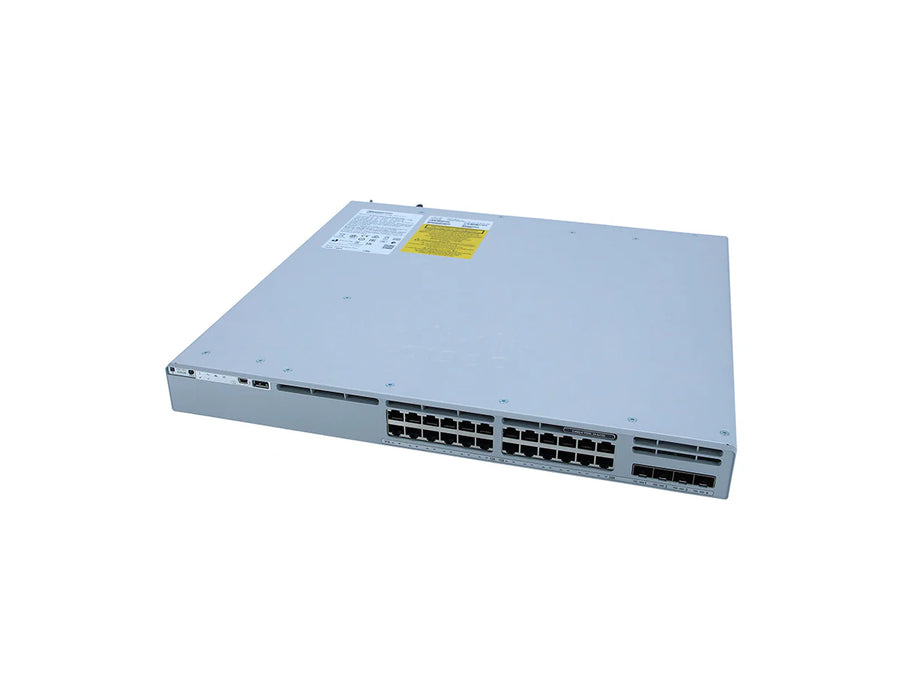

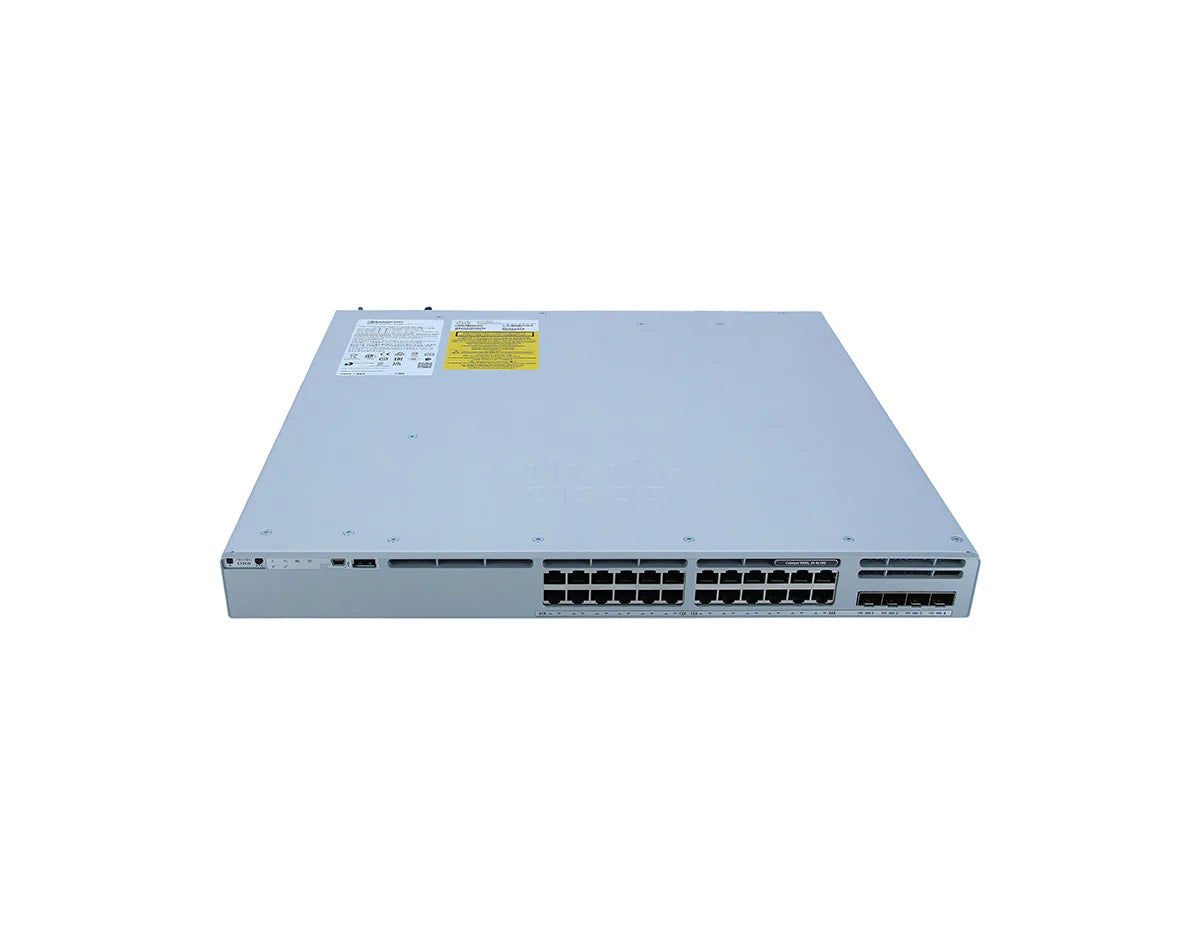

Cisco C9300L-24T-4X-A Switch – 24-Port Gigabit, 10G Uplinks, Network Advantage
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300L-24T-4X-A Switch – 24-Port Gigabit, 10G Uplinks, Network Advantage
Cisco C9300L-24T-4X-A Switch – 24-Port Gigabit, 10G Uplinks, Network Advantage

Cisco C9300L-24T-4X-A Switch – 24-Port Gigabit, 10G Uplinks, Network Advantage

por Cisco
Desconto de 43%
R$ 108.116,16
R$ 61.632,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x



Cisco C9300L-24T-4X-A is a 24-port Gigabit Layer 3 switch with 4 × 10G SFP+ uplinks, StackWise-320 support, and a Network Advantage license.

Properties C9300L-24T-4X-A
Description Catalyst 9300L 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Network Advantage
Product Family Catalyst 9300L
Product Type Ethernet Switch
Number of Ports 24
Downlinks total 10/100/1000
or PoE+ copper ports		 24 port Data
Uplink configuration 4x 10G/1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C1-350WAC-P
Available PoE power with
additional secondary
power supply		 No PoE
Fans Three field-replaceable fans
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 17.7
Specifications C9300L-24T-4X-A
Console Ports RJ-45-to-DB9 cable for PC connection
DRAM 8 GB
Flash Memory 16 GB
Switching capacity 128 Gbps
Forwarding rate 95.23 Mpps
MAC addresses 32,000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic compatibility
certifications		 47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
QCVN 118:2018/BTTTT
VCCI-CISPR 32 Class A
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5
Stacking Support StackWise-320
Stacking bandwidth support 320 Gbps
Stacking hardware C9300L-STACK-KIT or C9300L-STACK-KIT2
Number of
members		 8
Supported stack members Other C9300L and C9300LM models with the same license level
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)
  • Ports: 24 × 10/100/1000 Ethernet ports
  • Uplinks: 4 × 10G SFP+ fixed uplinks
  • Stacking: StackWise-320 with 320 Gbps bandwidth
  • Power Supply: 1 × 350W AC (Platinum-rated)

The Cisco C9300L-24T-4X-A is a high-performance enterprise access switch designed for modern campus and branch networks. It features 24 Gigabit Ethernet ports and 4 × 10G SFP+ uplinks, enabling fast aggregation and edge connectivity for desktops, servers, and wireless access points. Built on Cisco's UADP 2.0 ASIC, the switch supports advanced telemetry, segment routing, and policy enforcement for secure, software-defined access.

With StackWise-320 technology, this model supports up to 8-member stacking with 320 Gbps of stack bandwidth. The C9300L-24T-4X-A runs on Cisco IOS XE and includes a Network Advantage license, unlocking enterprise-grade Layer 3 routing, segmentation, and high availability features for scalable and secure deployments.

Hardware

  • Model: C9300L-24T-4X-A
  • Ports: 24 × 10/100/1000 Ethernet ports
  • Uplinks: 4 × 10G SFP+ fixed uplink ports
  • Stacking Support: StackWise-320
  • Stacking Bandwidth: 320 Gbps
  • Power Supply: 1 × 350W AC (Platinum-rated)
  • Fan Modules: 3 × field-replaceable fans
  • Physical Dimensions: 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm)
  • Weight: 14.93 lbs (6.78 kg)

Performance

  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 95.23 Mpps
  • DRAM: 8 GB
  • Flash Memory: 16 GB
  • VLAN Support: 4094 VLANs
  • MAC Address Table Size: 32,000 entries
  • Jumbo Frame Support: Up to 9198 bytes

Software & Features

  • Operating System: Cisco IOS XE
  • License Tier: Network Advantage
  • Routing Protocols: OSPF, EIGRP, BGP, IS-IS, VRF
  • Security Features: MACsec with AES-128 and AES-256 encryption, 802.1X, ACLs
  • Management: CLI, Web UI, SNMP, Cisco DNA Center; Meraki Dashboard monitor-only support

What uplinks does this switch offer?

The C9300L-24T-4X-A includes 4 × 10G SFP+ fixed uplink ports for high-speed fiber connectivity.

Can it be stacked with 48-port Catalyst 9300L models?

Yes. It supports StackWise-320 and is compatible with other C9300L and C9300LM models (up to 8 units per stack).

Is this model suitable for Layer 3 routing?

Yes. With the Network Advantage license, it supports advanced routing protocols including OSPF, EIGRP, BGP, and IS-IS.

What kind of management tools are available?

The switch can be managed via the Command-Line Interface (CLI), Web UI, SNMP, and Cisco DNA Center. It also supports Meraki Dashboard monitor-only visibility for cloud-based monitoring.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto



Cisco C9300L-24T-4X-A is a 24-port Gigabit Layer 3 switch with 4 × 10G SFP+ uplinks, StackWise-320 support, and a Network Advantage license.

Properties C9300L-24T-4X-A
Description Catalyst 9300L 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Network Advantage
Product Family Catalyst 9300L
Product Type Ethernet Switch
Number of Ports 24
Downlinks total 10/100/1000
or PoE+ copper ports		 24 port Data
Uplink configuration 4x 10G/1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C1-350WAC-P
Available PoE power with
additional secondary
power supply		 No PoE
Fans Three field-replaceable fans
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 17.7
Specifications C9300L-24T-4X-A
Console Ports RJ-45-to-DB9 cable for PC connection
DRAM 8 GB
Flash Memory 16 GB
Switching capacity 128 Gbps
Forwarding rate 95.23 Mpps
MAC addresses 32,000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic compatibility
certifications		 47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
QCVN 118:2018/BTTTT
VCCI-CISPR 32 Class A
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5
Stacking Support StackWise-320
Stacking bandwidth support 320 Gbps
Stacking hardware C9300L-STACK-KIT or C9300L-STACK-KIT2
Number of
members		 8
Supported stack members Other C9300L and C9300LM models with the same license level
STACK-T3-50CM Data stack 50cm cable (default cable with C9300L Stack Kit)
STACK-T3-1M Data stack 1m cable (cable option with C9300L Stack Kit)
STACK T3-3M Data stack 3m cable (cable option with C9300L Stack Kit)
At a Glance
  • Ports: 24 × 10/100/1000 Ethernet ports
  • Uplinks: 4 × 10G SFP+ fixed uplinks
  • Stacking: StackWise-320 with 320 Gbps bandwidth
  • Power Supply: 1 × 350W AC (Platinum-rated)
Product Overview

The Cisco C9300L-24T-4X-A is a high-performance enterprise access switch designed for modern campus and branch networks. It features 24 Gigabit Ethernet ports and 4 × 10G SFP+ uplinks, enabling fast aggregation and edge connectivity for desktops, servers, and wireless access points. Built on Cisco's UADP 2.0 ASIC, the switch supports advanced telemetry, segment routing, and policy enforcement for secure, software-defined access.

With StackWise-320 technology, this model supports up to 8-member stacking with 320 Gbps of stack bandwidth. The C9300L-24T-4X-A runs on Cisco IOS XE and includes a Network Advantage license, unlocking enterprise-grade Layer 3 routing, segmentation, and high availability features for scalable and secure deployments.

Technical Specifications

Hardware

  • Model: C9300L-24T-4X-A
  • Ports: 24 × 10/100/1000 Ethernet ports
  • Uplinks: 4 × 10G SFP+ fixed uplink ports
  • Stacking Support: StackWise-320
  • Stacking Bandwidth: 320 Gbps
  • Power Supply: 1 × 350W AC (Platinum-rated)
  • Fan Modules: 3 × field-replaceable fans
  • Physical Dimensions: 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm)
  • Weight: 14.93 lbs (6.78 kg)

Performance

  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 95.23 Mpps
  • DRAM: 8 GB
  • Flash Memory: 16 GB
  • VLAN Support: 4094 VLANs
  • MAC Address Table Size: 32,000 entries
  • Jumbo Frame Support: Up to 9198 bytes

Software & Features

  • Operating System: Cisco IOS XE
  • License Tier: Network Advantage
  • Routing Protocols: OSPF, EIGRP, BGP, IS-IS, VRF
  • Security Features: MACsec with AES-128 and AES-256 encryption, 802.1X, ACLs
  • Management: CLI, Web UI, SNMP, Cisco DNA Center; Meraki Dashboard monitor-only support
Frequently Asked Questions

What uplinks does this switch offer?

The C9300L-24T-4X-A includes 4 × 10G SFP+ fixed uplink ports for high-speed fiber connectivity.

Can it be stacked with 48-port Catalyst 9300L models?

Yes. It supports StackWise-320 and is compatible with other C9300L and C9300LM models (up to 8 units per stack).

Is this model suitable for Layer 3 routing?

Yes. With the Network Advantage license, it supports advanced routing protocols including OSPF, EIGRP, BGP, and IS-IS.

What kind of management tools are available?

The switch can be managed via the Command-Line Interface (CLI), Web UI, SNMP, and Cisco DNA Center. It also supports Meraki Dashboard monitor-only visibility for cloud-based monitoring.
