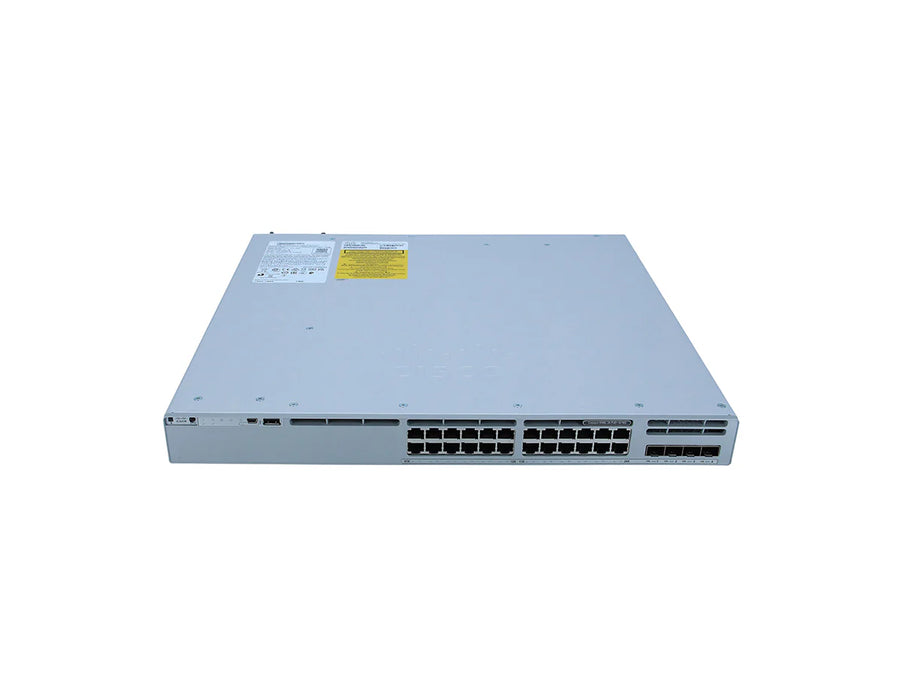

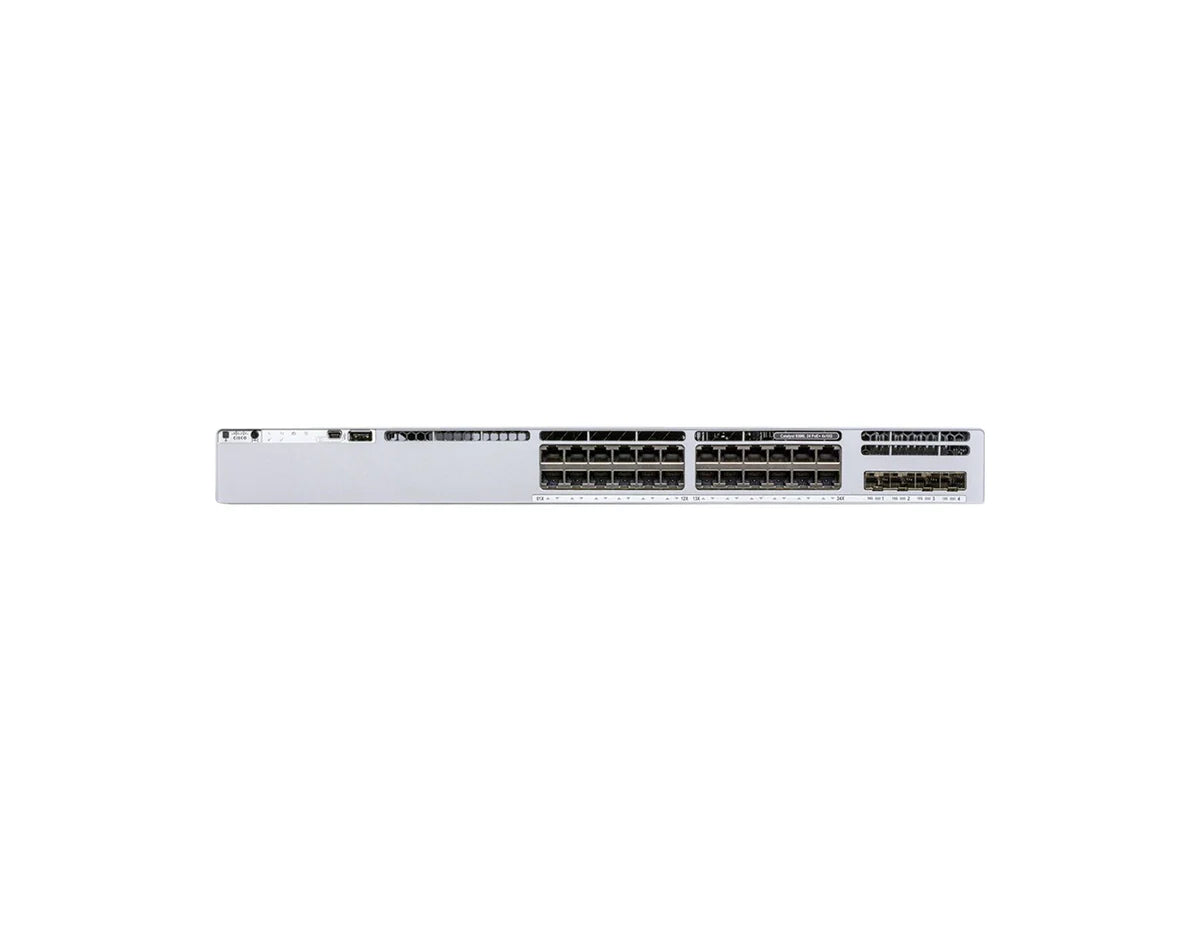

Cisco C9300L-24P-4X-A Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300L-24P-4X-A Switch
Cisco C9300L-24P-4X-A Switch

Cisco C9300L-24P-4X-A Switch

por Cisco
Desconto de 43%
R$ 117.874,56
R$ 67.200,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Rack-mountable, Fixed (4 x 10G/1G SFP+ uplinks), 24 x 1G ports, PoE+ (505 W)
[/shortdesc]

[properties]

Properties C9300L-24P-4X-A
Description Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+ Network Advantage
Product Family Catalyst 9300
Product Type Ethernet Switch
Number of Ports 24
Downlinks total 10/100/1000
or PoE+ copper ports		 24 port PoE+
Uplink configuration 4x 10G/1G fixed AC uplinks‚
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C1-715WAC-P
Available PoE power with
additional secondary
power supply		 720W (With 715W Secondary PS)
Fans  -
Chassis + FEP +
‚ Fan Dimensions (HxWxD) Inches		 1.73 X 17.5 X 17.7

[/properties] [specifications]

Specifications C9300L-24P-4X-A
Console Ports RJ-45-to-DB9 cable for PC connections‚
DRAM 8 GB‚
Flash Memory 16 GB‚
Switching capacity 128 Gbps‚
Forwarding rate‚ 95.23 Mpps‚
MAC addresses 32000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic compatibility
certifications		 47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
QCVN 118:2018/BTTTT
VCCI-CISPR 32 Class A‚
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking Support Stackwise-320‚
Stacking bandwidth support 320 Gbps‚
Stacking hardware‚ C9300L-STACK-KIT
Number of
members		 8
Supported stack members Other C9300 SKUs with same license level
Stacking accessories
STACK-T3-50CM‚ Data stack 50cm cable (default cable with C9300L Stack Kit)‚
STACK-T3-1M‚ Data stack 1m cable (cable option with C9300L Stack Kit)‚
STACK T3-3M‚ Data stack 3m cable (cable option with C9300L Stack Kit)‚
C9300L-STACK-KIT‚ Stack kit for C9300L SKUs only: Two data stack adapters and one‚
C9300L-STACK-KIT2 Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack
cable
STACK-T3A-50CM‚ Data stack 50cm cable (cable option with C9300L Stack Kit2)
STACK-T3A-1M Data stack 1m cable (cable option with C9300L Stack Kit2)
STACK-T3A-3M Data stack 3m cable (cable option with C9300L Stack Kit2)

[/accesories]

The Cisco Catalyst C9300L-24P-4X-A Switch is a high-performance, enterprise-class solution designed to deliver advanced security, flexible management, and efficient power delivery. With 24 PoE+ Gigabit Ethernet ports and 4 fixed 10G SFP+ uplink ports, this switch is perfect for powering connected devices such as IP phones, cameras, and wireless access points while providing high-speed, reliable connectivity. The C9300L-24P-4X-A’s advanced Layer 3 routing capabilities and robust design make it an ideal choice for organizations looking to build scalable and secure networks.

Key Features:

  • 24 x PoE+ Gigabit Ethernet Ports: Delivers up to 30W per port, providing both power and data to connected devices efficiently.
  • 4 x Fixed 10G SFP+ Uplink Ports: Offers high-speed uplink options, ensuring fast data transfer between network segments and cores.
  • Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and traffic management.
  • Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
  • Robust Security: Includes MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.

Technical Overview:

  • Recommended for: Small to medium enterprises, branch offices, and data-driven environments.
  • Ports: 24 x 10/100/1000 Mbps PoE+ Gigabit Ethernet ports (up to 30W per port) and 4 x 10G SFP+ uplink ports.
  • Switching Capacity: 128 Gbps.
  • Forwarding Rate: 95.23 Mpps.
  • Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
  • Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
  • Licensing: Network Advantage.
  • Security: MACsec encryption and advanced access control features.
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the C9300L-24P-4X-A datasheet.
