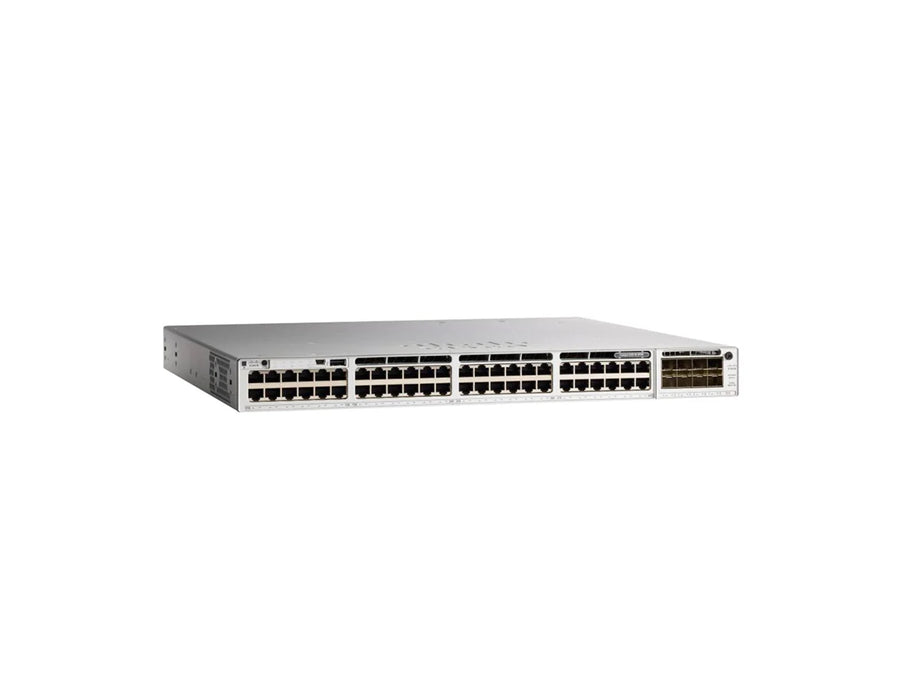

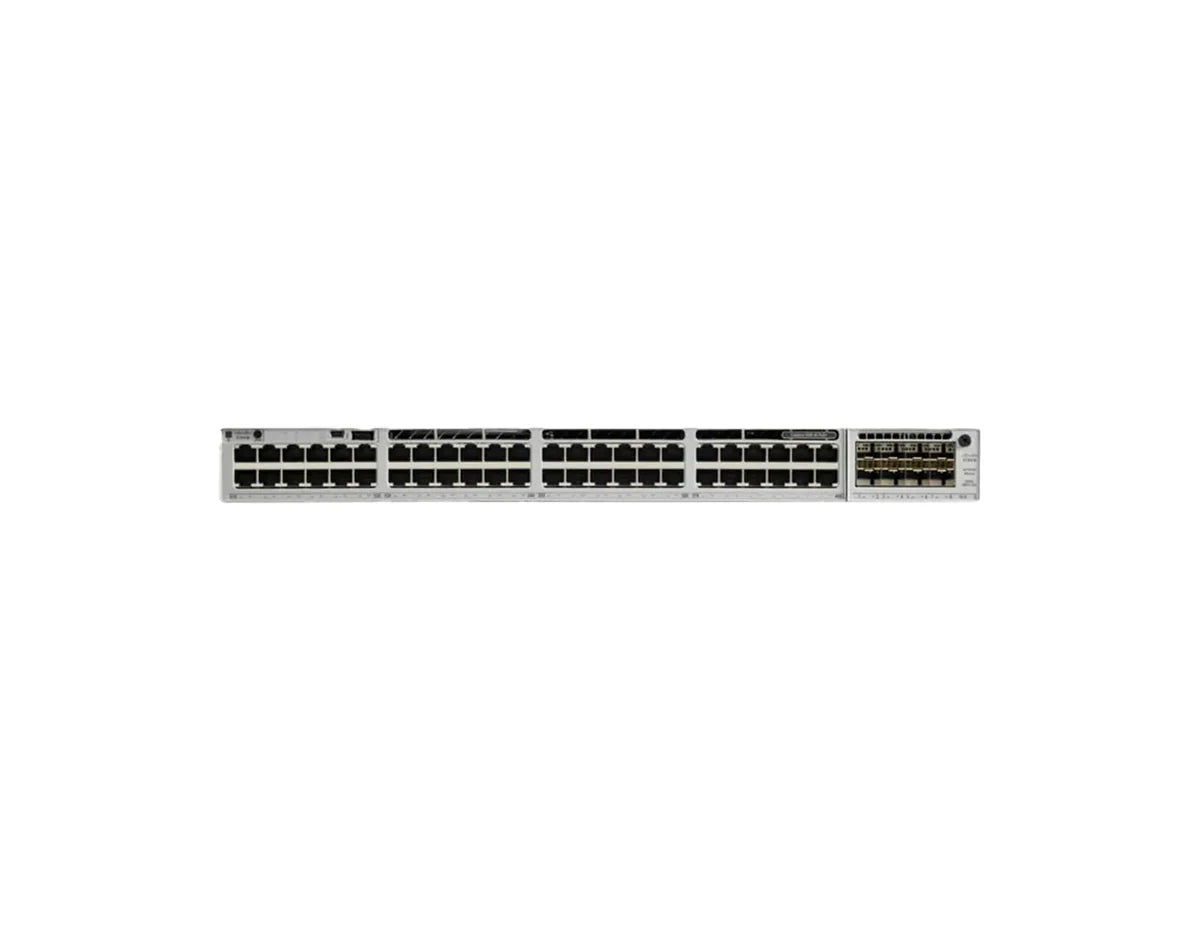

Cisco C9300-48UN-A Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300-48UN-A Switch
Cisco C9300-48UN-A Switch

Cisco C9300-48UN-A Switch

por Cisco
Desconto de 43%
R$ 250.832,76
R$ 142.980,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Rack-mountable, 48 x 5Gbps Multigigabit ports (5G/2.5G/1G/100M), Modular Uplinks, UPOE
[/shortdesc]

[properties]

Properties C9300-48U-A
Description Catalyst 9300 48-port 5G copper with modular uplinks, UPOE, Network Advantage
Product Family Catalyst 9300
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 port 5Gbps Multigigabit UPOE ports (5G/2.5G/1G/100M)
Uplink configuration Modular uplink options
Cisco IOS Software Network Advantage‚
Default primary AC
power supply		 PWR-C1-1100WAC-P
Available PoE power with
additional secondary
power supply		 2880W** (With 1100W Secondary PS)
Fans Three field-replaceable fans
Chassis + FEP + Fan Dimensions (HxWxD) Inches 1.73 x 17.5 x 19.1

[/properties]

[specifications]

Specifications C9300-48UN-A
Console Ports RJ-45-to-DB9 cable for PC connections‚
DRAM 8 GB‚
Flash Memory 16 GB‚
Switching capacity 640 Gbps
Forwarding rate‚ 476.19 Mpps
MAC addresses 32000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic compatibility
certifications		 47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking Support Stackwise-480‚
Stacking bandwidth support 480 Gbps‚
Stacking hardware‚ StackWise Cable‚
Number of
members		 8
Supported stack members Other C9300 SKUs with same license level
C9300 higher scale SKUs only stack with other like higher scale models
Stacking accessories
STACK-T1-50CM Data stack 50 cm (cable option with C9300 and C9300X SKUs)
STACK-T1-1M Data stack 1m (cable option with C9300 and C9300X SKUs)
STACK-T1-3M Data stack 3m (cable option with C9300 and C9300X SKUs)

[/accesories]

The Cisco Catalyst C9300-48UN-A Switch is an advanced, high-performance networking solution designed for enterprise environments that require scalable, secure, and efficient connectivity. With 48 Multigigabit Ethernet UPOE (Universal Power Over Ethernet) ports, this switch provides enhanced power delivery and high-speed connectivity for demanding devices such as IP phones, cameras, and wireless access points. The C9300-48UN-A is equipped with advanced Layer 3 routing features, modular uplinks, and StackWise-480 technology, making it an ideal solution for businesses looking to build a scalable, future-proof network infrastructure.

Key Features:

  • 48 x Multigigabit UPOE Ports: Supports speeds up to 10 Gbps and delivers up to 60W per port, ensuring reliable power and high-speed connectivity for demanding devices.
  • Modular Uplinks: Offers flexible uplink options supporting 1G, 10G, and 40G, allowing for easy network expansion and scalability.
  • Advanced Layer 3 Routing: Supports protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and efficient traffic management.
  • StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
  • Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
  • Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.

Technical Overview:

  • Recommended for: Large enterprises, corporate campuses, and data-heavy environments.
  • Ports: 48 x Multigigabit UPOE ports (100M/1G/2.5G/5G/10G) with up to 60W per port.
  • Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network expansion.
  • Switching Capacity: 208 Gbps.
  • Forwarding Rate: 154.76 Mpps.
  • Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
  • Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
  • Licensing: Network Advantage.
  • Security: MACsec encryption and advanced access control features.
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the C9300-48UN-A datasheet.
