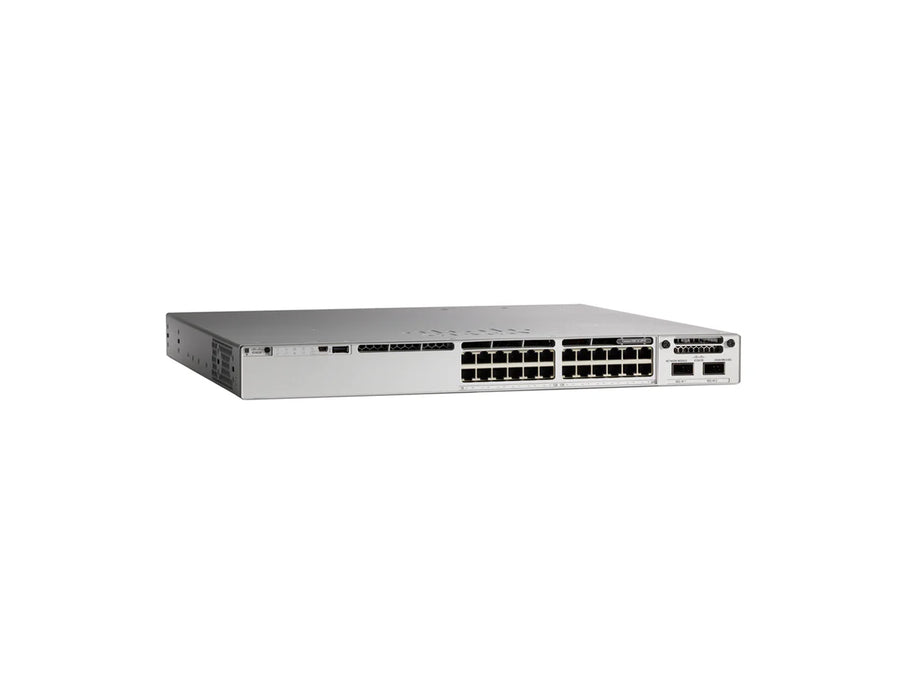

Cisco C9300-24U-E Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300-24U-E Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9300-24U-E Switch
Cisco C9300-24U-E Switch

Cisco C9300-24U-E Switch

por Cisco
Desconto de 43%
R$ 120.712,80
R$ 68.808,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Rack-mountable, 24 x 1G ports, Modular Uplinks, UPOE
[/shortdesc]

[properties]

Properties C9300-24U-E
Description Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Essentials‚
Product Family Catalyst 9300
Product Type Ethernet Switch
Number of Ports 24
Downlinks total 10/100/1000
or PoE+ copper ports		 24 port Cisco UPOE‚
Uplink configuration Modular uplink options
Cisco IOS Software Network Essentials‚
Default primary AC
power supply		 PWR-C1-1100WAC‚
Available PoE power with
additional secondary
power supply		 830W‚
Fans Three field-replaceable fans
Chassis + FEP +
‚ Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 19.2‚

[/properties][specifications]

Specifications C9300-24U-A
Console Ports RJ-45-to-DB9 cable for PC connections‚
DRAM 8 GB‚
Flash Memory 16 GB‚
Switching capacity 208 Gbps‚
Forwarding rate‚ 154.76 Mpps‚
MAC addresses 32000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic compatibility
certifications		 47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications][accesories]

Stacking Support Stackwise-480‚
Stacking bandwidth support 480 Gbps‚
Stacking hardware‚ StackWise Cable‚
Number of
members		 8
Supported stack members Other C9300 SKUs with same license level
C9300 higher scale SKUs only stack with other like higher scale models
Stacking accessories
STACK-T1-50CM‚ Data stack 50 cm (cable option with C9300 and C9300X SKUs)‚
STACK-T1-1M‚ Data stack 1m (cable option with C9300 and C9300X SKUs)‚
STACK-T1-3M‚ Data stack 3m (cable option with C9300 and C9300X SKUs)‚

[/accesories]

The Cisco Catalyst C9300-24U-E Switch is a high-performance, enterprise-grade solution designed to meet the needs of modern network environments that require advanced security, scalable management, and efficient power delivery. Featuring 24 UPOE (Universal Power Over Ethernet) ports, this switch is ideal for powering a wide range of devices, such as IP phones, cameras, and wireless access points, while providing robust Layer 3 routing capabilities. The C9300-24U-E’s modular uplinks and flexible design make it a future-proof choice for growing networks.

Key Features:

  • 24 x UPOE Gigabit Ethernet Ports: Delivers up to 60W per port, ensuring reliable power and high-speed connectivity for connected devices.
  • Modular Uplinks: Supports various uplink options including 1G, 10G, and 40G, providing scalability for future network expansions.
  • Advanced Layer 3 Routing: Features protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and traffic management.
  • StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
  • Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
  • Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network against unauthorized access.

Technical Overview:

  • Recommended for: Enterprise environments, large campuses, and data-driven operations.
  • Ports: 24 x 10/100/1000 Mbps UPOE Gigabit Ethernet ports (up to 60W per port).
  • Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network growth.
  • Switching Capacity: 208 Gbps.
  • Forwarding Rate: 154.76 Mpps.
  • Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
  • Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
  • Licensing: Network Essentials.
  • Security: MACsec encryption and advanced access control features.
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the C9300-24U-E datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Managed, Rack-mountable, 24 x 1G ports, Modular Uplinks, UPOE
[/shortdesc]

[properties]

Properties C9300-24U-E
Description Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Essentials‚
Product Family Catalyst 9300
Product Type Ethernet Switch
Number of Ports 24
Downlinks total 10/100/1000
or PoE+ copper ports		 24 port Cisco UPOE‚
Uplink configuration Modular uplink options
Cisco IOS Software Network Essentials‚
Default primary AC
power supply		 PWR-C1-1100WAC‚
Available PoE power with
additional secondary
power supply		 830W‚
Fans Three field-replaceable fans
Chassis + FEP +
‚ Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 19.2‚

[/properties][specifications]

Specifications C9300-24U-A
Console Ports RJ-45-to-DB9 cable for PC connections‚
DRAM 8 GB‚
Flash Memory 16 GB‚
Switching capacity 208 Gbps‚
Forwarding rate‚ 154.76 Mpps‚
MAC addresses 32000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3
Electromagnetic compatibility
certifications		 47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
EMC
compliance		 FCC Part 15 (CFR 47) Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only)
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications][accesories]

Stacking Support Stackwise-480‚
Stacking bandwidth support 480 Gbps‚
Stacking hardware‚ StackWise Cable‚
Number of
members		 8
Supported stack members Other C9300 SKUs with same license level
C9300 higher scale SKUs only stack with other like higher scale models
Stacking accessories
STACK-T1-50CM‚ Data stack 50 cm (cable option with C9300 and C9300X SKUs)‚
STACK-T1-1M‚ Data stack 1m (cable option with C9300 and C9300X SKUs)‚
STACK-T1-3M‚ Data stack 3m (cable option with C9300 and C9300X SKUs)‚

[/accesories]

Cisco Catalyst C9300-24U-E Switch

The Cisco Catalyst C9300-24U-E Switch is a high-performance, enterprise-grade solution designed to meet the needs of modern network environments that require advanced security, scalable management, and efficient power delivery. Featuring 24 UPOE (Universal Power Over Ethernet) ports, this switch is ideal for powering a wide range of devices, such as IP phones, cameras, and wireless access points, while providing robust Layer 3 routing capabilities. The C9300-24U-E’s modular uplinks and flexible design make it a future-proof choice for growing networks.

Key Features:

  • 24 x UPOE Gigabit Ethernet Ports: Delivers up to 60W per port, ensuring reliable power and high-speed connectivity for connected devices.
  • Modular Uplinks: Supports various uplink options including 1G, 10G, and 40G, providing scalability for future network expansions.
  • Advanced Layer 3 Routing: Features protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and traffic management.
  • StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
  • Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
  • Enhanced Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network against unauthorized access.

Technical Overview:

  • Recommended for: Enterprise environments, large campuses, and data-driven operations.
  • Ports: 24 x 10/100/1000 Mbps UPOE Gigabit Ethernet ports (up to 60W per port).
  • Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network growth.
  • Switching Capacity: 208 Gbps.
  • Forwarding Rate: 154.76 Mpps.
  • Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
  • Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
  • Licensing: Network Essentials.
  • Security: MACsec encryption and advanced access control features.
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.

You can check the related tab for the C9300-24U-E datasheet.
