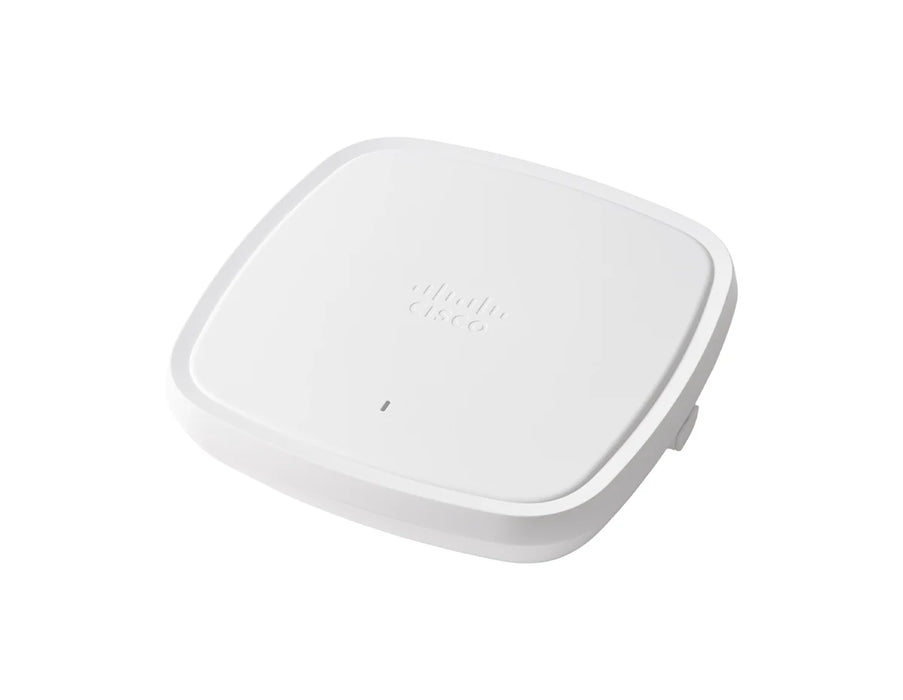

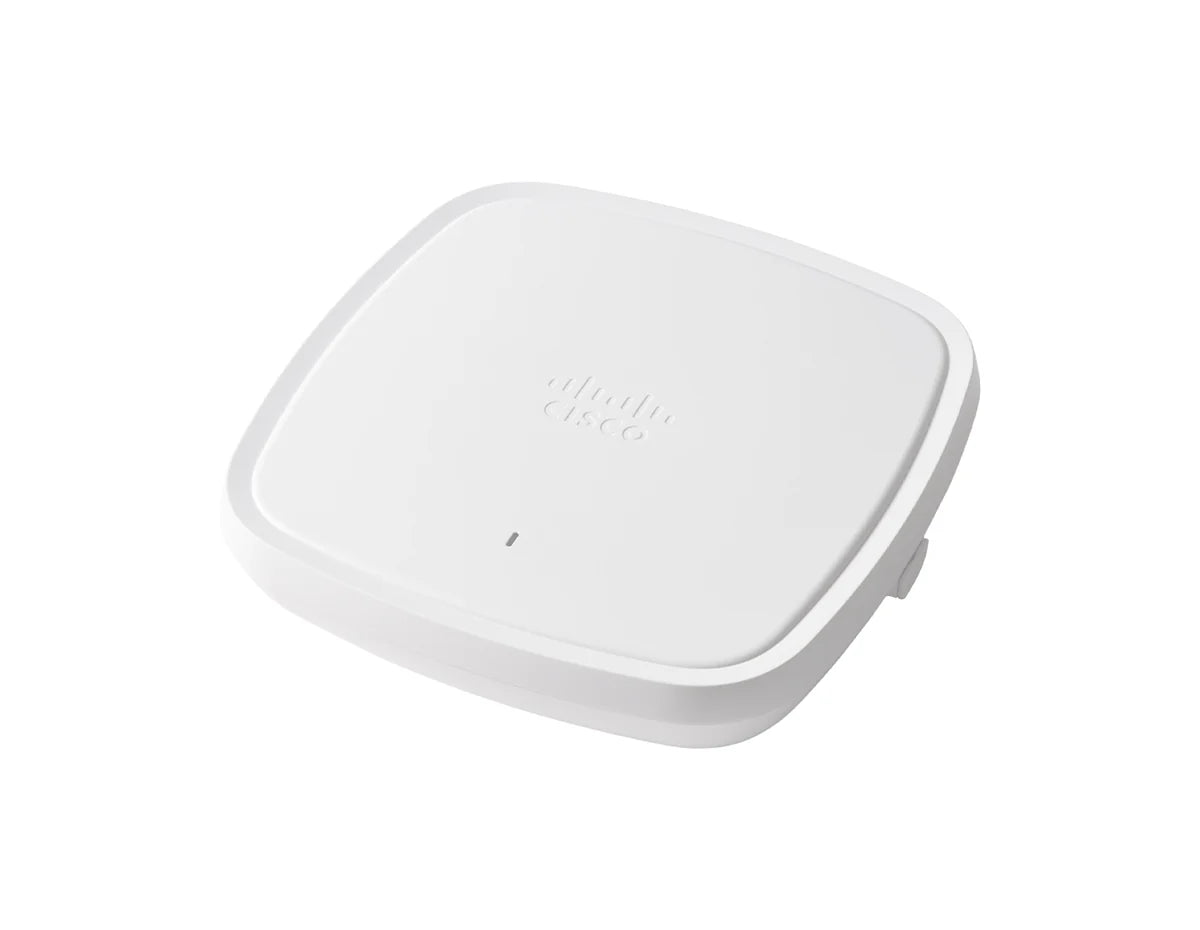

Cisco C9120AXI-B Wireless Access Point
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C9120AXI-B Wireless Access Point
Cisco C9120AXI-B Wireless Access Point

Cisco C9120AXI-B Wireless Access Point

por Cisco
Desconto de 88%
R$ 31.611,60
R$ 3.720,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]Wi-Fi 6, internal antennas, 4x4:4 MIMO, B regulatory domain, 2.5G Multigigabit Ethernet, Bluetooth Low Energy 5[/shortdesc]

[properties]

Brand Cisco
Model Cisco Catalyst 9120AXI Access Point
SKU C9120AXI-B
Product Type Access Point
Series Cisco Catalyst 9120AX Series
Description Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain
Wireless Standard Wi-Fi 6 (802.11ax)
Antenna Type Internal antennas
MIMO 4x4:4 MIMO
Regulatory Domain B Domain
Interface 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45); Management console port (RJ-45); USB 2.0
Power 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE), 802.3af PoE
Operating Temperature 32° to 122°F (0° to 50°C)

[/properties]

[specifications]

Software Cisco Unified Wireless Network Software Release 8.9.x or later; Cisco IOS XE Software Release 16.11 with AP Device Pack, or later
Supported Controllers Cisco Catalyst 9800 Series Wireless Controllers; Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
802.11n Capabilities 4x4 MIMO with four spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz); A-MPDU and A-MSDU packet aggregation; 802.11 Dynamic Frequency Selection (DFS); Cyclic Shift Diversity (CSD) support
802.11ac Capabilities 4x4 downlink MU-MIMO with four spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, and 160-MHz channels; PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz); A-MPDU and A-MSDU packet aggregation; 802.11 DFS; CSD support
802.11ax Capabilities 4x4 downlink MU-MIMO with four spatial streams; Uplink/downlink OFDMA; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 160-MHz channels; PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz); A-MPDU and A-MSDU packet aggregation; 802.11 DFS; CSD support
Supported Technologies Cisco RF ASIC; Uplink/downlink OFDMA; MU-MIMO technology; Target wake time; BSS coloring; Intelligent Capture; Flexible Radio Assignment; Dual 5-GHz radio support; Multigigabit Ethernet support; Bluetooth 5.0; Container support for applications; Apple Features
Integrated Antenna Flexible radio either on 2.4 GHz or on 5 GHz: 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth; Dedicated 5-GHz radio: 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
Interfaces 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45), IEEE 802.3bz; Management console port (RJ-45); USB 2.0
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
System Memory 2048 MB DRAM; 1024 MB flash
Input Power Requirements 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE), 802.3af PoE
Frequency Band B (B regulatory domain): 2.412 to 2.462 GHz, 11 channels; 5.180 to 5.320 GHz, 8 channels; 5.500 to 5.700 GHz, 11 channels; 5.745 to 5.865 GHz, 7 channels
Environmental Conditions Nonoperating storage temperature: -22° to 158°F (-30° to 70°C); Nonoperating storage altitude test: 25°C, 15,000 ft.; Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% noncondensing; Operating altitude test: 40°C, 9843 ft.

[/specifications]

[accesories]

Optional Power Supply Cisco power injector, AIR-PWRINJ6=; Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

[/accesories]

The Cisco Catalyst C9120AXI-B is a 9120AX Series indoor access point with internal antennas, Wi-Fi 6, 4x4:4 MIMO, and B regulatory domain support. Built for enterprise wireless networks, it combines 802.11ax performance features with Cisco RF intelligence, flexible radio operation, multigigabit uplink connectivity, and support for Cisco wireless LAN controller environments.

  • Wi-Fi 6 access point with uplink and downlink OFDMA, MU-MIMO, Target Wake Time, and BSS coloring.
  • 4x4 MIMO with four spatial streams for 802.11n, 802.11ac, and 802.11ax wireless operation.
  • Cisco RF ASIC supports advanced RF spectrum analysis, Cisco CleanAir, wIPS, and DFS detection.
  • Flexible Radio Assignment and dual 5-GHz radio support help adapt operation to the RF environment.
  • 100, 1000, and 2500 Multigigabit Ethernet uplink supports IEEE 802.3bz connectivity.
  • Indoor enterprise WLAN deployments using internal antenna access points.
  • Wi-Fi 6 refresh projects for offices, campuses, and distributed business locations.
  • High-density collaboration, all-wireless office, video, and IoT client environments.
  • Cisco controller-based wireless networks using supported Catalyst and AireOS platforms.
  • SKU: C9120AXI-B
  • Product Type: Cisco Catalyst 9120AX Series Wi-Fi 6 access point
  • Antenna Design: Internal antennas, omnidirectional in azimuth
  • Regulatory Domain: B regulatory domain
  • Wireless Standard: IEEE 802.11ax, also supports 802.11n and 802.11ac capabilities
  • MIMO: 4x4 MIMO with four spatial streams
  • PHY Data Rate: Up to 5.38 Gbps with 802.11ax using 160 MHz at 5 GHz and 20 MHz at 2.4 GHz
  • Interfaces: 1x 100/1000/2500 Multigigabit Ethernet RJ-45, management console RJ-45, USB 2.0
  • Power: 802.3at PoE+, 802.3bt Cisco UPOE+/UPOE, and 802.3af PoE support
  • System Memory: 2048 MB DRAM and 1024 MB flash

Add the Cisco Catalyst C9120AXI-B to your enterprise WLAN procurement plan for indoor Wi-Fi 6 access with internal antennas, 4x4:4 MIMO, multigigabit Ethernet, and Cisco Catalyst wireless platform support.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]Wi-Fi 6, internal antennas, 4x4:4 MIMO, B regulatory domain, 2.5G Multigigabit Ethernet, Bluetooth Low Energy 5[/shortdesc]

[properties]

Brand Cisco
Model Cisco Catalyst 9120AXI Access Point
SKU C9120AXI-B
Product Type Access Point
Series Cisco Catalyst 9120AX Series
Description Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain
Wireless Standard Wi-Fi 6 (802.11ax)
Antenna Type Internal antennas
MIMO 4x4:4 MIMO
Regulatory Domain B Domain
Interface 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45); Management console port (RJ-45); USB 2.0
Power 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE), 802.3af PoE
Operating Temperature 32° to 122°F (0° to 50°C)

[/properties]

[specifications]

Software Cisco Unified Wireless Network Software Release 8.9.x or later; Cisco IOS XE Software Release 16.11 with AP Device Pack, or later
Supported Controllers Cisco Catalyst 9800 Series Wireless Controllers; Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
802.11n Capabilities 4x4 MIMO with four spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz); A-MPDU and A-MSDU packet aggregation; 802.11 Dynamic Frequency Selection (DFS); Cyclic Shift Diversity (CSD) support
802.11ac Capabilities 4x4 downlink MU-MIMO with four spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, and 160-MHz channels; PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz); A-MPDU and A-MSDU packet aggregation; 802.11 DFS; CSD support
802.11ax Capabilities 4x4 downlink MU-MIMO with four spatial streams; Uplink/downlink OFDMA; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 160-MHz channels; PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz); A-MPDU and A-MSDU packet aggregation; 802.11 DFS; CSD support
Supported Technologies Cisco RF ASIC; Uplink/downlink OFDMA; MU-MIMO technology; Target wake time; BSS coloring; Intelligent Capture; Flexible Radio Assignment; Dual 5-GHz radio support; Multigigabit Ethernet support; Bluetooth 5.0; Container support for applications; Apple Features
Integrated Antenna Flexible radio either on 2.4 GHz or on 5 GHz: 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth; Dedicated 5-GHz radio: 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
Interfaces 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45), IEEE 802.3bz; Management console port (RJ-45); USB 2.0
Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
System Memory 2048 MB DRAM; 1024 MB flash
Input Power Requirements 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE), 802.3af PoE
Frequency Band B (B regulatory domain): 2.412 to 2.462 GHz, 11 channels; 5.180 to 5.320 GHz, 8 channels; 5.500 to 5.700 GHz, 11 channels; 5.745 to 5.865 GHz, 7 channels
Environmental Conditions Nonoperating storage temperature: -22° to 158°F (-30° to 70°C); Nonoperating storage altitude test: 25°C, 15,000 ft.; Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% noncondensing; Operating altitude test: 40°C, 9843 ft.

[/specifications]

[accesories]

Optional Power Supply Cisco power injector, AIR-PWRINJ6=; Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

[/accesories]

Enterprise Wi-Fi 6 Access for Cisco Catalyst WLANs

The Cisco Catalyst C9120AXI-B is a 9120AX Series indoor access point with internal antennas, Wi-Fi 6, 4x4:4 MIMO, and B regulatory domain support. Built for enterprise wireless networks, it combines 802.11ax performance features with Cisco RF intelligence, flexible radio operation, multigigabit uplink connectivity, and support for Cisco wireless LAN controller environments.

Key Benefits and Features
  • Wi-Fi 6 access point with uplink and downlink OFDMA, MU-MIMO, Target Wake Time, and BSS coloring.
  • 4x4 MIMO with four spatial streams for 802.11n, 802.11ac, and 802.11ax wireless operation.
  • Cisco RF ASIC supports advanced RF spectrum analysis, Cisco CleanAir, wIPS, and DFS detection.
  • Flexible Radio Assignment and dual 5-GHz radio support help adapt operation to the RF environment.
  • 100, 1000, and 2500 Multigigabit Ethernet uplink supports IEEE 802.3bz connectivity.
Ideal Use Cases
  • Indoor enterprise WLAN deployments using internal antenna access points.
  • Wi-Fi 6 refresh projects for offices, campuses, and distributed business locations.
  • High-density collaboration, all-wireless office, video, and IoT client environments.
  • Cisco controller-based wireless networks using supported Catalyst and AireOS platforms.
Technical Specifications
  • SKU: C9120AXI-B
  • Product Type: Cisco Catalyst 9120AX Series Wi-Fi 6 access point
  • Antenna Design: Internal antennas, omnidirectional in azimuth
  • Regulatory Domain: B regulatory domain
  • Wireless Standard: IEEE 802.11ax, also supports 802.11n and 802.11ac capabilities
  • MIMO: 4x4 MIMO with four spatial streams
  • PHY Data Rate: Up to 5.38 Gbps with 802.11ax using 160 MHz at 5 GHz and 20 MHz at 2.4 GHz
  • Interfaces: 1x 100/1000/2500 Multigigabit Ethernet RJ-45, management console RJ-45, USB 2.0
  • Power: 802.3at PoE+, 802.3bt Cisco UPOE+/UPOE, and 802.3af PoE support
  • System Memory: 2048 MB DRAM and 1024 MB flash
Deploy Cisco Wi-Fi 6 with the C9120AXI-B

Add the Cisco Catalyst C9120AXI-B to your enterprise WLAN procurement plan for indoor Wi-Fi 6 access with internal antennas, 4x4:4 MIMO, multigigabit Ethernet, and Cisco Catalyst wireless platform support.
