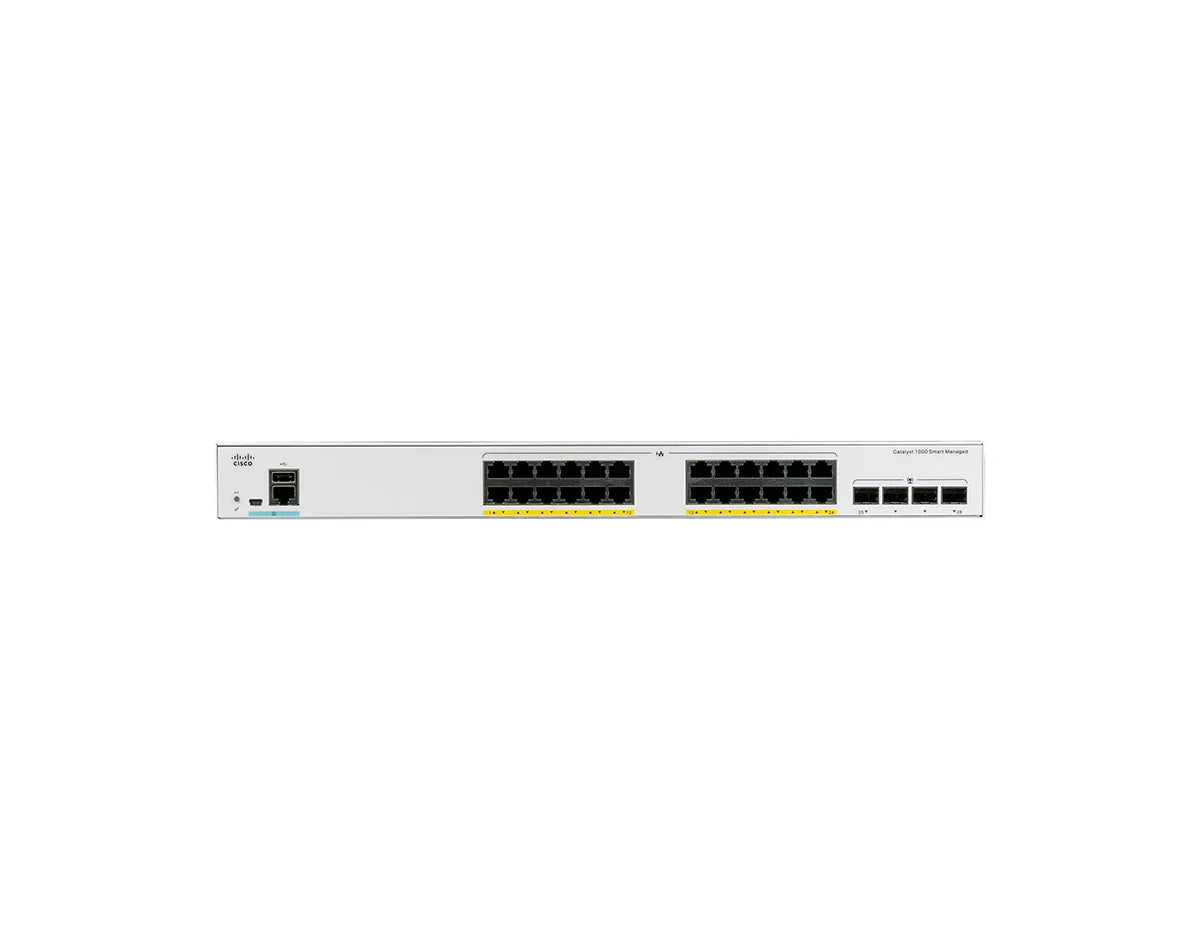

Cisco C1000FE-24P-4G-L Switch
Cisco C1000FE-24P-4G-L Switch

Cisco C1000FE-24P-4G-L Switch

por Cisco
Desconto de 73%
R$ 25.859,40
R$ 7.008,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Managed, rack-mountable, 24 x 10/100 Fast Ethernet PoE+ ports, 2 x 1G SFP and RJ-45 combo uplinks + 2 x 1G SFP uplinks, PoE+ (195W), Layer 2

[/shortdesc] [properties]

Properties C1000FE-24P-4G-L
Description 24x 10/100 Ethernet PoE+ ports and 195W PoE budget, 2x 1G SFP and RJ-45 combo uplinks and 2x 1G SFP uplinks
Product Family Catalyst 1000
Product Type Ethernet Switch
Number of Ports 24
Uplink Interfaces 2 SFP / RJ-45 combo
and 2 SFP
Available PoE power 195W
Fanless Yes
Width 17.48"
Depth 13.78"
Height 1.73"

[/properties] [specifications]

Specifications C1000FE-24P-4G-L
Console Ports 1x RJ-45 Ethernet
1x USB mini-B
1x USB-A port for storage and Bluetooth console
CPU ARM v7 800 MHz
DRAM 512 MB
Flash Memory 256 MB
Forwarding Bandwidth FE: 6.4 Gbps
1G: 28 Gbps
10G: 64 Gbps
Switching Bandwidth FE: 12.8 Gbps
1G: 56 Gbps
10G: 128 Gbps
MAC addresses 16000
Maximum Active VLANs 256
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 45 deg C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 40 deg C
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
EMC: emissions 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. Government certifications USGv6 and IPv6 Ready Logo
Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Telnet - SSH Yes
TACACS, TACACS+, Radius Yes

[/specifications] [accesories]

Part Number Description
CAB-CONSOLE-RJ45 Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB Console Cable 6 Feet with USB Type A and mini-B Connectors
PWR-CLP Power Cable Restraining Clip
RCKMNT-1RU-2KX Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/etsi)

[/accesories]

The Cisco C1000FE-24P-4G-L is a reliable, feature-rich Fast Ethernet switch designed for small and medium-sized businesses. With 24 PoE+ ports and a total power budget of 195W, this switch can seamlessly power IP devices such as phones, cameras, and wireless access points. It also features four Gigabit Ethernet uplinks (2 x 1G SFP and RJ-45 combo, 2 x 1G SFP), ensuring flexible and scalable network expansion.

Key Features:

  • 24 x Fast Ethernet PoE+ Ports: Supports high-speed connections for devices like IP phones, cameras, and access points.
  • 4 x Gigabit Uplinks: Provides flexible and scalable uplink connectivity to ensure efficient data transmission.
  • 195W PoE+ Power Budget: Supplies up to 30W per port, ideal for powering various PoE-enabled devices.
  • Energy-Efficient Design: Complies with IEEE 802.3az standards for reduced power consumption during idle periods.
  • Compact and Fanless: Operates silently, making it ideal for noise-sensitive office environments.

Technical Overview:

  • Recommended for: Small and medium-sized businesses, branch offices, and retail environments.
  • Ports: 24 x 10/100 Mbps Fast Ethernet PoE+ ports, 4 x 1G uplinks (2 x SFP and RJ-45 combo + 2 x SFP).
  • PoE Budget: 195W across 24 PoE+ ports.
  • Switching Capacity: 12.8 Gbps (FE) / 56 Gbps (1G context).
  • Forwarding Rate: 9.52 Mpps (FE) / 41.67 Mpps (1G context).
  • Energy Efficiency: Meets IEEE 802.3az standards for energy-saving operation.

You can check the related tab for the C1000FE-24P-4G-L datasheet.
