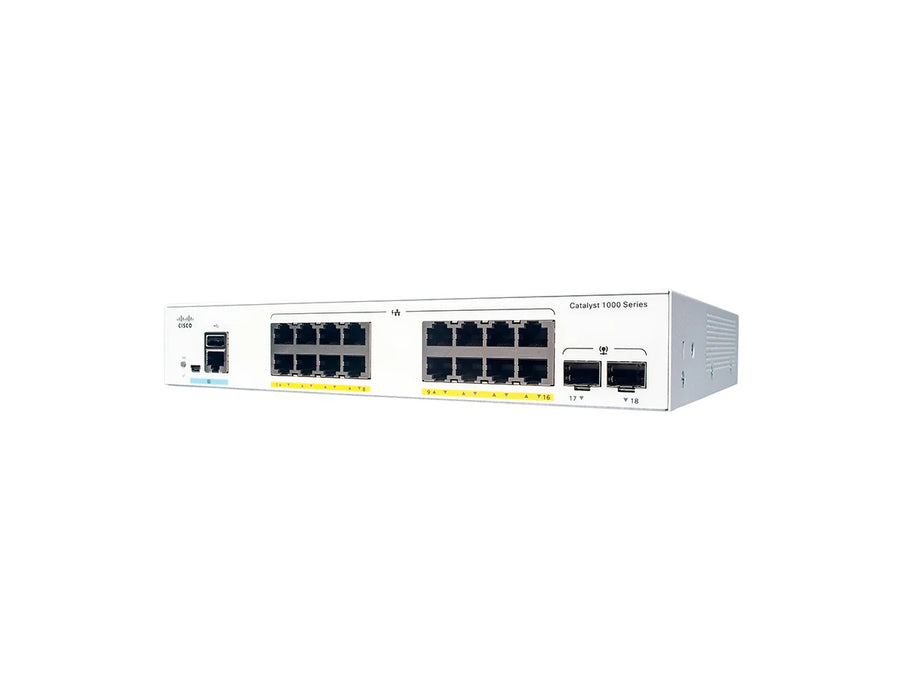

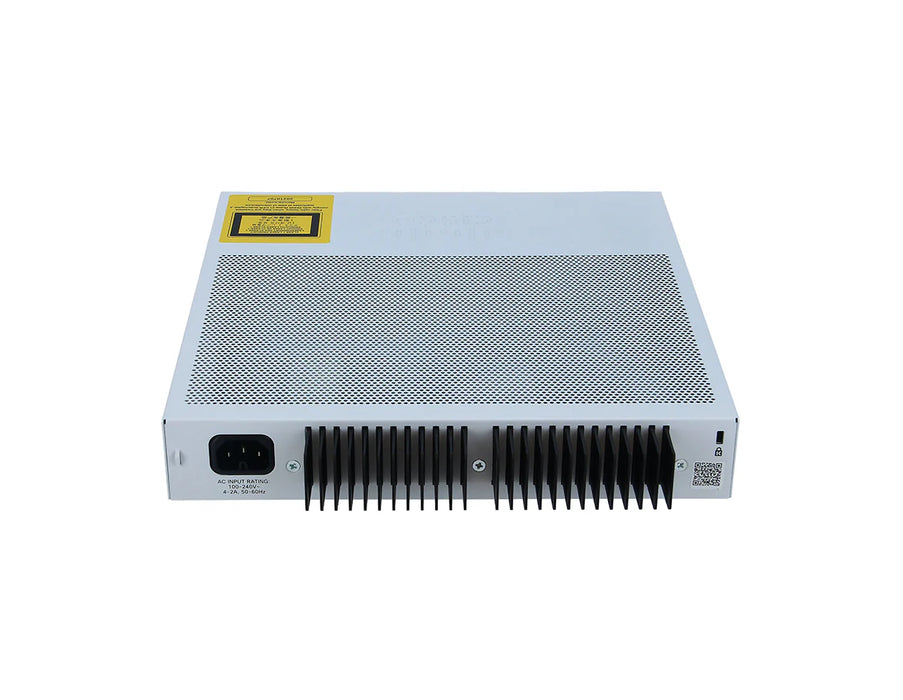

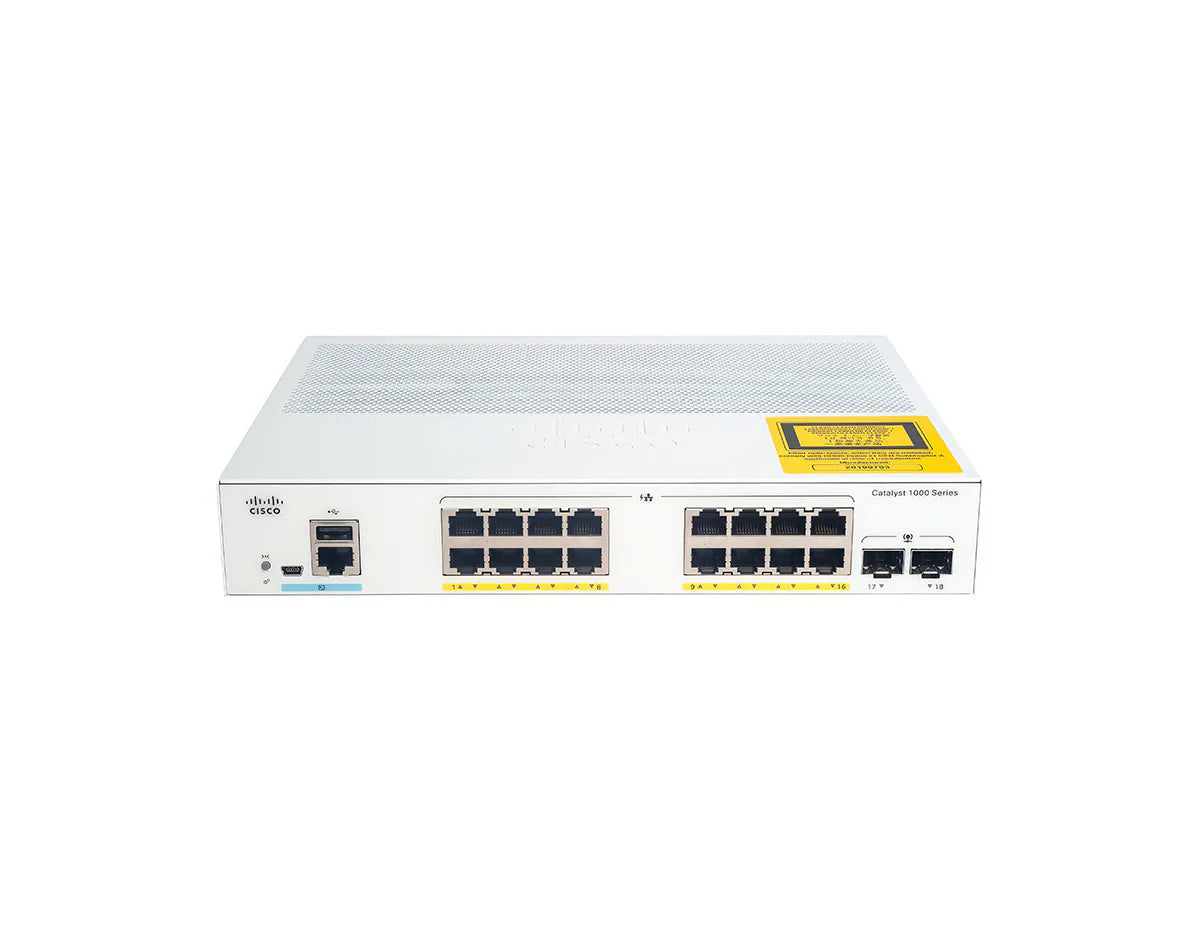

Cisco C1000-16FP-2G-L Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C1000-16FP-2G-L Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco C1000-16FP-2G-L Switch
Cisco C1000-16FP-2G-L Switch

Cisco C1000-16FP-2G-L Switch

por Cisco
Desconto de 65%
R$ 30.841,08
R$ 10.740,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Switch, managed, 16x 10/100/1000 Ethernet PoE+ ports and 240W PoE budget, 2x 1G SFP uplinks

[/shortdesc]

[properties]

Properties C1000-16FP-2G-L
Description 16x 10/100/1000 Ethernet PoE+ ports and 240W PoE budget, 2x 1G SFP uplinks
Product Family Catalyst 1000
Product Type Ethernet Switch
Number of Ports 16
Uplink Interfaces 2 SFP
Available PoE power 240W
Fanless Yes
Width 10.56"
Depth 12.14"
Height 1.73"

[/properties]

[specifications]

Specifications C1000-16FP-2G-L
Console Ports 1x RJ-45 Ethernet
1x USB mini-B
1x USB-A port for storage and Bluetooth console
CPU ARM v7 800 MHz
DRAM 512 MB
Flash Memory 256 MB
Forwarding Bandwidth 18 Gbps
Switching Bandwidth 36 Gbps
Forwarding Rate (64-byte L3 packets) 26.78 Mpps
MAC addresses 16000
Maximum Active VLANs 256
Operating Temperature
Sea level		 -5 to 50 deg C*
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 45 deg C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 40 deg C
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011
EMC: emissions 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. Government certifications TBD
Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Telnet - SSH Yes
TACACS, TACACS+, Radius Yes

*50 °C operation supported for short-term operation only; certain optics not supported at 50 °C.

[/specifications]

[accesories]

Part Number Description
CAB-CONSOLE-RJ45 Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB Console Cable 6 Feet with USB Type A and mini-B Connectors
PWR-CLP Power Cable Restraining Clip
RCKMNT-19-CMPCT 19Rack Mount bracket for C1000, 3560-CX and 2960CX
RCKMNT-23-CMPCT 23and 24Rack Mount bracket for C1000, 3560-CX and 2960-CX

[/accesories]

The Cisco Catalyst C1000-16FP-2G-L Switch is a versatile and high-performance network solution designed for small businesses and branch offices. Featuring 16 Gigabit Ethernet PoE+ ports and 2 SFP uplinks, this switch provides robust connectivity and supports a 240W PoE budget, making it ideal for powering devices such as IP phones, cameras, and wireless access points. The C1000-16FP-2G-L ensures reliable operation with a fanless design, making it suitable for noise-sensitive environments while offering advanced security features to safeguard your network infrastructure.

Key Features:

  • 16 x Gigabit Ethernet PoE+ Ports: Delivers power and data connectivity for PoE-enabled devices, supporting a 240W PoE budget.
  • 2 x SFP Uplinks: Offers flexible uplink options for connecting to other switches or network devices, ensuring network scalability.
  • Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
  • Fanless Design: Ensures silent operation, making it ideal for office or noise-sensitive environments.
  • Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.

Technical Overview:

  • Recommended for: Small businesses, branch offices, and environments requiring reliable PoE networking solutions.
  • Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports with 2 SFP uplinks.
  • PoE Budget: 240W.
  • Switching Capacity: 36 Gbps.
  • Forwarding Rate: 26.78 Mpps.
  • Management: Web-based GUI and CLI for simplified network management.
  • Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
  • Energy Efficiency: Fanless design ensures efficient and quiet operation.

You can check the related tab for the C1000-16FP-2G-L datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Switch, managed, 16x 10/100/1000 Ethernet PoE+ ports and 240W PoE budget, 2x 1G SFP uplinks

[/shortdesc]

[properties]

Properties C1000-16FP-2G-L
Description 16x 10/100/1000 Ethernet PoE+ ports and 240W PoE budget, 2x 1G SFP uplinks
Product Family Catalyst 1000
Product Type Ethernet Switch
Number of Ports 16
Uplink Interfaces 2 SFP
Available PoE power 240W
Fanless Yes
Width 10.56"
Depth 12.14"
Height 1.73"

[/properties]

[specifications]

Specifications C1000-16FP-2G-L
Console Ports 1x RJ-45 Ethernet
1x USB mini-B
1x USB-A port for storage and Bluetooth console
CPU ARM v7 800 MHz
DRAM 512 MB
Flash Memory 256 MB
Forwarding Bandwidth 18 Gbps
Switching Bandwidth 36 Gbps
Forwarding Rate (64-byte L3 packets) 26.78 Mpps
MAC addresses 16000
Maximum Active VLANs 256
Operating Temperature
Sea level		 -5 to 50 deg C*
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 45 deg C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 40 deg C
Safety UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011
EMC: emissions 47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: immunity EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco Common Language Equipment Identifier (CLEI) code
U.S. Government certifications TBD
Ethernet interfaces 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Telnet - SSH Yes
TACACS, TACACS+, Radius Yes

*50 °C operation supported for short-term operation only; certain optics not supported at 50 °C.

[/specifications]

[accesories]

Part Number Description
CAB-CONSOLE-RJ45 Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB Console Cable 6 Feet with USB Type A and mini-B Connectors
PWR-CLP Power Cable Restraining Clip
RCKMNT-19-CMPCT 19Rack Mount bracket for C1000, 3560-CX and 2960CX
RCKMNT-23-CMPCT 23and 24Rack Mount bracket for C1000, 3560-CX and 2960-CX

[/accesories]

Cisco Catalyst C1000-16FP-2G-L Switch

The Cisco Catalyst C1000-16FP-2G-L Switch is a versatile and high-performance network solution designed for small businesses and branch offices. Featuring 16 Gigabit Ethernet PoE+ ports and 2 SFP uplinks, this switch provides robust connectivity and supports a 240W PoE budget, making it ideal for powering devices such as IP phones, cameras, and wireless access points. The C1000-16FP-2G-L ensures reliable operation with a fanless design, making it suitable for noise-sensitive environments while offering advanced security features to safeguard your network infrastructure.

Key Features:

  • 16 x Gigabit Ethernet PoE+ Ports: Delivers power and data connectivity for PoE-enabled devices, supporting a 240W PoE budget.
  • 2 x SFP Uplinks: Offers flexible uplink options for connecting to other switches or network devices, ensuring network scalability.
  • Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
  • Fanless Design: Ensures silent operation, making it ideal for office or noise-sensitive environments.
  • Enhanced Security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.

Technical Overview:

  • Recommended for: Small businesses, branch offices, and environments requiring reliable PoE networking solutions.
  • Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports with 2 SFP uplinks.
  • PoE Budget: 240W.
  • Switching Capacity: 36 Gbps.
  • Forwarding Rate: 26.78 Mpps.
  • Management: Web-based GUI and CLI for simplified network management.
  • Security: Includes 802.1X, BPDU Guard, and SPAN for comprehensive security and monitoring.
  • Energy Efficiency: Fanless design ensures efficient and quiet operation.

You can check the related tab for the C1000-16FP-2G-L datasheet.
