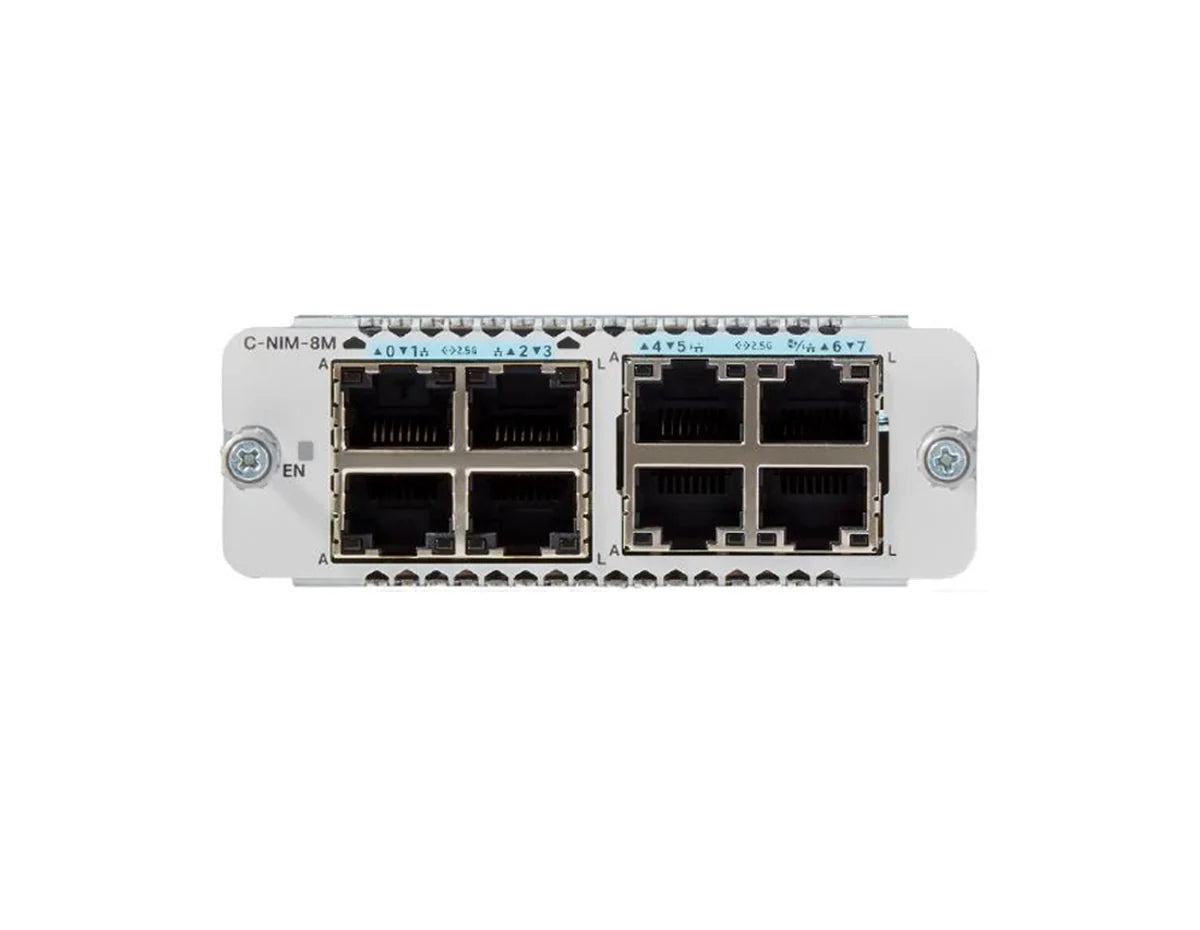

Cisco C-NIM-8M 8-Port 2.5G Multigigabit LAN/WAN NIM Module
Cisco C-NIM-8M 8-Port 2.5G Multigigabit LAN/WAN NIM Module

Cisco C-NIM-8M 8-Port 2.5G Multigigabit LAN/WAN NIM Module

por Cisco
Desconto de 45%
R$ 55.460,16
R$ 30.504,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 8× 2.5G RJ-45 mGig ports, 90W UPOE+ (802.3bt), MACsec L2/L3 encryption, TrustSec SGT, SD-WAN ready for Catalyst 8000 [/shortdesc]

[properties]

Model C-NIM-8M
Product Type 8-Port 100M/1G/2.5G LAN/WAN Network Interface Module
Supported Speeds 100 Mbps / 1 Gbps / 2.5 Gbps (mGig)
Port Interface 8 × RJ-45 Multigigabit (Note: No 10 Mbps support)
PoE Support UPOE+ (802.3bt) up to 90W on Ports 4, 5, 6, 7
MACsec Support IEEE 802.1AE (LAN MACsec + WAN MACsec on L3 ports)
Layer 3 Flex Ports Ports 6 and 7 configurable as Native Layer 3 WAN
Catalyst Platform Support Catalyst 8200 / 8300 Series and 8200L
Minimum IOS XE Version Release 17.12.2
Backplane Connection 10G Internal Link
Dimensions (H × W × D) 1.25 × 3.50 × 7.24 in (32 × 89 × 184 mm)
Weight 10.7 oz (300 g)
Operating Temperature 23°F to 131°F (–5°C to 55°C)
Storage Temperature –38°F to 150°F (–40°C to 70°C)
Relative Humidity 5%–95%
Operating Humidity 5%–85%

[/properties]

[specifications]

Port Configuration 8 × RJ-45 2.5GBASE-T LAN/WAN (Multigigabit)
Power Over Ethernet Up to 360W Total Power; 4 × 90W UPOE+ Ports (Ports 4-7)
PoE Standards IEEE 802.3af (PoE), 802.3at (PoE+), 802.3bt (UPOE+)
Encryption & Security 128/256-bit MACsec; Tag-in-Clear (WAN); Cisco TrustSec SGT Inline Tagging
Layer 2 Features 802.1Q Trunking; 802.1D STP; Auto-MDIX; IGMP Snooping; Voice VLAN; VTP
Access Control IEEE 802.1X; CoA; Posture Validation; Port Security (Up to 100 MACs)
QoS 8 Queues per port; Shaped Deficit Weighted Round Robin (SDWRR)
Routing Features Dual-mode L3 Flex Ports (6 & 7) with full Catalyst 8000 WAN parity
SD-WAN Compatibility Supported on Cisco Catalyst SD-WAN Manager (vManage) 20.12+
Installation Online Insertion (OIR) supported; Removal requires power off
LED Status Indicators EN (Enable), L (Link), A (Activity); Specific Fault LEDs for PoE ports

[/specifications]

The Cisco C-NIM-8M is a high-performance Network Interface Module designed to elevate the capabilities of Cisco Catalyst 8300 and 8200 Series Edge Platforms. Engineered for modern, high-bandwidth branch environments, this module integrates switching and routing into a single unit, offering eight Multigigabit (mGig) ports capable of speeds up to 2.5 Gbps.

This module is essential for branches deploying Wi-Fi 6/6E access points, cellular gateways, and high-performance endpoints that require robust power and speed. With integrated UPOE+ (802.3bt), it delivers up to 90W of power per port on four designated ports, eliminating the need for external power injectors.

  • 2.5G Multigigabit Connectivity: Future-proof your branch with 8 ports supporting 100M/1G/2.5G speeds, optimizing performance for high-speed uplinks and local devices. (Note: 10M connections are not supported).
  • 90W UPOE+ Power Delivery: Ports 4, 5, 6, and 7 are compliant with IEEE 802.3bt, providing up to 360W total power to support power-hungry IoT devices and advanced Access Points.
  • Flexible WAN/LAN Architecture: The two highest-numbered ports (6 and 7) are "Flex Ports" that can be toggled to native Layer 3 WAN mode, offering full feature parity with onboard Catalyst 8000 WAN ports.
  • Enterprise-Grade Security: Features full IEEE 802.1AE MACsec encryption (128-bit and 256-bit) for LAN, and WAN MACsec with Tag-in-Clear support on Layer 3 ports, ensuring data integrity across the network. Includes Cisco TrustSec SGT support.
  • Seamless SD-WAN Integration: Fully compatible with Cisco Catalyst SD-WAN Manager (vManage release 20.12 and later) for centralized orchestration and automated policy management.
  • High-Density Branch Offices: Consolidate switching and routing in a single chassis to reduce Total Cost of Ownership (TCO) and simplify management.
  • Wi-Fi 6 Infrastructure: Utilize 2.5G mGig ports to prevent bottlenecks when connecting next-gen Wireless Access Points.
  • Secure Edge Networking: Implement end-to-end segmentation and encryption using MACsec and TrustSec Security Group Tagging (SGT).
  • Hybrid WAN Access: Leverage the L3 Flex ports to terminate high-speed Ethernet WAN links directly into the module.
  • Interface: 8 × 100/1000/2500 BASE-T RJ-45
  • PoE Capability: 802.3af/at/bt (Up to 90W on 4 ports)
  • Supported Platforms: Catalyst 8200, 8200L, 8300 Series
  • Switching: Line-rate Layer 2 switching; Auto-MDIX; 802.1Q Trunking
  • Physical Specs: 1.25" H × 3.5" W × 7.24" D; 10.7 oz (300 g)
  • Compliance: NEBS (GR-1089) for intrabuilding cabling

Equip your Catalyst Edge Platform with the speed and power required for tomorrow's applications. The Cisco C-NIM-8M offers the perfect blend of mGig performance, UPOE+ power, and SD-WAN flexibility.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 8× 2.5G RJ-45 mGig ports, 90W UPOE+ (802.3bt), MACsec L2/L3 encryption, TrustSec SGT, SD-WAN ready for Catalyst 8000 [/shortdesc]

[properties]

Model C-NIM-8M
Product Type 8-Port 100M/1G/2.5G LAN/WAN Network Interface Module
Supported Speeds 100 Mbps / 1 Gbps / 2.5 Gbps (mGig)
Port Interface 8 × RJ-45 Multigigabit (Note: No 10 Mbps support)
PoE Support UPOE+ (802.3bt) up to 90W on Ports 4, 5, 6, 7
MACsec Support IEEE 802.1AE (LAN MACsec + WAN MACsec on L3 ports)
Layer 3 Flex Ports Ports 6 and 7 configurable as Native Layer 3 WAN
Catalyst Platform Support Catalyst 8200 / 8300 Series and 8200L
Minimum IOS XE Version Release 17.12.2
Backplane Connection 10G Internal Link
Dimensions (H × W × D) 1.25 × 3.50 × 7.24 in (32 × 89 × 184 mm)
Weight 10.7 oz (300 g)
Operating Temperature 23°F to 131°F (–5°C to 55°C)
Storage Temperature –38°F to 150°F (–40°C to 70°C)
Relative Humidity 5%–95%
Operating Humidity 5%–85%

[/properties]

[specifications]

Port Configuration 8 × RJ-45 2.5GBASE-T LAN/WAN (Multigigabit)
Power Over Ethernet Up to 360W Total Power; 4 × 90W UPOE+ Ports (Ports 4-7)
PoE Standards IEEE 802.3af (PoE), 802.3at (PoE+), 802.3bt (UPOE+)
Encryption & Security 128/256-bit MACsec; Tag-in-Clear (WAN); Cisco TrustSec SGT Inline Tagging
Layer 2 Features 802.1Q Trunking; 802.1D STP; Auto-MDIX; IGMP Snooping; Voice VLAN; VTP
Access Control IEEE 802.1X; CoA; Posture Validation; Port Security (Up to 100 MACs)
QoS 8 Queues per port; Shaped Deficit Weighted Round Robin (SDWRR)
Routing Features Dual-mode L3 Flex Ports (6 & 7) with full Catalyst 8000 WAN parity
SD-WAN Compatibility Supported on Cisco Catalyst SD-WAN Manager (vManage) 20.12+
Installation Online Insertion (OIR) supported; Removal requires power off
LED Status Indicators EN (Enable), L (Link), A (Activity); Specific Fault LEDs for PoE ports

[/specifications]

High-Speed Multigigabit Module for Catalyst 8000 Edge Platforms

The Cisco C-NIM-8M is a high-performance Network Interface Module designed to elevate the capabilities of Cisco Catalyst 8300 and 8200 Series Edge Platforms. Engineered for modern, high-bandwidth branch environments, this module integrates switching and routing into a single unit, offering eight Multigigabit (mGig) ports capable of speeds up to 2.5 Gbps.

This module is essential for branches deploying Wi-Fi 6/6E access points, cellular gateways, and high-performance endpoints that require robust power and speed. With integrated UPOE+ (802.3bt), it delivers up to 90W of power per port on four designated ports, eliminating the need for external power injectors.

Key Features and Strategic Advantages
  • 2.5G Multigigabit Connectivity: Future-proof your branch with 8 ports supporting 100M/1G/2.5G speeds, optimizing performance for high-speed uplinks and local devices. (Note: 10M connections are not supported).
  • 90W UPOE+ Power Delivery: Ports 4, 5, 6, and 7 are compliant with IEEE 802.3bt, providing up to 360W total power to support power-hungry IoT devices and advanced Access Points.
  • Flexible WAN/LAN Architecture: The two highest-numbered ports (6 and 7) are "Flex Ports" that can be toggled to native Layer 3 WAN mode, offering full feature parity with onboard Catalyst 8000 WAN ports.
  • Enterprise-Grade Security: Features full IEEE 802.1AE MACsec encryption (128-bit and 256-bit) for LAN, and WAN MACsec with Tag-in-Clear support on Layer 3 ports, ensuring data integrity across the network. Includes Cisco TrustSec SGT support.
  • Seamless SD-WAN Integration: Fully compatible with Cisco Catalyst SD-WAN Manager (vManage release 20.12 and later) for centralized orchestration and automated policy management.
Deployment Scenarios
  • High-Density Branch Offices: Consolidate switching and routing in a single chassis to reduce Total Cost of Ownership (TCO) and simplify management.
  • Wi-Fi 6 Infrastructure: Utilize 2.5G mGig ports to prevent bottlenecks when connecting next-gen Wireless Access Points.
  • Secure Edge Networking: Implement end-to-end segmentation and encryption using MACsec and TrustSec Security Group Tagging (SGT).
  • Hybrid WAN Access: Leverage the L3 Flex ports to terminate high-speed Ethernet WAN links directly into the module.
Technical Specifications Overview
  • Interface: 8 × 100/1000/2500 BASE-T RJ-45
  • PoE Capability: 802.3af/at/bt (Up to 90W on 4 ports)
  • Supported Platforms: Catalyst 8200, 8200L, 8300 Series
  • Switching: Line-rate Layer 2 switching; Auto-MDIX; 802.1Q Trunking
  • Physical Specs: 1.25" H × 3.5" W × 7.24" D; 10.7 oz (300 g)
  • Compliance: NEBS (GR-1089) for intrabuilding cabling
Upgrade Your Network Infrastructure

Equip your Catalyst Edge Platform with the speed and power required for tomorrow's applications. The Cisco C-NIM-8M offers the perfect blend of mGig performance, UPOE+ power, and SD-WAN flexibility.
