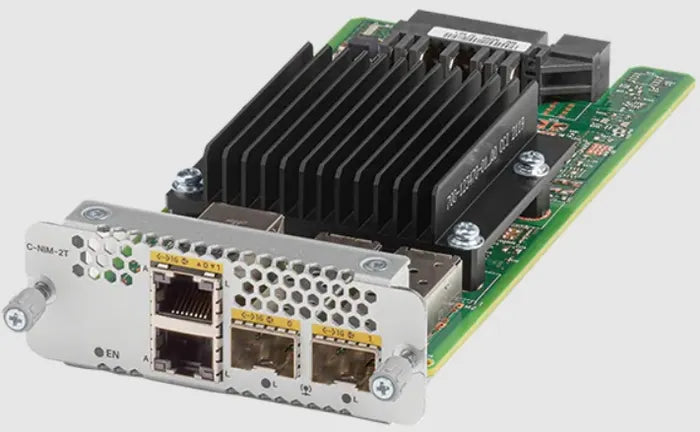

Cisco C-NIM-2T Network Interface Module 2-Port 1G WAN with MACsec
Cisco C-NIM-2T Network Interface Module 2-Port 1G WAN with MACsec

Cisco C-NIM-2T Network Interface Module 2-Port 1G WAN with MACsec

por Cisco
Desconto de 56%
R$ 35.767,80
R$ 15.900,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Cisco C-NIM-2T is a dual-port WAN module featuring combo RJ-45 and SFP ports with 1G and 100 Mbps support, MACsec encryption, and compatibility with Catalyst 8300 and 8200 routers

[/shortdesc]

[properties]

Brand Cisco
Model C-NIM-2T
Product Type 2-port 100-Mbps/1-Gbps dual-mode GE/SFP Network Interface Module
Series Cisco Catalyst 8000 Gigabit Ethernet WAN Modules
Form Factor NIM
Port Count 2-port
Interface 2x RJ-45/SFP groups
Speed 100 Mbps / 1 Gbps
PoE Support No
Dimensions 1.25 x 3.50 x 7.24 in. (32 x 89 x 184 mm)
Weight 360 grams
Operating Temperature 32° to 104°F (0° to 40°C)

[/properties]

[specifications]

Description Cisco 2-port 100-Mbps/1-Gbps WAN NIM with 256-bit WAN MACsec
WAN Connection 100/1000 BASE-T; 1000BASE-X SFP
Connection Media 2x RJ-45/SFP groups; one port from each group can be used simultaneously
RJ-45 Port Support 100BASE-TX and 1000BASE-T copper connections
SFP Port Support 100BASE-FX and 1000BASE-X fiber connections
MACsec Support 256-bit
Supported Platforms Catalyst 8200 Series, 8200L, and all 8300 Series platforms
Required Cisco IOS Version 17.6.1
Port Operation Routed Layer 3 ports
Layer 2 Switching Not supported between local ports on the module or between ports on the module and other ports within the router system
Online Insertion and Removal Online insertion only when installed directly in a NIM slot; full Online Insertion and Removal when installed in C-SM-NIM-ADPT
10G Backplane Connection to Forwarding Engine No
Storage Temperature -38° to 150°F (-40° to 70°C)
Relative Humidity 5% to 95%
Operating Humidity 5% to 85%

[/specifications]

[accesories]

Compatible Accessories SFP-GE-S; SFP-GE-L; GLC-LH-SMD; GLC-ZX-SMD; GLC-SX-MMD; GLC-EX-SMD; GLC-SX-MM; GLC-LH-SM; GLC-ZX-SM; GLC-BX-D; GLC-BX-U; GLC-BX80-D-I; GLC-BX80-U-I; GLC-BX40-D-I; GLC-BX40-U-I; GLC-BX40-DA-I; GLC-LX-SM-RGD; GLC-FE-100FX; GLC-FE-100LX; GLC-FE-100EX

[/accesories]

Cisco C-NIM-2T Network Interface Module 2-Port 1G WAN with MACsec

The Cisco C-NIM-2T is a flexible 2-port network interface module engineered to expand WAN connectivity on Cisco Catalyst 8000 Series Edge Platforms. Designed for high-security Layer 3 routing, it includes two RJ-45 copper ports and two SFP fiber ports organized into dual-port groups. Each group allows one active port at a time, providing media flexibility between copper and fiber. It supports both 100BASE-TX/1000BASE-T for RJ-45 and 100BASE-FX/1000BASE-X for SFP connections. With integrated 256-bit WAN MACsec encryption, the module secures data across public and private WAN links. It supports SD-WAN and Cisco vManage integration from day one, and offers online insertion capability for simplified installation and maintenance.

  • Dual Combo Port Design: Two port groups each containing one RJ-45 and one SFP port—one port active per group.
  • Flexible Media Support: Copper ports support 100/1000 Mbps; SFP ports support 100/1000 Mbps over fiber.
  • Advanced Security: 256-bit WAN MACsec encryption ensures secure Layer 3 WAN communications.
  • Cloud-Ready: Compatible with Cisco SD-WAN and vManage for cloud-based provisioning and monitoring.
  • Platform Support: Works with Catalyst 8200, 8200L, and all Catalyst 8300 Series platforms.
  • Hot Insertable: Supports online insertion when directly installed in a router NIM slot. Full Online Insertion and Removal (OIR) requires the use of a C-SM-NIM-ADPT carrier adapter.
  • Model: C-NIM-2T
  • WAN Ports: 2 x combo (RJ-45 and SFP); one port usable per group
  • RJ-45 Support: 100BASE-TX and 1000BASE-T
  • SFP Support: 100BASE-FX and 1000BASE-X
  • MACsec Support: IEEE 802.1AE, 256-bit
  • Power over Ethernet: Not supported
  • Form Factor: NIM
  • Dimensions (H x W x D): 1.25 x 3.50 x 7.24 in (32 x 89 x 184 mm)
  • Weight: 360 g
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 70°C (-38°F to 150°F)
  • Operating Humidity: 5% to 85%
  • Relative Humidity: 5% to 95%

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Cisco C-NIM-2T is a dual-port WAN module featuring combo RJ-45 and SFP ports with 1G and 100 Mbps support, MACsec encryption, and compatibility with Catalyst 8300 and 8200 routers

[/shortdesc]

[properties]

Brand Cisco
Model C-NIM-2T
Product Type 2-port 100-Mbps/1-Gbps dual-mode GE/SFP Network Interface Module
Series Cisco Catalyst 8000 Gigabit Ethernet WAN Modules
Form Factor NIM
Port Count 2-port
Interface 2x RJ-45/SFP groups
Speed 100 Mbps / 1 Gbps
PoE Support No
Dimensions 1.25 x 3.50 x 7.24 in. (32 x 89 x 184 mm)
Weight 360 grams
Operating Temperature 32° to 104°F (0° to 40°C)

[/properties]

[specifications]

Description Cisco 2-port 100-Mbps/1-Gbps WAN NIM with 256-bit WAN MACsec
WAN Connection 100/1000 BASE-T; 1000BASE-X SFP
Connection Media 2x RJ-45/SFP groups; one port from each group can be used simultaneously
RJ-45 Port Support 100BASE-TX and 1000BASE-T copper connections
SFP Port Support 100BASE-FX and 1000BASE-X fiber connections
MACsec Support 256-bit
Supported Platforms Catalyst 8200 Series, 8200L, and all 8300 Series platforms
Required Cisco IOS Version 17.6.1
Port Operation Routed Layer 3 ports
Layer 2 Switching Not supported between local ports on the module or between ports on the module and other ports within the router system
Online Insertion and Removal Online insertion only when installed directly in a NIM slot; full Online Insertion and Removal when installed in C-SM-NIM-ADPT
10G Backplane Connection to Forwarding Engine No
Storage Temperature -38° to 150°F (-40° to 70°C)
Relative Humidity 5% to 95%
Operating Humidity 5% to 85%

[/specifications]

[accesories]

Compatible Accessories SFP-GE-S; SFP-GE-L; GLC-LH-SMD; GLC-ZX-SMD; GLC-SX-MMD; GLC-EX-SMD; GLC-SX-MM; GLC-LH-SM; GLC-ZX-SM; GLC-BX-D; GLC-BX-U; GLC-BX80-D-I; GLC-BX80-U-I; GLC-BX40-D-I; GLC-BX40-U-I; GLC-BX40-DA-I; GLC-LX-SM-RGD; GLC-FE-100FX; GLC-FE-100LX; GLC-FE-100EX

[/accesories]

Cisco C-NIM-2T Network Interface Module 2-Port 1G WAN with MACsec

The Cisco C-NIM-2T is a flexible 2-port network interface module engineered to expand WAN connectivity on Cisco Catalyst 8000 Series Edge Platforms. Designed for high-security Layer 3 routing, it includes two RJ-45 copper ports and two SFP fiber ports organized into dual-port groups. Each group allows one active port at a time, providing media flexibility between copper and fiber. It supports both 100BASE-TX/1000BASE-T for RJ-45 and 100BASE-FX/1000BASE-X for SFP connections. With integrated 256-bit WAN MACsec encryption, the module secures data across public and private WAN links. It supports SD-WAN and Cisco vManage integration from day one, and offers online insertion capability for simplified installation and maintenance.

Key Features:
  • Dual Combo Port Design: Two port groups each containing one RJ-45 and one SFP port—one port active per group.
  • Flexible Media Support: Copper ports support 100/1000 Mbps; SFP ports support 100/1000 Mbps over fiber.
  • Advanced Security: 256-bit WAN MACsec encryption ensures secure Layer 3 WAN communications.
  • Cloud-Ready: Compatible with Cisco SD-WAN and vManage for cloud-based provisioning and monitoring.
  • Platform Support: Works with Catalyst 8200, 8200L, and all Catalyst 8300 Series platforms.
  • Hot Insertable: Supports online insertion when directly installed in a router NIM slot. Full Online Insertion and Removal (OIR) requires the use of a C-SM-NIM-ADPT carrier adapter.
Technical Specifications:
  • Model: C-NIM-2T
  • WAN Ports: 2 x combo (RJ-45 and SFP); one port usable per group
  • RJ-45 Support: 100BASE-TX and 1000BASE-T
  • SFP Support: 100BASE-FX and 1000BASE-X
  • MACsec Support: IEEE 802.1AE, 256-bit
  • Power over Ethernet: Not supported
  • Form Factor: NIM
  • Dimensions (H x W x D): 1.25 x 3.50 x 7.24 in (32 x 89 x 184 mm)
  • Weight: 360 g
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 70°C (-38°F to 150°F)
  • Operating Humidity: 5% to 85%
  • Relative Humidity: 5% to 95%
