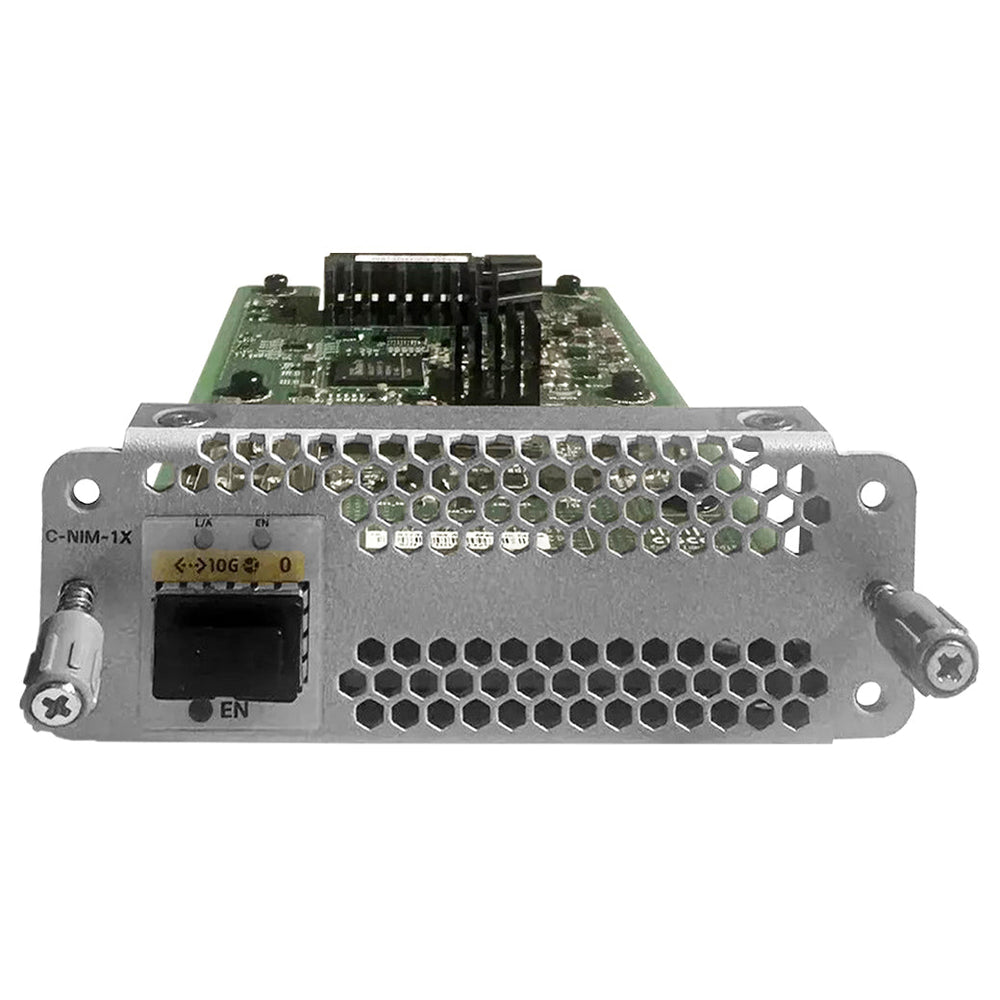

Cisco C-NIM-1X 10GbE Network Interface Module
Cisco C-NIM-1X 10GbE Network Interface Module

Cisco C-NIM-1X 10GbE Network Interface Module

por Cisco
Desconto de 62%
R$ 44.710,20
R$ 16.788,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 1x SFP/SFP+ port, 10GbE throughput, Layer 3 WAN, 256-bit MACsec, Catalyst 8300 support [/shortdesc]

[properties]

Model C-NIM-1X
Product Type Network Interface Module (Expansion Module)
Port Count 1 x 10G/1G SFP/SFP+
Supported Platforms Catalyst 8300 Series only (e.g., C8300-2N2S-4T2X, C8300-2N2S-6T, C8300-1N1S-4T2X); not supported on Catalyst 8200/8200L
Data Transfer Rate 10 Gbps (non-oversubscribed backplane)
Connection Media SFP/SFP+ fiber (no RJ-45 copper support; no 100/10BASE SFPs)
MACsec 256-bit WAN MACsec (IEEE 802.1AE)
PoE Support No
Online Insertion/Removal Online insertion only in NIM slot; full OIR when used with C-SM-NIM-ADPT
Form Factor NIM (Plug-in Module)

[/properties]

[specifications]

Supported SFP/SFP+ Modules SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-LRM, SFP-10G-BX series (BXD-I/BXU-I/BX40D-I/BX40U-I), SFP-H10GB-ACU-7M/-10M, plus multiple GE optics (SFP-GE-S, GLC-LH-SMD, GLC-SX-MMD, GLC-ZX-SMD, etc.)
Backplane Connectivity 10 Gbps link to router forwarding engine (non-oversubscribed)
LED Indicators EN (status): Green/Amber; SFP+ status: Off (none), Green (enabled), Blinking Green (active), Amber (failure)
Supported Cisco IOS Version 17.3.2 or later
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 70 °C (-38 °F to 150 °F)
Relative Humidity 5% to 95% (non-condensing)
Operating Humidity 5% to 85%

[/specifications]

[accesories]

Supported Adapter C-SM-NIM-ADPT (Service Module carrier for up to 2x NIMs; enables full OIR)
Optional SFP/SFP+ Modules SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-LRM, SFP-H10GB-ACU-7M/-10M; GE optics per Cisco supported list

[/accesories]

The Cisco C-NIM-1X Network Interface Module delivers uncompromising 10 Gigabit Ethernet WAN performance for Catalyst 8300 Series edge platforms. Designed for secure, high-speed connectivity, it supports SFP+ optics with full 256-bit MACsec encryption, ensuring data integrity across demanding enterprise and branch deployments.

  • 10GbE WAN Port: Single SFP+ interface supporting both 1GbE and 10GbE connections with non-oversubscribed backplane throughput.
  • Advanced Security: Built-in 256-bit WAN MACsec ensures encrypted and secure WAN transport.
  • Optimized for SD-WAN: Seamless compatibility with Cisco SD-WAN and vManage for simplified orchestration.
  • Flexible Deployment: Hot-insertion support allows easy scaling without disrupting network availability (full OIR with C-SM-NIM-ADPT).
  • Enterprise Reliability: Backed by Cisco Catalyst architecture with robust support for critical WAN applications.
  • Enterprises requiring secure 10GbE WAN connectivity for data-heavy workloads
  • Branch offices deploying Cisco SD-WAN edge platforms
  • Service providers expanding customer WAN services with MACsec security
  • Data centers needing reliable high-speed routed WAN uplinks
  • Interface: 1x SFP/SFP+ WAN port
  • Throughput: Supports 1Gbps and 10Gbps non-oversubscribed
  • Encryption: IEEE 802.1AE 256-bit MACsec
  • Supported Platforms: Cisco Catalyst 8300 Series
  • Compatibility: SFP+ optics including 10G-SR, 10G-LR, 10G-ER; supports multiple Gigabit SFPs
  • Form Factor: Network Interface Module (NIM)
  • Dimensions: 1.25 x 3.50 x 7.24 in (32 x 89 x 184 mm)
  • Weight: 240 g
  • Operating Temperature: 0° to 40°C (32° to 104°F)
  • Power: Consumes via router backplane, no PoE output

Upgrade your WAN with the Cisco C-NIM-1X. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 1x SFP/SFP+ port, 10GbE throughput, Layer 3 WAN, 256-bit MACsec, Catalyst 8300 support [/shortdesc]

[properties]

Model C-NIM-1X
Product Type Network Interface Module (Expansion Module)
Port Count 1 x 10G/1G SFP/SFP+
Supported Platforms Catalyst 8300 Series only (e.g., C8300-2N2S-4T2X, C8300-2N2S-6T, C8300-1N1S-4T2X); not supported on Catalyst 8200/8200L
Data Transfer Rate 10 Gbps (non-oversubscribed backplane)
Connection Media SFP/SFP+ fiber (no RJ-45 copper support; no 100/10BASE SFPs)
MACsec 256-bit WAN MACsec (IEEE 802.1AE)
PoE Support No
Online Insertion/Removal Online insertion only in NIM slot; full OIR when used with C-SM-NIM-ADPT
Form Factor NIM (Plug-in Module)

[/properties]

[specifications]

Supported SFP/SFP+ Modules SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-LRM, SFP-10G-BX series (BXD-I/BXU-I/BX40D-I/BX40U-I), SFP-H10GB-ACU-7M/-10M, plus multiple GE optics (SFP-GE-S, GLC-LH-SMD, GLC-SX-MMD, GLC-ZX-SMD, etc.)
Backplane Connectivity 10 Gbps link to router forwarding engine (non-oversubscribed)
LED Indicators EN (status): Green/Amber; SFP+ status: Off (none), Green (enabled), Blinking Green (active), Amber (failure)
Supported Cisco IOS Version 17.3.2 or later
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 70 °C (-38 °F to 150 °F)
Relative Humidity 5% to 95% (non-condensing)
Operating Humidity 5% to 85%

[/specifications]

[accesories]

Supported Adapter C-SM-NIM-ADPT (Service Module carrier for up to 2x NIMs; enables full OIR)
Optional SFP/SFP+ Modules SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-LRM, SFP-H10GB-ACU-7M/-10M; GE optics per Cisco supported list

[/accesories]

High-Performance WAN Expansion for Cisco Catalyst 8300 Platforms

The Cisco C-NIM-1X Network Interface Module delivers uncompromising 10 Gigabit Ethernet WAN performance for Catalyst 8300 Series edge platforms. Designed for secure, high-speed connectivity, it supports SFP+ optics with full 256-bit MACsec encryption, ensuring data integrity across demanding enterprise and branch deployments.

Key Benefits & Features
  • 10GbE WAN Port: Single SFP+ interface supporting both 1GbE and 10GbE connections with non-oversubscribed backplane throughput.
  • Advanced Security: Built-in 256-bit WAN MACsec ensures encrypted and secure WAN transport.
  • Optimized for SD-WAN: Seamless compatibility with Cisco SD-WAN and vManage for simplified orchestration.
  • Flexible Deployment: Hot-insertion support allows easy scaling without disrupting network availability (full OIR with C-SM-NIM-ADPT).
  • Enterprise Reliability: Backed by Cisco Catalyst architecture with robust support for critical WAN applications.
Ideal Use Cases
  • Enterprises requiring secure 10GbE WAN connectivity for data-heavy workloads
  • Branch offices deploying Cisco SD-WAN edge platforms
  • Service providers expanding customer WAN services with MACsec security
  • Data centers needing reliable high-speed routed WAN uplinks
Technical Specifications
  • Interface: 1x SFP/SFP+ WAN port
  • Throughput: Supports 1Gbps and 10Gbps non-oversubscribed
  • Encryption: IEEE 802.1AE 256-bit MACsec
  • Supported Platforms: Cisco Catalyst 8300 Series
  • Compatibility: SFP+ optics including 10G-SR, 10G-LR, 10G-ER; supports multiple Gigabit SFPs
  • Form Factor: Network Interface Module (NIM)
  • Dimensions: 1.25 x 3.50 x 7.24 in (32 x 89 x 184 mm)
  • Weight: 240 g
  • Operating Temperature: 0° to 40°C (32° to 104°F)
  • Power: Consumes via router backplane, no PoE output
Power your network with MACsec protection.

Upgrade your WAN with the Cisco C-NIM-1X. Order today.
