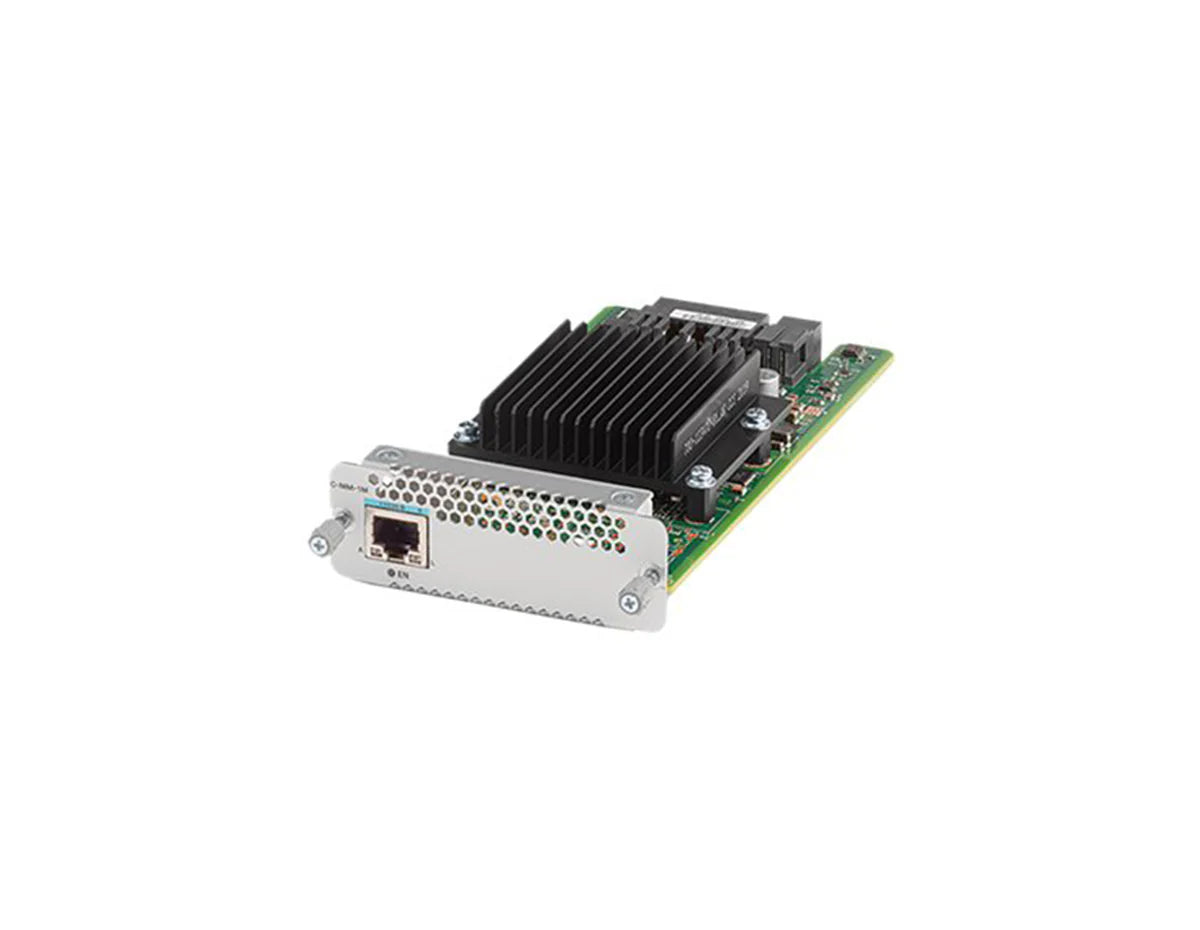

Cisco C-NIM-1M 1-Port 2.5GbE UPOE+ WAN Network Interface Module
Cisco C-NIM-1M 1-Port 2.5GbE UPOE+ WAN Network Interface Module

Cisco C-NIM-1M 1-Port 2.5GbE UPOE+ WAN Network Interface Module

por Cisco
Desconto de 53%
R$ 21.459,12
R$ 10.020,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 2.5GbE RJ-45 mGig Port, Cisco UPOE+ (90W), Layer 3 Routed WAN, IEEE 802.3bt, Catalyst 8200/8300 Compatible [/shortdesc]

[properties]

Model C-NIM-1M
Product Type 1-Port 2.5G RJ-45 WAN Network Interface Module
Supported Speed 100/1000/2500BASE-T (Multigigabit)
PoE Support Cisco UPOE+ (IEEE 802.3bt) up to 90W
Port Type 1 × RJ-45 mGig (Copper)
MACsec Not supported
Platform Compatibility Catalyst 8200, 8200L, 8300 Series
Online Insertion Online insertion only (OIR not supported in NIM slot)
Dimensions (H × W × D) 1.25 × 3.50 × 7.24 in (32 × 89 × 184 mm)
Weight 350 g (12.34 oz)
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature −38° to 150°F (−40° to 70°C)
Relative Humidity 5% to 95% (non-condensing)
Operating Humidity 5% to 85%

[/properties]

[specifications]

Ethernet Technology 2.5 Gigabit Ethernet (mGig)
Maximum Data Rate 2.5 Gbps
Media Type Twisted Pair
PoE Voltage Nominal: −54 V (Range: −53 V to −55.8 V)
Status Indicators EN (Enable), Link (L), Activity (A)
LED Behavior Link: Off/Green; PoE Fault: Amber (on Link LED); Activity: Blinking Green
Expansion Slot Type NIM (Network Interface Module)
Compliance IEEE 802.3af/at/bt
Supported Features Layer 3 routed port, SD-WAN, vManage, Cellular Gateway Powering
Software Requirement Cisco IOS XE 17.6.1 or later

[/specifications]

The Cisco C-NIM-1M is a high-efficiency 2.5-Gigabit Ethernet WAN module engineered specifically for Cisco Catalyst 8200, 8200L, and 8300 Series Edge Platforms. Designed to meet the demands of modern branch connectivity, it delivers multigigabit (mGig) bandwidth combined with integrated Cisco UPOE+ (IEEE 802.3bt). This allows the router to deliver up to 90W of power to external devices, such as cellular gateways, directly through the WAN port.

With support for 100/1000/2500BASE-T, this module enhances application throughput and provides the reliability required for high-speed SD-WAN, cloud workloads, and distributed enterprise environments. Its routed Layer 3 architecture ensures secure, isolated, and high-performance WAN access without Layer 2 switching overhead.

  • Multigigabit WAN Throughput: Native support for 100/1000/2500BASE-T ensures high-capacity WAN links for bandwidth-intensive applications.
  • Cisco UPOE+ (90W) Power: Delivers up to 90W (IEEE 802.3bt) to power external endpoints like 4G/5G cellular gateways directly from the router, eliminating the need for external power bricks.
  • Routed Layer 3 Architecture: Dedicated Layer 3 port design ensures secure, predictable routing and traffic termination (Layer 2 switching/VLANs not supported on this interface).
  • Broad Platform Compatibility: Fully supported on Catalyst 8200, 8200L, and 8300 Series routers (Requires IOS XE 17.6.1+).
  • Enterprise-Grade Reliability: Engineered for operation in 0–40°C environments with robust thermal management and carrier-grade build quality.
  • Branch locations requiring 2.5G WAN speeds for cloud application access
  • Powering and connecting Cellular Gateways (5G/LTE) via a single Ethernet cable using UPOE+
  • Cisco SD-WAN deployments utilizing Catalyst 8000 Edge Platforms
  • Enterprise edge routing requiring high-bandwidth copper connectivity
  • High-availability network expansion for distributed campuses
  • Port Configuration: 1 × RJ-45 (100/1000/2500BASE-T mGig)
  • Max Throughput: 2.5 Gbps
  • Power Over Ethernet: Cisco UPOE+ (90W), IEEE 802.3af/at/bt compliant
  • Supported Platforms: Catalyst 8200, 8200L, 8300 Series
  • Form Factor: Network Interface Module (NIM)
  • Dimensions: 1.25 × 3.50 × 7.24 in (32 × 89 × 184 mm)
  • Weight: 350 g (12.34 oz)
  • Installation: Online insertion supported; removal requires system power down (unless in SM-X adapter)
  • Power Supply: Nominal −54V (derived from host router)

Maximize your network edge with multigigabit speeds and integrated 90W power delivery. Order the Cisco C-NIM-1M Network Interface Module now.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 2.5GbE RJ-45 mGig Port, Cisco UPOE+ (90W), Layer 3 Routed WAN, IEEE 802.3bt, Catalyst 8200/8300 Compatible [/shortdesc]

[properties]

Model C-NIM-1M
Product Type 1-Port 2.5G RJ-45 WAN Network Interface Module
Supported Speed 100/1000/2500BASE-T (Multigigabit)
PoE Support Cisco UPOE+ (IEEE 802.3bt) up to 90W
Port Type 1 × RJ-45 mGig (Copper)
MACsec Not supported
Platform Compatibility Catalyst 8200, 8200L, 8300 Series
Online Insertion Online insertion only (OIR not supported in NIM slot)
Dimensions (H × W × D) 1.25 × 3.50 × 7.24 in (32 × 89 × 184 mm)
Weight 350 g (12.34 oz)
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature −38° to 150°F (−40° to 70°C)
Relative Humidity 5% to 95% (non-condensing)
Operating Humidity 5% to 85%

[/properties]

[specifications]

Ethernet Technology 2.5 Gigabit Ethernet (mGig)
Maximum Data Rate 2.5 Gbps
Media Type Twisted Pair
PoE Voltage Nominal: −54 V (Range: −53 V to −55.8 V)
Status Indicators EN (Enable), Link (L), Activity (A)
LED Behavior Link: Off/Green; PoE Fault: Amber (on Link LED); Activity: Blinking Green
Expansion Slot Type NIM (Network Interface Module)
Compliance IEEE 802.3af/at/bt
Supported Features Layer 3 routed port, SD-WAN, vManage, Cellular Gateway Powering
Software Requirement Cisco IOS XE 17.6.1 or later

[/specifications]

Boost WAN Performance with Multigigabit UPOE+ Power

The Cisco C-NIM-1M is a high-efficiency 2.5-Gigabit Ethernet WAN module engineered specifically for Cisco Catalyst 8200, 8200L, and 8300 Series Edge Platforms. Designed to meet the demands of modern branch connectivity, it delivers multigigabit (mGig) bandwidth combined with integrated Cisco UPOE+ (IEEE 802.3bt). This allows the router to deliver up to 90W of power to external devices, such as cellular gateways, directly through the WAN port.

With support for 100/1000/2500BASE-T, this module enhances application throughput and provides the reliability required for high-speed SD-WAN, cloud workloads, and distributed enterprise environments. Its routed Layer 3 architecture ensures secure, isolated, and high-performance WAN access without Layer 2 switching overhead.

Key Benefits & Features
  • Multigigabit WAN Throughput: Native support for 100/1000/2500BASE-T ensures high-capacity WAN links for bandwidth-intensive applications.
  • Cisco UPOE+ (90W) Power: Delivers up to 90W (IEEE 802.3bt) to power external endpoints like 4G/5G cellular gateways directly from the router, eliminating the need for external power bricks.
  • Routed Layer 3 Architecture: Dedicated Layer 3 port design ensures secure, predictable routing and traffic termination (Layer 2 switching/VLANs not supported on this interface).
  • Broad Platform Compatibility: Fully supported on Catalyst 8200, 8200L, and 8300 Series routers (Requires IOS XE 17.6.1+).
  • Enterprise-Grade Reliability: Engineered for operation in 0–40°C environments with robust thermal management and carrier-grade build quality.
Ideal Use Cases
  • Branch locations requiring 2.5G WAN speeds for cloud application access
  • Powering and connecting Cellular Gateways (5G/LTE) via a single Ethernet cable using UPOE+
  • Cisco SD-WAN deployments utilizing Catalyst 8000 Edge Platforms
  • Enterprise edge routing requiring high-bandwidth copper connectivity
  • High-availability network expansion for distributed campuses
Technical Specifications
  • Port Configuration: 1 × RJ-45 (100/1000/2500BASE-T mGig)
  • Max Throughput: 2.5 Gbps
  • Power Over Ethernet: Cisco UPOE+ (90W), IEEE 802.3af/at/bt compliant
  • Supported Platforms: Catalyst 8200, 8200L, 8300 Series
  • Form Factor: Network Interface Module (NIM)
  • Dimensions: 1.25 × 3.50 × 7.24 in (32 × 89 × 184 mm)
  • Weight: 350 g (12.34 oz)
  • Installation: Online insertion supported; removal requires system power down (unless in SM-X adapter)
  • Power Supply: Nominal −54V (derived from host router)
Upgrade Your WAN Performance Today

Maximize your network edge with multigigabit speeds and integrated 90W power delivery. Order the Cisco C-NIM-1M Network Interface Module now.
