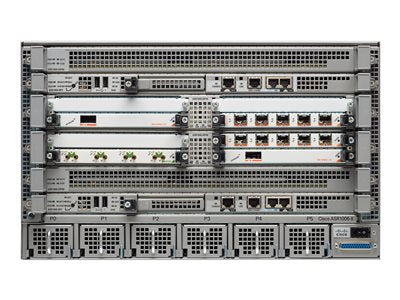

The Cisco ASR 1006-X Router is a high-performance, scalable, and resilient solution engineered for medium to high-end enterprise networks and service provider edge deployments. With support for up to 100 Gbps system bandwidth and 29 Gbps of IPsec throughput, the ASR 1006-X delivers exceptional performance for WAN aggregation, secure WAN, and Internet edge applications. Its 6RU form factor houses two 200 Gbps line card slots, offering future-ready support for high-density 1G, 10G, 40G, and 100G Ethernet ports. Designed for mission-critical environments, it enables high availability through redundant route processors and embedded services processors, along with N+1 power redundancy and front-to-back cooling via dual fan trays. The Cisco ASR 1006-X is also SPA and SIP compatible, providing flexible and diverse interface options to meet growing demands in data center interconnect, hybrid cloud connectivity, and intelligent WAN (IWAN) deployments.
| Specification Category |
Details |
| Model Number |
Cisco ASR1006-X |
| Product Type |
Aggregation Services Router |
| Form Factor |
Modular Chassis |
| Dimensions (H × W × D) |
8.75 in × 17.5 in × 29.75 in (22.23 cm × 44.45 cm × 75.57 cm) |
| Weight (Fully Configured) |
Approx. 95 lbs (43.1 kg) |
| Performance & Capacity |
Up to 100 Gbps throughput (expandable) |
| Chassis Slot Configuration |
6 slots for modular expansion |
| Redundancy Features |
Redundant power supply and fan trays |
| Interface Support |
Compatible with ASR1000 SPA Interface Processors |
| Ethernet Support |
10G, 40G, and 100G Ethernet interfaces |
| Power Consumption |
Approx. 1800W (maximum, fully loaded) |
| Operating Temperature |
41°F to 104°F (5°C to 40°C) |
| Storage Temperature |
-40°F to 158°F (-40°C to 70°C) |
| Cooling |
Redundant fan trays with front-to-back airflow |
| High Availability |
Supports In-Service Software Upgrade (ISSU) and Nonstop Forwarding (NSF) |
| Operating System |
Cisco IOS XE |
| Use Case |
Enterprise edge, service provider aggregation, scalable WAN infrastructure |
FAQs for Cisco ASR1006-X Router:
1. What is the maximum throughput capacity of the Cisco ASR1006-X?
The ASR1006-X supports up to 100 Gbps of throughput, with expansion capabilities based on the installed hardware and software licensing.
2. Can the ASR1006-X support redundant power supplies?
Yes, it comes with dual redundant power supplies for high availability and reliability.
3. What type of network interfaces are supported?
The router supports 10G, 40G, and 100G Ethernet interfaces, as well as various SPA interface modules.
4. Is the Cisco ASR1006-X suitable for SD-WAN deployments?
Yes, it supports SD-WAN features, making it ideal for enterprises and service providers looking for a scalable WAN solution.
5. How many slots are available for expansion?
The ASR1006-X has six modular slots, allowing for flexible network expansion and customization.
