Product Description

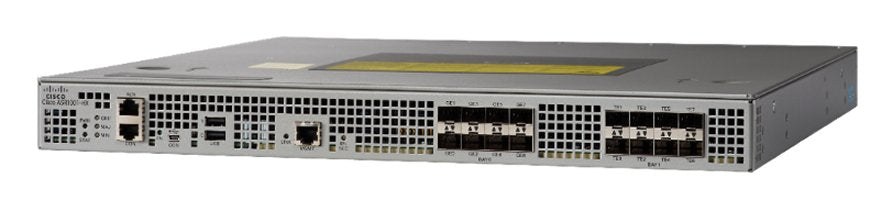

The Cisco ASR1001-HX Router is a powerful, compact edge router designed to deliver high performance, flexibility, and scalability for enterprise and service provider networks. Equipped with 4x10GE, 8x1GE, and 4x1/10GE ports, this router supports a variety of interface configurations to meet diverse networking needs. With advanced capabilities like high throughput, robust security, and seamless integration with Cisco IOS XE software, the ASR1001-HX ensures reliable and efficient network operations. Its compact form factor makes it an excellent choice for data centers, branch offices, and core networks that require top-tier performance without sacrificing space efficiency.
Product Specifications
| Specification |
Details |
| Model |
Cisco ASR1001-HX Router |
| Port Configuration |
4 x 10GE, 8 x 1GE, 4 x 1/10GE |
| Aggregate Throughput |
Up to 100 Gbps |
| Supported Software |
Cisco IOS XE |
| Use Cases |
Data centers, branch offices, and core networks |
| Advanced Features |
Integrated security, high availability, and service flexibility |
| Physical Form Factor |
Compact 1RU design for space efficiency |
| Power Efficiency |
Energy-efficient design for optimized power usage |
| Reliability |
Carrier-class reliability for mission-critical operations |
The ASR 1001-HX Router supports software redundancy without redundant hardware, just like Cisco ASR 1001-X, 1002-X, 1002-HX, and 1004 Routers. It is ideal for WAN aggregation or Internet edge devices, or managed services.
ASR 1001-HX features include:
- Up to 60 Gbps of total system bandwidth
- Field replaceable, optional, Crypto module capable of up to 29-Gb bandwidth
- Support for built-in front panel 4x10GE, 8x1GE, and 4 configurable 10-Gibabit-Ethernet (GE) and 1-GE ports
- Two AC or DC power supplies
- One field-replaceable fan tray for front-to-back airflow
The ASR 1001-HX is ideal for high-end enterprise branch offices and as a high-performance edge solution for a private WAN, including:
- WAN aggregation and secure WAN
- Internet edge
- Data center interconnect
- Cisco Intelligent WAN (IWAN)
