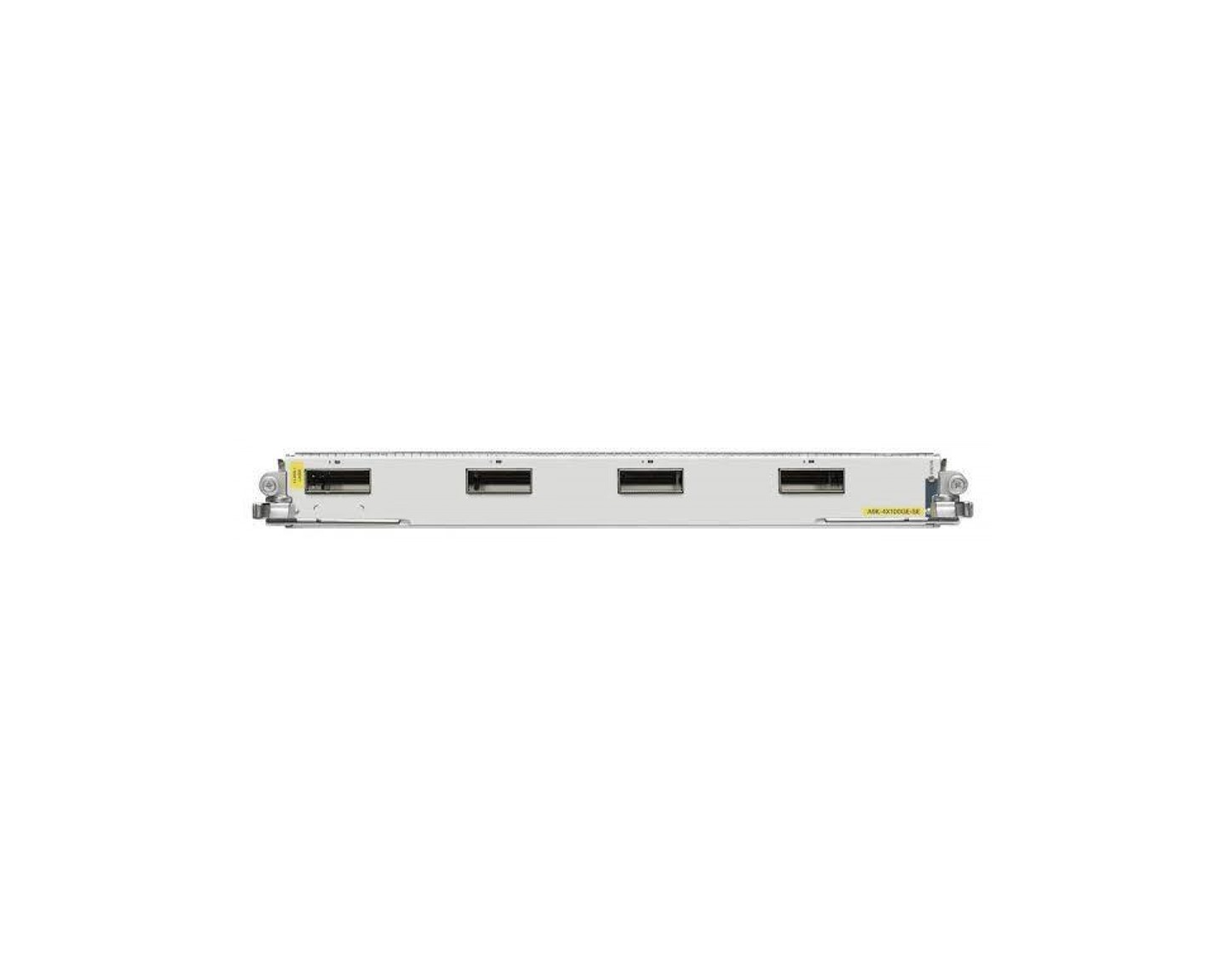

Boost Network Scalability with Cisco ASR 9000 A9K-4X100GE-SE Line Card

Overview:

The Cisco ASR 9000 A9K-4X100GE-SE line card is a high-capacity, high-performance line card designed for Cisco ASR 9000 Series Aggregation Services Routers. It offers four 100 Gigabit Ethernet (100GE) ports and is built to support high-bandwidth, low-latency applications essential for service providers and large-scale enterprise networks. With a Service Edge (SE) capability, this line card is optimized for network edge applications, providing enhanced features for seamless and scalable network management, quality of service (QoS), and advanced security.

Key Features:

1. 4 x 100 Gigabit Ethernet (100GE) Ports:

   • Delivers ultra-high-speed connectivity to meet the demands of data-intensive applications.
   • Compatible with various 100GE optical modules for deployment flexibility.

2. Service Edge (SE) Capability:

   • Supports complex network edge functions, including enhanced QoS, multicast, and advanced security.
   • Optimized for service provider networks, with features for managing high levels of subscriber traffic and services.

3. High Throughput and Scalability:

   • Provides up to 400 Gbps of forwarding capacity, making it ideal for high-density data environments.
   • Scalable architecture enables future growth without the need for hardware upgrades.

4. Carrier-Grade Reliability:

   • Fully redundant and resilient when deployed in Cisco ASR 9000 routers, reducing downtime and ensuring stable operation.
   • Hot-swappable design and modular components for easy maintenance and upgrades.

5. Advanced Security:

   • Integrated with Media Access Control Security (MACsec) to provide encrypted, secure communication channels.
   • Cisco Trust Sec architecture support enhances overall network security by segmenting and isolating data.

Technical Specifications:

Use Cases:

• Service Provider Edge Networks: Provides high-performance connectivity for supporting high-bandwidth applications like 5G, video streaming, and enterprise services.
• Data Center Interconnect (DCI): Offers seamless data center connectivity, delivering low latency and high throughput essential for cloud and data-intensive applications.
• Network Edge Applications: Optimized for edge computing environments, supporting complex data handling and traffic control with minimal latency.
• Enterprise Networks: Suitable for large-scale enterprise core and edge networks, where high-speed, secure connectivity is critical.

Benefits:

• High Density and Performance: Offers four 100GE ports, providing high-speed connections with future scalability.
• Optimized for Service Edge Applications: SE capabilities ensure high-quality service with features designed for network edge applications.
• Reliability and Redundancy: Compatible with ASR 9000’s architecture for reliable and resilient network performance.
• Enhanced Security: Includes MACsec encryption, Cisco TrustSec support, and other advanced security features to protect sensitive data.
• Advanced Traffic Management: SE functionality enhances traffic handling with detailed QoS and bandwidth management options.

FAQs:

1. What are the main applications for this line card?
• This card is ideal for service providers, large enterprises, and data centers requiring high-speed backhaul and interconnection.
2. Does the A9K-4X100GE-SE support advanced security features?
• Yes, it supports features like MACsec encryption, DoS protection, and ACLs for enhanced security.
3. Is this line card compatible with older ASR 9000 series chassis?
• Yes, but it is recommended to confirm compatibility with the exact chassis model and IOS XR software version.
4. What is the typical deployment scenario?
• Commonly deployed in aggregation networks, WAN backbones, and core routing architectures.
5. Can the ports on this card operate at lower speeds like 40GE?
• No, all ports are optimized for 100GE operation.
