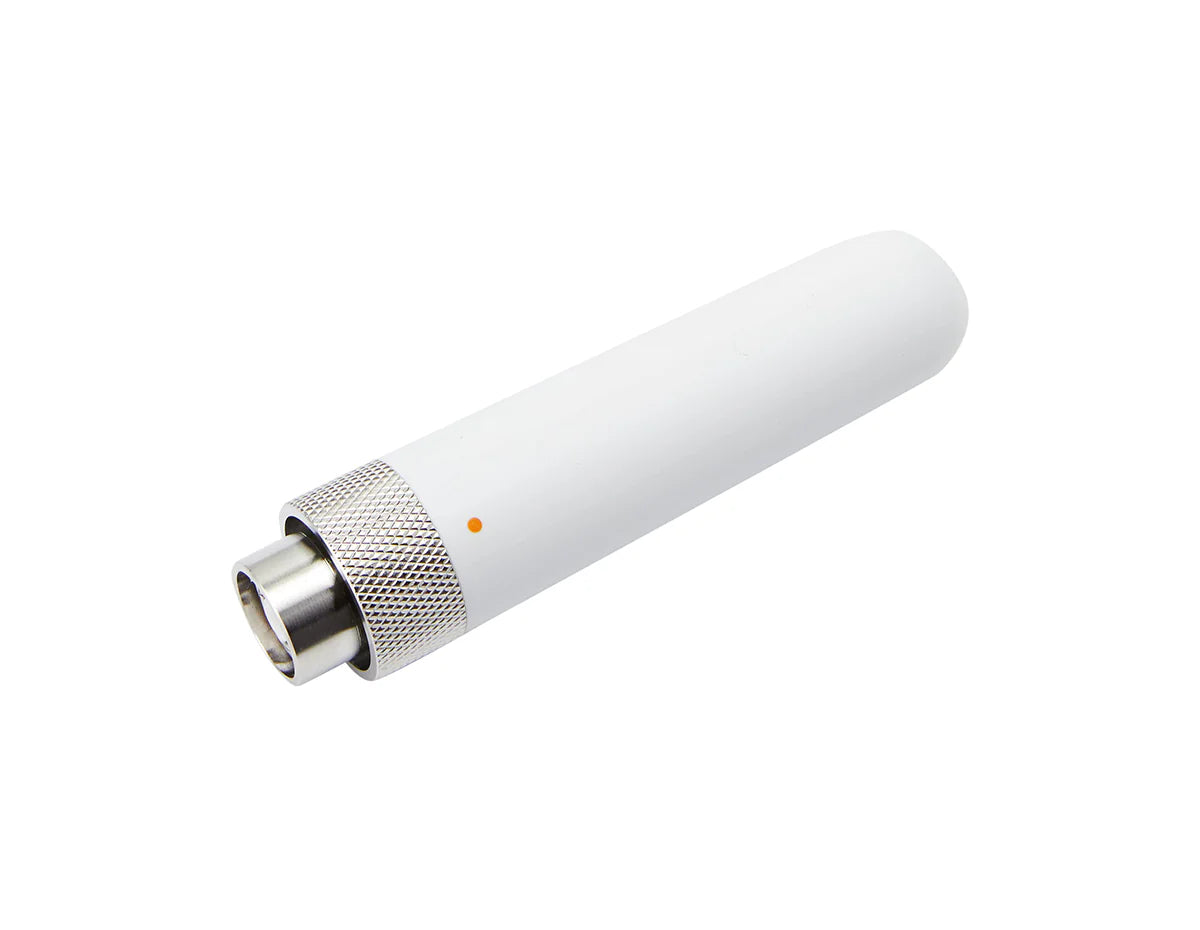

Cisco AIR-ANT2535SDW-RS Dual-Band Omni Antenna
Cisco AIR-ANT2535SDW-RS Dual-Band Omni Antenna

Cisco AIR-ANT2535SDW-RS Dual-Band Omni Antenna

por Cisco
Desconto de 28%
R$ 1.174,20
R$ 840,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] Cisco Short Dual-Band Omni Antenna, 3 dBi (2.4 GHz) / 5 dBi (5 GHz), RP-TNC Male, White, SIA support for Catalyst 9120AXE, Indoor [/shortdesc]

[properties]

Model AIR-ANT2535SDW-RS
Product Type Short Dual-Band Omni Antenna
Antenna Type Omnidirectional
Operational Frequency 2.4–2.5 GHz & 5.15–5.925 GHz
Nominal Input Impedance 50 Ohms
VSWR 2.0:1
Polarization Vertical
Peak Gain (2.4 GHz) 3 dBi
Peak Gain (5 GHz) 5 dBi
Elevation Beamwidth 35° (2.4 & 5 GHz)
Port-to-Port Isolation >20 dB (2.4 GHz); >23 dB (5 GHz)
Connector Type Male RP-TNC
SIA Capability Yes (Functions with Catalyst 9120AXE only)
UV Stability ASTM D-4674 Method 1
Dimensions (H x Dia) 3.3 in (8.4 cm) x 1.25 in (3.18 cm)
Weight 1.7 oz (0.05 kg)
Operating Temperature -30°C to 70°C
Storage Temperature -40°C to 85°C

[/properties]

[specifications]

Supported Bands 2.4 GHz Wi-Fi band; 5 GHz Wi-Fi band
Radiation Pattern Omnidirectional
AP Compatibility Cisco Aironet 1600, 2600, 2800, 3600, 3700, 3800 Series; Cisco Catalyst 9120AXE, 9115AXE
Controller Requirement (SIA) Cisco Catalyst 9800 Series (IOS-XE 17.4.1 or later); Not supported on AireOS
Indoor/Outdoor Use Indoor only
Mounting Direct AP connection using RP-TNC; tool-less installation
SIA Identification Color Purple marking (Indicates RS Model)

[/specifications]

The Cisco AIR-ANT2535SDW-RS is a compact, short dual-band omnidirectional antenna engineered for high-efficiency indoor wireless deployments. Designed to operate simultaneously over 2.4 GHz and 5 GHz Wi-Fi bands, it delivers consistent 360° coverage for environments requiring stable connectivity. This "RS" model features a unique Self-Identifying Antenna (SIA) capability via an integrated EEPROM, allowing the Cisco Catalyst 9120AXE Access Point to automatically detect the antenna type and gain, ensuring optimal configuration without manual tuning.

  • Dual-Band Operation: Supports 2.4–2.5 GHz and 5.15–5.925 GHz frequencies for flexible, high-performance indoor coverage across legacy and modern networks.
  • Optimized Gain: Provides 3 dBi (2.4 GHz) and 5 dBi (5 GHz) peak gain to enhance signal strength, range, and wireless stability.
  • Self-Identifying Capability (SIA): Integrated circuitry allows Cisco Catalyst 9120AXE series APs to auto-configure antenna gain and type (requires Catalyst 9800 controller with IOS-XE 17.4.1+).
  • Omnidirectional Pattern: Delivers uniform 360° coverage with a 35° elevation beamwidth to reduce dead zones.
  • Easy Identification: Features a purple color marking to distinguish it as an SIA-enabled model (compared to the orange-marked non-SIA version).
  • Durable Design: UV-stable white housing with a Male RP-TNC connector for secure, tool-free installation.
  • Indoor enterprise Wi-Fi deployments using Cisco Aironet or Catalyst APs.
  • High-density office environments requiring uniform wireless coverage.
  • Deployments utilizing the Cisco Catalyst 9120AXE where auto-provisioning is desired.
  • Indoor areas where compact antennas and minimal visual impact are preferred.
  • Antenna Type: Indoor omnidirectional
  • Frequency Range: 2.4–2.5 GHz & 5.15–5.925 GHz
  • Peak Gain: 3 dBi (2.4 GHz), 5 dBi (5 GHz)
  • Impedance: 50 Ohms
  • VSWR: 2.0:1
  • Polarization: Vertical
  • Connector: RP-TNC Male
  • Dimensions: 3.3 in (H) × 1.25 in (D)
  • Weight: 1.7 oz (0.05 kg)

Enhance wireless reliability and coverage instantly with this compact, dual-band Cisco antenna. Order today to optimize your Catalyst 9120AXE deployment.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] Cisco Short Dual-Band Omni Antenna, 3 dBi (2.4 GHz) / 5 dBi (5 GHz), RP-TNC Male, White, SIA support for Catalyst 9120AXE, Indoor [/shortdesc]

[properties]

Model AIR-ANT2535SDW-RS
Product Type Short Dual-Band Omni Antenna
Antenna Type Omnidirectional
Operational Frequency 2.4–2.5 GHz & 5.15–5.925 GHz
Nominal Input Impedance 50 Ohms
VSWR 2.0:1
Polarization Vertical
Peak Gain (2.4 GHz) 3 dBi
Peak Gain (5 GHz) 5 dBi
Elevation Beamwidth 35° (2.4 & 5 GHz)
Port-to-Port Isolation >20 dB (2.4 GHz); >23 dB (5 GHz)
Connector Type Male RP-TNC
SIA Capability Yes (Functions with Catalyst 9120AXE only)
UV Stability ASTM D-4674 Method 1
Dimensions (H x Dia) 3.3 in (8.4 cm) x 1.25 in (3.18 cm)
Weight 1.7 oz (0.05 kg)
Operating Temperature -30°C to 70°C
Storage Temperature -40°C to 85°C

[/properties]

[specifications]

Supported Bands 2.4 GHz Wi-Fi band; 5 GHz Wi-Fi band
Radiation Pattern Omnidirectional
AP Compatibility Cisco Aironet 1600, 2600, 2800, 3600, 3700, 3800 Series; Cisco Catalyst 9120AXE, 9115AXE
Controller Requirement (SIA) Cisco Catalyst 9800 Series (IOS-XE 17.4.1 or later); Not supported on AireOS
Indoor/Outdoor Use Indoor only
Mounting Direct AP connection using RP-TNC; tool-less installation
SIA Identification Color Purple marking (Indicates RS Model)

[/specifications]

High-Performance Indoor Coverage for Cisco Access Points

The Cisco AIR-ANT2535SDW-RS is a compact, short dual-band omnidirectional antenna engineered for high-efficiency indoor wireless deployments. Designed to operate simultaneously over 2.4 GHz and 5 GHz Wi-Fi bands, it delivers consistent 360° coverage for environments requiring stable connectivity. This "RS" model features a unique Self-Identifying Antenna (SIA) capability via an integrated EEPROM, allowing the Cisco Catalyst 9120AXE Access Point to automatically detect the antenna type and gain, ensuring optimal configuration without manual tuning.

Key Benefits & Features
  • Dual-Band Operation: Supports 2.4–2.5 GHz and 5.15–5.925 GHz frequencies for flexible, high-performance indoor coverage across legacy and modern networks.
  • Optimized Gain: Provides 3 dBi (2.4 GHz) and 5 dBi (5 GHz) peak gain to enhance signal strength, range, and wireless stability.
  • Self-Identifying Capability (SIA): Integrated circuitry allows Cisco Catalyst 9120AXE series APs to auto-configure antenna gain and type (requires Catalyst 9800 controller with IOS-XE 17.4.1+).
  • Omnidirectional Pattern: Delivers uniform 360° coverage with a 35° elevation beamwidth to reduce dead zones.
  • Easy Identification: Features a purple color marking to distinguish it as an SIA-enabled model (compared to the orange-marked non-SIA version).
  • Durable Design: UV-stable white housing with a Male RP-TNC connector for secure, tool-free installation.
Ideal Use Cases
  • Indoor enterprise Wi-Fi deployments using Cisco Aironet or Catalyst APs.
  • High-density office environments requiring uniform wireless coverage.
  • Deployments utilizing the Cisco Catalyst 9120AXE where auto-provisioning is desired.
  • Indoor areas where compact antennas and minimal visual impact are preferred.
Technical Specifications
  • Antenna Type: Indoor omnidirectional
  • Frequency Range: 2.4–2.5 GHz & 5.15–5.925 GHz
  • Peak Gain: 3 dBi (2.4 GHz), 5 dBi (5 GHz)
  • Impedance: 50 Ohms
  • VSWR: 2.0:1
  • Polarization: Vertical
  • Connector: RP-TNC Male
  • Dimensions: 3.3 in (H) × 1.25 in (D)
  • Weight: 1.7 oz (0.05 kg)
Upgrade Your Cisco Wireless Deployment

Enhance wireless reliability and coverage instantly with this compact, dual-band Cisco antenna. Order today to optimize your Catalyst 9120AXE deployment.
