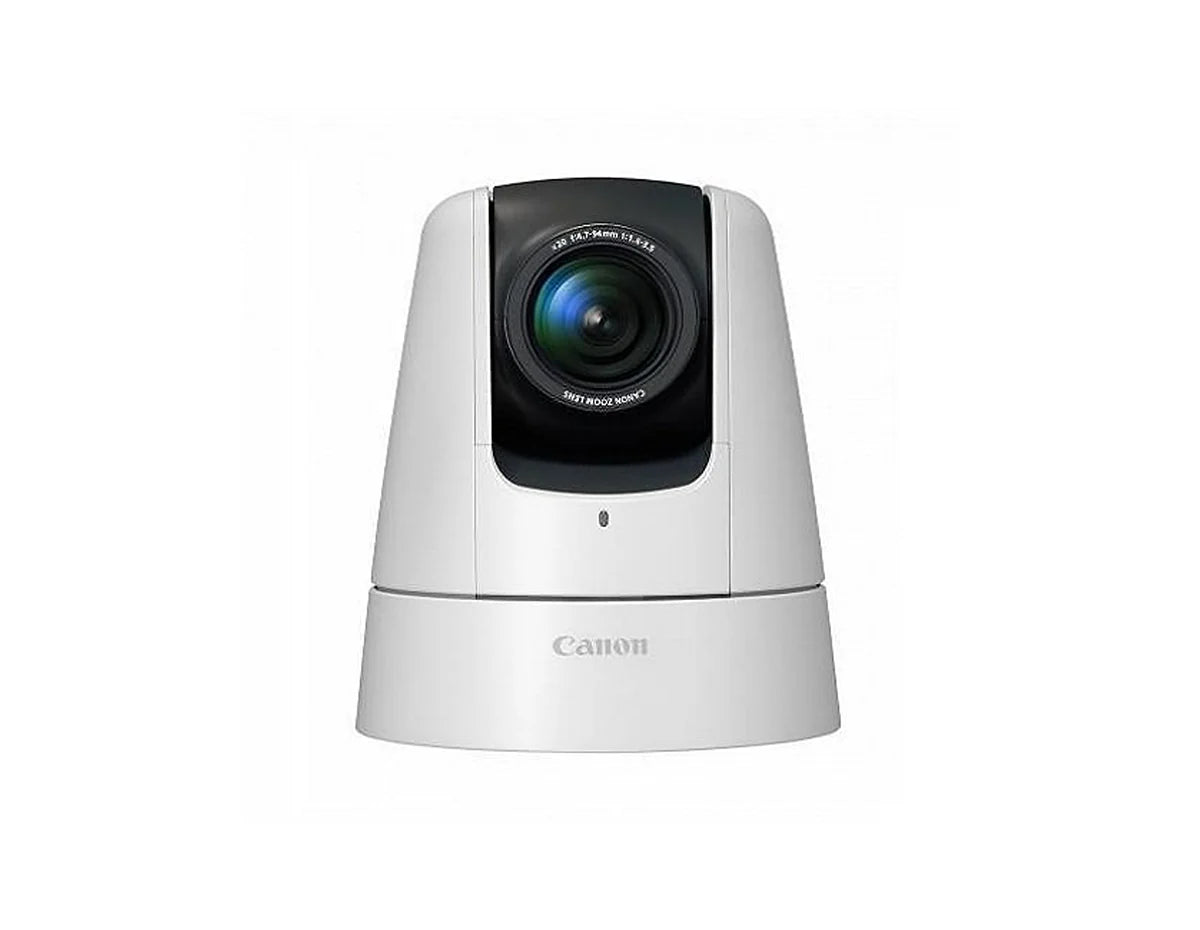

Canon VB-M46W Network Camera Titanium White (5716C001)
Canon VB-M46W Network Camera Titanium White (5716C001)

Canon VB-M46W Network Camera Titanium White (5716C001)

por Axis
R$ 30.948,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 1.3MP CMOS, 20x optical zoom, 340° pan, H.265/H.264, PoE powered [/shortdesc]

[properties]

Model Canon VB-M46
SKU 5716C001AA (White) / 5716C002AA (Black)
Product Type PTZ IP Security Camera
Image Sensor 1/2.8 type CMOS
Effective Pixels Approx. 1.3 Megapixels
Optical Zoom 20x
Digital Zoom 16x
Focal Length 4.7 mm (W) – 94 mm (T)
Maximum Resolution 1280 × 960
Video Compression JPEG, H.264, H.265
Frame Rate Up to 60 fps (60 Hz) / 50 fps (50 Hz)
Pan Range 340° (±170°)
Tilt Range 100° (ceiling-mounted: -90° to +10°)
Minimum Illumination Color: 0.02 lux; Mono: 0.003 lux
WDR Available
Power Supply PoE (IEEE802.3at Type1), 12 V DC, AC Adapter PA-V18 (sold separately)
Power Consumption PoE: Max. approx. 9.1 W; DC: Max. approx. 7.9 W
Network Interface RJ45, 100Base-TX (Auto)
Memory Card Support SD, SDHC, SDXC (Class 10 recommended)
Operating Temperature -10°C to +50°C
Dimensions (Ø × H) Ø132 × 155 mm
Weight Approx. 1100 g

[/properties]

[specifications]

Angle of View 16:9 – Horizontal: 62.4° (W) to 3.3° (T); Vertical: 36.3° (W) to 1.9° (T). 4:3 – Horizontal: 47.9° (W) to 2.5° (T); Vertical: 36.3° (W) to 1.9° (T)
Day/Night Mode Auto / Day Mode / Night Mode (IR cut filter)
Shutter Speed 1/1 to 1/16000 sec.
Exposure Control Auto, Flickerless, Shutter-priority AE, Aperture-priority AE, Manual
White Balance Auto / Manual
Image Enhancements WDR, Smart Shade Control, Haze Compensation, AGC Limit, Motion-Adaptive NR, Image Stabilizer
Moving Speed Pan: Max. 150°/sec.; Tilt: Max. 150°/sec.
Simultaneous Clients Max. 30 Clients + 1 Admin (H.264: Max. 10; H.265: Max. 10)
Bit Rate Control CBR, VBR, MBR
Audio Compression G.711 μ-law (64 kbps), AAC (16/48 KHz, 16/32/64/96/128 Kbps)
Audio Communication Full-duplex (two-way) / Half-duplex
External I/O 2 × Inputs, 2 × Outputs
Security User authentication, Host access restrictions (IPv4/IPv6), IEEE802.1X (EAP-TLS, EAP-TTLS, EAP-PEAP), SSL/TLS
Protocols IPv4, IPv6, TCP/IP, UDP, HTTP, SNMPv1/v2c/v3, DHCP, DNS, NTP, SMTP, RTP/RTCP, RTSP, ONVIF
ONVIF Profile Profile-S, Profile-G, Profile-T
Intelligent Functions Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection, Volume Detection, Face Detection
Operating Humidity 5% – 85% (without condensation)
Storage Temperature -30°C to +60°C

[/specifications]

[accesories]

Included VB-M46 Main Unit; Power Connector; Before Using This Camera
Optional Accessories Indoor Dome Housing DR41-C-VB; Indoor Dome Housing DR41-S-VB; Ceiling Mount Cover SS40-W-VB; Ceiling Mount Cover SS40-B-VB; Pendant Mounting Kit PC600-VB

[/accesories]

The Canon VB-M46 is a professional 1.3MP PTZ IP security camera engineered for high-visibility indoor surveillance. Equipped with a powerful 20x optical zoom and advanced Wide Dynamic Range (WDR), it captures clear, detailed footage even in challenging lighting conditions. With fast, high-precision pan, tilt, and zoom performance, the VB-M46 ensures critical areas remain in focus at all times.

  • 20x Optical Zoom with Autofocus: The 4.7–94mm lens with F1.6–F3.5 aperture delivers detailed close-ups and a wide 62.4° horizontal viewing angle, ensuring flexible scene coverage for large indoor spaces.
  • Exceptional Low-Light Performance: Advanced sensors capture color images at 0.02 lux and monochrome at 0.003 lux, maintaining high-resolution clarity in dim environments such as warehouses or retail floors.
  • Advanced PTZ Mechanics: A 340° pan range and 100° tilt range with speeds up to 150°/sec allow for rapid, precise repositioning across expansive monitoring areas.
  • H.265 / H.264 Multi-Stream Video: Delivering 1.3M resolution at 60 fps with simultaneous multi-stream output, this camera optimizes bandwidth without compromising video quality.
  • Enterprise-Grade Security & Compliance: Fully ONVIF Profile S, G, and T compliant with SSL/TLS encryption and IEEE 802.1X authentication for secure network integration.
  • Retail stores requiring flexible PTZ monitoring and loss prevention
  • Corporate offices, lobbies, and reception areas
  • Warehouses and logistics facilities for asset tracking
  • Educational campuses and public building hallways
  • Indoor critical infrastructure monitoring
  • Image Sensor: 1/2.8 type CMOS, approx. 1.3 megapixels
  • Lens: 20x optical zoom, 16x digital zoom, fast autofocus
  • Focal Length: 4.7–94 mm (35mm equivalent: 30.5–610 mm)
  • Minimum Illumination: 0.02 lux (color), 0.003 lux (mono)
  • Pan/Tilt Range: 340° pan (±170°), 100° tilt (-90° to +10°)
  • Video Compression: JPEG, H.264, H.265
  • Max Frame Rate: Up to 60 fps (60 Hz) / 50 fps (50 Hz)
  • Network Interface: RJ45, 100Base-TX (Auto)
  • Power Supply: PoE IEEE802.3at Type 1 or 12V DC
  • Dimensions: Φ132 x 155 mm; Weight approx. 1100 g

Enhance indoor security with precise zoom, intelligent detection functions, and reliable Canon imaging technology. Order your Canon VB-M46 today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 1.3MP CMOS, 20x optical zoom, 340° pan, H.265/H.264, PoE powered [/shortdesc]

[properties]

Model Canon VB-M46
SKU 5716C001AA (White) / 5716C002AA (Black)
Product Type PTZ IP Security Camera
Image Sensor 1/2.8 type CMOS
Effective Pixels Approx. 1.3 Megapixels
Optical Zoom 20x
Digital Zoom 16x
Focal Length 4.7 mm (W) – 94 mm (T)
Maximum Resolution 1280 × 960
Video Compression JPEG, H.264, H.265
Frame Rate Up to 60 fps (60 Hz) / 50 fps (50 Hz)
Pan Range 340° (±170°)
Tilt Range 100° (ceiling-mounted: -90° to +10°)
Minimum Illumination Color: 0.02 lux; Mono: 0.003 lux
WDR Available
Power Supply PoE (IEEE802.3at Type1), 12 V DC, AC Adapter PA-V18 (sold separately)
Power Consumption PoE: Max. approx. 9.1 W; DC: Max. approx. 7.9 W
Network Interface RJ45, 100Base-TX (Auto)
Memory Card Support SD, SDHC, SDXC (Class 10 recommended)
Operating Temperature -10°C to +50°C
Dimensions (Ø × H) Ø132 × 155 mm
Weight Approx. 1100 g

[/properties]

[specifications]

Angle of View 16:9 – Horizontal: 62.4° (W) to 3.3° (T); Vertical: 36.3° (W) to 1.9° (T). 4:3 – Horizontal: 47.9° (W) to 2.5° (T); Vertical: 36.3° (W) to 1.9° (T)
Day/Night Mode Auto / Day Mode / Night Mode (IR cut filter)
Shutter Speed 1/1 to 1/16000 sec.
Exposure Control Auto, Flickerless, Shutter-priority AE, Aperture-priority AE, Manual
White Balance Auto / Manual
Image Enhancements WDR, Smart Shade Control, Haze Compensation, AGC Limit, Motion-Adaptive NR, Image Stabilizer
Moving Speed Pan: Max. 150°/sec.; Tilt: Max. 150°/sec.
Simultaneous Clients Max. 30 Clients + 1 Admin (H.264: Max. 10; H.265: Max. 10)
Bit Rate Control CBR, VBR, MBR
Audio Compression G.711 μ-law (64 kbps), AAC (16/48 KHz, 16/32/64/96/128 Kbps)
Audio Communication Full-duplex (two-way) / Half-duplex
External I/O 2 × Inputs, 2 × Outputs
Security User authentication, Host access restrictions (IPv4/IPv6), IEEE802.1X (EAP-TLS, EAP-TTLS, EAP-PEAP), SSL/TLS
Protocols IPv4, IPv6, TCP/IP, UDP, HTTP, SNMPv1/v2c/v3, DHCP, DNS, NTP, SMTP, RTP/RTCP, RTSP, ONVIF
ONVIF Profile Profile-S, Profile-G, Profile-T
Intelligent Functions Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection, Volume Detection, Face Detection
Operating Humidity 5% – 85% (without condensation)
Storage Temperature -30°C to +60°C

[/specifications]

[accesories]

Included VB-M46 Main Unit; Power Connector; Before Using This Camera
Optional Accessories Indoor Dome Housing DR41-C-VB; Indoor Dome Housing DR41-S-VB; Ceiling Mount Cover SS40-W-VB; Ceiling Mount Cover SS40-B-VB; Pendant Mounting Kit PC600-VB

[/accesories]

Keep Every Angle Covered with Precision PTZ Control

The Canon VB-M46 is a professional 1.3MP PTZ IP security camera engineered for high-visibility indoor surveillance. Equipped with a powerful 20x optical zoom and advanced Wide Dynamic Range (WDR), it captures clear, detailed footage even in challenging lighting conditions. With fast, high-precision pan, tilt, and zoom performance, the VB-M46 ensures critical areas remain in focus at all times.

Key Benefits & Features
  • 20x Optical Zoom with Autofocus: The 4.7–94mm lens with F1.6–F3.5 aperture delivers detailed close-ups and a wide 62.4° horizontal viewing angle, ensuring flexible scene coverage for large indoor spaces.
  • Exceptional Low-Light Performance: Advanced sensors capture color images at 0.02 lux and monochrome at 0.003 lux, maintaining high-resolution clarity in dim environments such as warehouses or retail floors.
  • Advanced PTZ Mechanics: A 340° pan range and 100° tilt range with speeds up to 150°/sec allow for rapid, precise repositioning across expansive monitoring areas.
  • H.265 / H.264 Multi-Stream Video: Delivering 1.3M resolution at 60 fps with simultaneous multi-stream output, this camera optimizes bandwidth without compromising video quality.
  • Enterprise-Grade Security & Compliance: Fully ONVIF Profile S, G, and T compliant with SSL/TLS encryption and IEEE 802.1X authentication for secure network integration.
Ideal Use Cases
  • Retail stores requiring flexible PTZ monitoring and loss prevention
  • Corporate offices, lobbies, and reception areas
  • Warehouses and logistics facilities for asset tracking
  • Educational campuses and public building hallways
  • Indoor critical infrastructure monitoring
Technical Specifications
  • Image Sensor: 1/2.8 type CMOS, approx. 1.3 megapixels
  • Lens: 20x optical zoom, 16x digital zoom, fast autofocus
  • Focal Length: 4.7–94 mm (35mm equivalent: 30.5–610 mm)
  • Minimum Illumination: 0.02 lux (color), 0.003 lux (mono)
  • Pan/Tilt Range: 340° pan (±170°), 100° tilt (-90° to +10°)
  • Video Compression: JPEG, H.264, H.265
  • Max Frame Rate: Up to 60 fps (60 Hz) / 50 fps (50 Hz)
  • Network Interface: RJ45, 100Base-TX (Auto)
  • Power Supply: PoE IEEE802.3at Type 1 or 12V DC
  • Dimensions: Φ132 x 155 mm; Weight approx. 1100 g
Upgrade Your Surveillance with Intelligent PTZ Control

Enhance indoor security with precise zoom, intelligent detection functions, and reliable Canon imaging technology. Order your Canon VB-M46 today.
