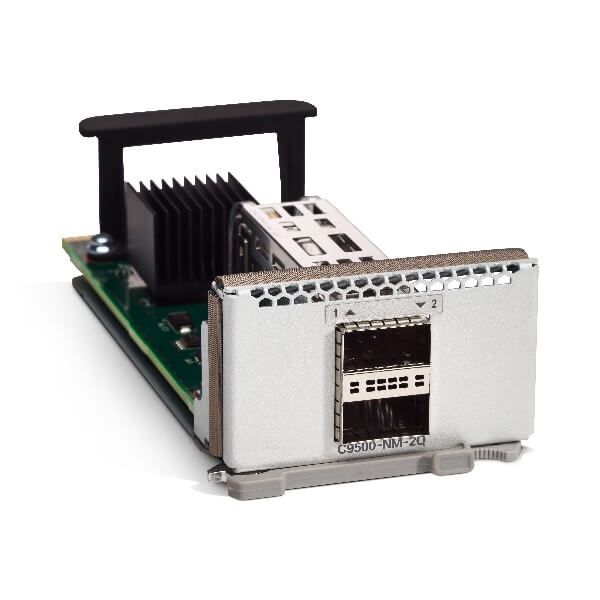

The Cisco Catalyst C9500-NM-2Q is a high-performance 40 Gigabit Ethernet network module engineered to extend the uplink capacity of Cisco Catalyst 9500 Series core switches. Featuring two QSFP+ ports, this hot-swappable module delivers up to 80 Gbps of aggregate bandwidth, enabling high-speed connectivity between core, distribution, and data center layers.
Designed for modern enterprise and campus core environments, the C9500-NM-2Q eliminates network bottlenecks by providing scalable, high-density 40G uplinks. It supports a wide range of Cisco QSFP+ transceivers and direct-attach copper cables, allowing flexible deployment from short-range connections to long-distance fiber links.
With seamless integration into Cisco IOS XE and Cisco DNA Center, the module ensures simplified deployment, centralized management, and enhanced operational visibility. Its hot-pluggable design enables installation or replacement without powering down the switch, ensuring continuous uptime for mission-critical networks.
Ideal for enterprise core aggregation, high-speed campus backbones, and data center interconnects, the Cisco C9500-NM-2Q provides the scalability, performance, and investment protection required for evolving high-bandwidth infrastructures.
Product Specifications – Cisco Catalyst C9500-NM-2Q Network Module
CLICK HERE FOR DATA SHEET
| Specification Category |
Details |
| Product Name |
Cisco Catalyst C9500-NM-2Q Network Module |
| Manufacturer |
Cisco Systems |
| Part Number |
C9500-NM-2Q |
| Module Type |
Pluggable Network Expansion Module |
| Compatibility |
Cisco Catalyst 9500 Series Switches (e.g., C9500-16X, C9500-40X, C9500-24Q, C9500-32C) |
| Interface Ports |
2 × 40 Gigabit Ethernet QSFP+ |
| Maximum Throughput |
40 Gbps per port (80 Gbps aggregate) |
| Connector Type |
QSFP+ |
| Supported Media |
Fiber (QSFP-40G-SR4, LR4, CSR4) and Copper DAC (QSFP-H40G-CU) |
| Transmission Distance |
From a few meters (DAC/AOC) up to 10 km (LR4 optics) |
| Form Factor |
Hot-pluggable network module |
| Hot Swappable |
Yes |
| Installation |
Field-replaceable, tool-less installation |
| Performance |
Non-blocking 40G uplink connectivity for core and aggregation layers |
| Network Architecture Support |
Enterprise core, aggregation, campus backbone, high-speed uplinks |
| Operational Integration |
Automatically recognized by Cisco IOS XE and Cisco DNA Center |
| High Availability Support |
Enables redundant uplink designs using EtherChannel or dual-core connectivity |
| Standards Compliance |
IEEE 802.3ba 40 Gigabit Ethernet |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Typical Use Cases |
High-speed core uplinks, aggregation layer connectivity, data center interconnects, campus backbone expansion |
| Key Benefits |
Enables 40G high-bandwidth uplinks, supports flexible fiber & copper connectivity, hot-swappable for zero downtime, protects investment by extending switch capabilities |
FAQs:
Q1. Can this module be used in Catalyst 9300 or 9200 switches?
No. The C9500-NM-2Q is physically and electronically designed specifically for the Catalyst 9500 Series. The 9300 and 9200 series use their own specific sets of network modules (e.g., C9300-NM or C9200-NM).
Q2. Does this module support 4x10G breakout functionality?
Yes, on supported Catalyst 9500 platforms running appropriate Cisco IOS-XE versions, the 40G ports can be configured to "break out" into 4 x 10G SFP+ ports using a MPO-to-8-LC breakout cable.
Q3. Is a reboot required after inserting the C9500-NM-2Q?
No. The module is hot-swappable. However, it is always a best practice to check the console logs to ensure the module is recognized and the interfaces are initialized correctly.
Q4. Can I mix this module with other C9500 modules in the same switch?
The Catalyst 9500 switches that support modular uplinks typically have one slot. You can choose either the 8x10G (C9500-NM-8X) or this 2x40G module depending on your specific port requirements.
Q5. What transceivers are recommended for short-distance connections?
For connections within the same rack or room, the QSFP-H40G-CU3M (3-meter Direct Attach Cable) or the QSFP-40G-SR4 (Short Range fiber) are the most common and cost-effective choices.
